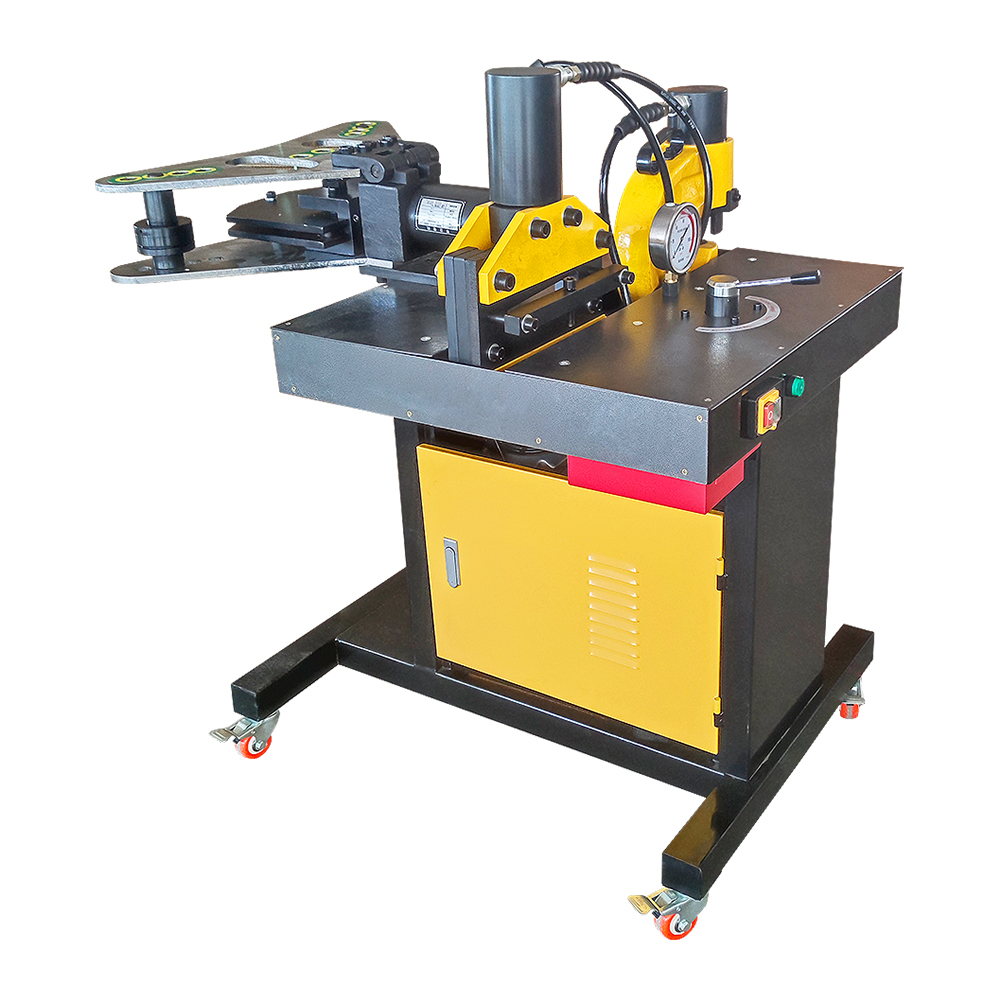

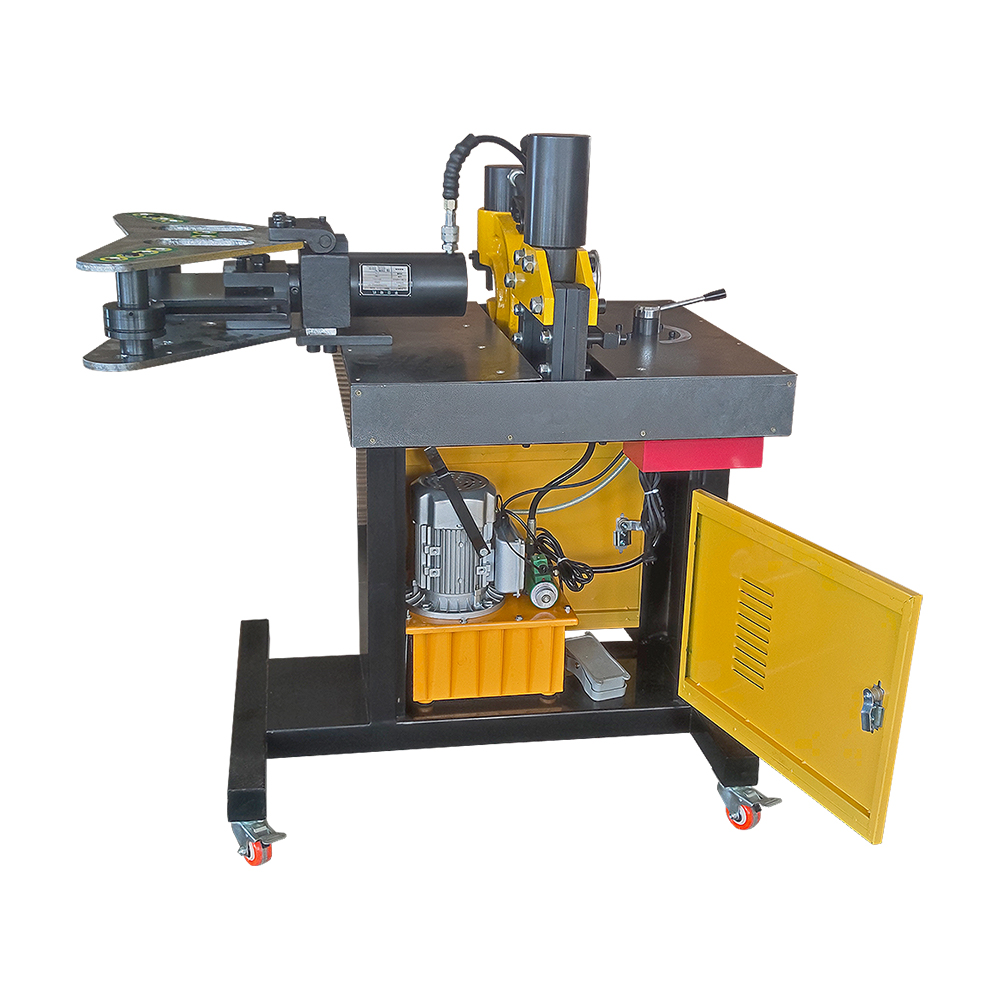

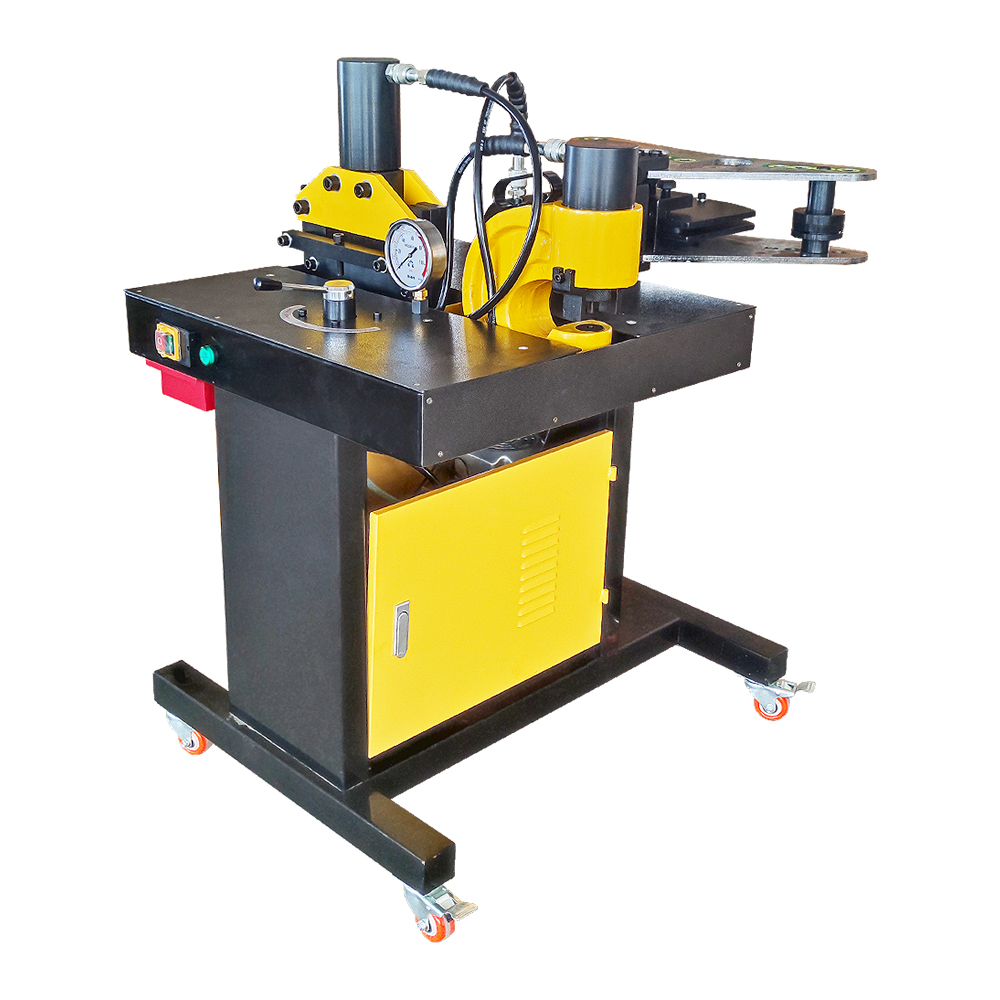

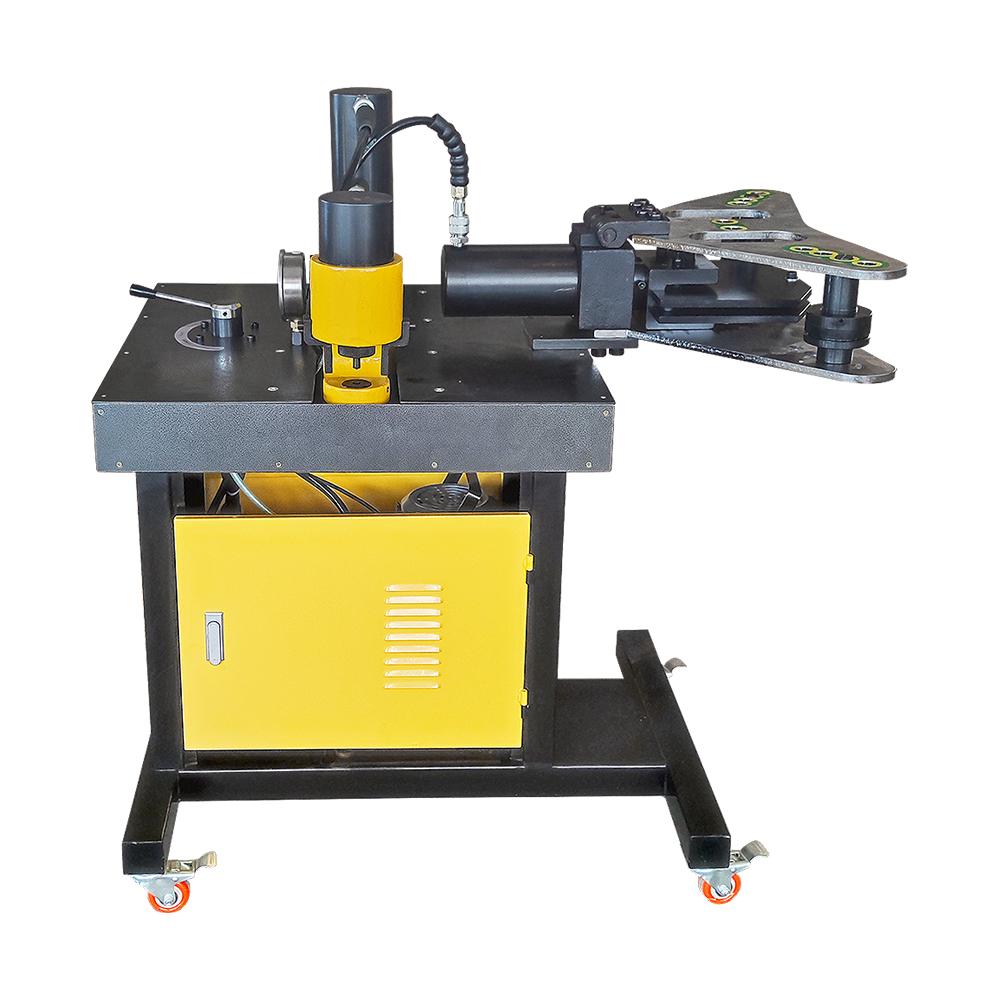

DHY Series 3-in-1 Hydraulic Busbar Processing Machine is the ultimate solution for fast, precise, and reliable busbar fabrication. Designed for panel manufacturers, electrical workshops, and industrial assembly, this machine combines cutting, punching, and bending in a single, compact unit.
| Model | DHY-401 |
| Functions | With three functions, cutting, punching, and bending |
| Input/control voltage | Single phase 50Hz, 220V |
| Rating working oil pressure | 700kgf/cm² |
| Cutting output | 35Ton |
| Busbar cutting capability | Copper bus bar/aluminum bus bar 200mm×12mm |
| Punching output | 35Ton |
| Hole to edge distance | 110mm |
| Punching Capability | Copper: 6- 20.5 mm / Aluminium 12 mm |
| Standard assembled punching dies | 7、9、10.5、13.8、17、20.5mm |
| Bending output | 35Ton |
| Horizontal bending capability | 125×12.5mm |
Applications
Ideal for electrical manufacturing, power distribution panels, industrial busbar assembly, and metalworking, the DHY Series delivers high efficiency, multifunctionality, and durable performance in one integrated machine.
Why Customers Choose DHY Series
All-in-One Efficiency: Perform cutting, punching, and bending without switching machines, saving time and labor costs.
Wide Busbar Compatibility: Handles copper and aluminum busbars up to 200 mm wide and 12 mm thick, accommodating a variety of industrial needs.
High Power & Precision: Up to 35 tons of cutting and punching force, ensuring smooth, accurate results on thick busbars.
Safe & User-Friendly: Footswitch-controlled electric pump enables hands-free operation, while a manual valve system allows quick mode switching. Shockproof pressure gauges ensure stable readings, and the main power switch provides instant emergency shutdown.
Flexible Punching Options: Standard dies (7–20.5 mm) cover multiple hole sizes for diverse assembly requirements.
Portable & Compact: Universal caster wheels make moving the machine across workshops or job sites effortless.
Precise Horizontal Bending: Bends up to 125 × 12.5 mm for perfectly shaped busbars in switchgear and panels.
