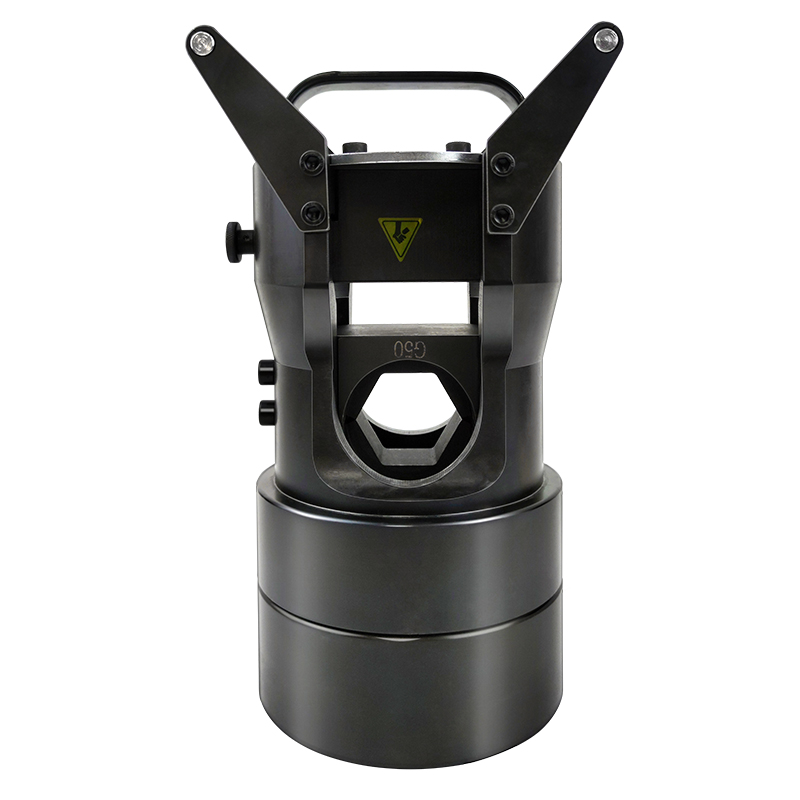

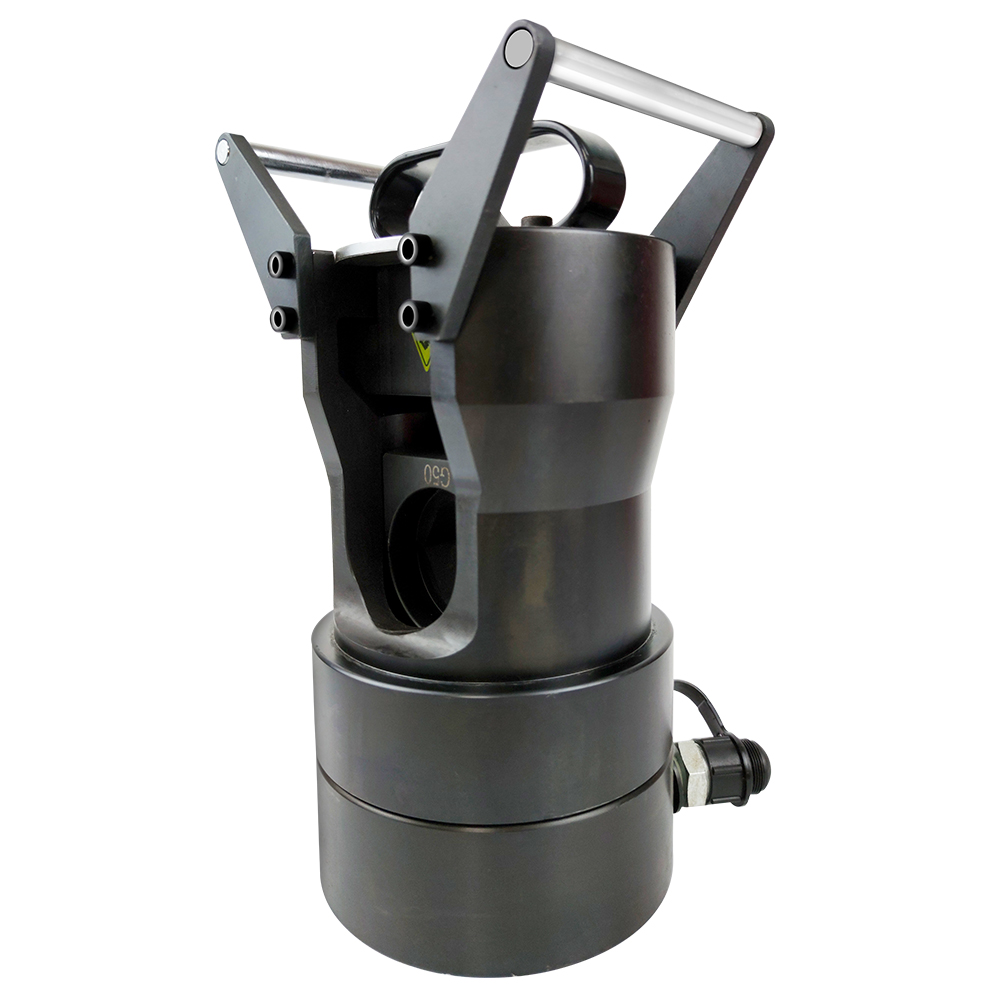

CO Series Hydraulic Crimping Machines (CO-60S, CO-100S, CO-300) are professional heavy-duty hydraulic press tools designed for crimping steel wire ropes and copper/aluminum cable terminals. Featuring double-acting hydraulic cylinders, these machines provide fast crimping and quick piston return, ensuring efficient operation even under demanding industrial conditions.
Each model comes with high-strength molds (aluminum or steel), rotary or removable mold covers, and male connectors with dust caps to ensure precise, secure, and clean connections. The machines are portable with ergonomic handles and safety locks to protect the operator during use. These tools require a compatible manual or electric hydraulic pump (sold separately).
| Nominal section（mm2） | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Repair Pipe Equipment Clamp L | - | - | - | 16 | 18 | 22 | 26 | 26 | 28/30 | 32/34 |
| Aluminum terminal L | 9 | 10 | 12 | 14 | 16 | 18 | 21 | 23 | 25 | 27 |
| Copper terminal L | 8 | 9 | 10 | 12 | 16 | 16 | 18 | 21 | 23 | 25 |
| Nominal section (mm²) | 240 | 300 | 400 | 500 | 630 | 720 | 800 | 1000 | 1400 | 1440 |
| Repair Pipe Equipment Clamp L | 36 | 40 | 45 | 52 | 60 | 60 | 65 | 70 | 76 | 80 |
| Aluminum terminal L | 31 | 34 | 38/40 | 47 | 54 | * | 60 | - | - | - |
| Copper terminal L | 27 | 31 | 34 | 38 | 45 | * | 50 | 56 | - | - |
| Strand GJ | 25 | 35 | 50 | 55 | 70 | 80 | 100 | 120 | 135 | 150 |
| Steel mold G | 14 | 16 | 18 | 22 | 22 | 24 | 26 | 28 | 30 | 32 |
| Max Force | 100T | Crimping Type | Hexagon |
| Max Stroke | 24mm | Weight | Approx. 35 kg (exclude dies) |
| Crimping Range | Steel-aluminum terminal casing ≤Φ65mm, copper casing 800mm² | ||
| Model | CO-300 | Stroke | 16mm |
| Tonnage | 10T | Crimp Range | 16-300mm² |
| Mold configuration | 16/25/35/50/70/95/120/150/185/240/300mm² | ||
Key Features
Heavy-duty hydraulic press for steel wire ropes and copper/aluminum terminals
Double-acting hydraulic cylinder for fast crimping and quick return
Removable or rotary mold covers for easy die changes
Aluminum or steel molds for versatile applications
Male connector with dust cap for clean and precise connections
Multiple safety locks and ergonomic handles for secure operation
Portable design for industrial and field applications
Requires a compatible hydraulic pump (manual or electric, sold separately)
Technical Specifications
CO-60S: Split-type design, suitable for small-to-medium steel wire ropes; portable and compact.
CO-100S: 100T hydraulic cylinder, designed for overhead tensile casing above 110KV and underground cable connections; dual handles for easier transport.
CO-300: High-capacity industrial model, effective hexagonal crimping head for copper/aluminum terminal connections; thicker mold design for enhanced grip and durability.
Applications
The CO Series is widely used in power transmission, electrical installations, industrial wiring, petrochemical, metallurgy, shipbuilding, and other heavy-duty construction applications. Ideal for professionals requiring precise, safe, and high-efficiency hydraulic crimping.
