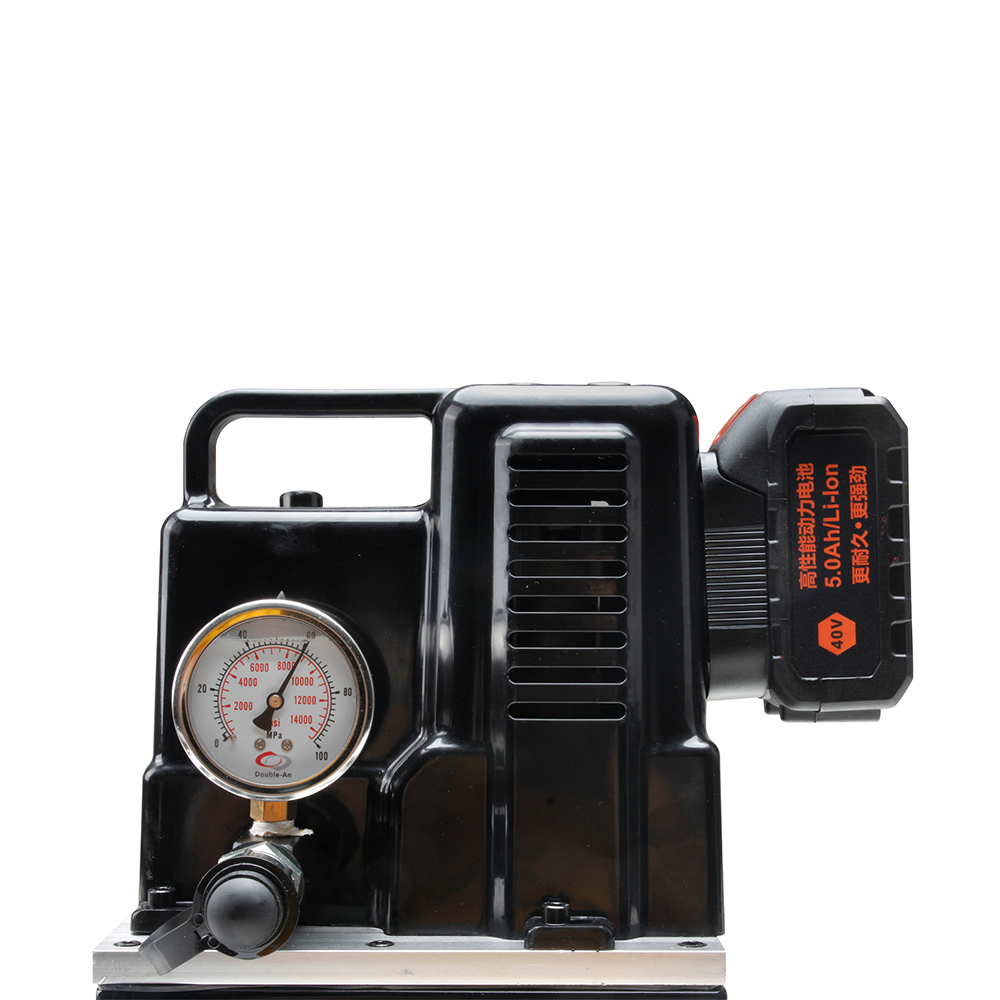

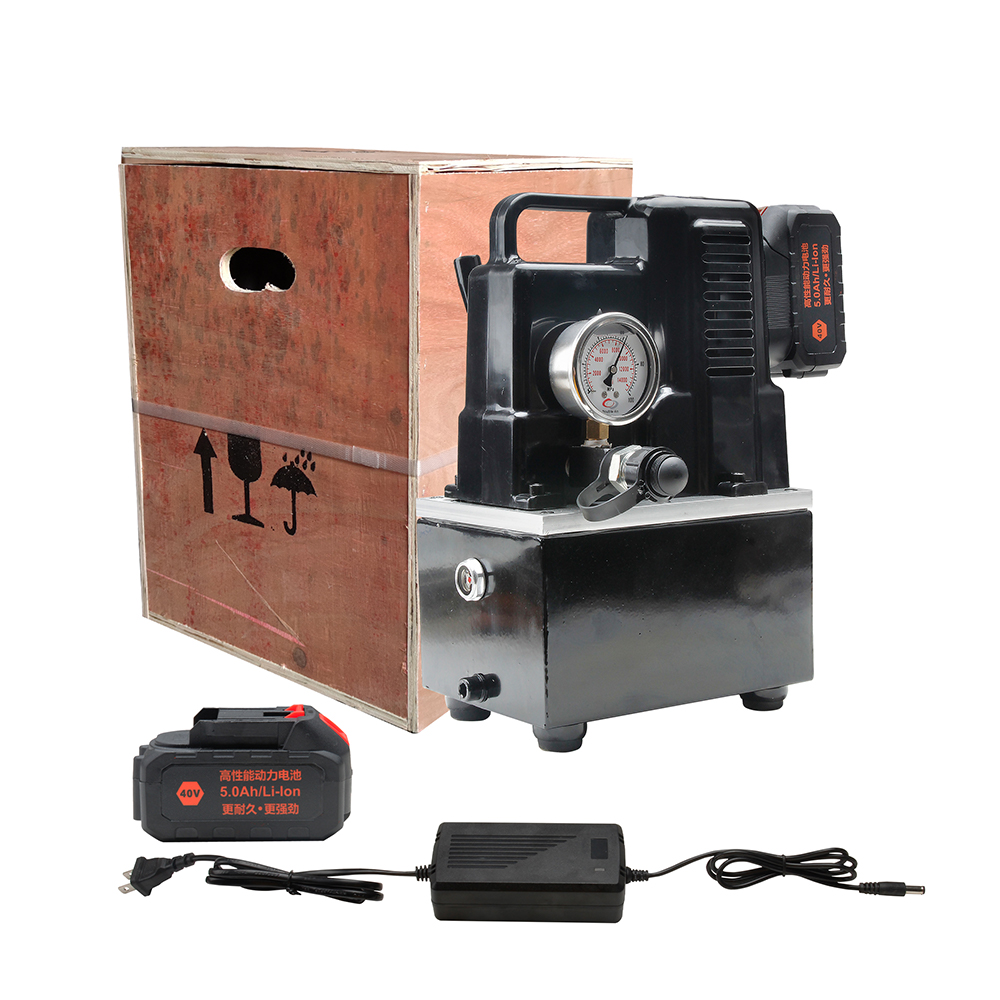

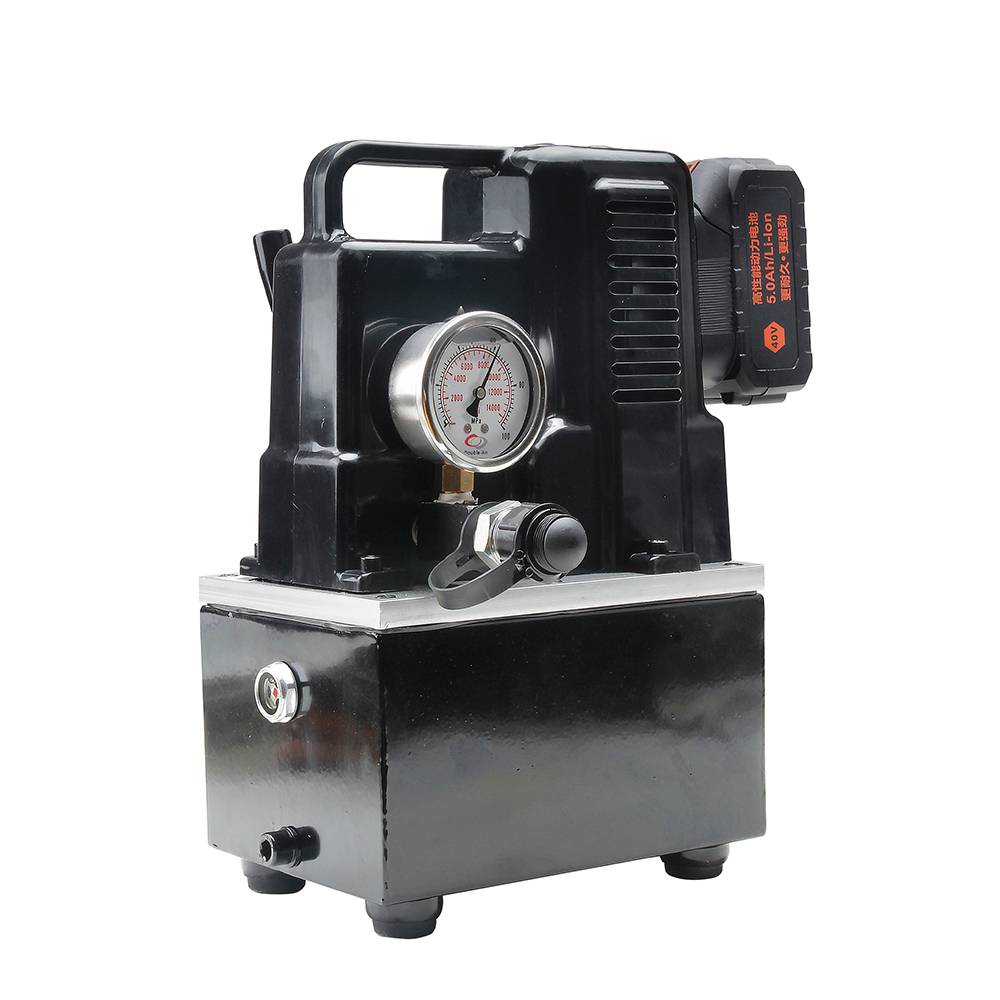

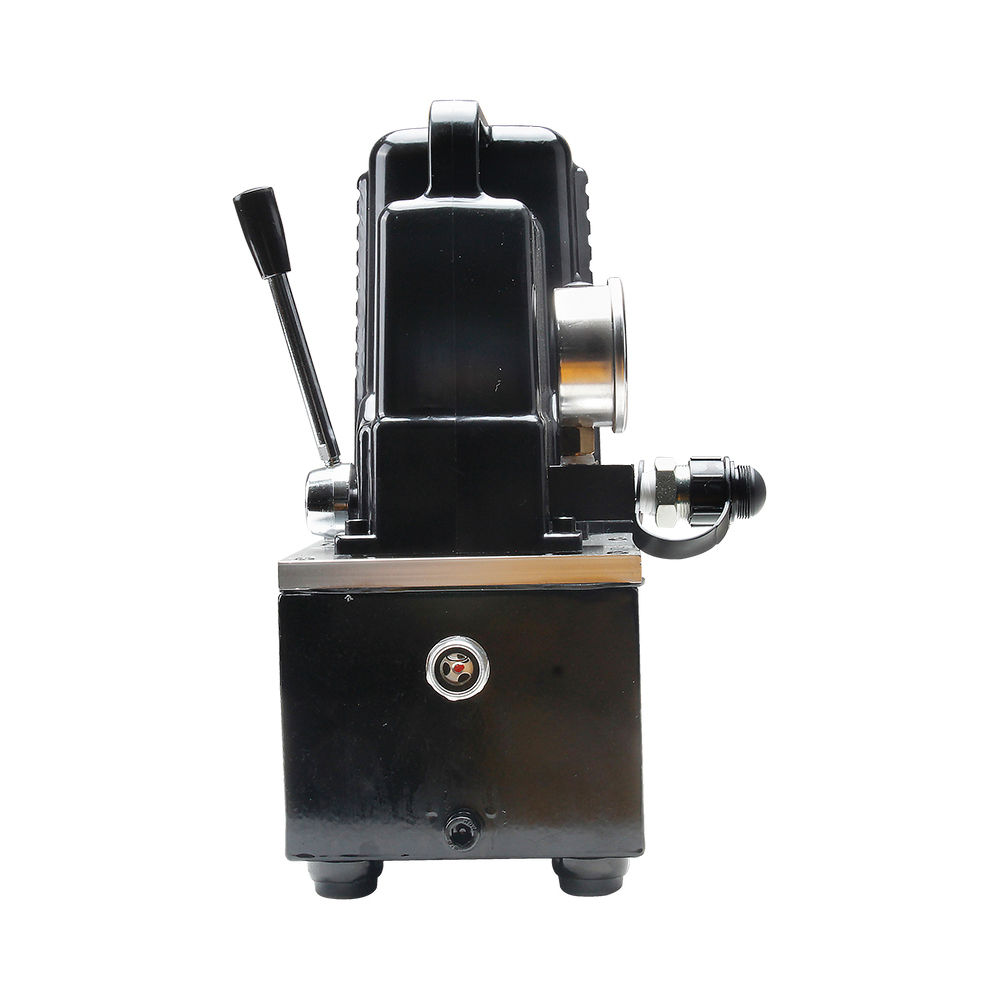

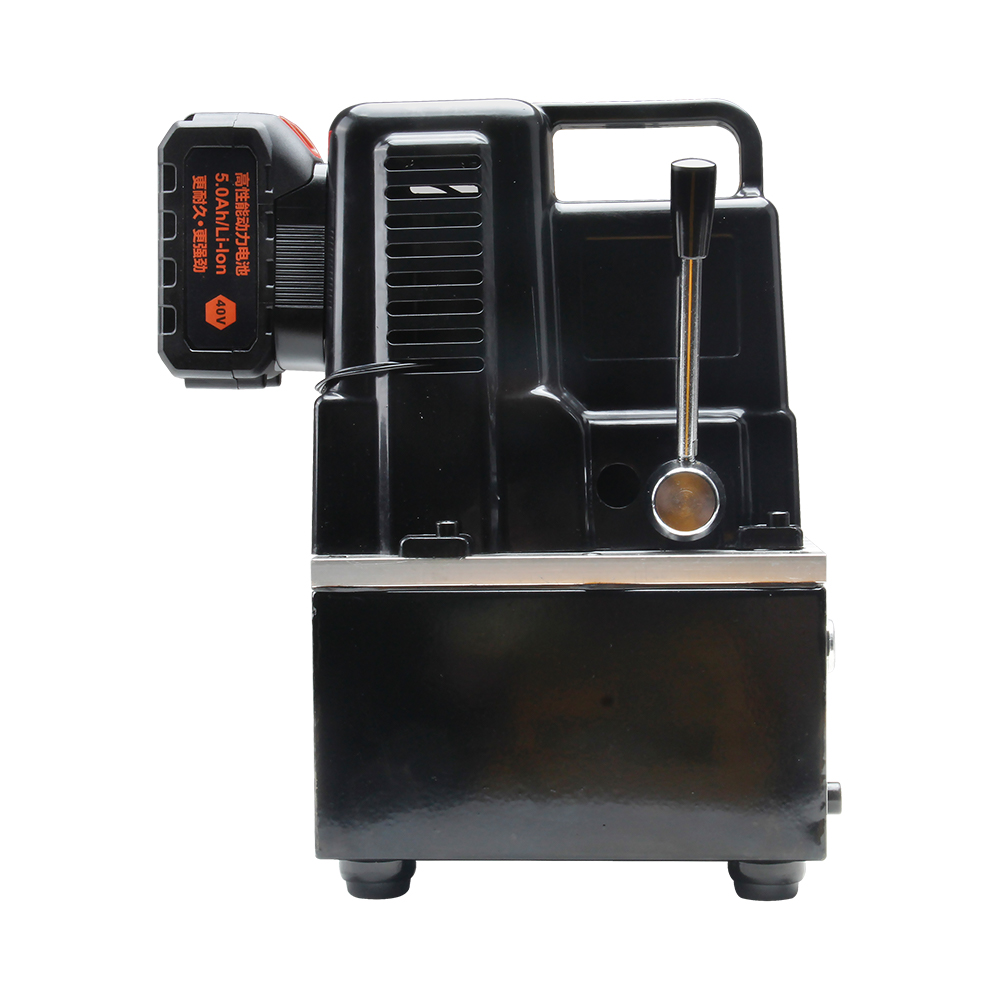

The QQ-630B Battery Hydraulic Pump is a high-performance portable hydraulic power unit designed for efficiency, convenience, and safety. Powered by a 40V 5.0Ah lithium battery, it provides long-lasting operation without the need for a socket, making it ideal for mobile and on-site hydraulic tool applications.
Equipped with a shockproof pressure gauge, operators can monitor pressure accurately even in vibration-prone environments. The handboard pressure relief switch allows quick and safe pressure release, while the hydraulic visible oil window ensures optimal oil levels for consistent performance and longevity.
With a high-capacity oil reservoir of 2L and a maximum output pressure of 70 MPa, the QQ-630B efficiently powers a variety of split-type hydraulic tools for cutting, punching, bending, and lifting operations. The 360° quick connector with full copper interface provides reliable and durable connections, reducing downtime during tool changes.
Designed for electric power, chemical industry, steel processing, machinery, and industrial applications, the QQ-630B combines strong power, portability, and safety features in one compact unit. Simple one-click operation and fast battery charging make it a convenient and reliable solution for professional hydraulic tool users.
Net weight: 9.9kg | Gross weight: 15kg | Compact size: 315 × 245 × 405mm
| Model | QQ-630B | Speed | 60KN |
| High pressure pressure | 70Mpa | High voltage flow | 0.6L/min |
| Battery voltage | 40V | Battery capacity | 5.0Ah |
| Low pressure pressure | 5Mpa | Low voltage flow | 3.5L/min |
| Oil storage capacity | 2L | Net weight/gross weight | 9.9kg/15kg |
| Oil species | Anti-wear hydraulic oil below 32# or 7-15# hydraulic transmission oil | ||
| Packaging size | Length 315 × width 245 × height 405mm | ||
