SYK Series Hydraulic Hole Puncher Kits are high-efficiency, manual hydraulic tools designed for precise and clean hole punching on thin metal sheets, including iron, stainless steel, and aluminum. These kits are ideal for electricians, maintenance professionals, metal workshops, and construction teams who need fast, reliable, and burr-free punching in various environments.
Compatible models include SYK-8A, SYK-8B, and SYK-15, covering a wide range of tonnage (8T–15T) and hole diameters (16mm–114mm). Each kit comes with standard circular molds made of high-quality 40 chrome steel, ensuring durable, sharp, and accurate holes every time. Custom mold sizes are also available upon request for specialized projects.
| Product Name | SYK-8A COMPLETE DIE SET | |||||
| Die size (mm) | 16 | 20 | 26.2 | 32.6 | 39 | 51 |
| Mold weight (kg) | 0.05 | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 |
| Total die weight (kg) | 1.3kg | |||||
| Available pull rod | Small pull rod | Small pull rod | Small pull rod | Large pull rod | Large pull rod | Large pull rod |

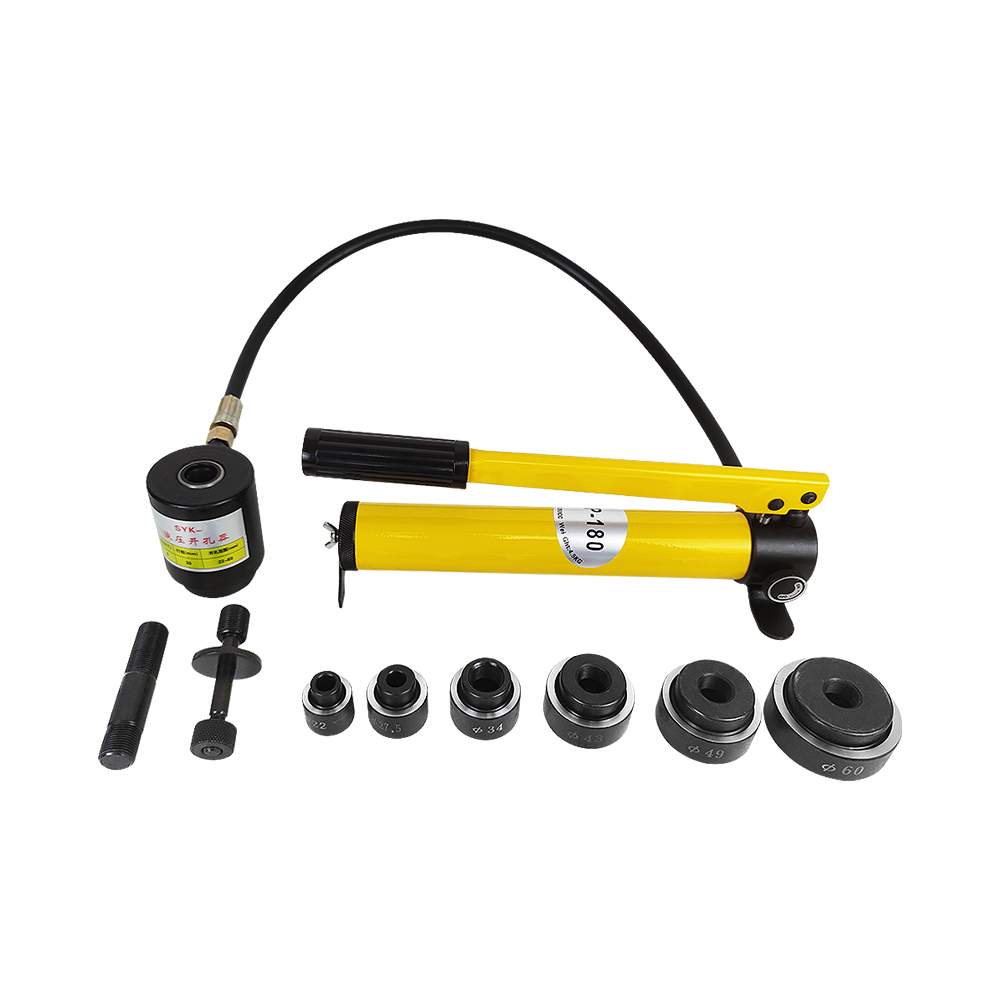

| Model | SYK-8B | Tonnage | 8T |
| Maximum stroke | 22mm | Opening range | Φ20-Φ60 |
| Configure Die | 22-27-34-43-49-60 | Weight | 11Kg |

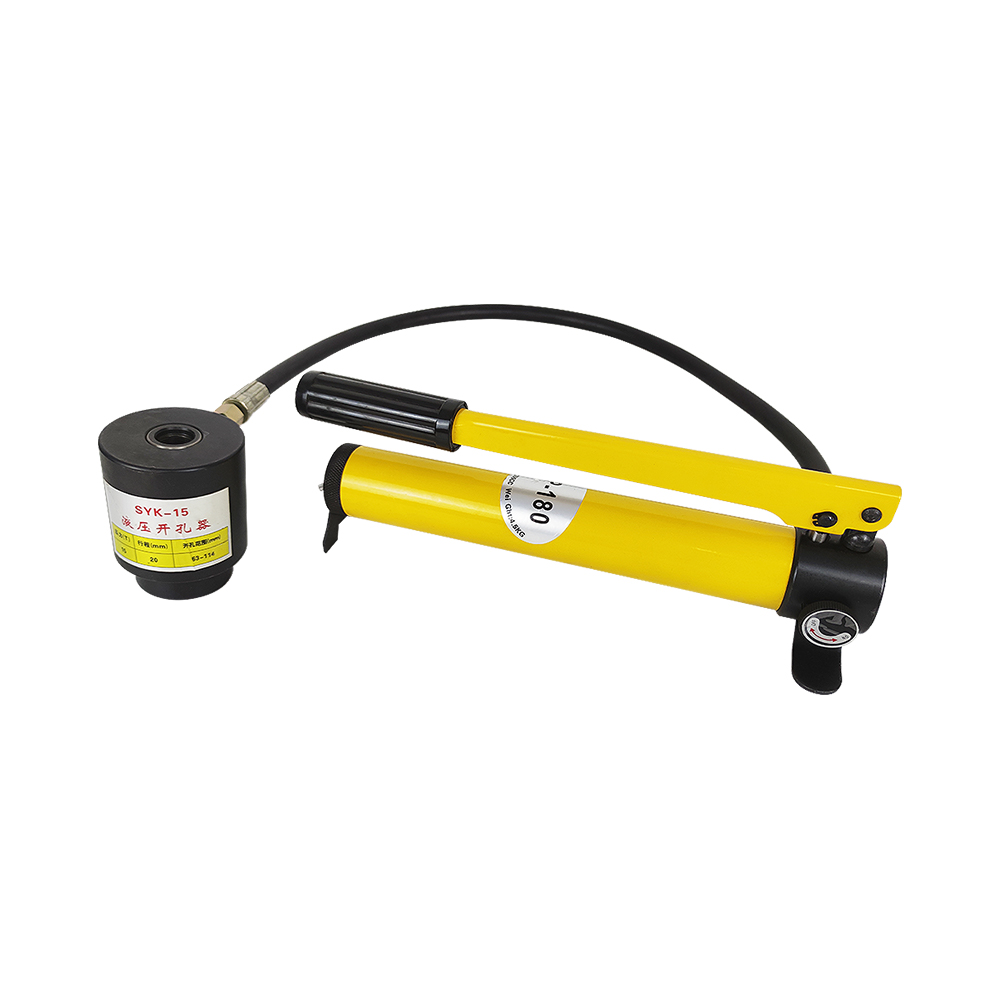

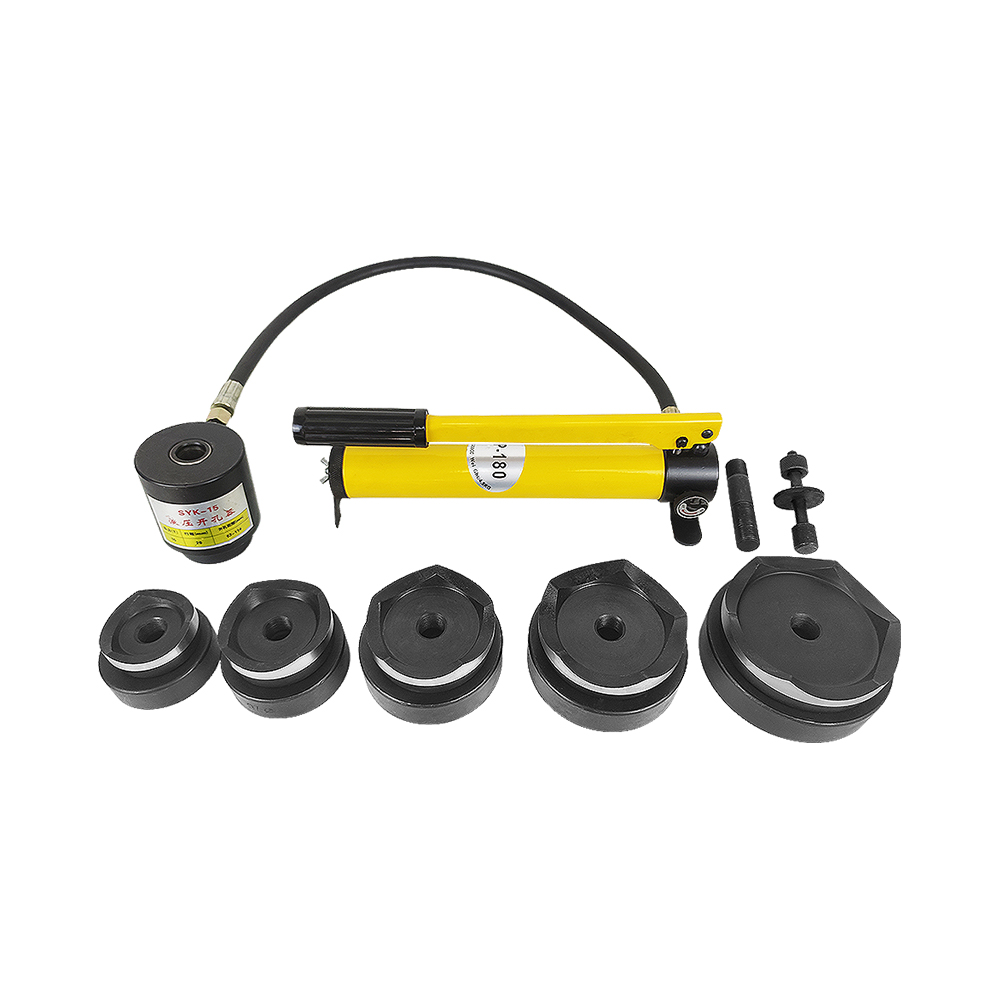

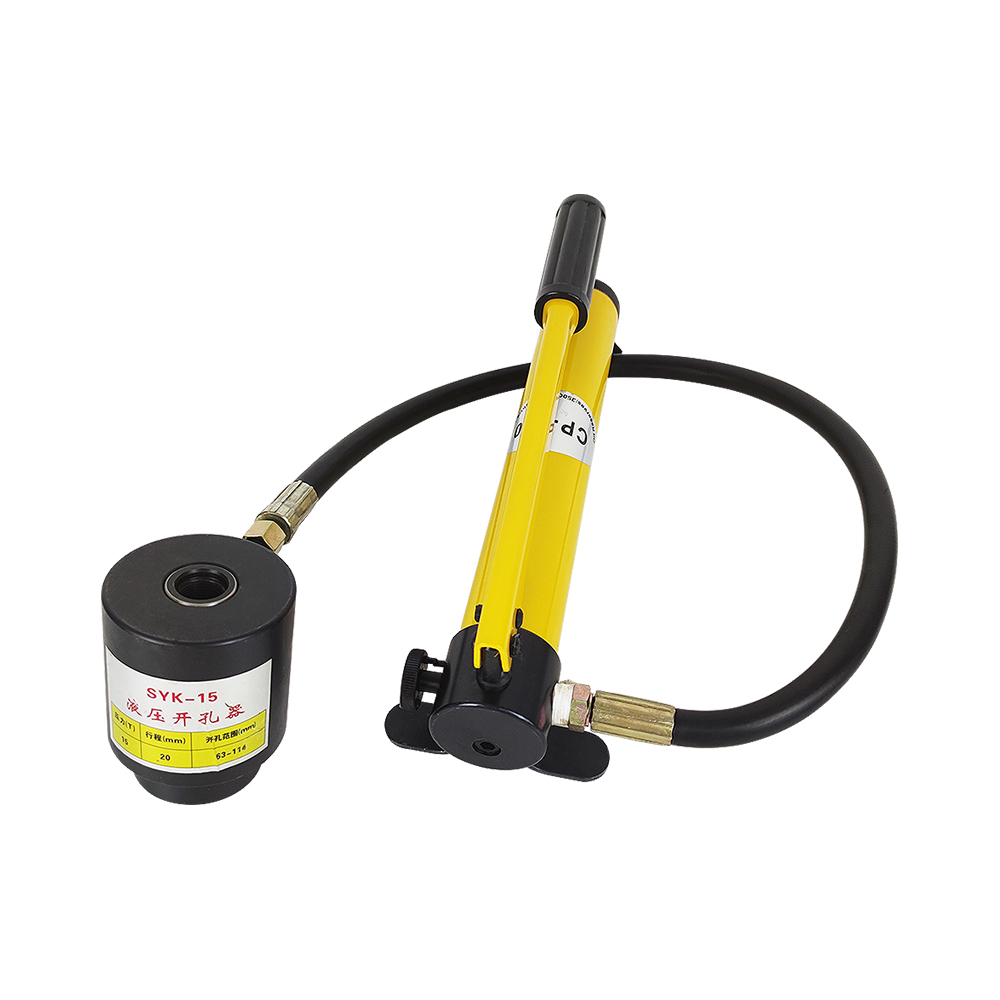

| Model | SYK-15 | Tonnage | 15T |
| Maximum stroke | 22mm | Opening range | Φ16-Φ114 |
| Configure Die | 63,76,89,101,114 | Weight | 21Kg |
The kits feature

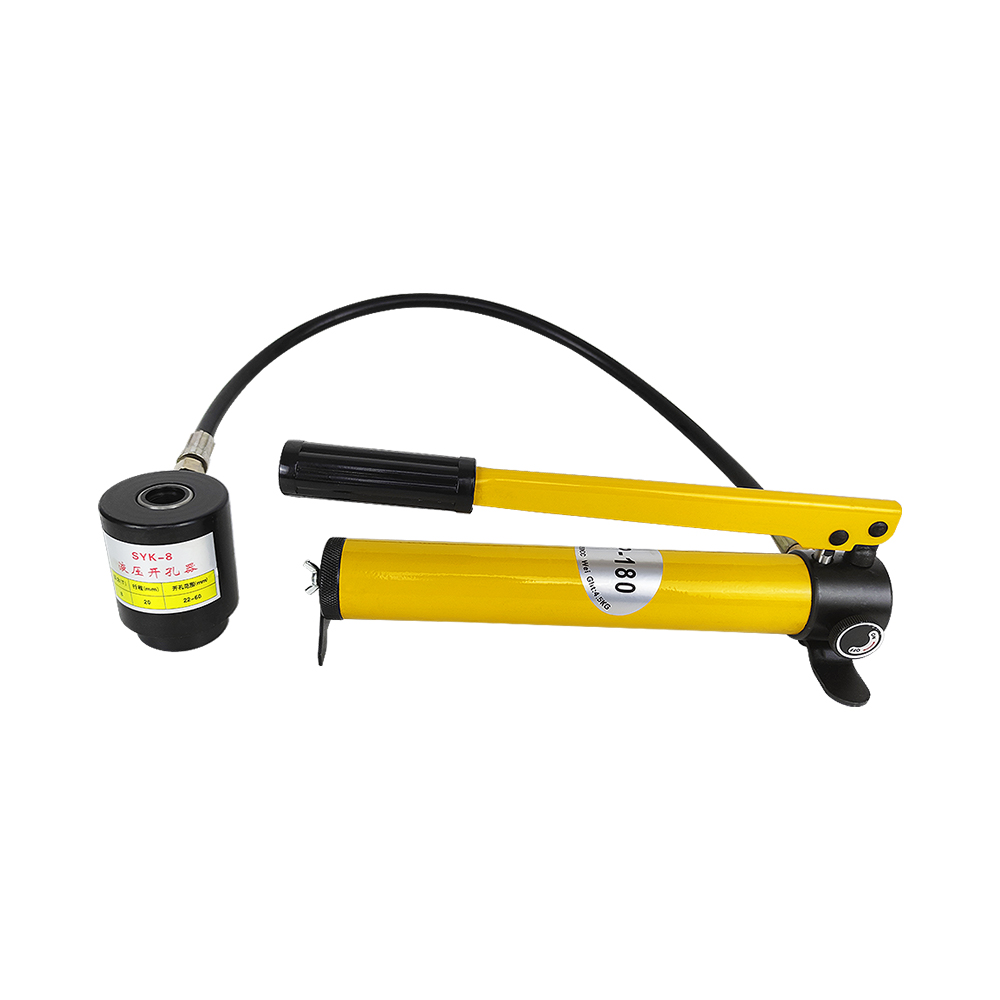

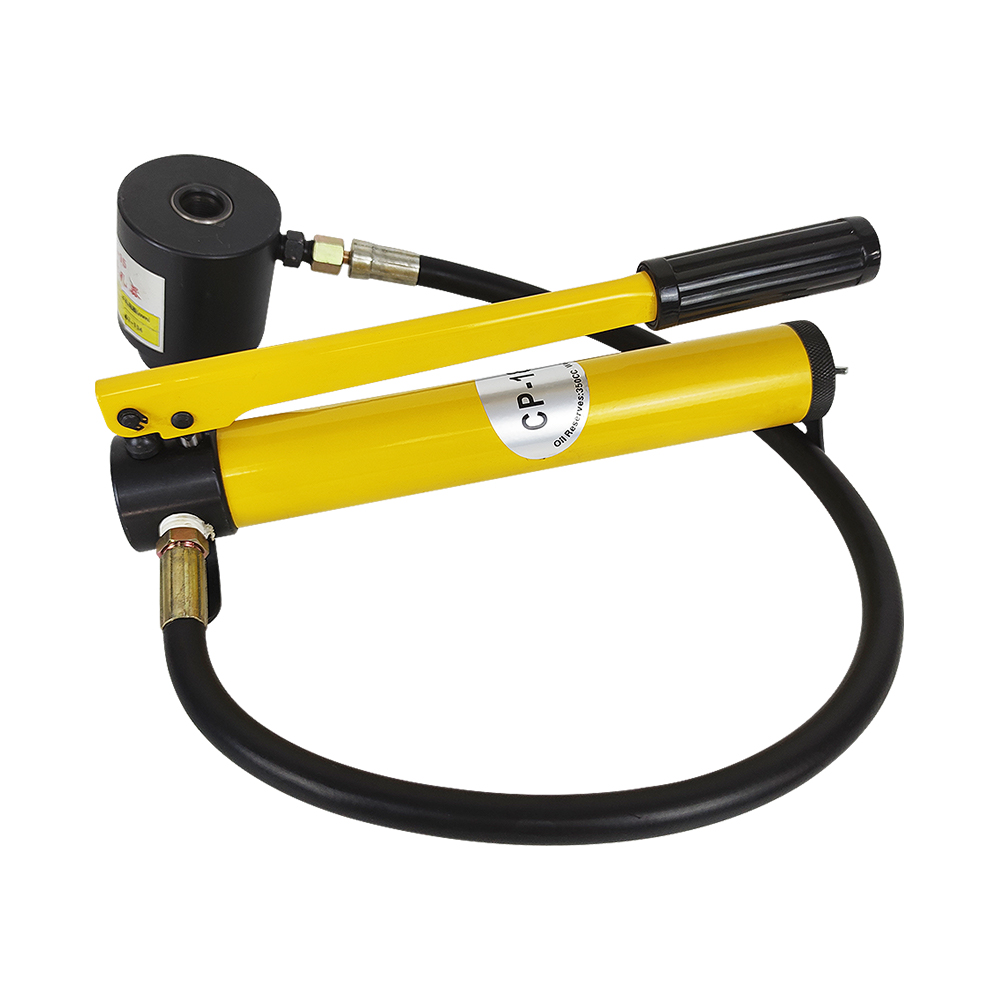

Easy-to-use CP-180 hydraulic pump for smooth and consistent pressure
Small and large pull rods for controlled and ergonomic operation
Auxiliary rubber return system for automatic mold reset and safe operation
Guide hole method to prevent distortion and ensure precision

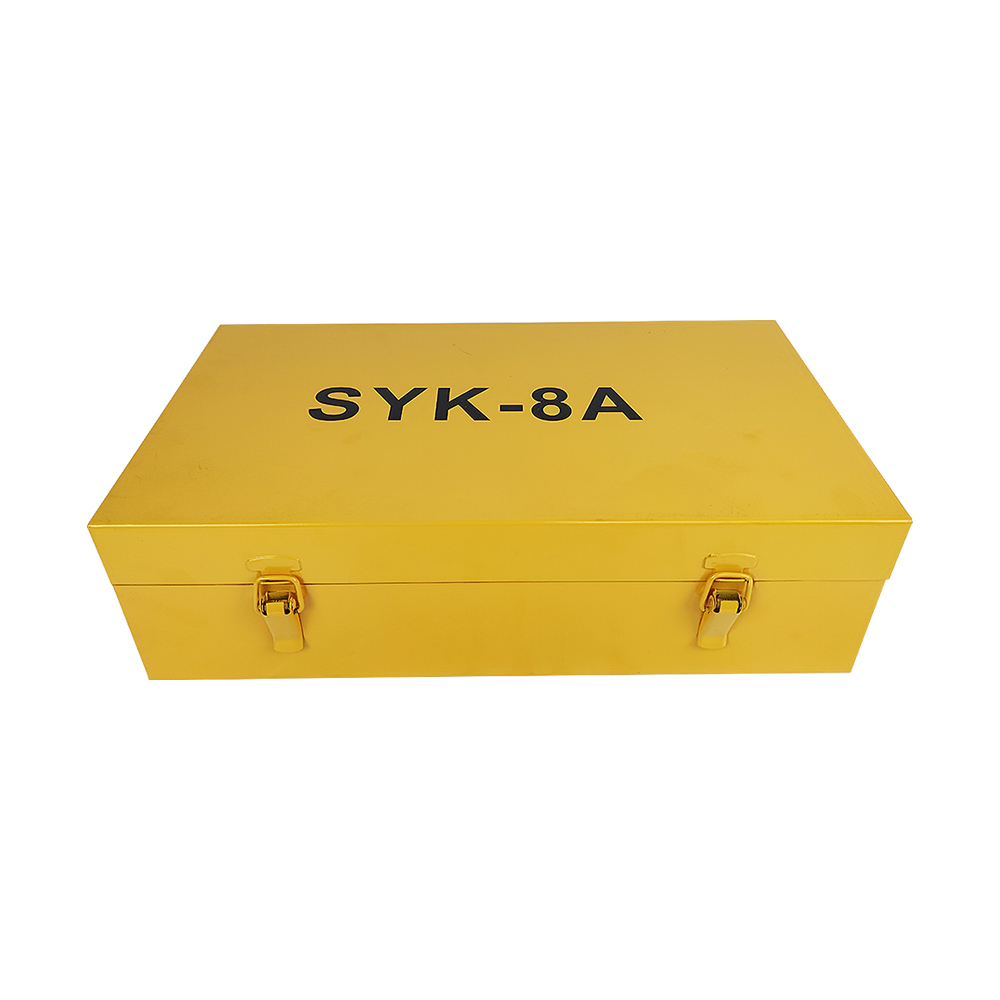

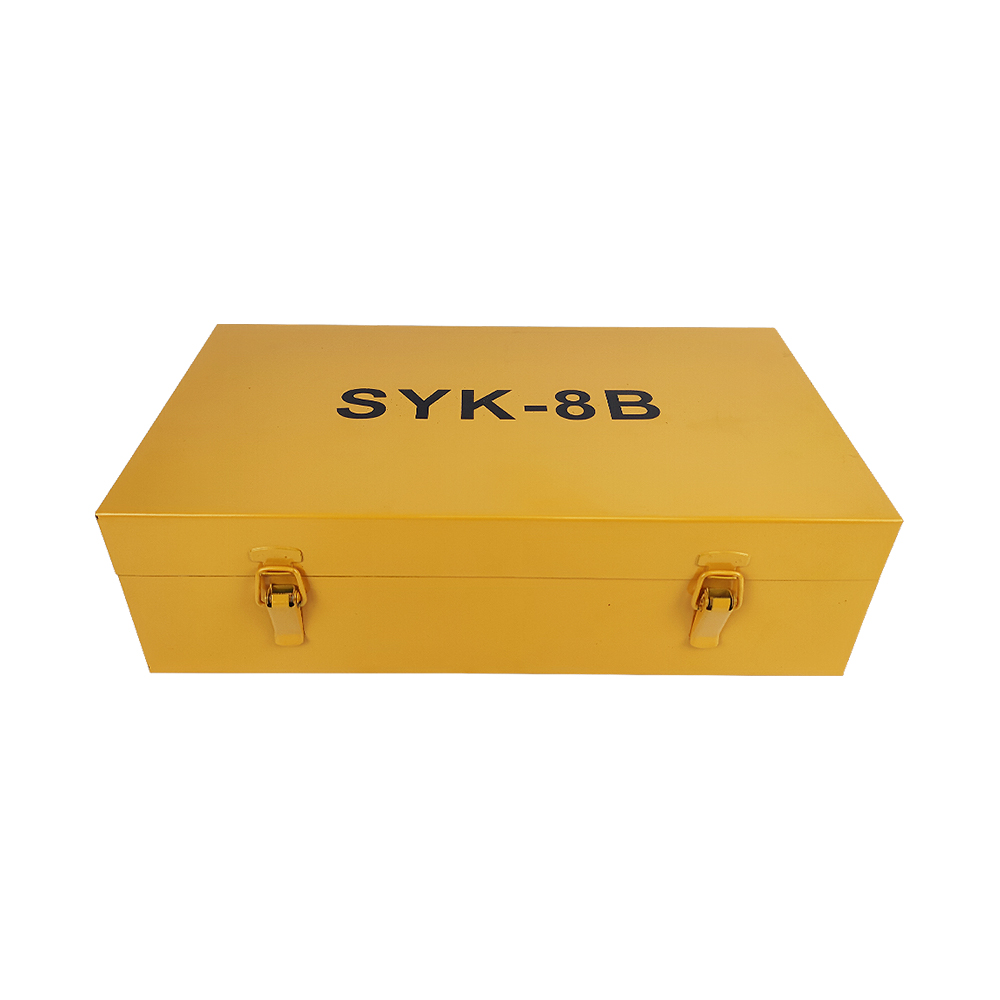

Iron box packaging for secure storage and convenient transport
Ideal for metal sheets under 4mm, with stainless steel recommended below 2mm thickness
With its robust construction, portable design, and versatile mold options, the SYK Series Hydraulic Hole Puncher Kits provide a reliable solution for thin plate punching, maintenance tasks, and professional metal fabrication, helping users achieve high-quality results with minimal effort.
