The Multi-Range Cable Stripping Tool provides a fast, precise, and safe solution for removing insulation across a wide range of cables. Works seamlessly on small copper/aluminum cables (up to 30mm), medium power cables (20–105mm), and high-voltage single-core cables (70–400mm², 10–35KV). Versatile performance makes it ideal for industrial, electrical, and professional applications.

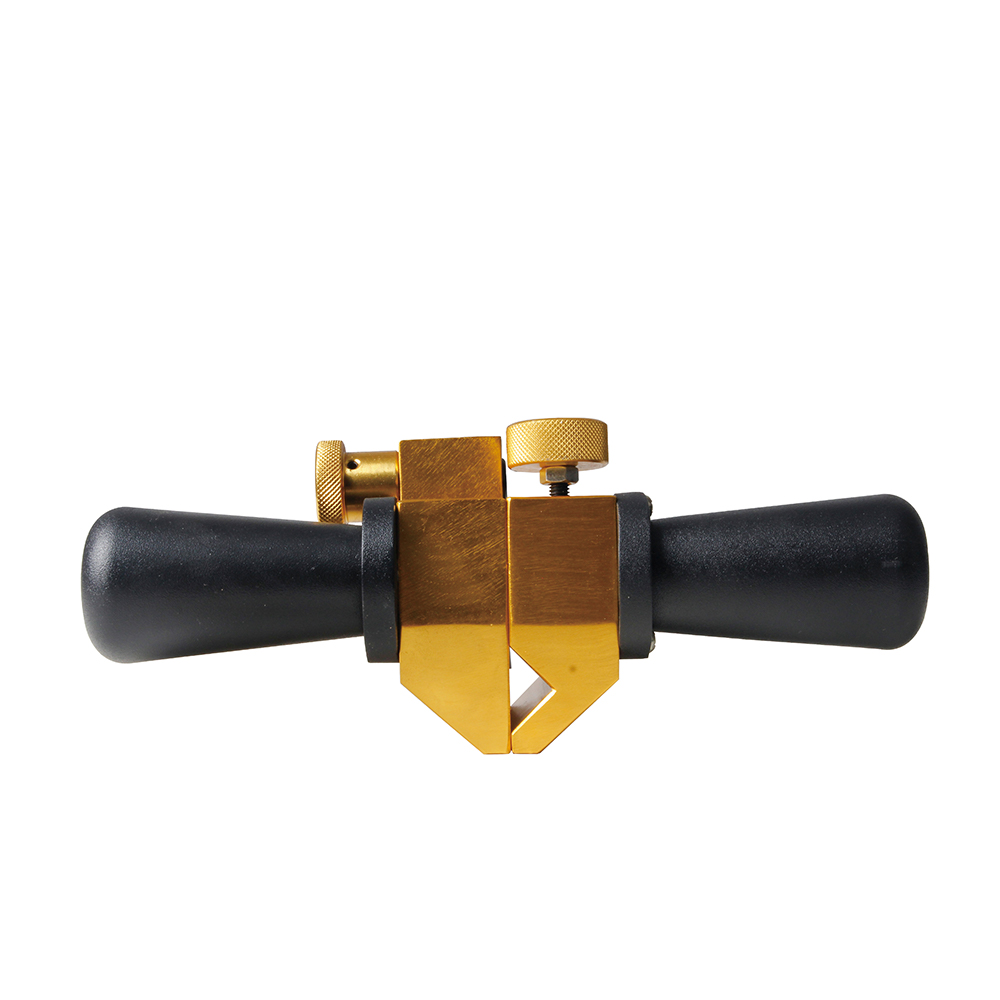

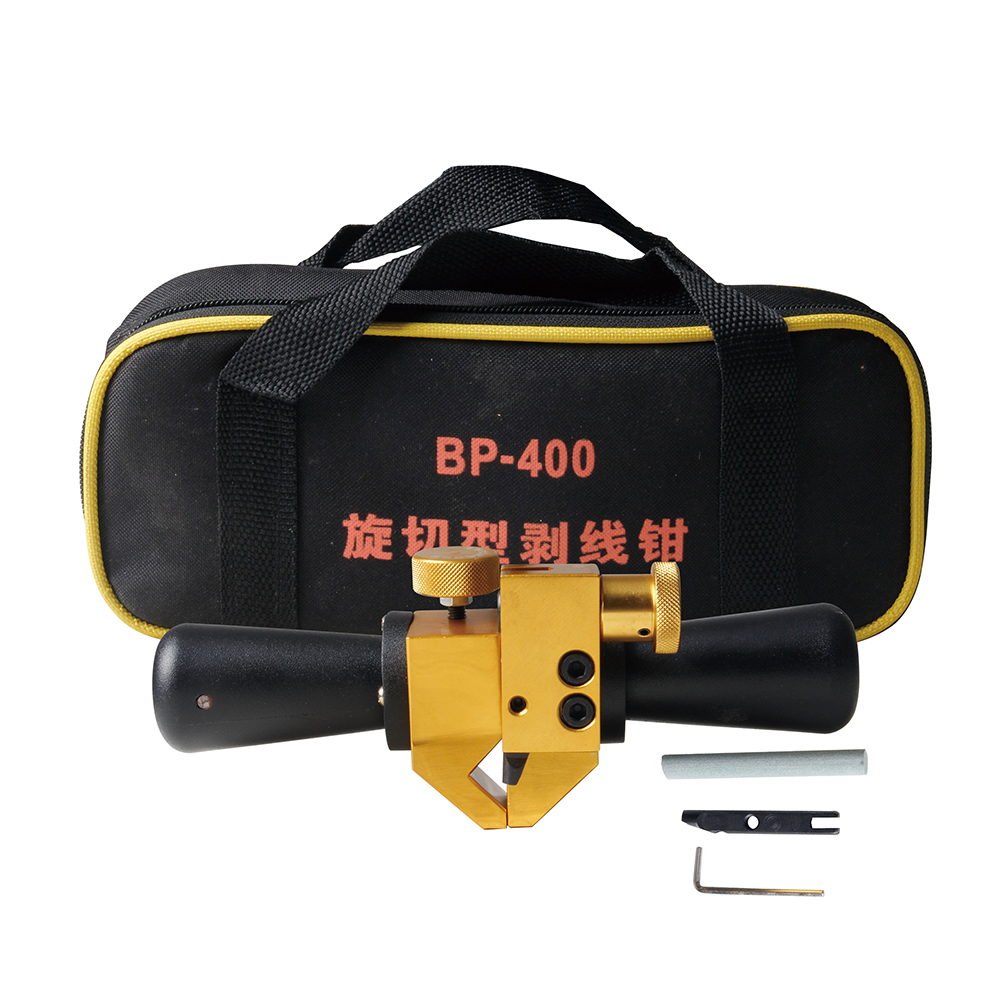

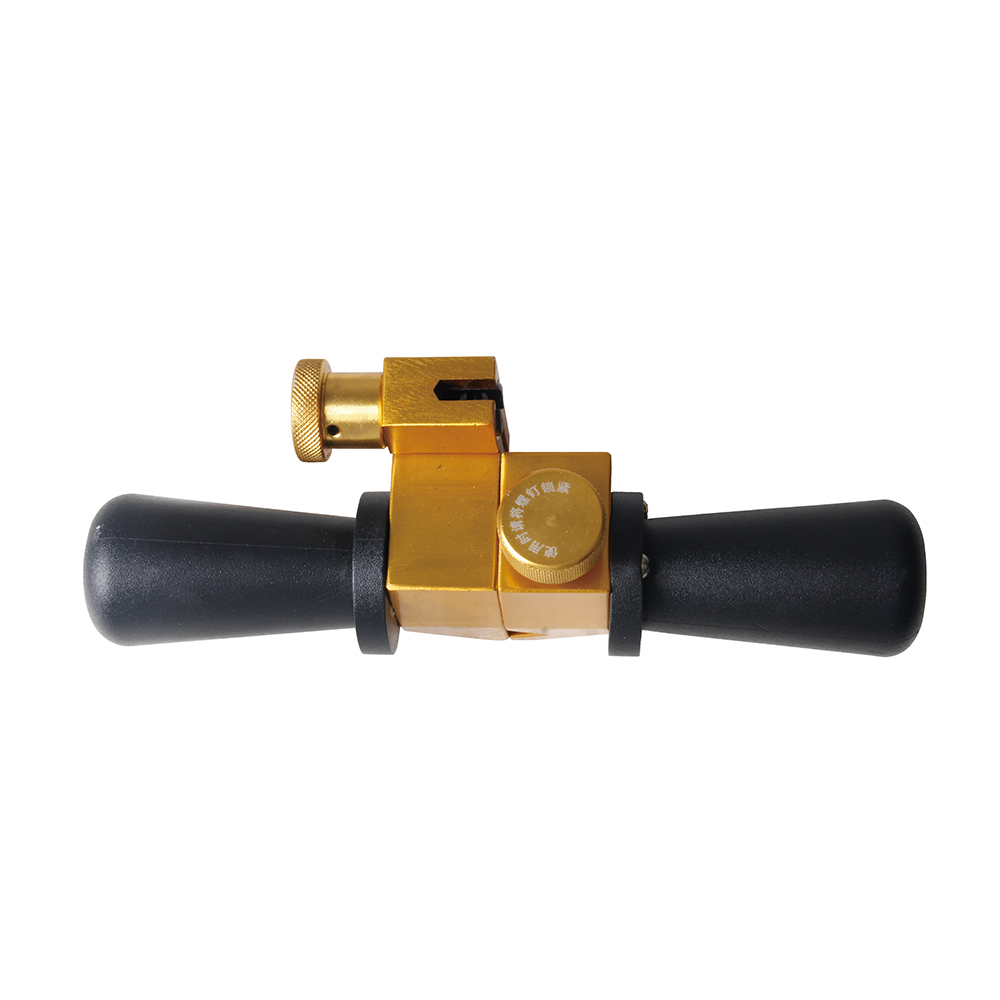

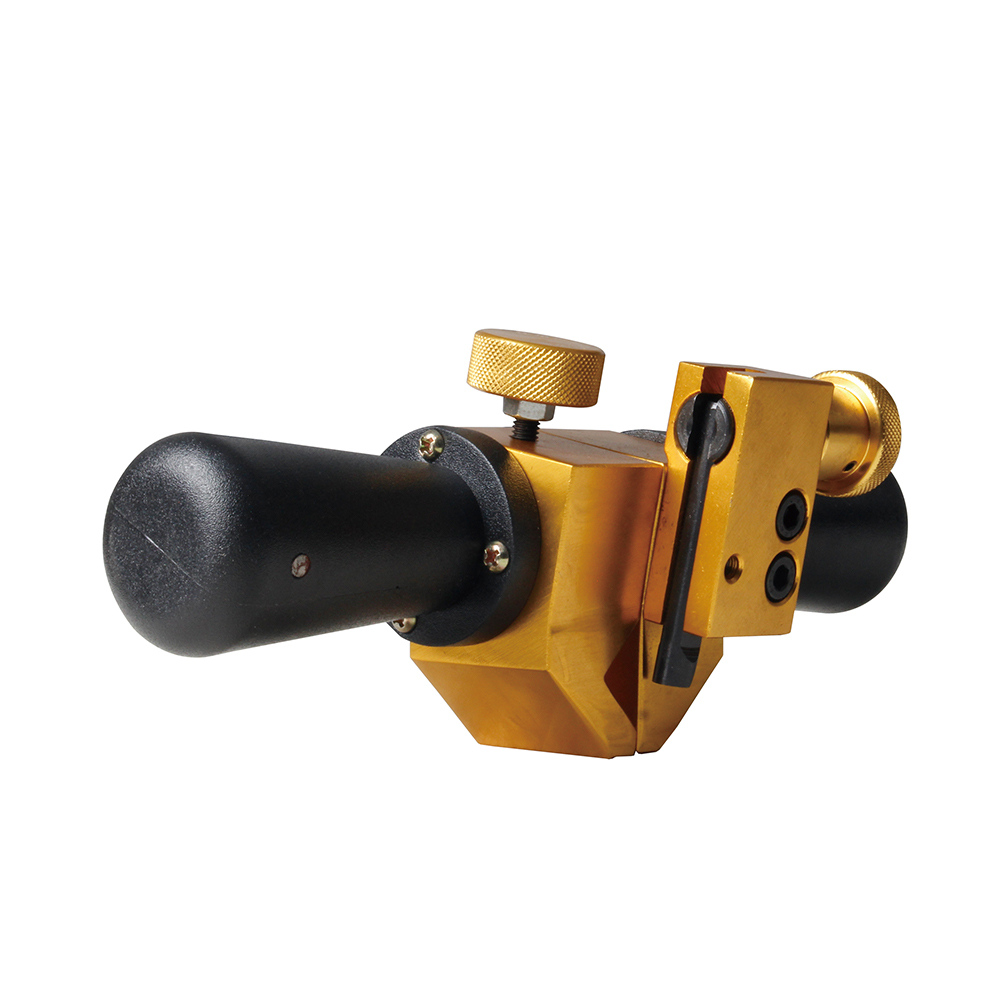

| Model | BP‑400 | Scope of use | Stripping the insulation of CU and AL cables below BP‑400, use 30mm, the maximum stripping depth is 4.5mm |
| Length | 170mm | Weight | 1.3KG |
| Applicable cable | Cross‑linked or non‑cross‑linked insulated overhead wires, and high and low voltage power cable cores | ||

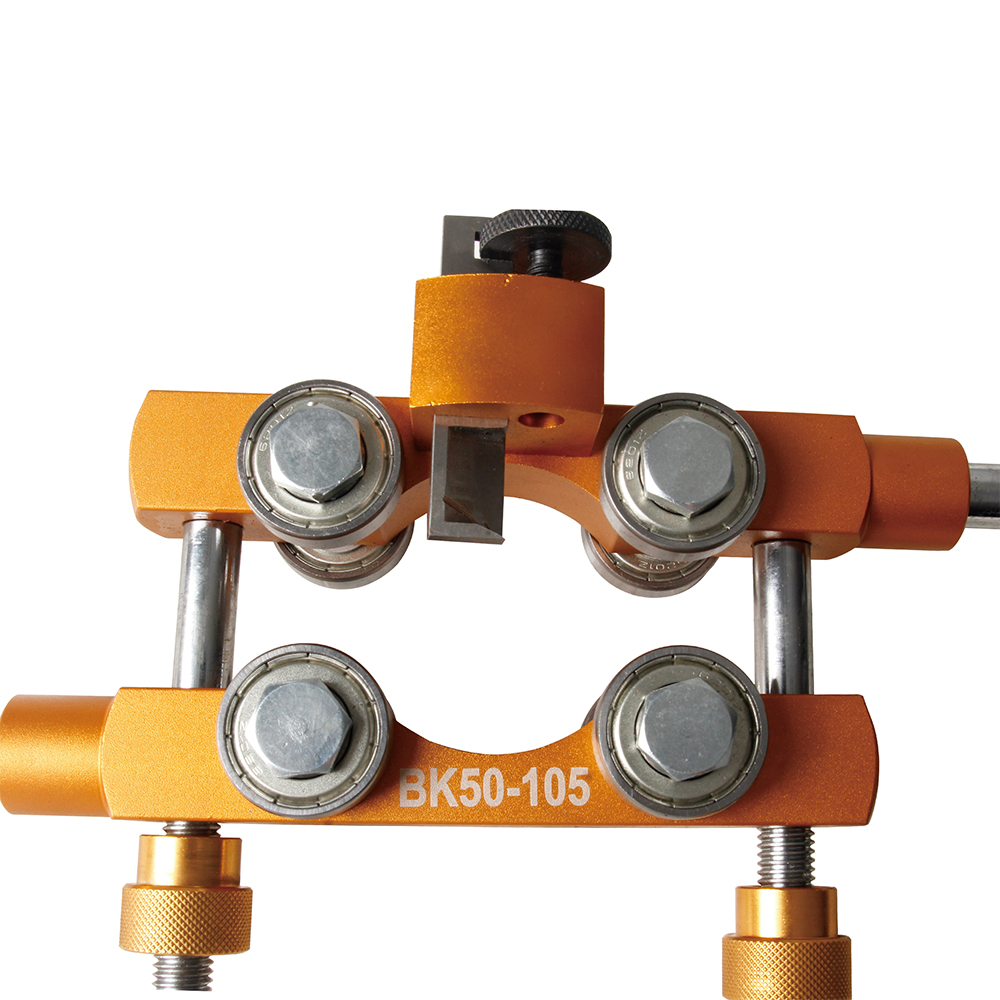

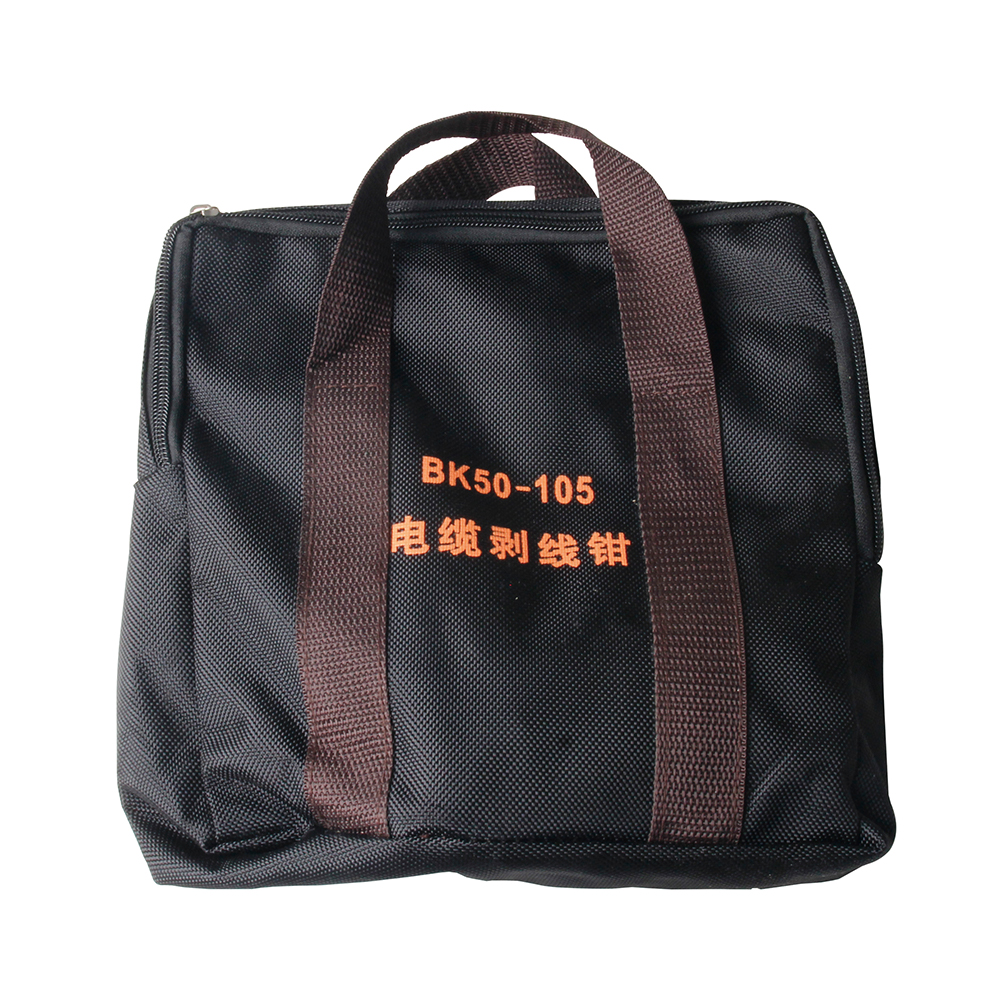

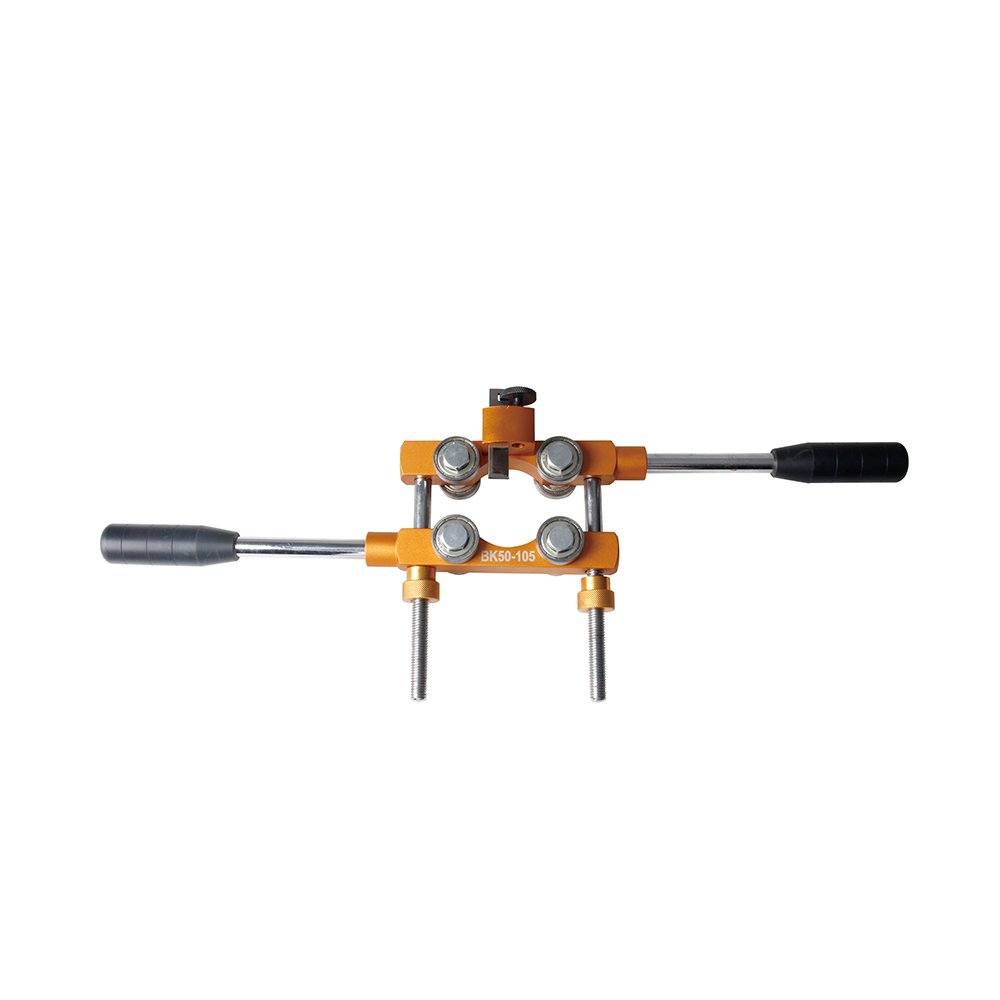

| Model | BK50‑150 |
| Applicable cables | Suitable for stripping the outer layer of power cables with a diameter of 50‑105mm, with a maximum thickness of 15mm |

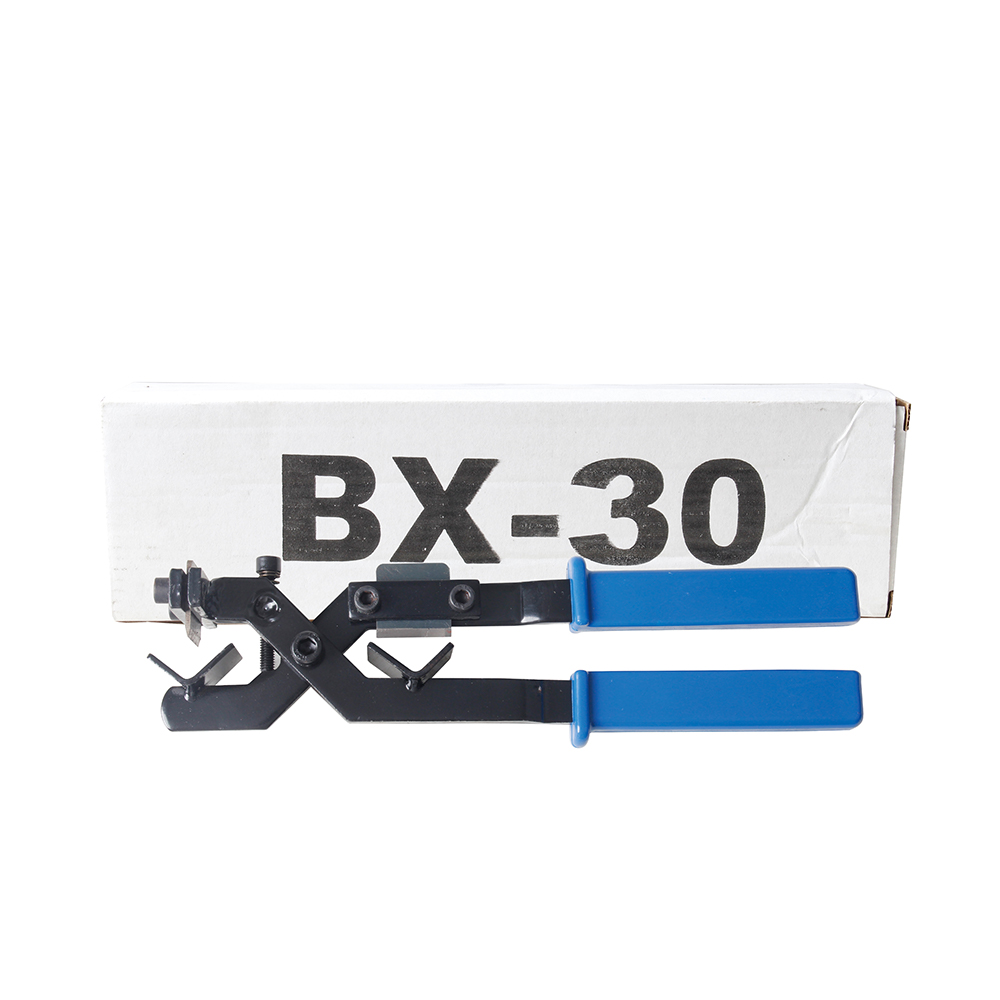

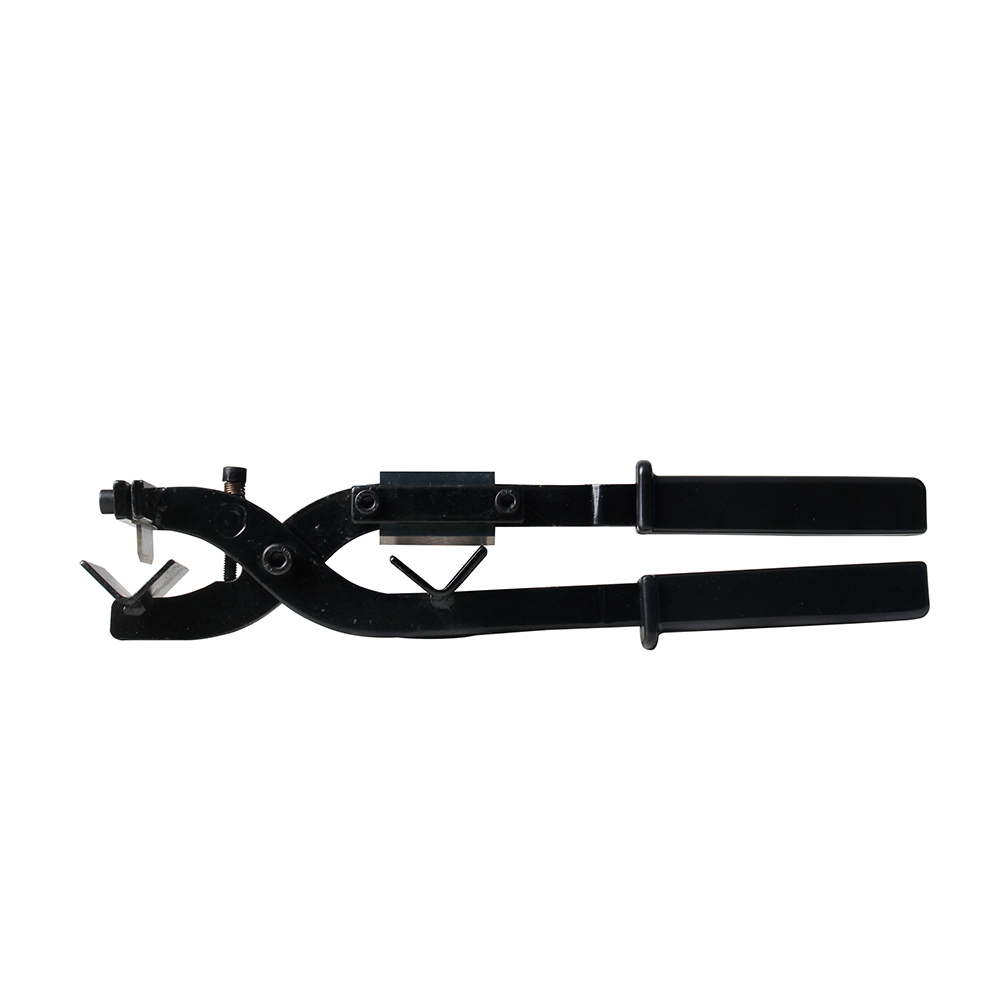

| Model | BX‑30 | Size | 280×80×50mm |
| Net weight/Gross weight | 0.8kg /1kg | Package | Carton packaging |
| Applicable cable | Suitable for stripping the end and middle insulation layer of 70‑300 square insulated wires or power cable cores; the outer diameter of the cable is 15‑30mm. | ||

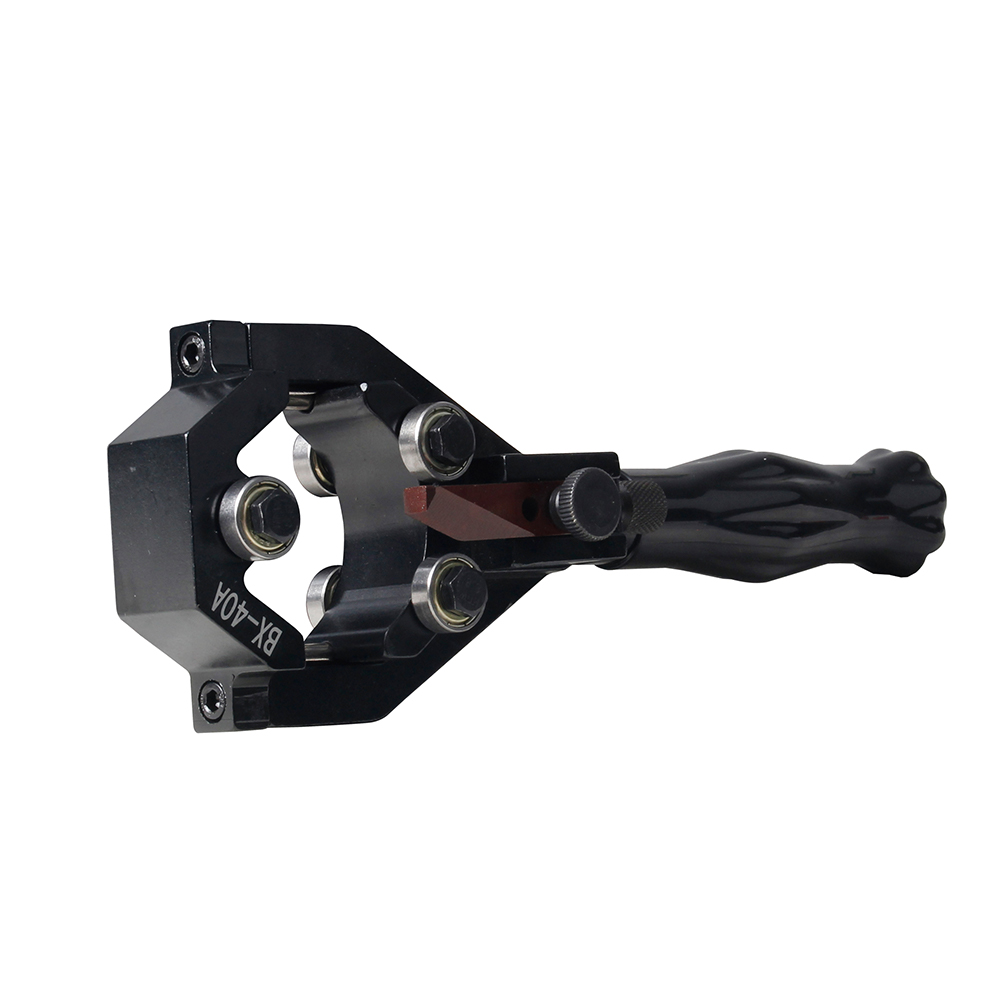

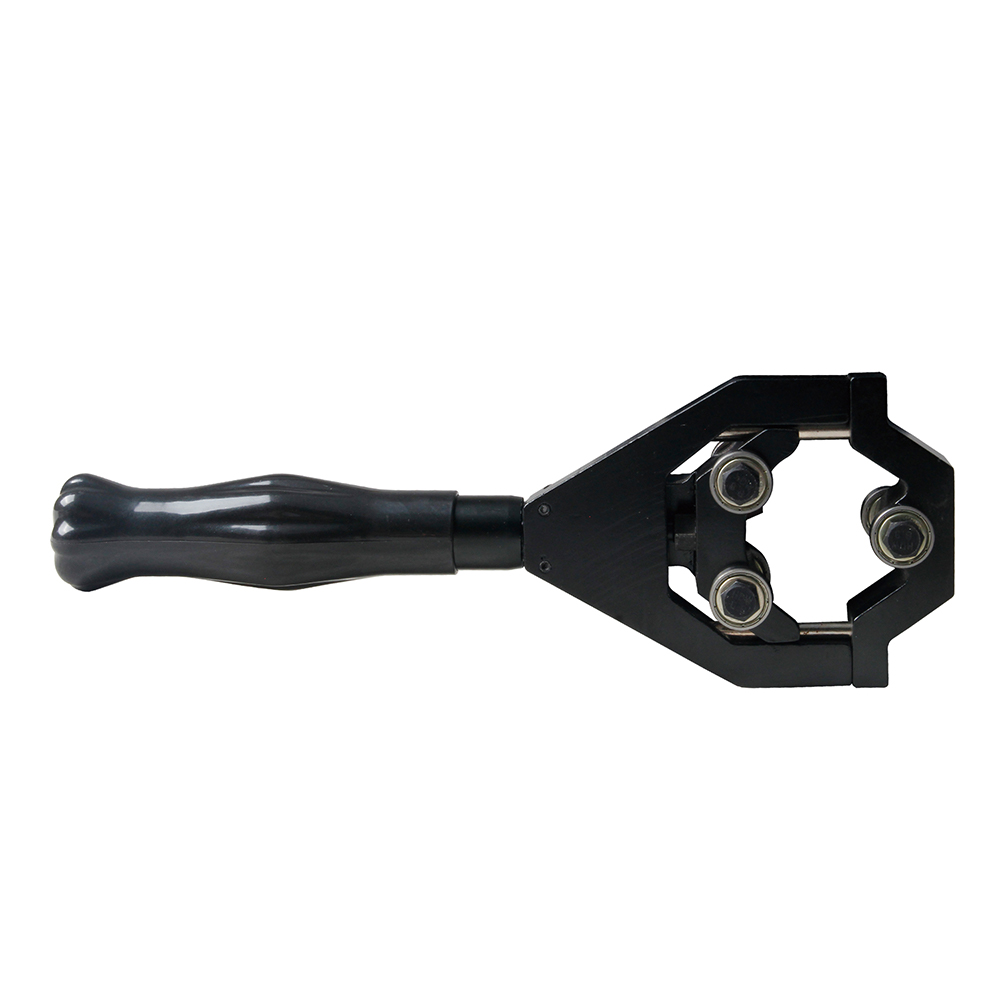

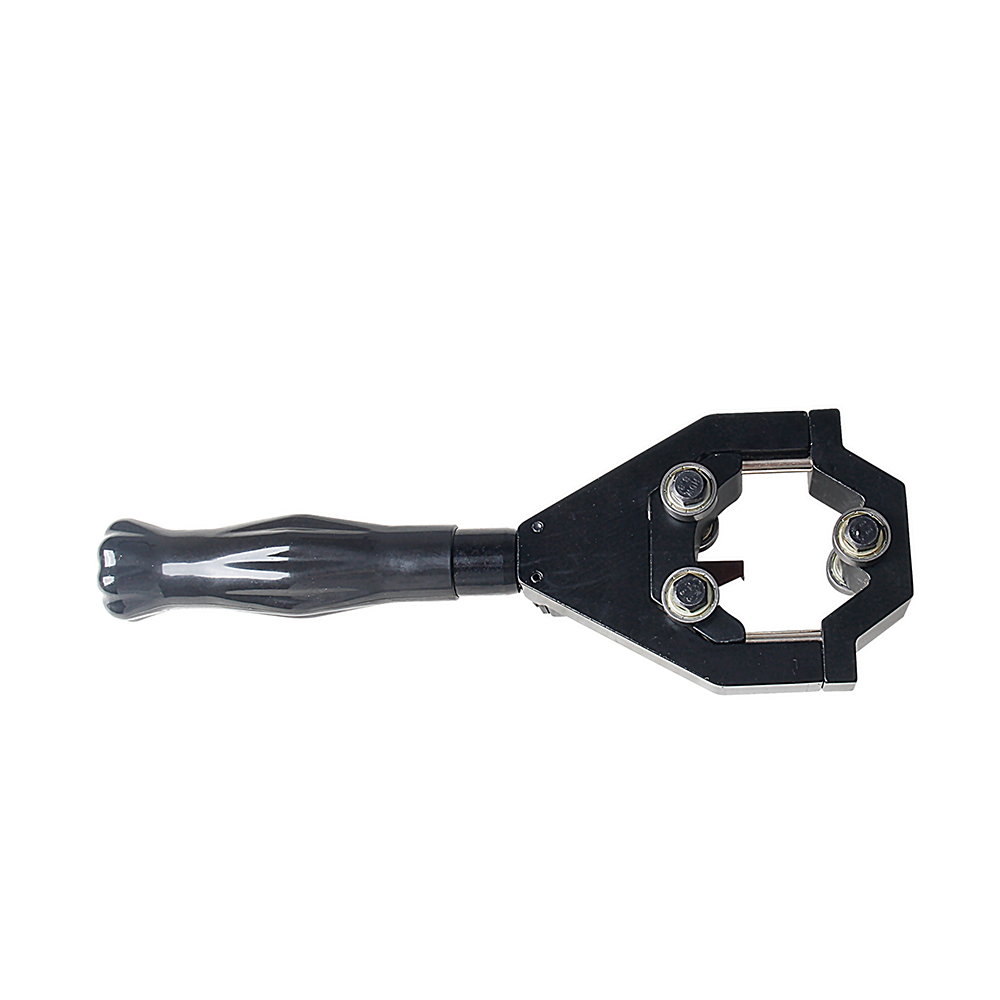

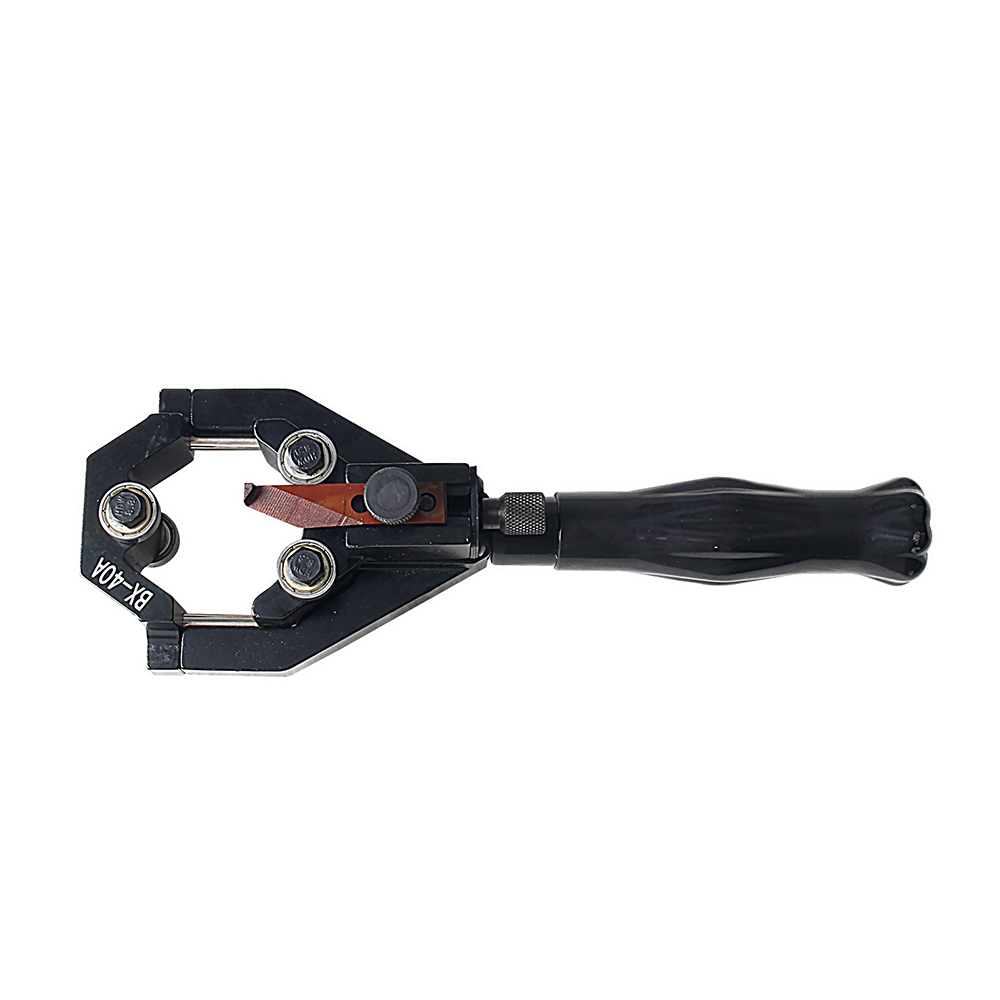

| Model | BX‑40A | Weight | 0.8kg | Size | 250×85×55(mm) |
| Scope of use |
Suitable for stripping the main insulation layer at the end of power cables with a diameter of 20‑40mm. It is usually used to strip the main insulation layer at the end of 10KV cables. | ||||

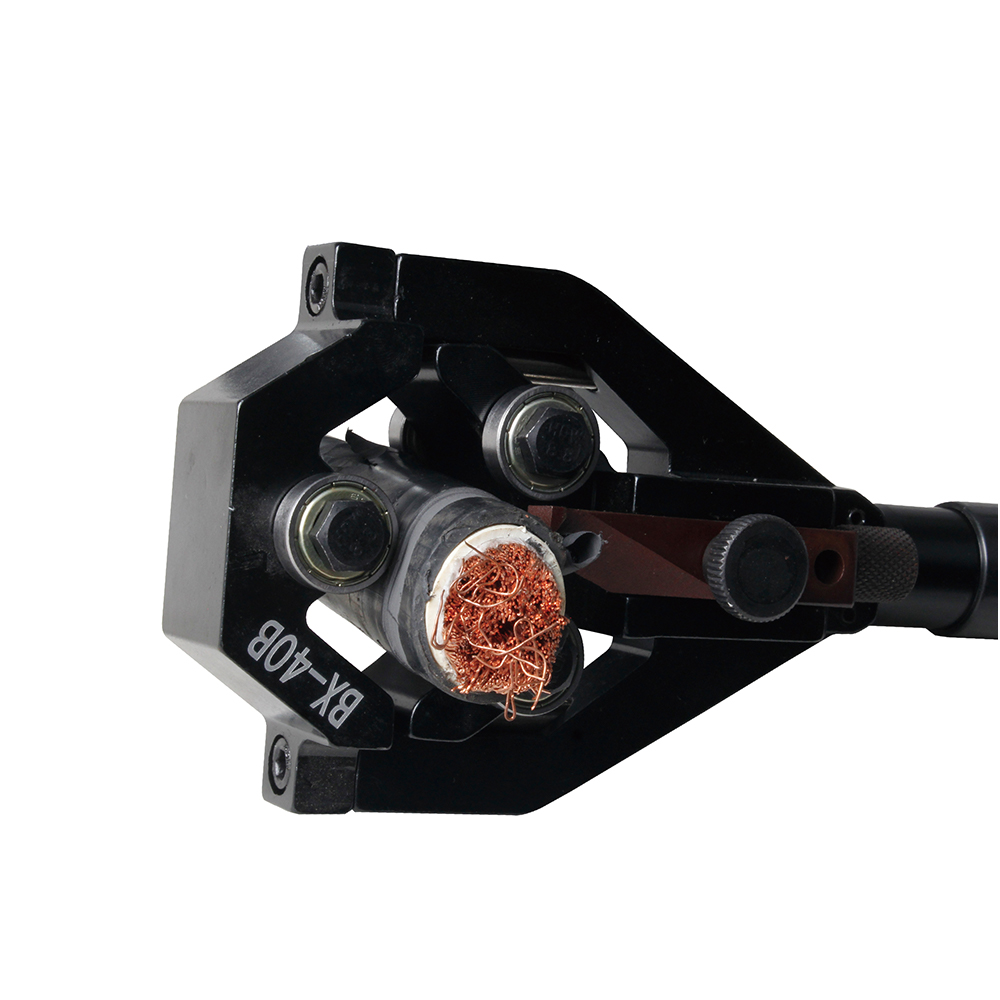

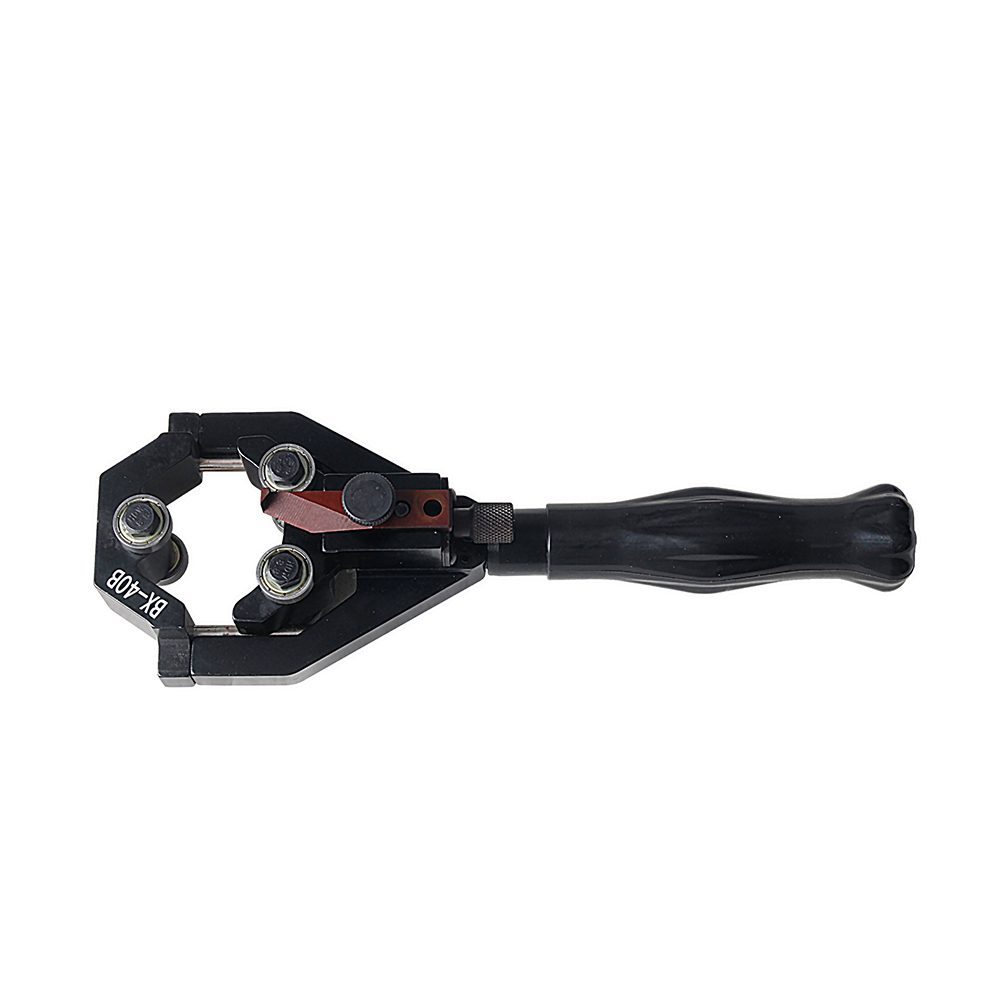

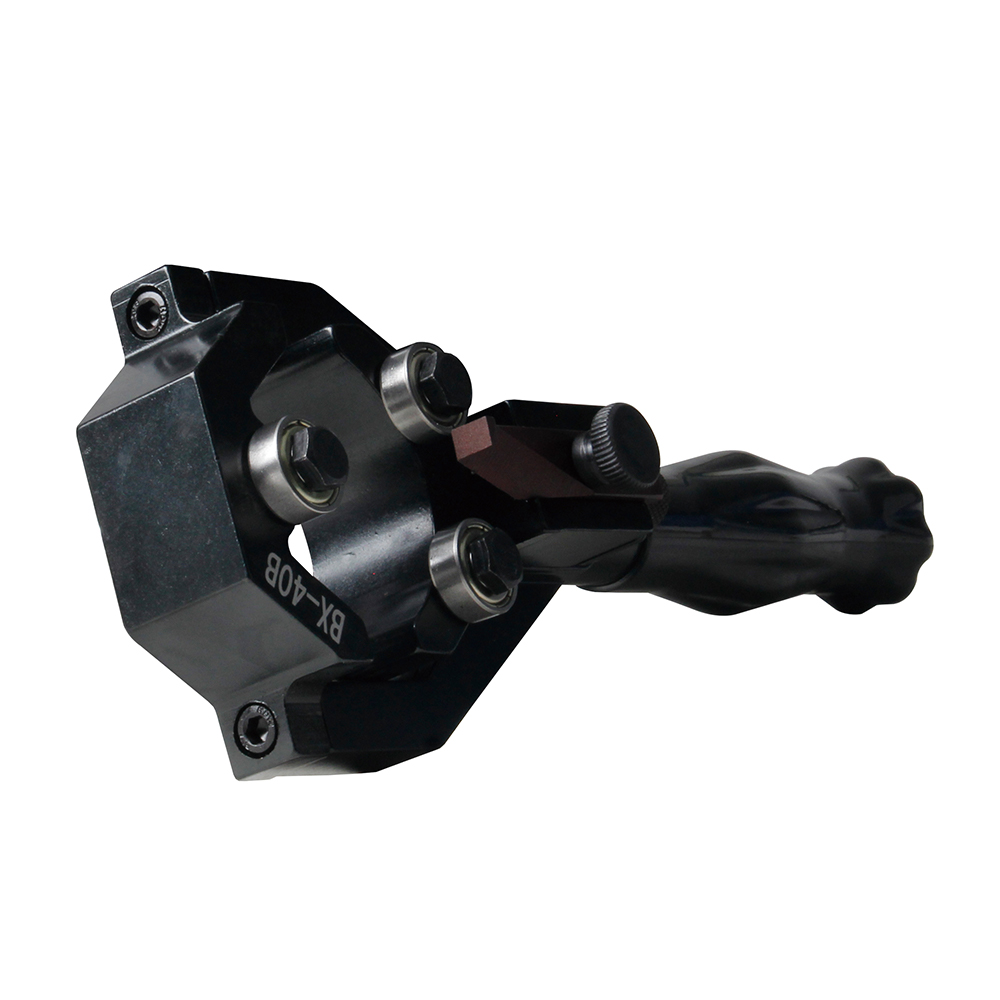

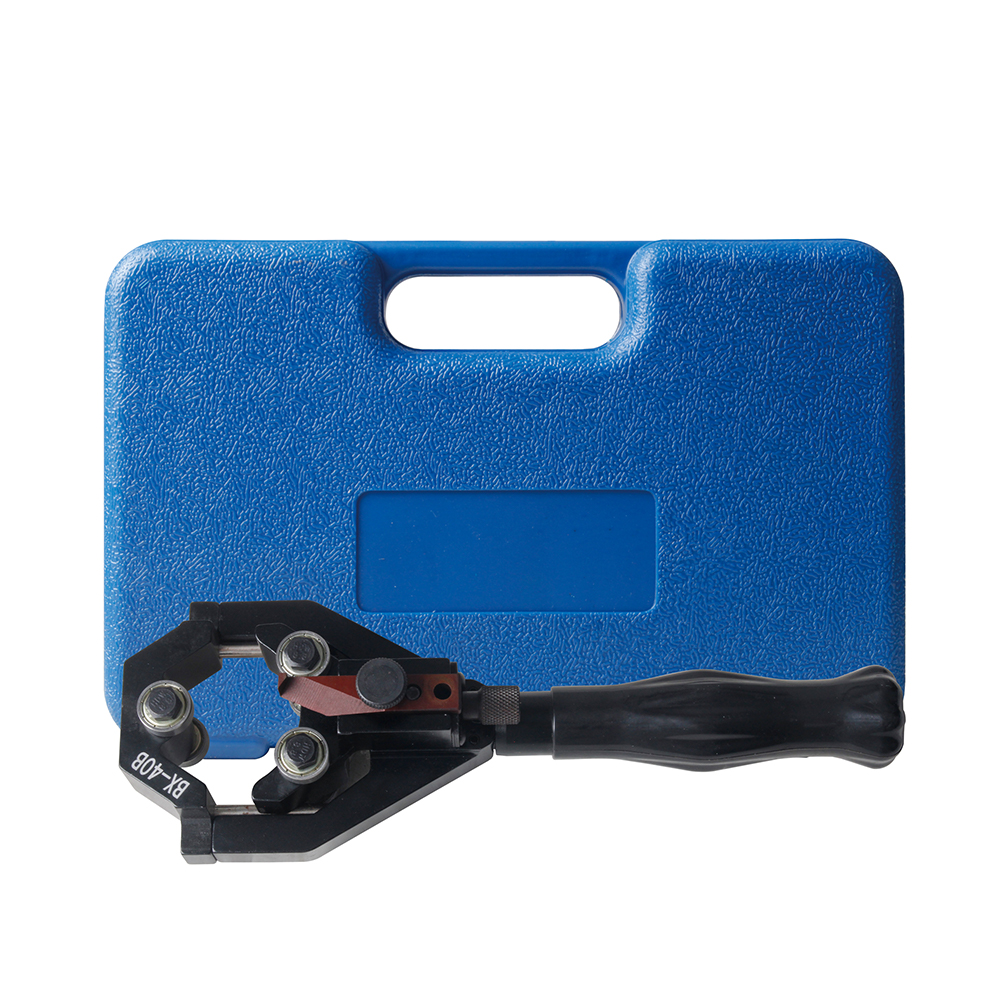

| Model | BX‑40B | Weight | 0.8kg | Size | 250×85×55(mm) |
| Scope of use |
It is suitable for stripping the semiconductor layer at the end of power cables with a diameter of 20-40mm. It is usually used to strip off the main semiconductor layer at the end of 10KV cables. |
||||

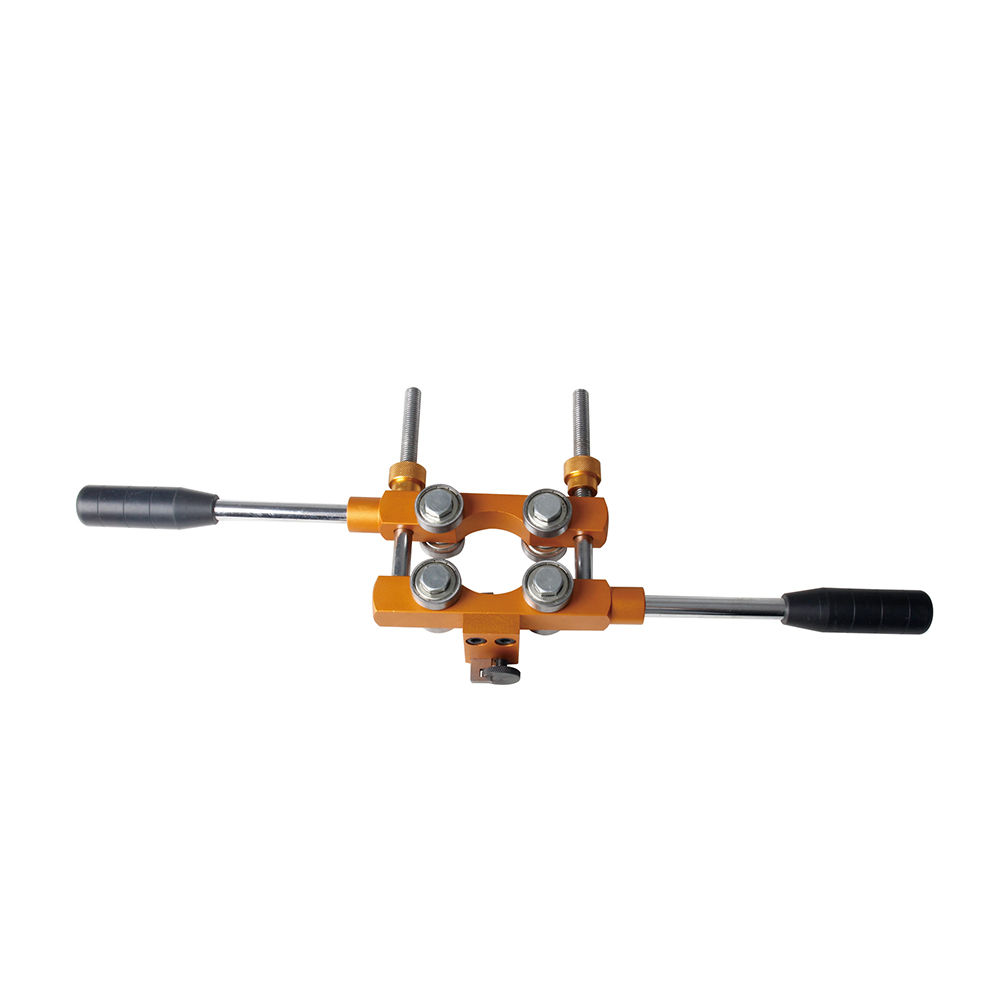

| Model | BX‑50 | Size | 335mm |
| Net weight | 0.95kg | Package | canvas bag packaging |
| Scope of application | 10KV,20KV,35KV, suitable for stripping 70‑400 square meters of high‑voltage single‑core cables. | ||
Key Features
Wide Compatibility: Suitable for CU & AL wires, cross-linked or non-cross-linked, low- and high-voltage cables.
Durable Alloy Blades: Heat-treated steel ensures long-lasting sharpness and clean, damage-free stripping.
Ergonomic & Labor-Saving: Humanized handles with rubber coating and connecting rod design reduce fatigue during repeated operations.
Adjustable Precision: Blade angles and cutting depths can be finely controlled via knobs and screws for accurate insulation removal.
Versatile Cutting Modes: Supports longitudinal cutting and crosscutting for end or middle insulation layers.
Portable & Safe: Locking switches, clamp mechanisms, and sturdy packaging options (canvas bag or toolbox) make storage and transport effortless.
Usage Instructions
Open the tool and clamp the cable securely.
Adjust blade depth and angle according to cable type and size.
Rotate or press the handle to strip insulation.
Remove the stripped cable.
Use the integrated cutter function for precise cable cutting if needed.
Specifications
Weight: 0.8–1.3kg depending on model
Cable Diameter Range: 15–105mm (medium & power cables)
High-Voltage Cable Capacity: 70–400mm², 10–35KV
Maximum Stripping Depth: 4.5mm

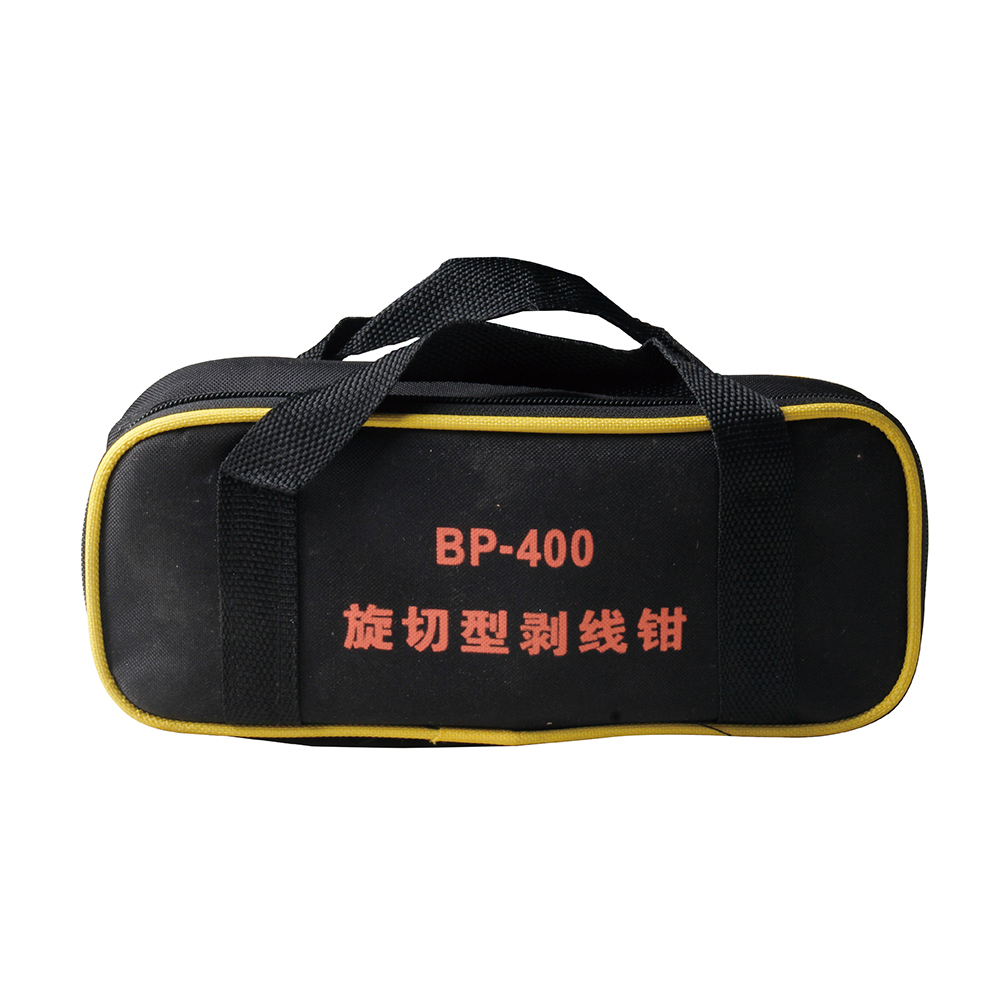

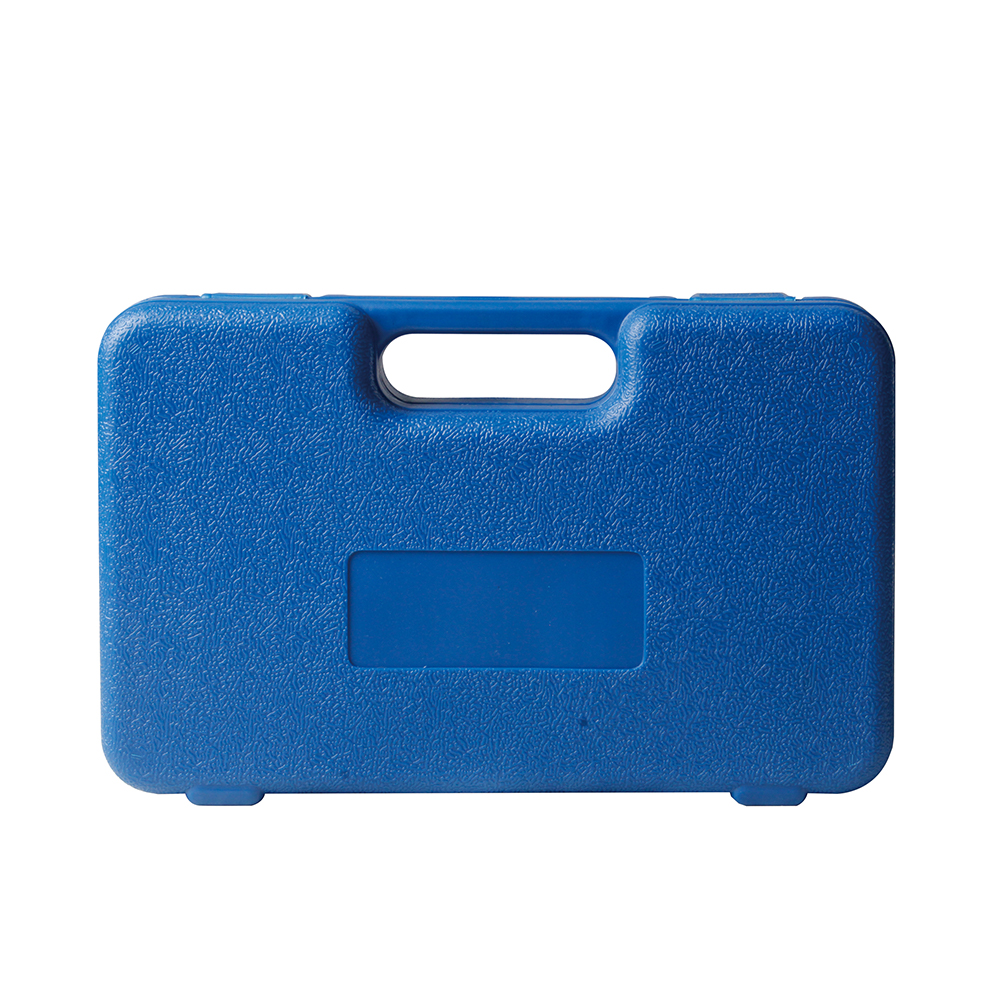

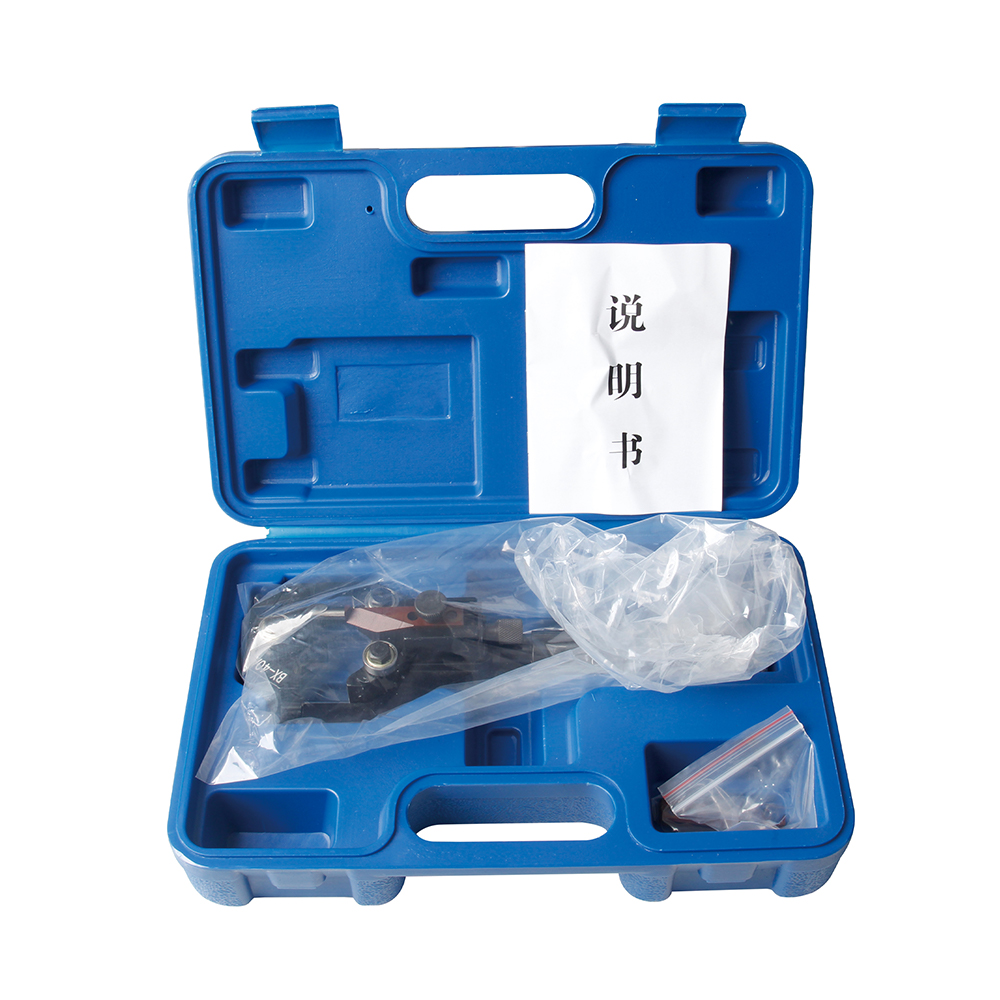

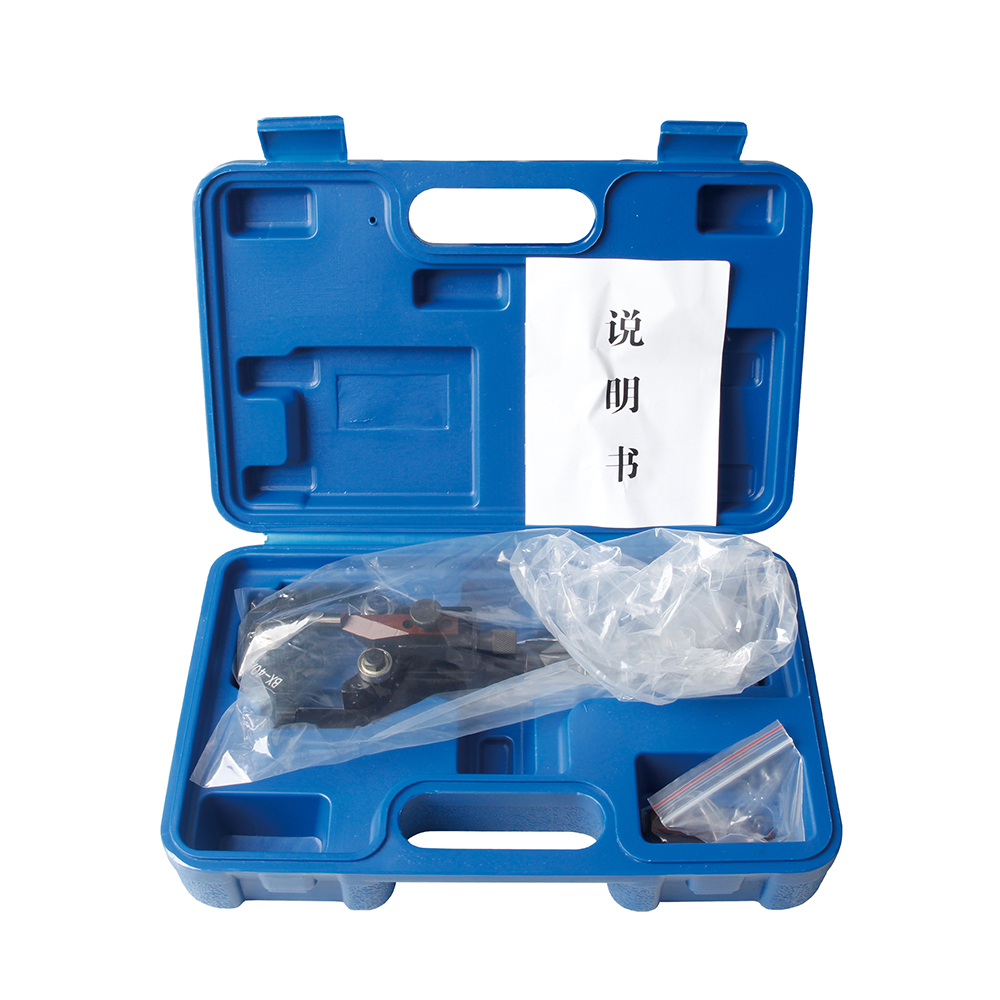

Packaging: Canvas bag or heavy-duty toolbox
Applications
Industrial wiring, electric motor repair, electrical installation, machinery maintenance, high-voltage cable projects, and professional electrician tasks.
