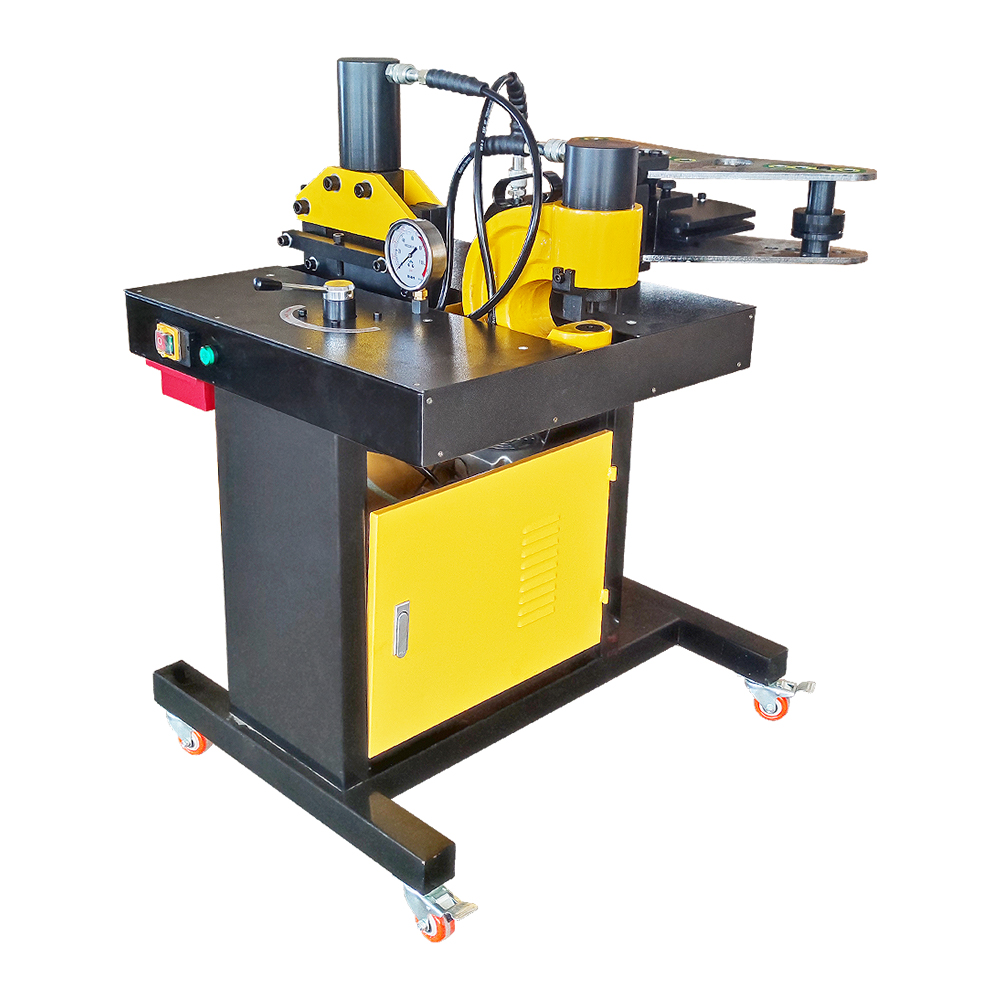

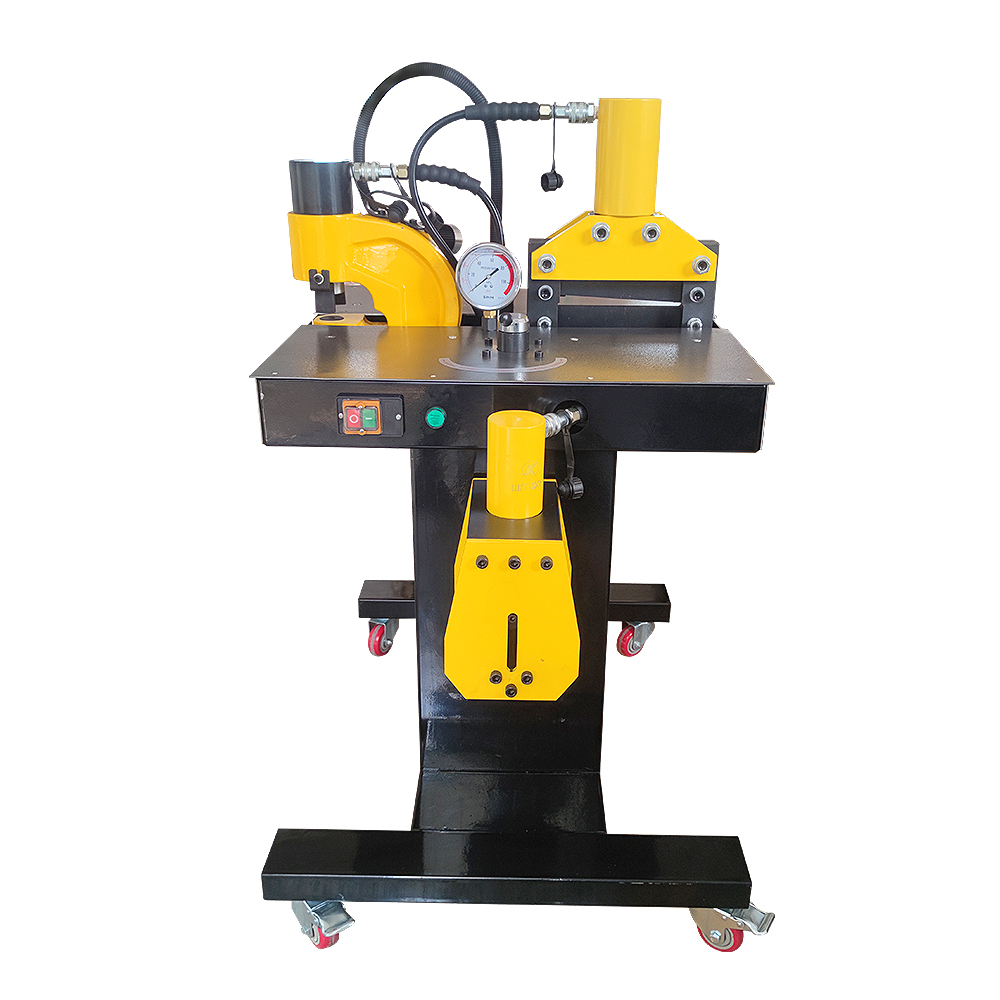

DHY Series 3-in-1 Hydraulic Busbar Processing Machine is the ultimate solution for fast, precise, and reliable busbar fabrication. Designed for panel manufacturers, electrical workshops, and industrial assembly, this machine combines cutting, punching, and bending in a single, compact unit.

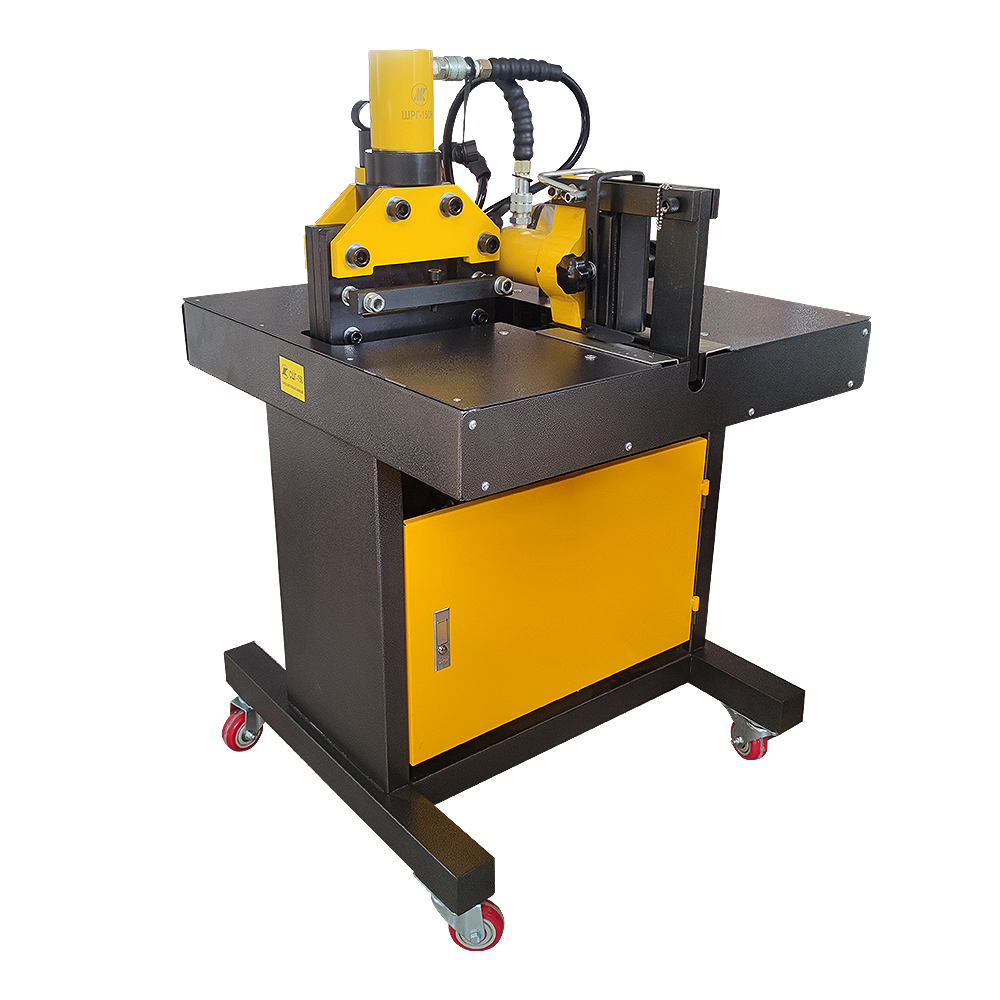

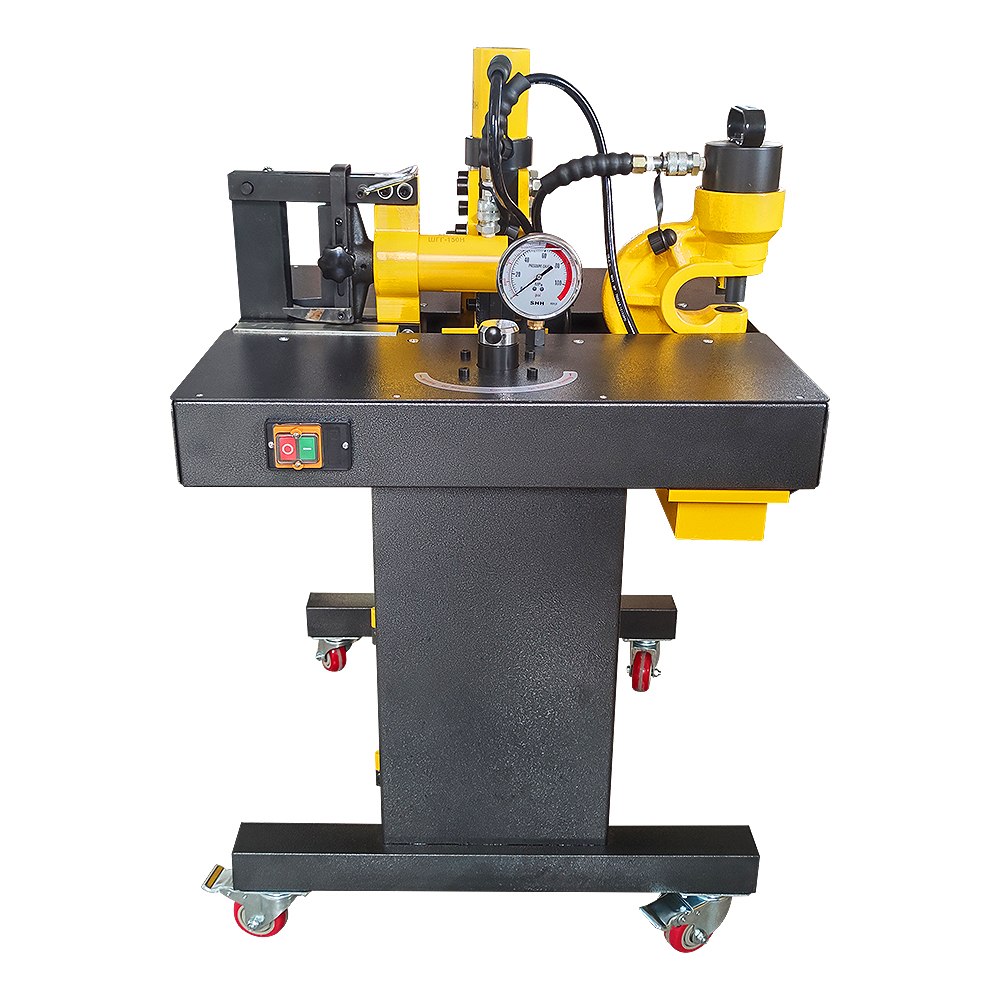

| Model | DHY-150 |
| Cut off range | Copper-aluminium row width＜150mm, thickness 3-10mm |
| Bending range | Copper-aluminium row width＜150mm, thickness 3-10mm |
| Punching range | Copper-aluminium row width＜150mm, thickness 3-10mm |
| Standard punching die | Φ7, Φ9, Φ10.5, Φ13.8, Φ17, Φ20.5 |
| Distance from hole center to edge | 95mm |
| Input voltage | 220V/380V |
| Rated working oil pressure | 700Kgf/cm² 10000Psi |
| Weight | 170Kg |
| The following products are selected with the following parameters | |
| Processing range of flat bending | Copper-aluminium row width 40,50,60,80,100,125; |
| Copper-aluminium row thickness 4,6,8,10; | |
| Processing range of the embossing machine | Copper-aluminium row width is less than 150 mm, and the thickness is less |
| 300 hydraulic clamp range | Copper terminal 16- 300 mm; Aluminum terminal 25- 400 mm |
| 500 hydraulic clamp range | Copper terminal 16- 300 mm; Aluminum terminal 16- 400 mm |
| Specification | Cutting, punching, horizontal bending |

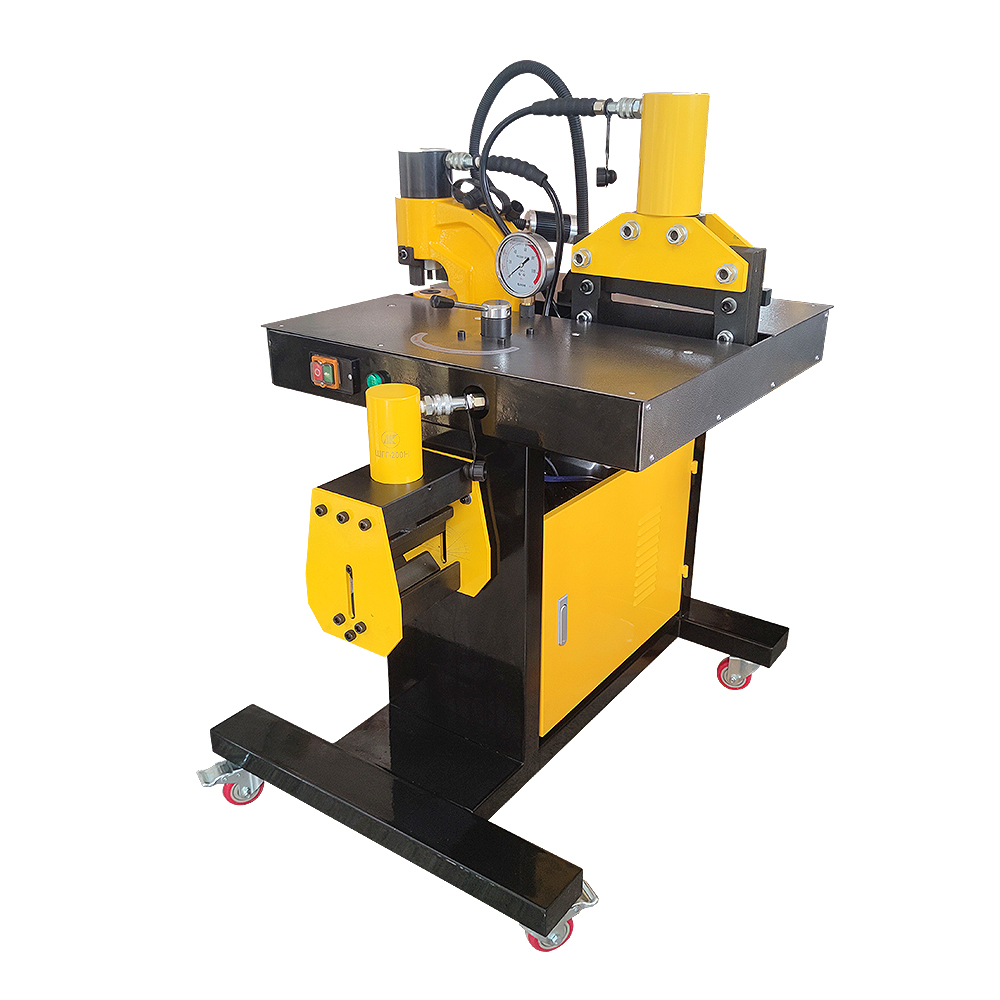

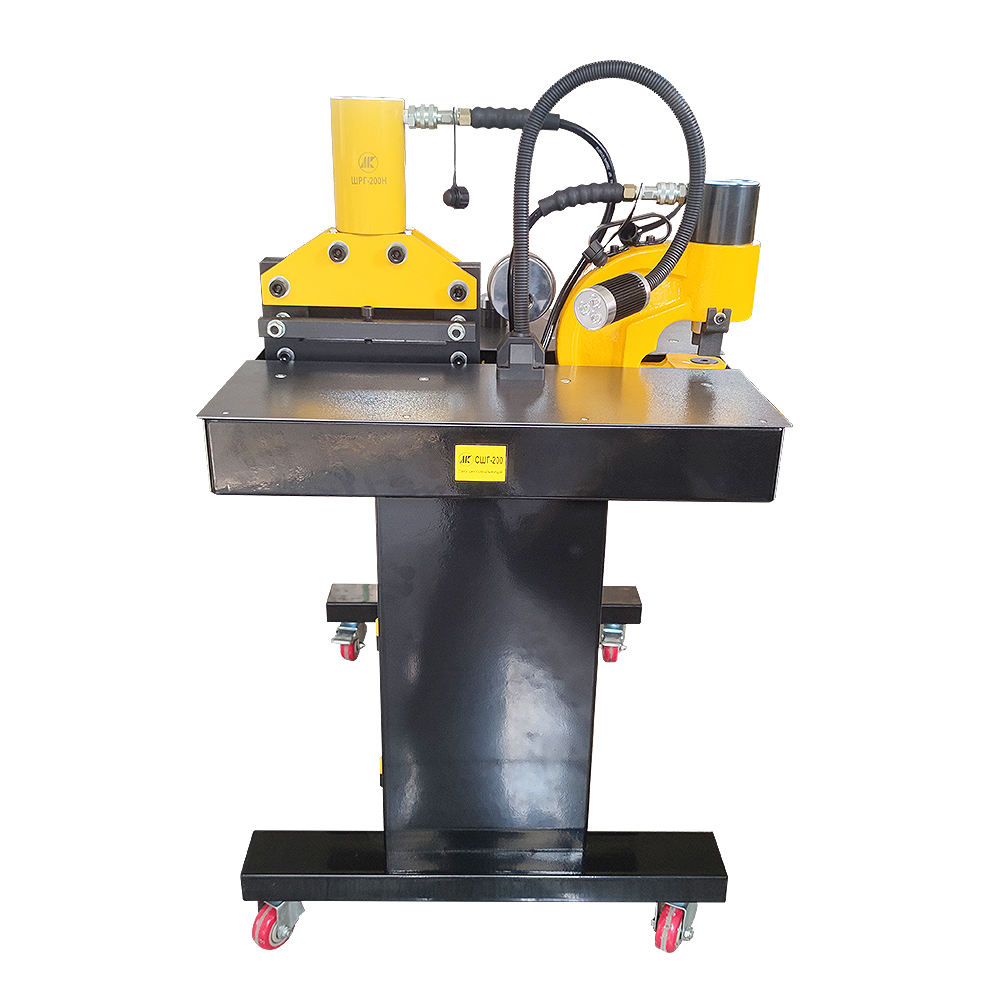

| Item No. | DHY-200 |
| Input voltage/control voltage | Single phase 50Hz/220v |
| Rating working oil pressure | 700kgf/cm² |
| Busbar cutting capability | (Copper busbar/aluminum busbar) 200×12mm |
| Outlet force of busbar cutter | 35Ton |
| Cutting Range | 200mm(Width) × 12mm(Thickness) |
| Outlet force of the puncher | 35Ton |
| Distance from hole to sheet side | 110mm |
| Punching capability-copper /aluminum busbar | Φ6-Φ20.5 (Max. Thickness): 12mm |
| Standard punching dies | 7/9/10.5/13.8/17/20.5mm |
| Outlet force of bender | 20Ton |
| Horizontal bending capability | 200×12mm |
| Weight | 206kgs |
| Package size | 97cm×77.8cm×129cm |

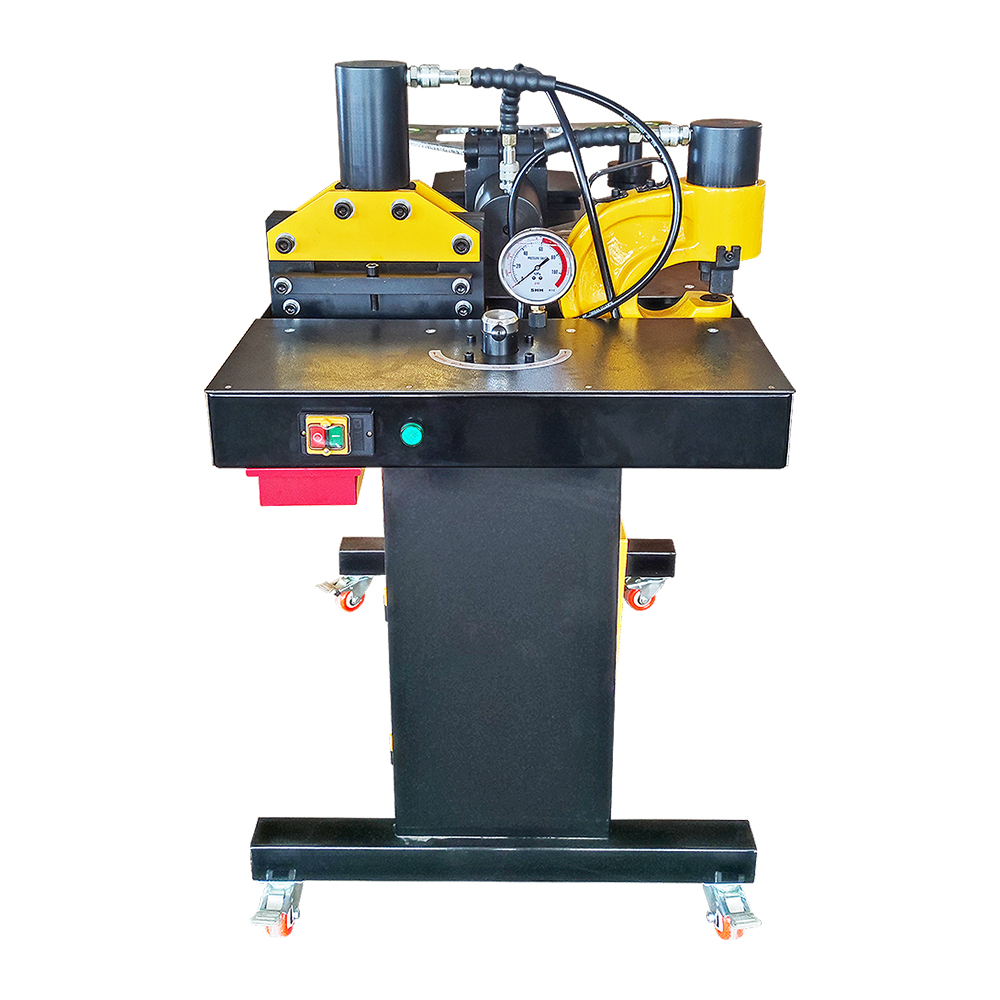

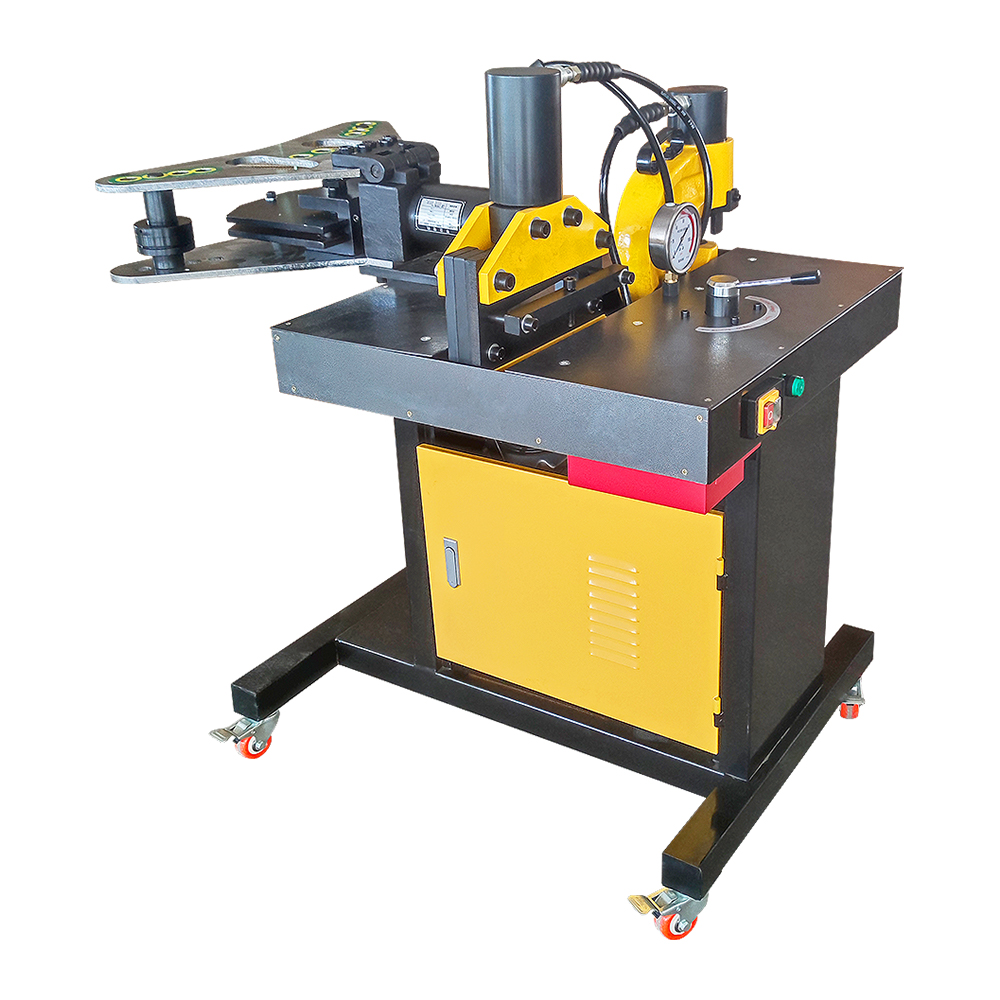

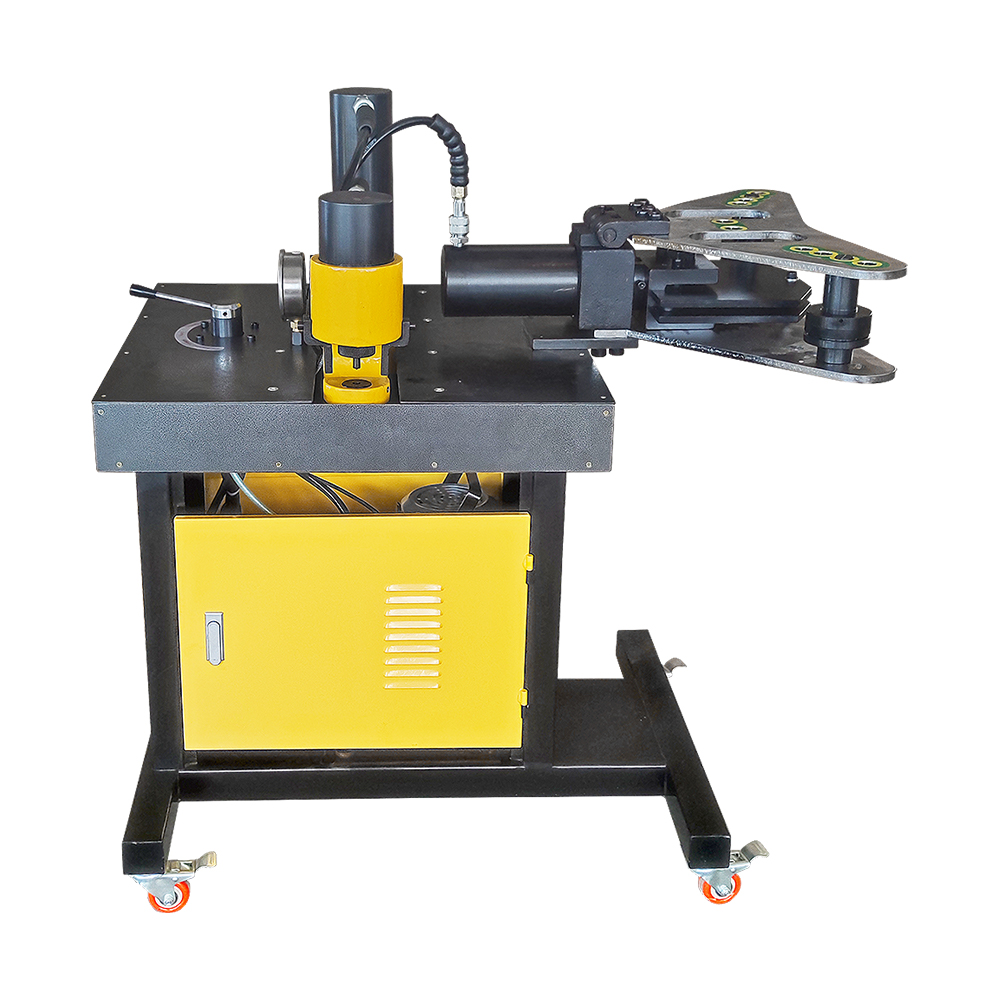

| Model | DHY-401 |
| Functions | With three functions: cutting, punching, and bending |
| Input/control voltage | Single phase 50Hz, 220V |
| Rating working oil pressure | 700kgf/cm² |
| Cutting output | 35Ton |
| Busbar cutting capability | Copper bus bar/aluminum bus bar 200mm×12mm |
| Punching output | 35Ton |
| Hole to edge distance | 110mm |
| Punching Capability | Copper: 6- 20.5 mm / Aluminium 12 mm |
| Standard assembled punching dies | 7、9、10.5、13.8、17、20.5mm |
| Bending output | 35Ton |
| Horizontal bending capability | 125×12.5mm |
Applications
Ideal for electrical manufacturing, power distribution panels, industrial busbar assembly, and metalworking, the DHY Series delivers high efficiency, multifunctionality, and durable performance in one integrated machine.
Why Customers Choose DHY Series
All-in-One Efficiency: Perform cutting, punching, and bending without switching machines, saving time and labor costs.
Wide Busbar Compatibility: Handles copper and aluminum busbars up to 200 mm wide and 12 mm thick, accommodating a variety of industrial needs.
High Power & Precision: Up to 35 tons of cutting and punching force, ensuring smooth, accurate results on thick busbars.

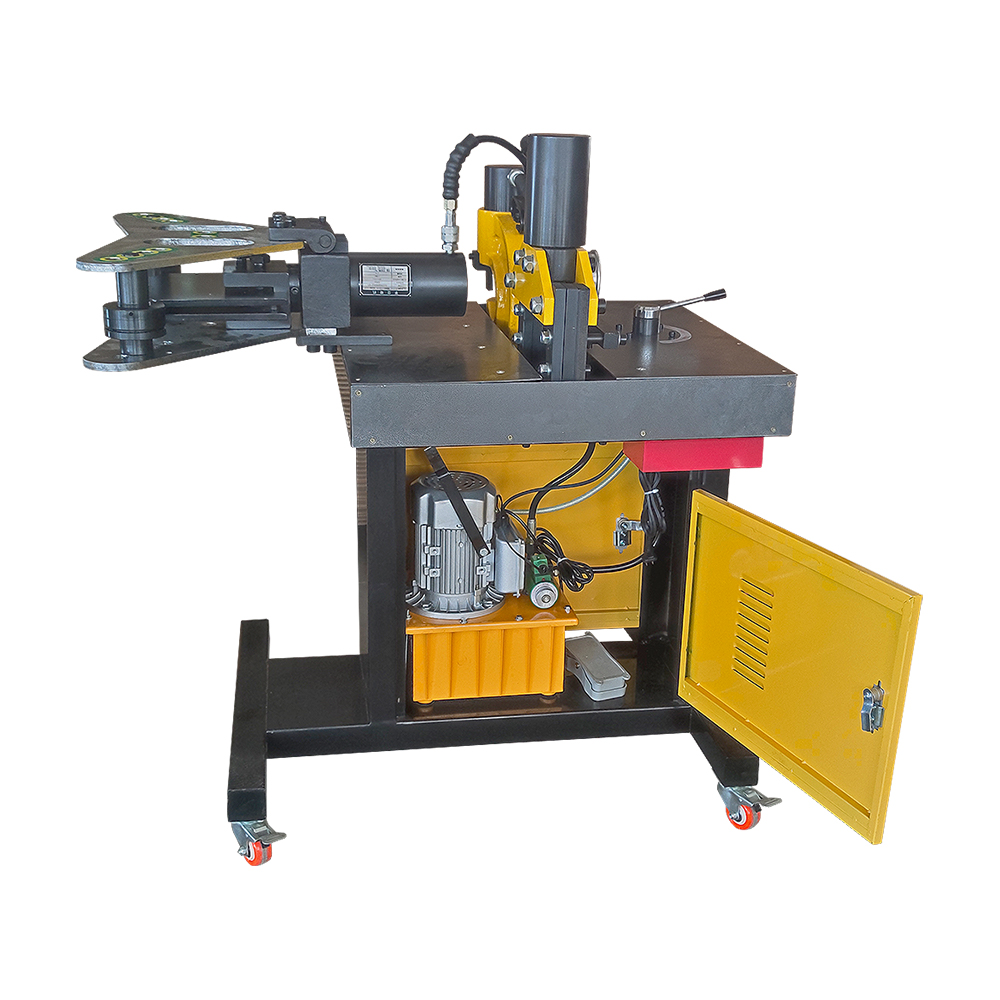

Safe & User-Friendly: Footswitch-controlled electric pump enables hands-free operation, while a manual valve system allows quick mode switching. Shockproof pressure gauges ensure stable readings, and the main power switch provides instant emergency shutdown.
Flexible Punching Options: Standard dies (7–20.5 mm) cover multiple hole sizes for diverse assembly requirements.
Portable & Compact: Universal caster wheels make moving the machine across workshops or job sites effortless.
Precise Horizontal Bending: Bends up to 125 × 12.5 mm for perfectly shaped busbars in switchgear and panels.
