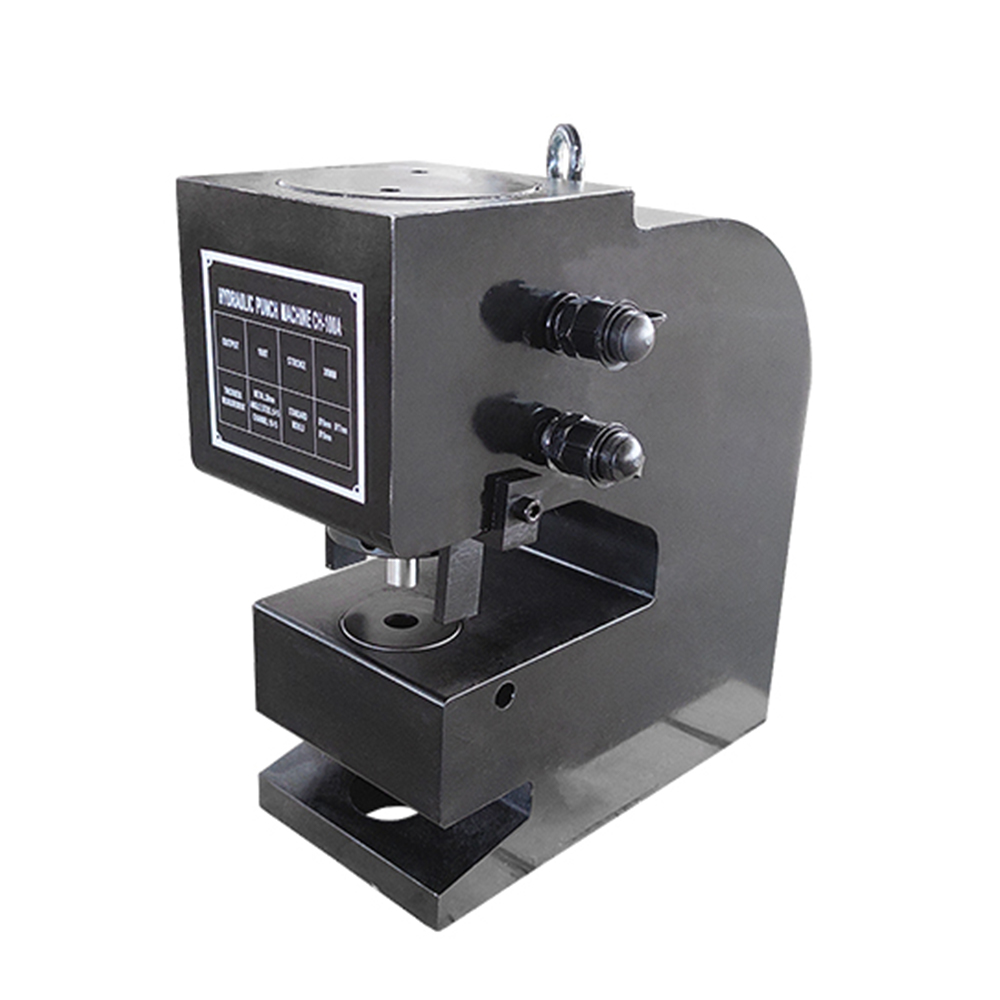

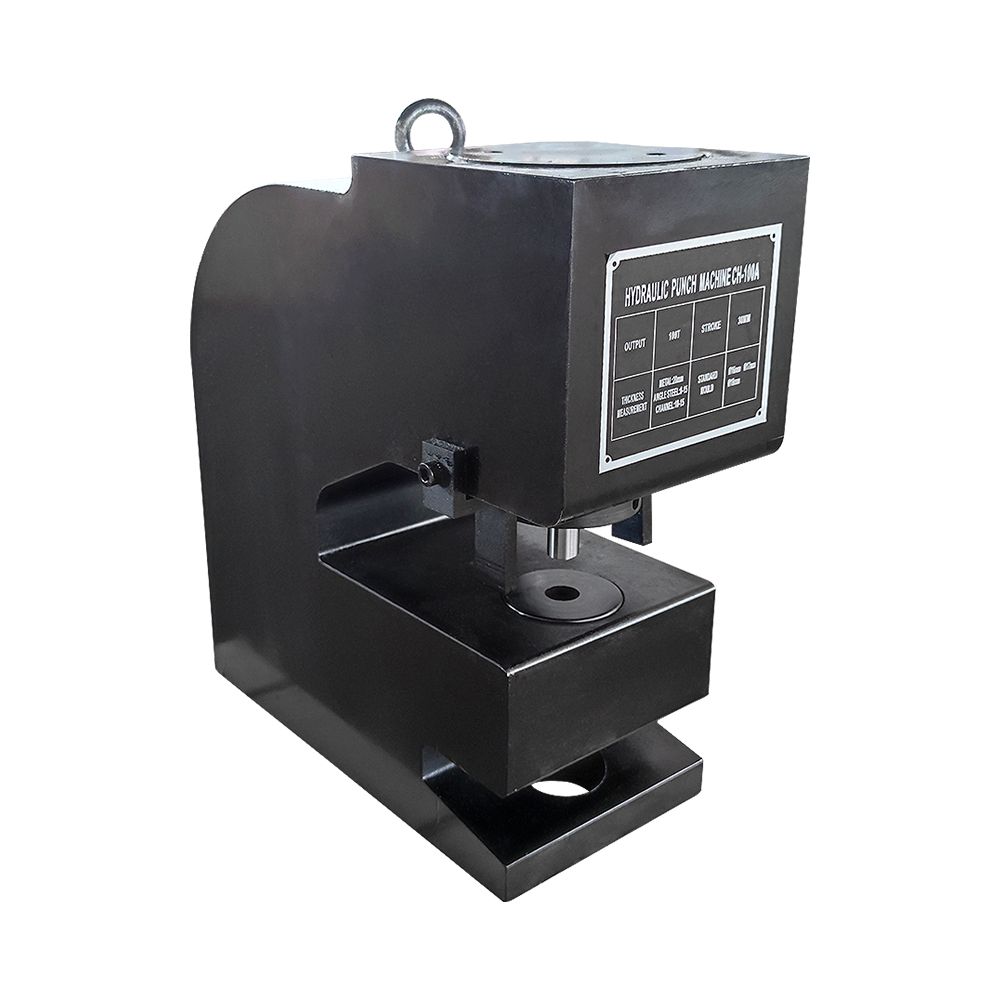

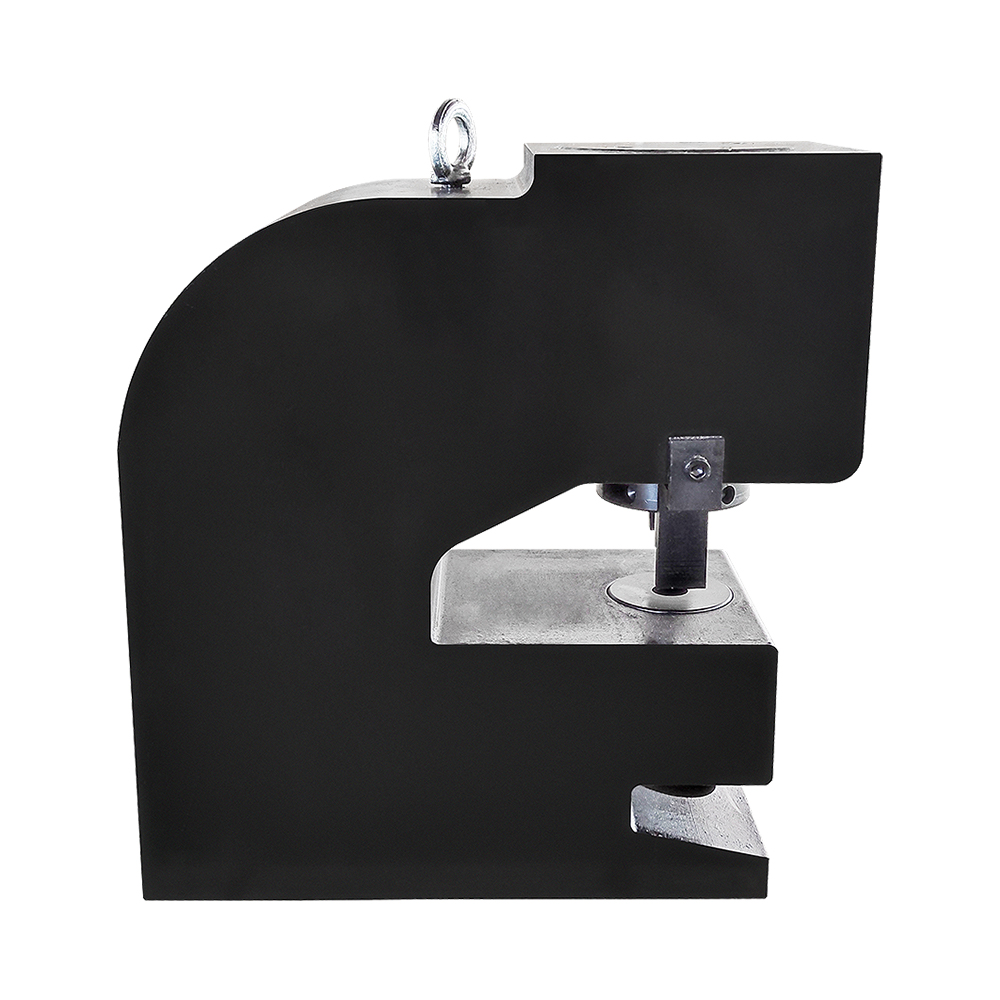

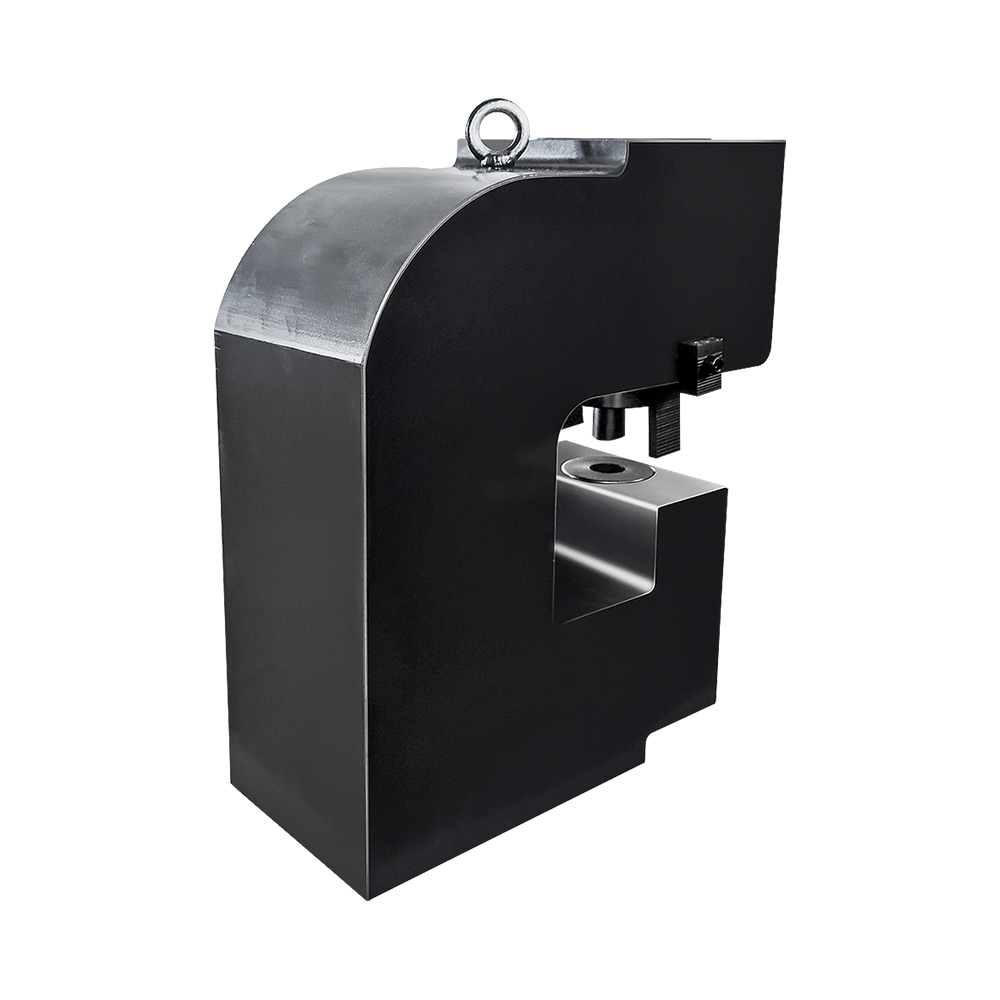

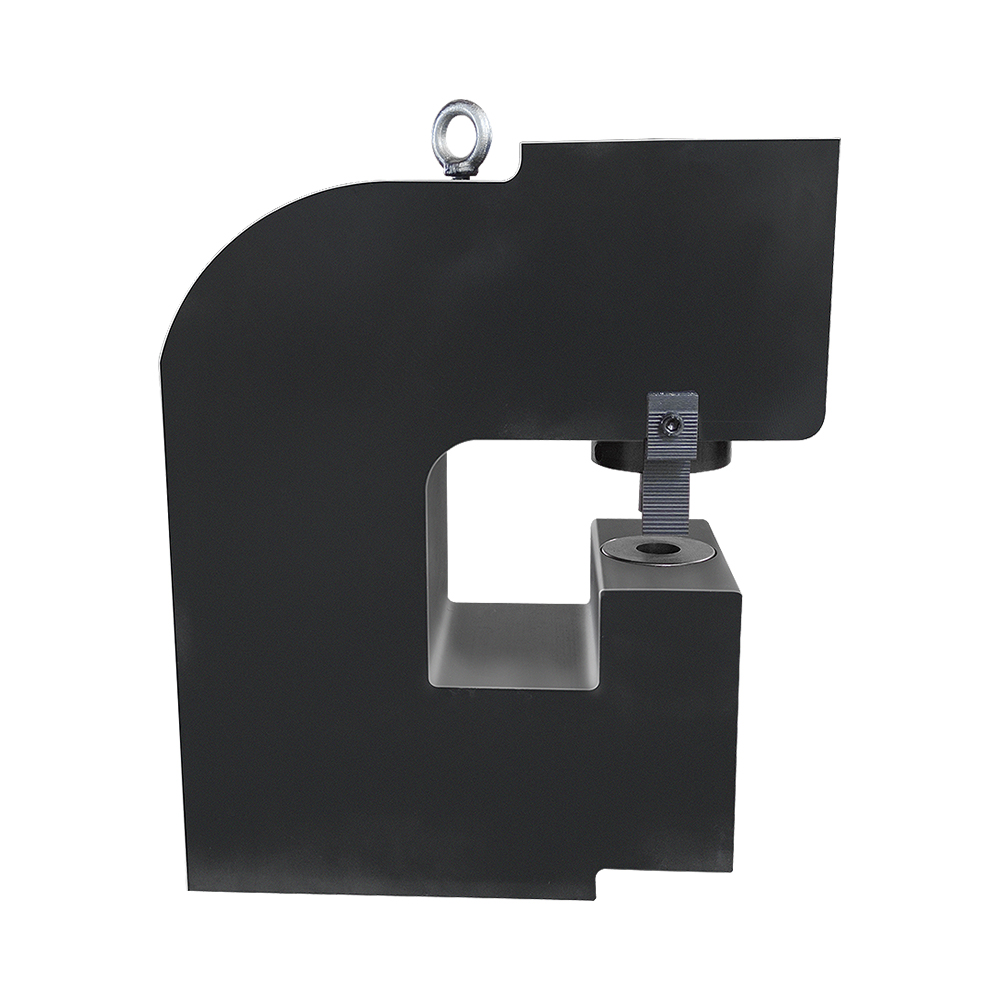

The CH-100A and CH-100B 100-ton Hydraulic Punching Machines are designed for fast, precise, and clean hole punching in steel plates, angle steel, U channels, H channels, copper sheets, aluminum profiles, and flat metal plates. Ideal for industrial workshops, construction sites, and metal fabrication, these machines combine power, accuracy, and portability for medium-duty metalworking tasks.
Powerful Punching Force: 100T punching capacity for iron plates up to 20mm thick and copper sheets up to 24mm.
Versatile Application: Suitable for angle steel (8#–15#), U channels (10#–15#), H channels (10#–15#), copper bars, aluminum profiles, and flat steel sheets.
Precision and Clean Operation: Fast punching speed, accurate positioning, and chip-free holes ensure high efficiency and repeatable results.
Durable and Reliable: High-strength alloy steel punching dies with precision pressure plungers; replaceable upper and lower molds for long-term use.
User-Friendly Design: Metal rings and dust caps protect components, while ergonomic design ensures safe, convenient handling.
Electric Pump Compatible: Works with electric hydraulic pumps for consistent pressure and smooth operation.
The CH-100A / CH-100B series offers a reliable, high-performance solution for manufacturers, construction professionals, and metalworking shops, providing efficient and versatile punching for medium-duty industrial tasks.
| Model | CH-100A | Output | 100T |
| Range | Iron Plate 20mm Copper Sheet 24mm |
Angle steel | 8-15# |
| U Channel | 10-15# | H Channe | 10-15# |
| N.W/G.W | 119Kg/124.5Kg | Throat depth | 135mm |

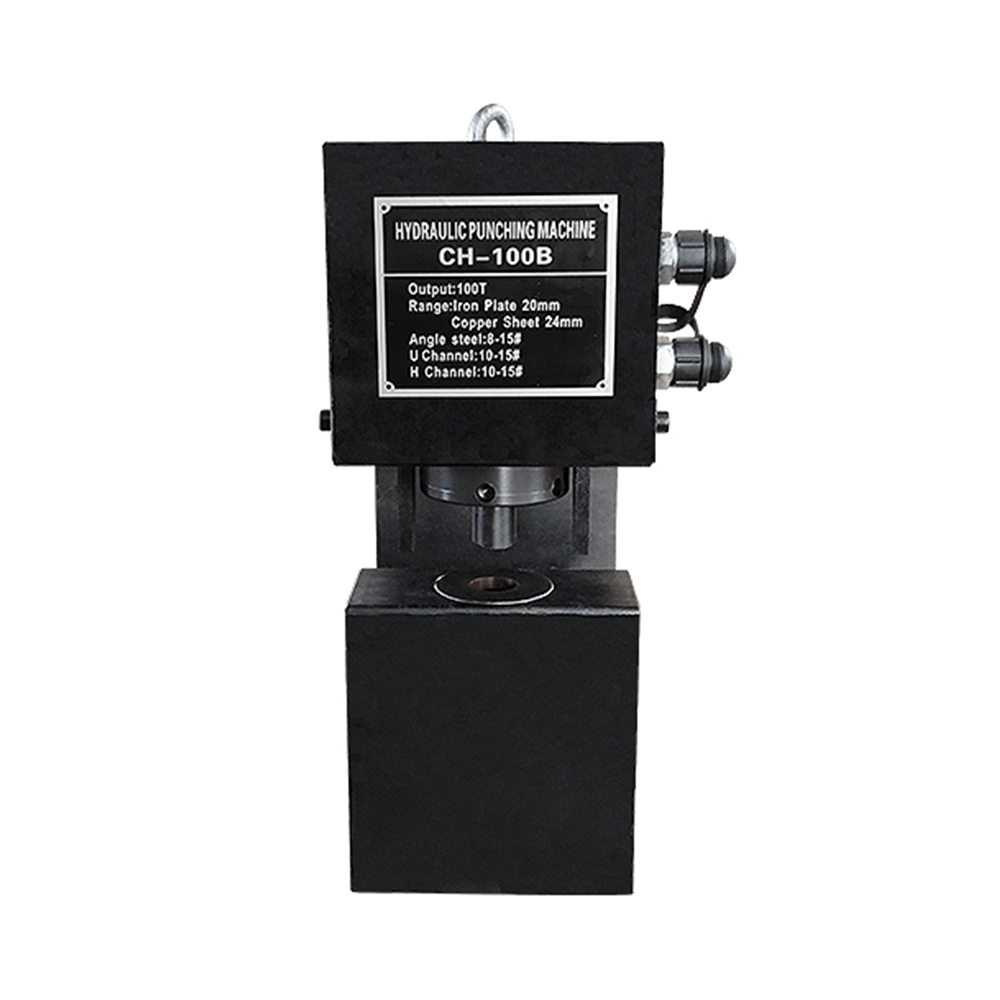

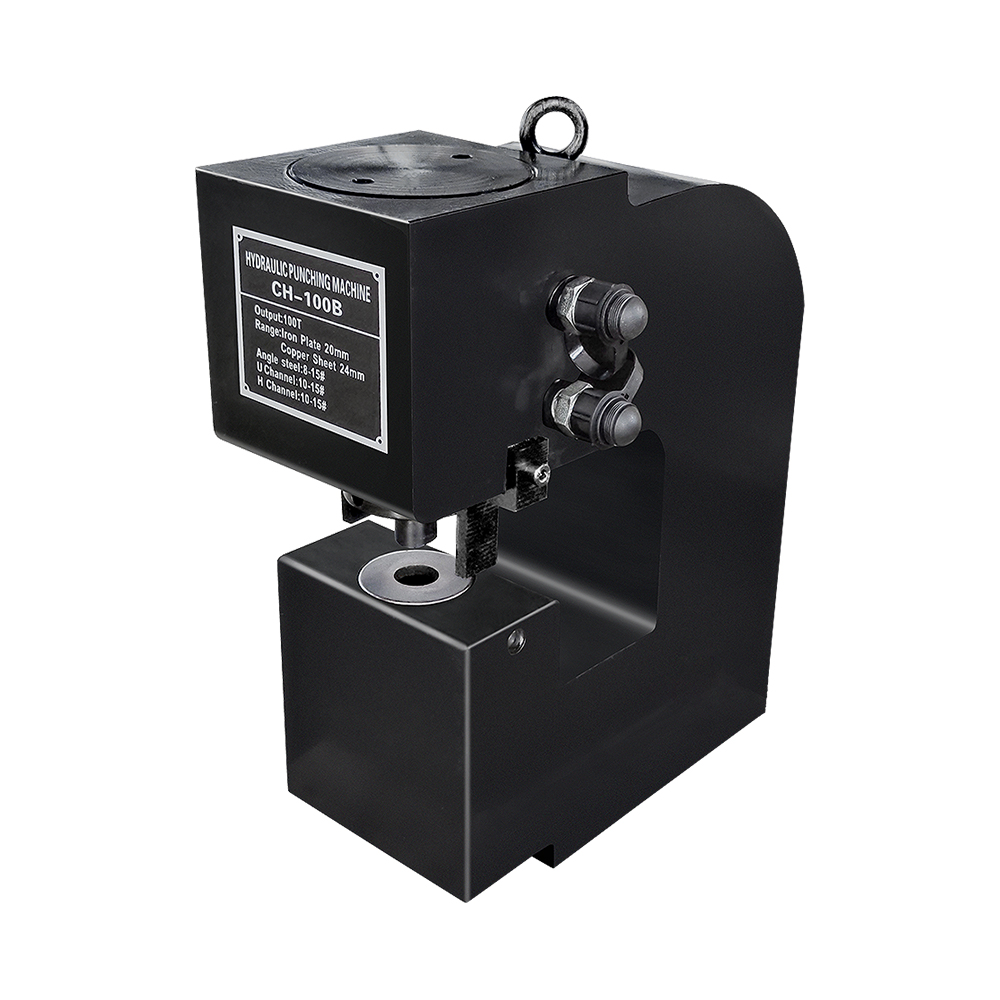

| Model | CH-100B | Output | 100T |
| Range | Iron Plate 20mm Copper Sheet 24mm |
Angle steel | 8-15# |
| U Channel | 10-15# | H Channe | 10-15# |
| N.W/G.W | 130Kg/135.5Kg | Throat depth | 135mm |
