FYQ Series Hydraulic Cable Crimping Tools are a family of professional hydraulic crimpers designed for efficient and precise crimping of copper and aluminum cable terminals. Featuring high-strength molds, humanized handles, and openable clamp heads, these tools are ideal for industrial, communication, transportation, petrochemical, metallurgy, and power distribution applications.
Series Models & Differences
FYQ-400 – Compact model for small-to-medium cables, crimping range 16–400mm², ideal for indoor and outdoor wiring projects.
FYQ-500 – Mid-range capacity, crimping range 150–500mm², robust design for high-efficiency cable laying.
FYQ-630 – High-capacity crimper, crimping range 150–630mm², featuring openable clamp heads and quick connectors for easier die replacement.

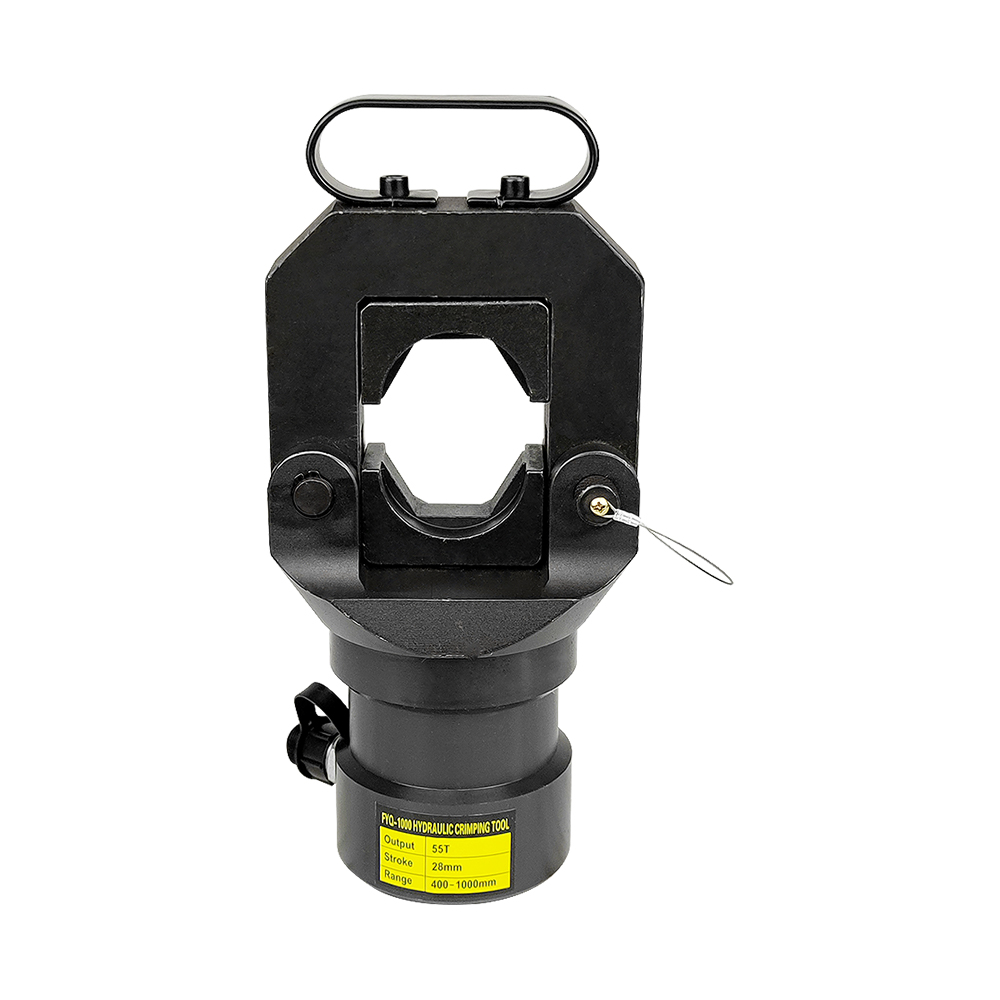

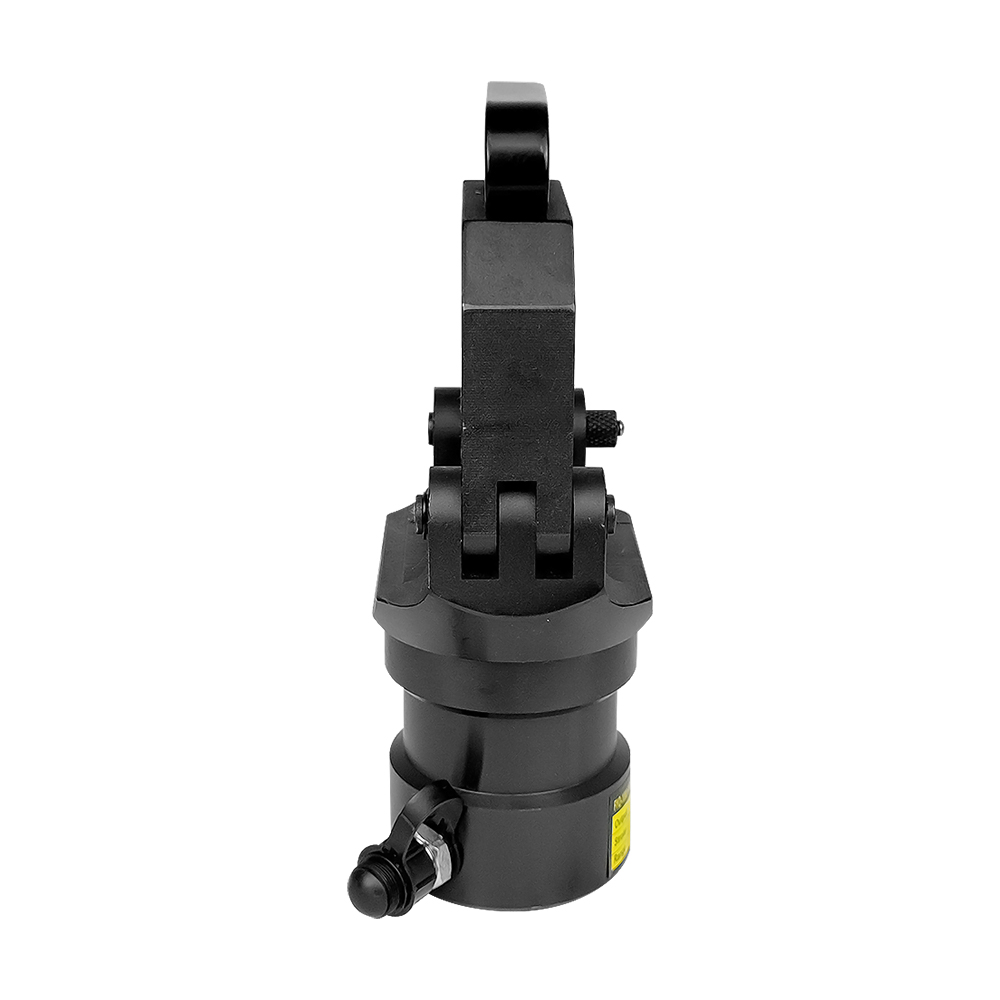

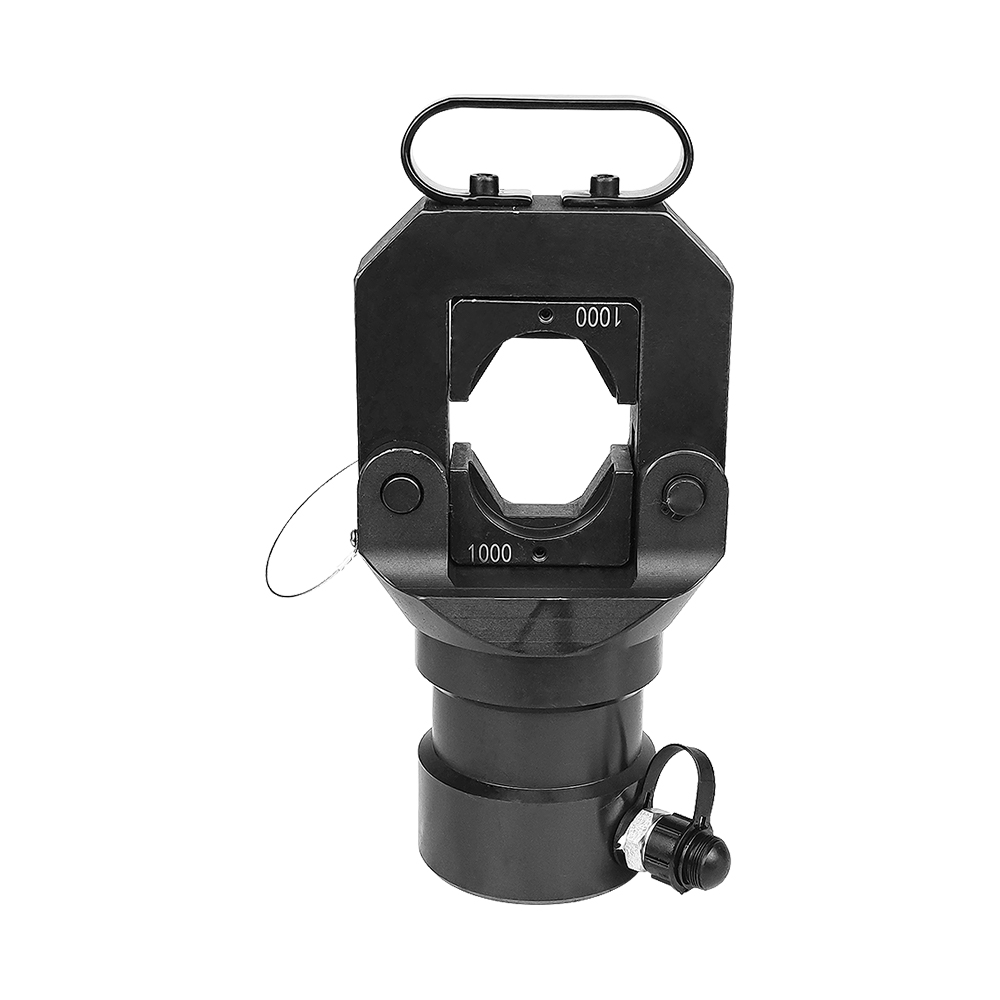

FYQ-1000 – Split-head heavy-duty crimper, crimping range 400–1000mm², supports large cables and industrial power units; requires separate hydraulic pump (manual or electric).
| Model | FYQ-1000 | Stroke | 28mm |
| Tonnage | 55T | Crimp Range | 400-1000mm² |
| Mold configuration | 300/400/500/630/800/1000mm² | ||
| Crimping Range | 150-630mm² | Crimping Force | 35T |
| Crimping Type | Hexagon | Stroke | 25mm |
| Weight | Approx. 17 kg | ||
| Crimping Dies | 150,185,240,300,400,500,630mm² | ||
| Note | It can match hand pump(CP-180,CP-700) or electric pump | ||
| Crimping Range | 16-400mm² | Crimping Force | 25T |
| Crimping Type | Hexagon | Stroke | 25mm |
| Weight | Approx. 10 kg | ||
| Crimping Dies | 16,25,35,50,70,95,120,150,185,240,300,400mm² | ||
| Note | It can match hand pump(CP-180,CP-700) or electric pump | ||
| Model | FYQ-500 | Stroke | 25mm |
| Tonnage | 25T | Crimp Range | 16-500mm² |
| Mold configuration | 16/25/35/50/70/95/120/150/185/240/300/400/500mm² | ||
Key Features(Common to All Models)
High-hardness molds for long-term durability
Humanized ergonomic handles for easier transport and operation
Openable clamp head for convenient cable insertion and mold replacement
Quick connector + dust cover to protect hydraulic components
Compatible with hand or electric hydraulic pumps (FYQ-1000 requires an external pump)
