DYF Series Hydraulic Gear Bearing Puller is designed for efficient removal of bearings, gears, pulleys, and flywheels. Built-in hydraulic system delivers a strong and stable pulling force, reducing manual effort and improving working efficiency.
| Model | Lateral maximum pull distance | Longitudinal maximum pull distance | Axis stroke | Top Degree | Thread diameter | diameter | Weight |
| DYF‑5 | 200 | 140 | 50 | 22 | 45.6 | φ59 | 6.5Kg |

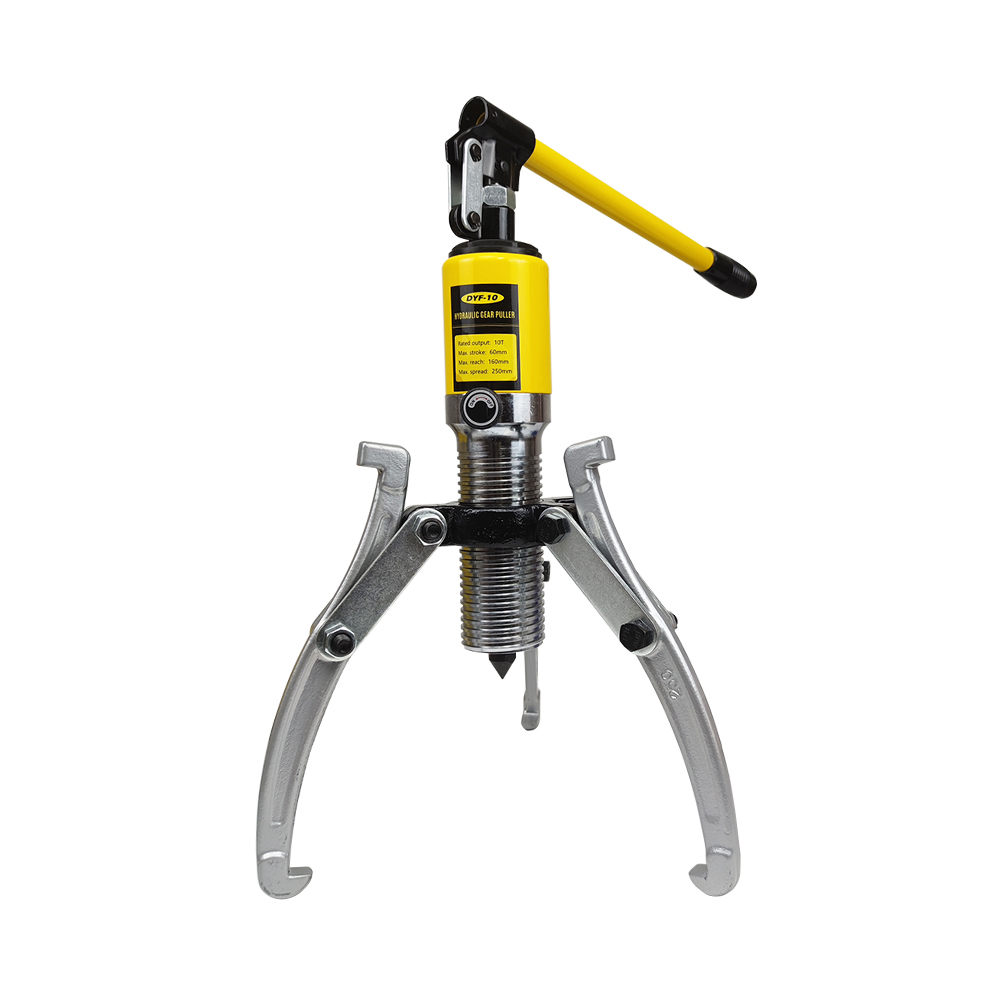

| DYF‑10 | 250 | 160 | 50 | 23 | 60 | φ75 | 10.5Kg |

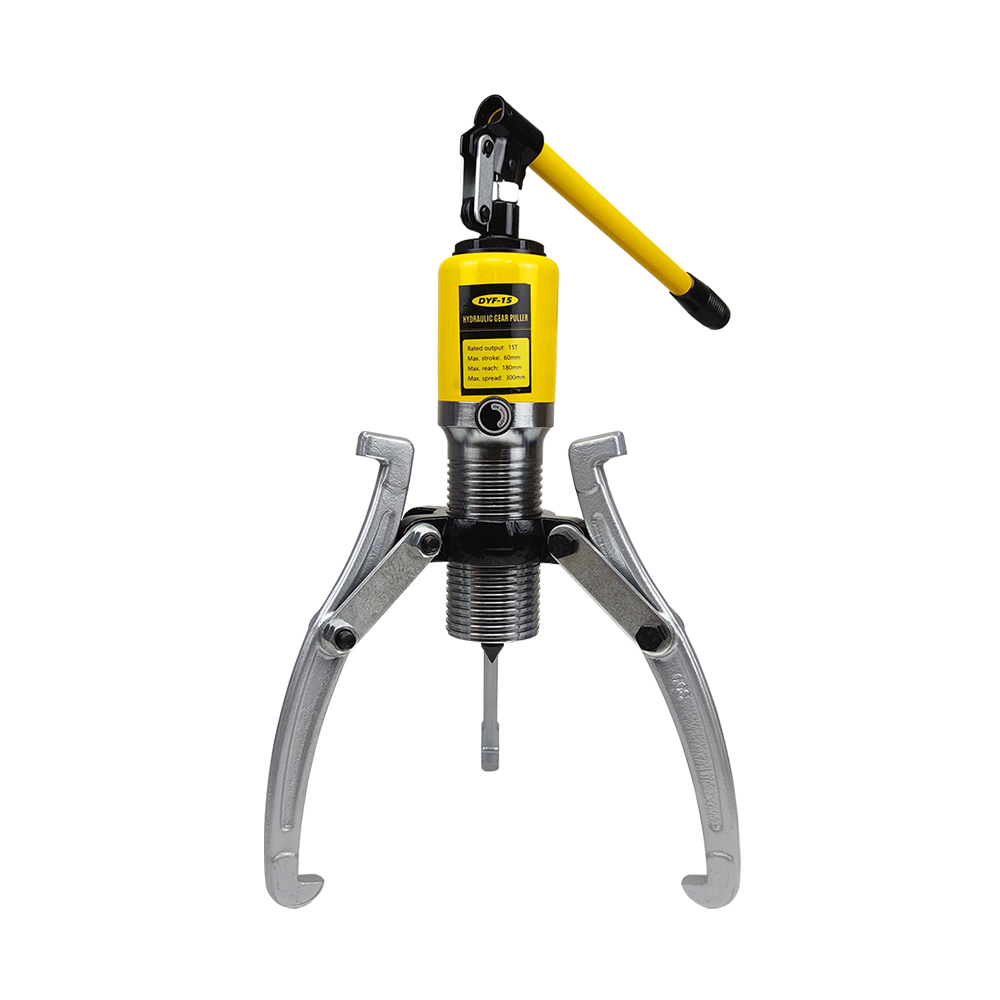

| DYF‑15 | 300 | 180 | 50 | 24 | 60 | φ75 | 12Kg |

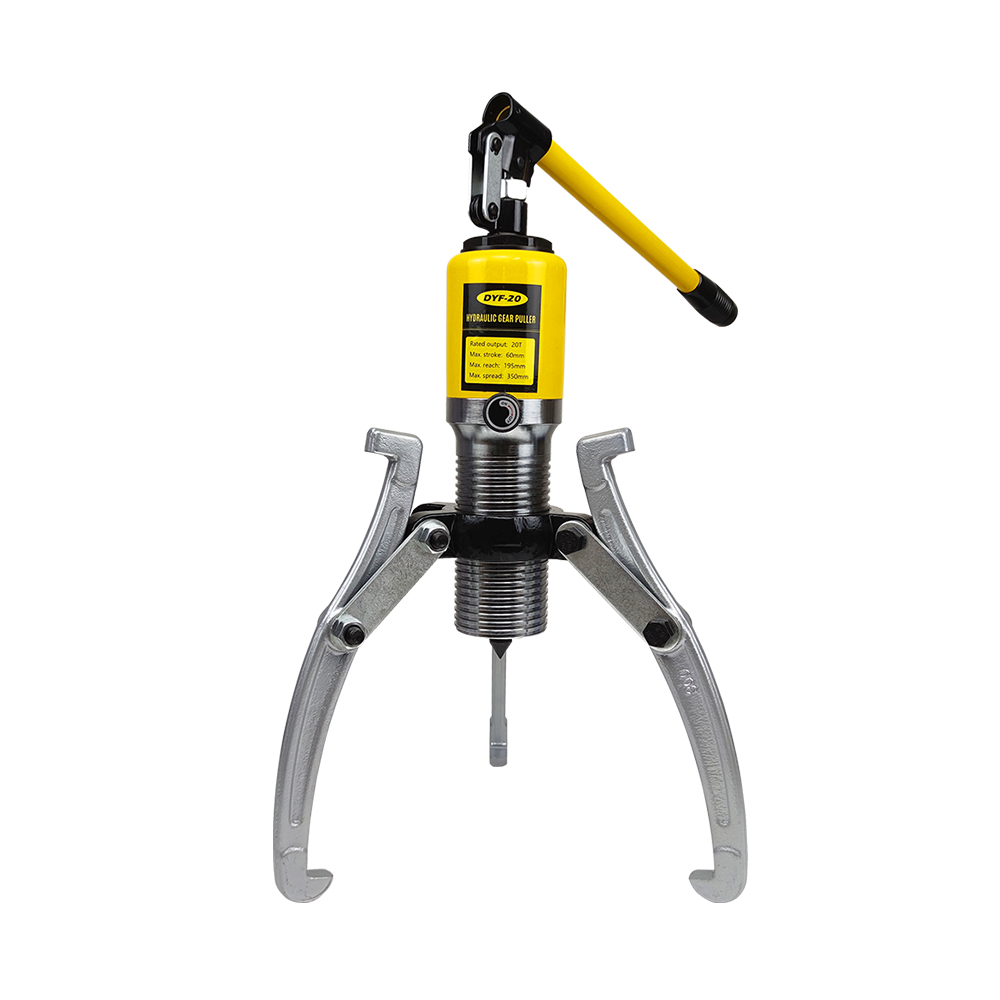

| DYF‑20 | 350 | 200 | 50 | 24 | 73 | φ88 | 16Kg |

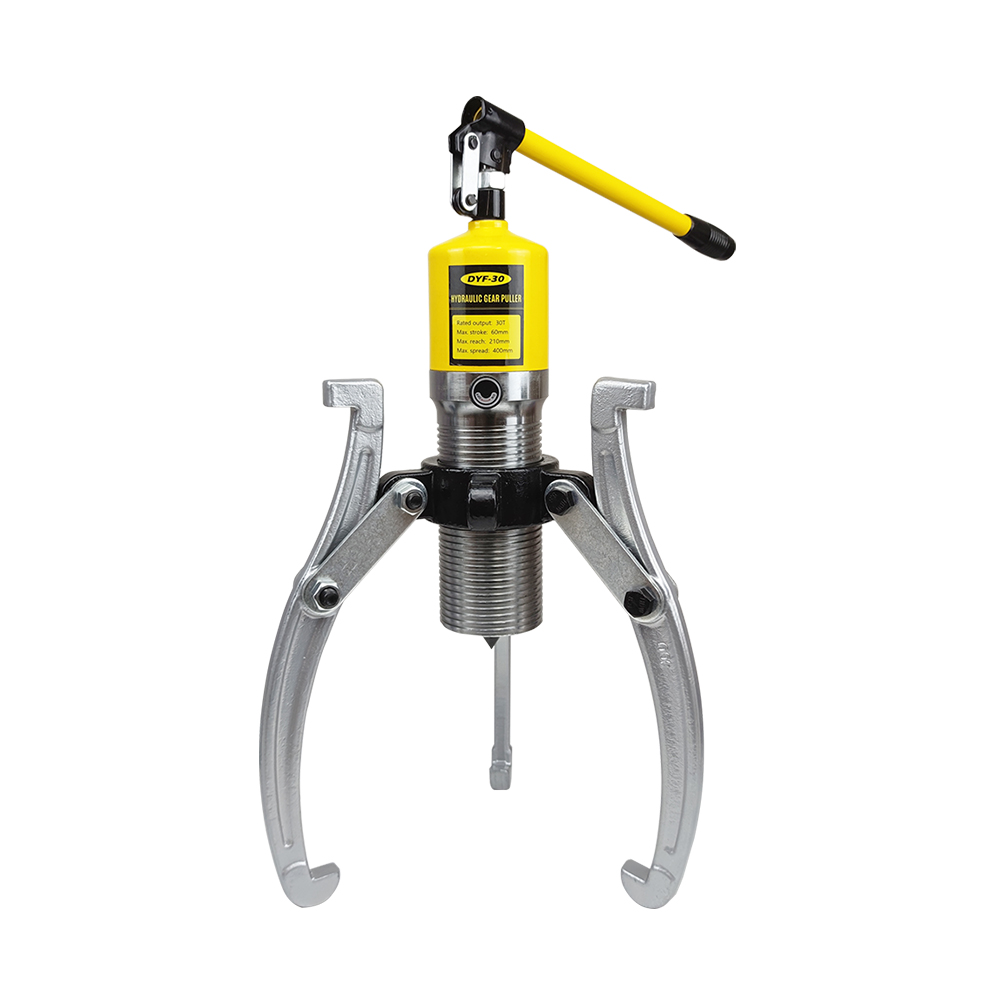

| DYF‑30 | 400 | 200 | 50 | 24 | 88 | φ102 | 25Kg |

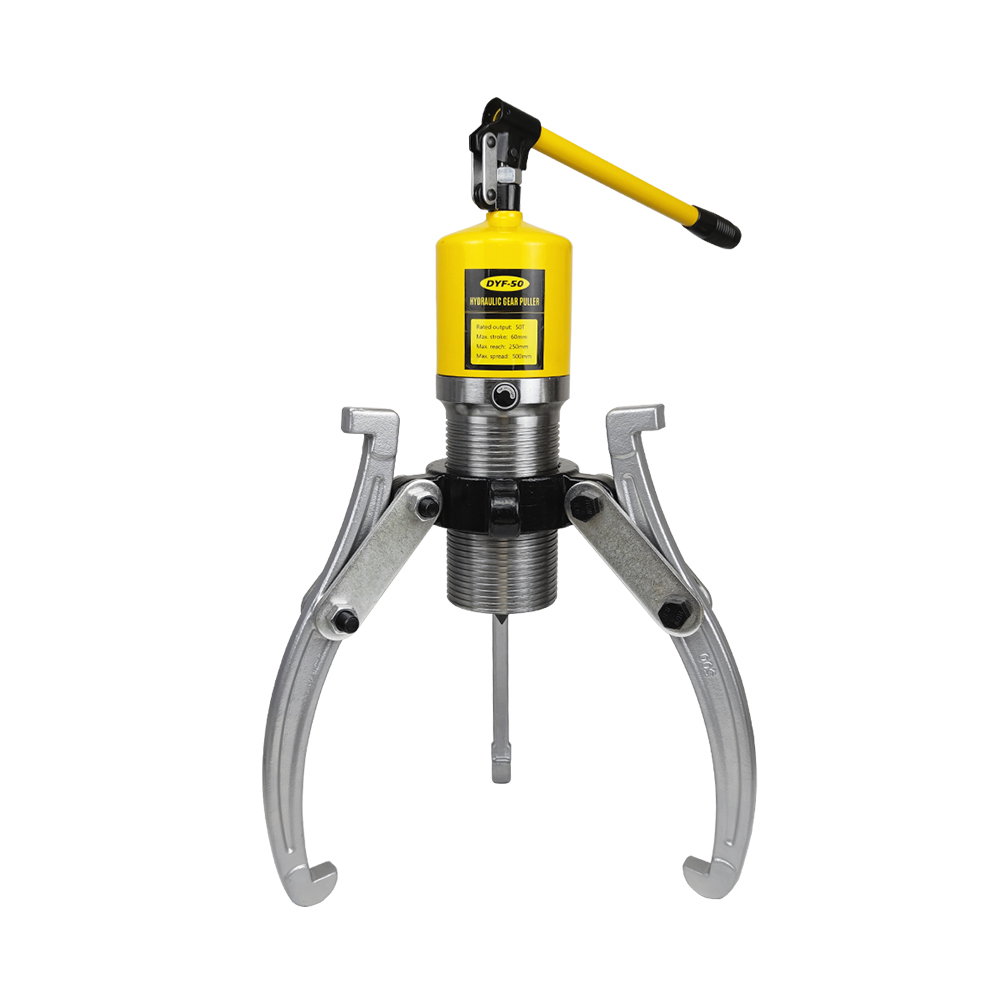

| DYF‑50 | 500 | 200 | 60 | 24 | 110 | φ109 | 33Kg |
| Model | Specification(mm) External diameter |
Lifting range(mm) | Suitable bearing type | Gross Weight (Containing Packaging) |
| DYF‑5 | Φ24‑80 | 200‑208 | 300‑2307 | 7.5Kg |
| DYF‑10 | Φ85‑120 | 209‑213 | 308‑2311 | 11Kg |
| DYF‑20 | Φ125‑170 | 214‑215 | 2312‑2316 | 19Kg |
| DYF‑30 | Φ180‑240 | 217‑322 | 2317‑2322 | 25Kg |
| DYF‑50 | Φ260‑280 | 234‑326 | 2324‑2326 | 35Kg |
Key Features
2-Jaw & 3-Jaw Convertible
Flexible structure allows quick switching between two-jaw and three-jaw configurations for different applications.
Integrated Hydraulic Design
Compact and portable structure without an external pump requirement.
Horizontal & Vertical Operation
Supports multi-angle use without site restrictions, suitable for complex working environments.
High-Strength Alloy Steel Claws
Forged claws and frames ensure high durability, strength, and resistance to deformation.
Thickened Plunger & Thimble
Improved wear resistance and extended service life under heavy-duty conditions.
Integral Forged Pump Body
One-piece forging process prevents oil leakage and cracking, ensuring reliability.
Oil Return Switch
Quick pressure release for safer and more efficient operation.
Ergonomic Handle
Movable handle design provides a comfortable grip and better control.
Performance Advantages
Strong and stable hydraulic pulling force
Easy operation without complex setup
Suitable for multiple component sizes
Durable structure for long-term use
Higher efficiency than manual pullers
Applications
Widely used in:
Automotive repair
Equipment maintenance
Industrial manufacturing
Power industry
Mechanical workshops
Typical Applications
Bearing removal
Gear disassembly
Pulley extraction
Flywheel removal
Optional Customization
Customized jaw size
Extended arms
Stroke adjustment options
Private label & packaging
