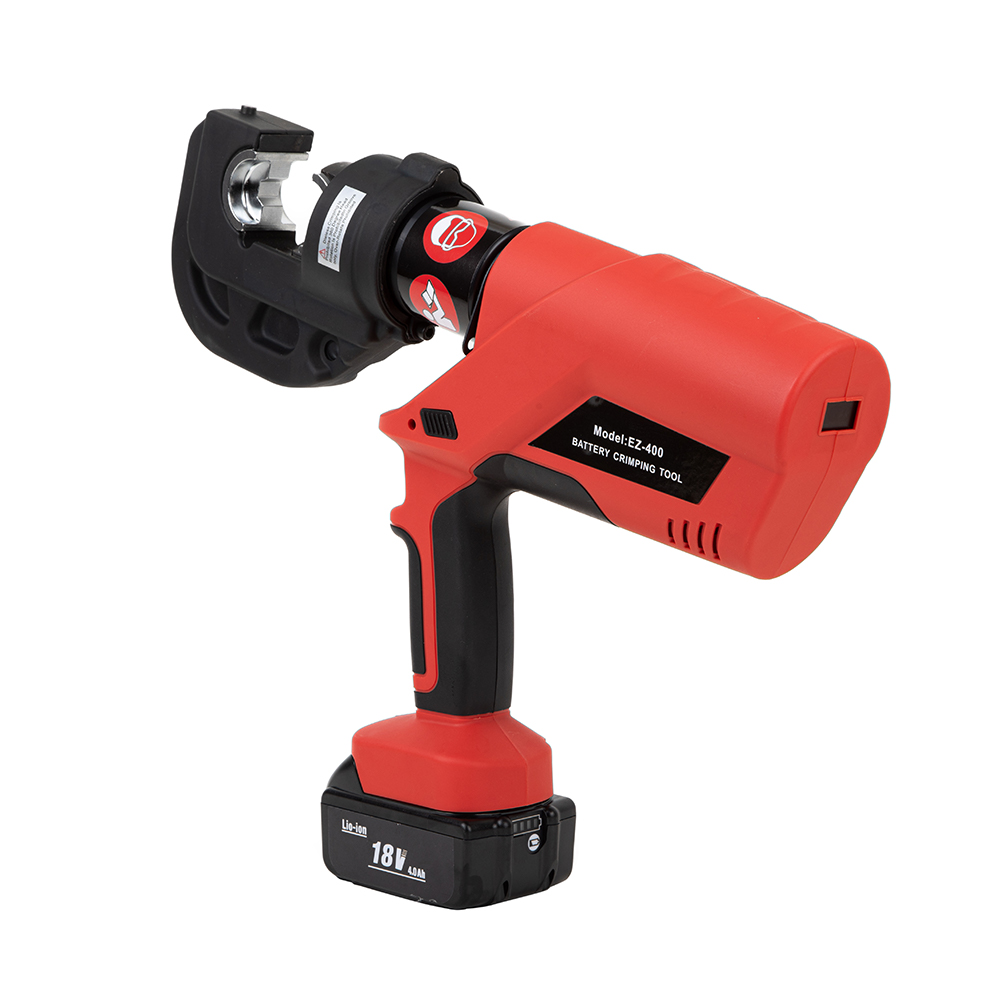

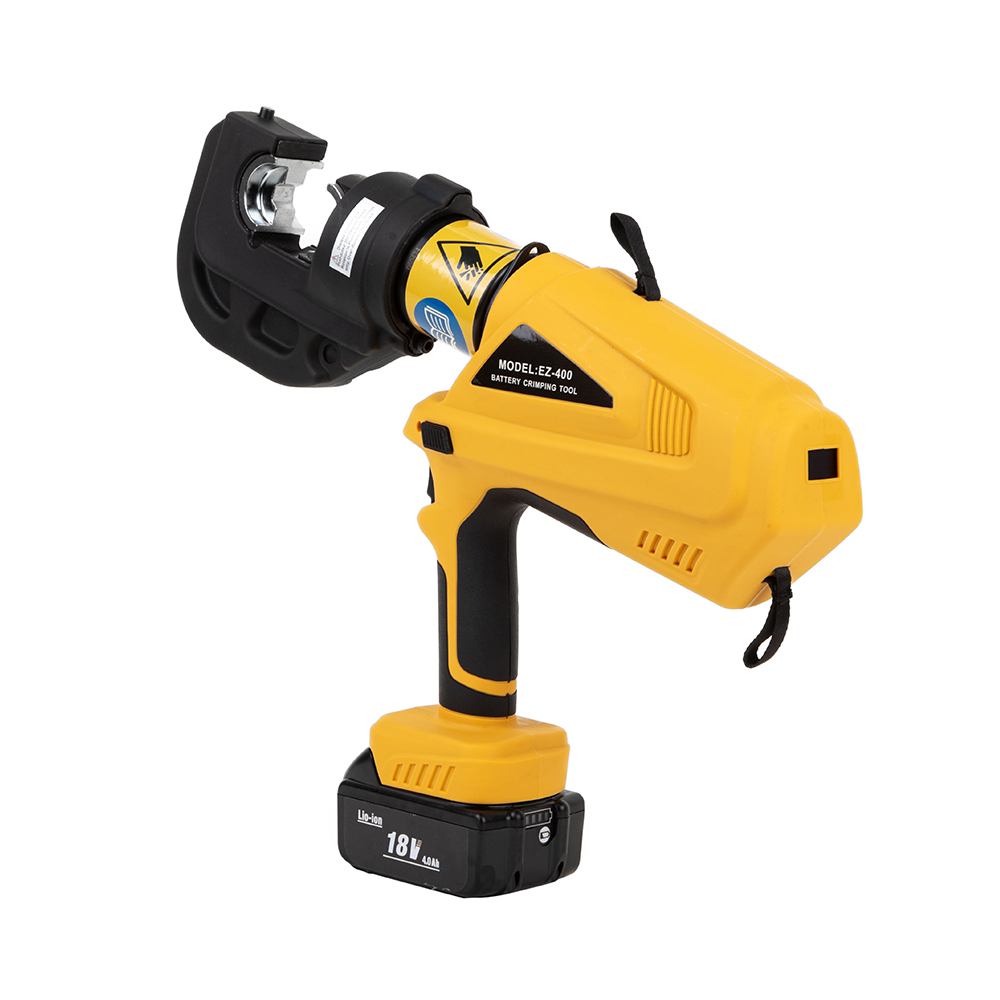

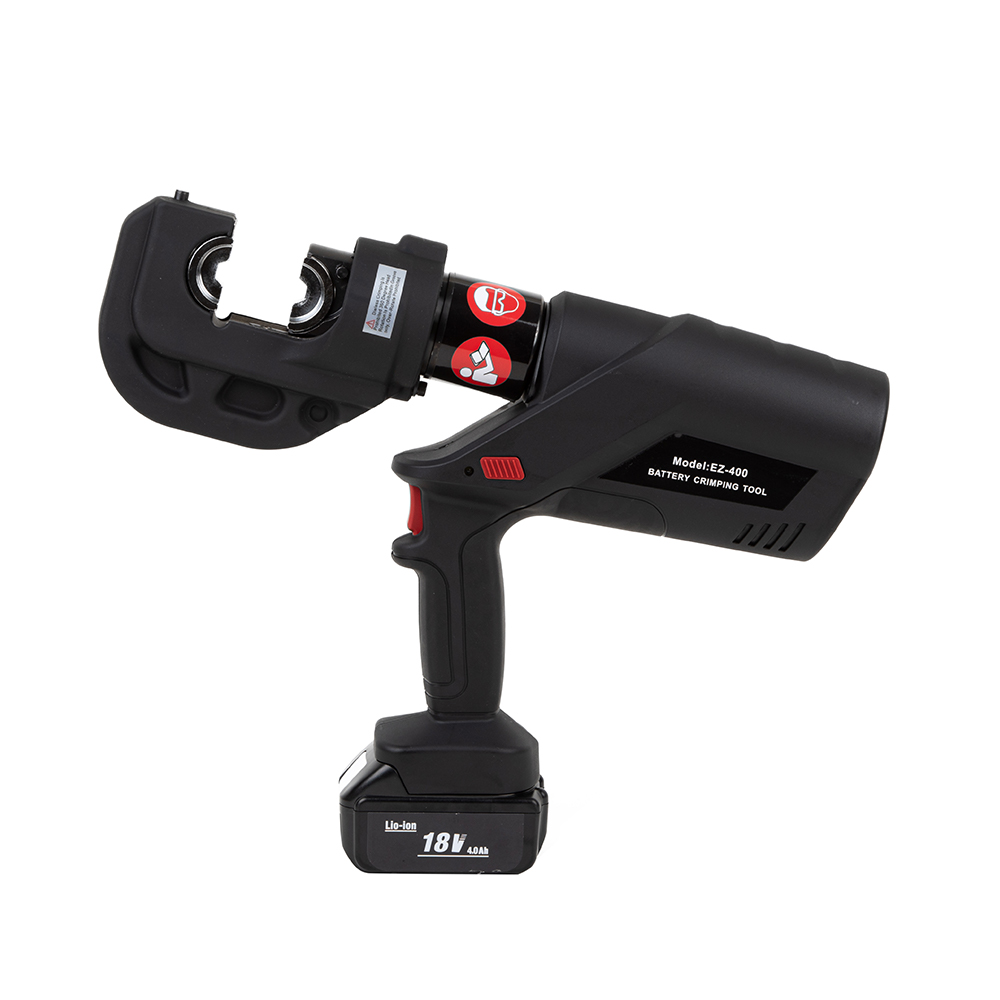

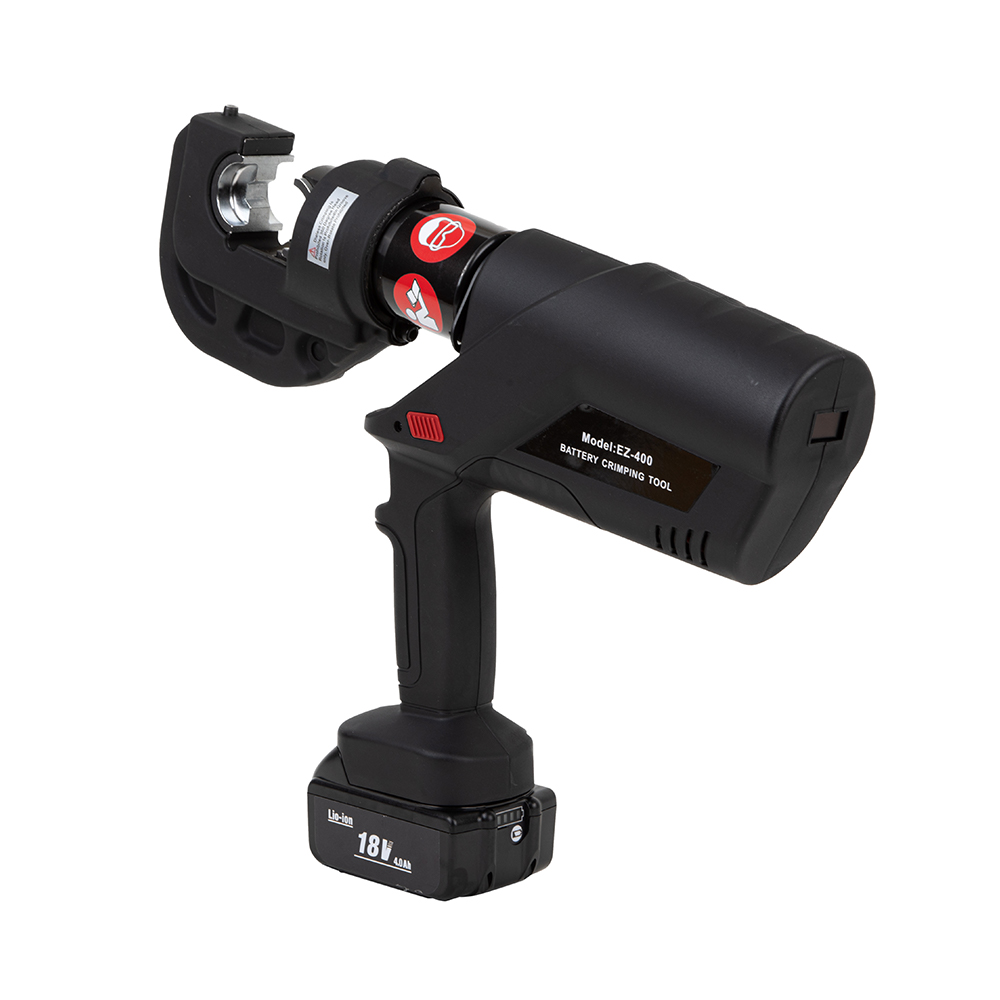

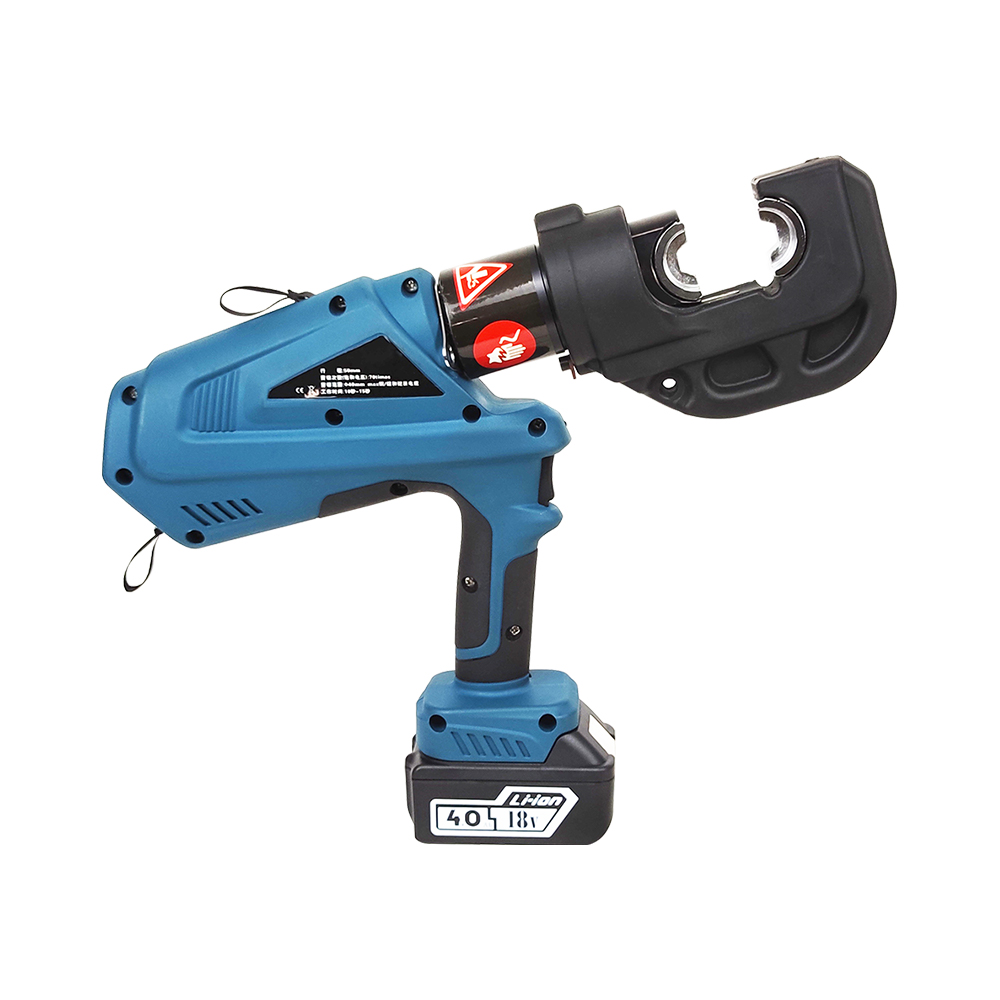

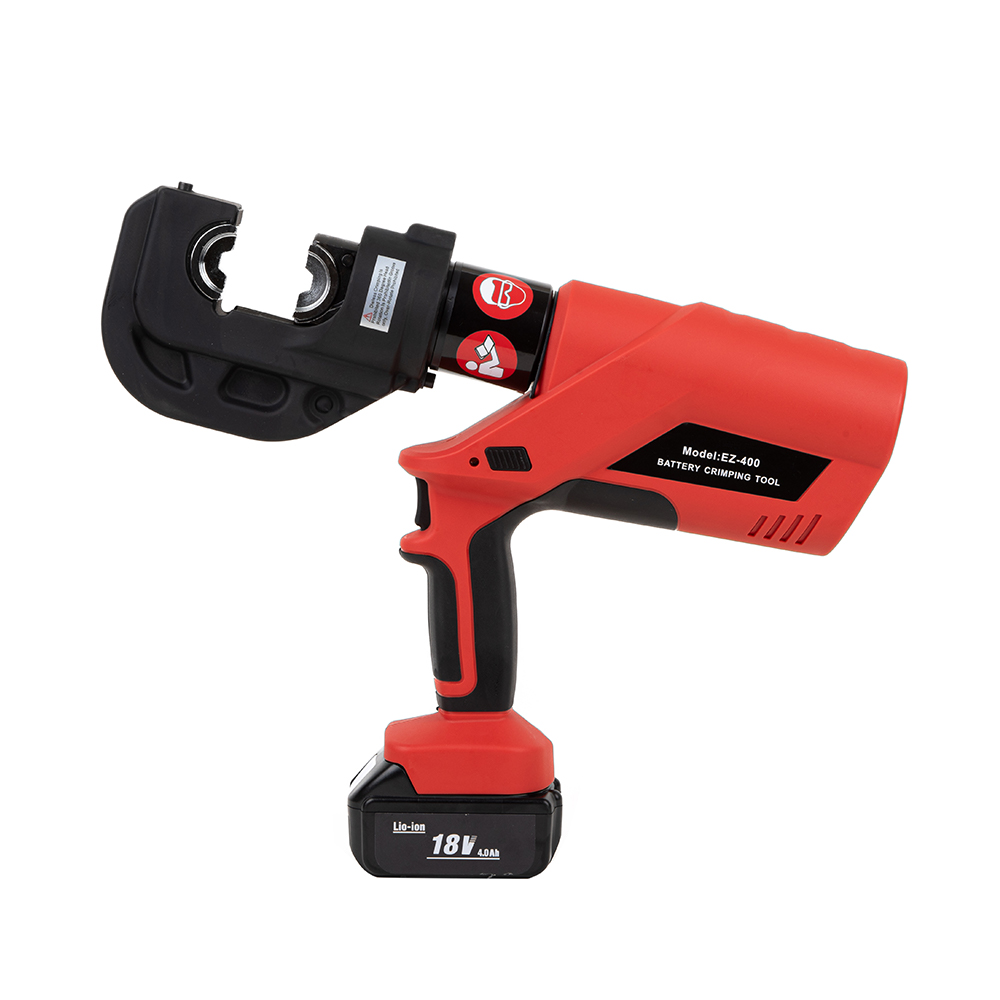

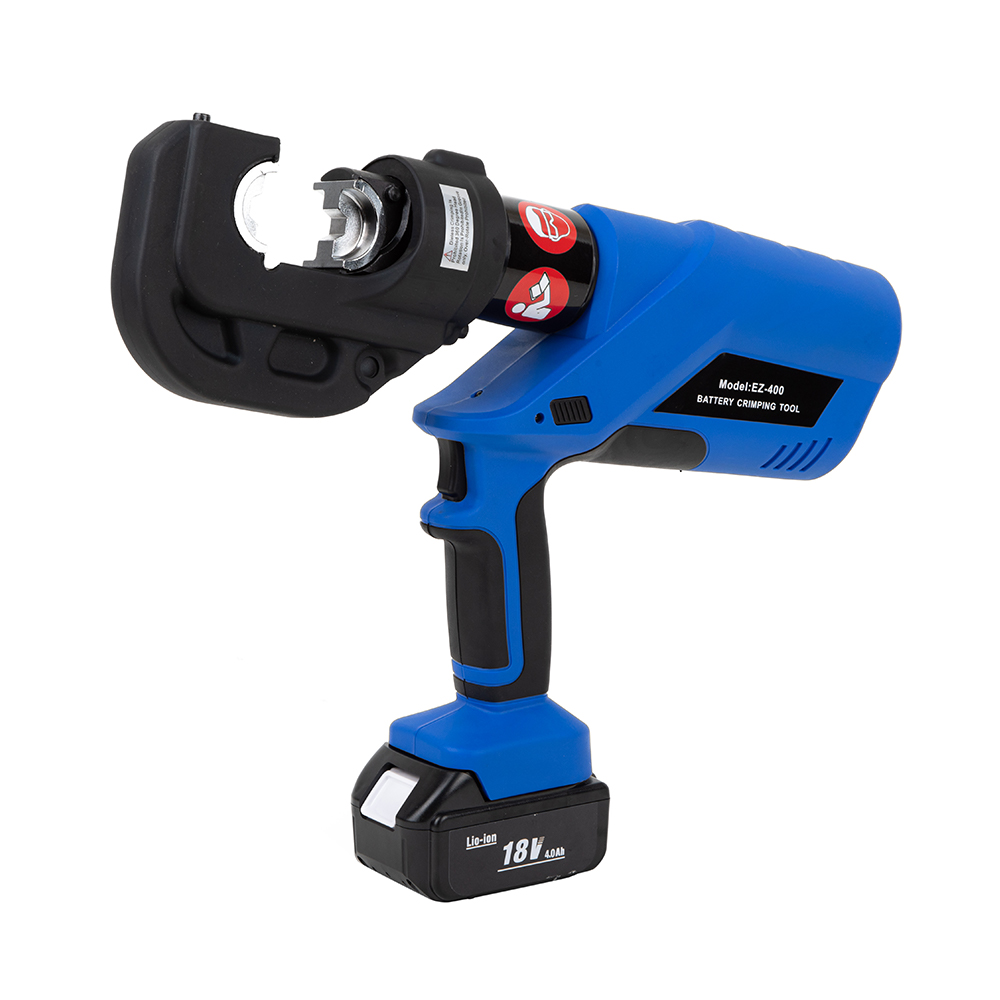

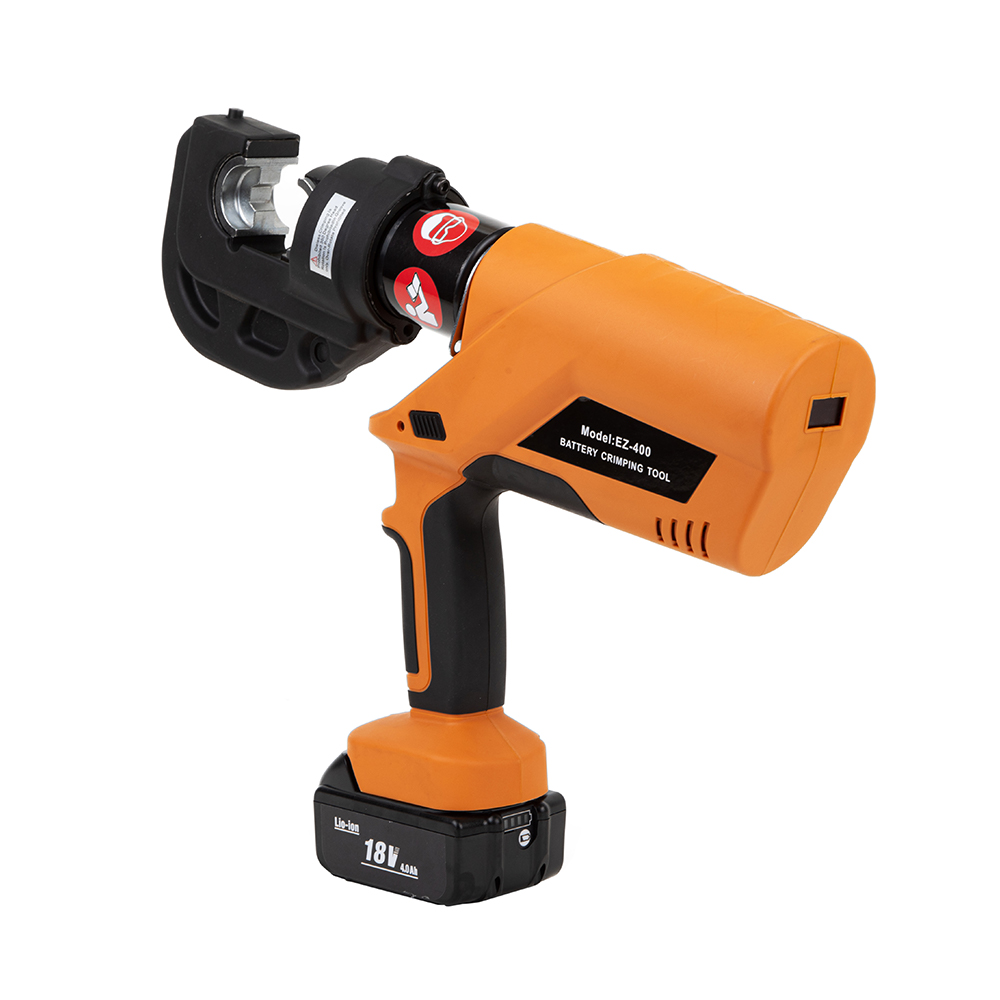

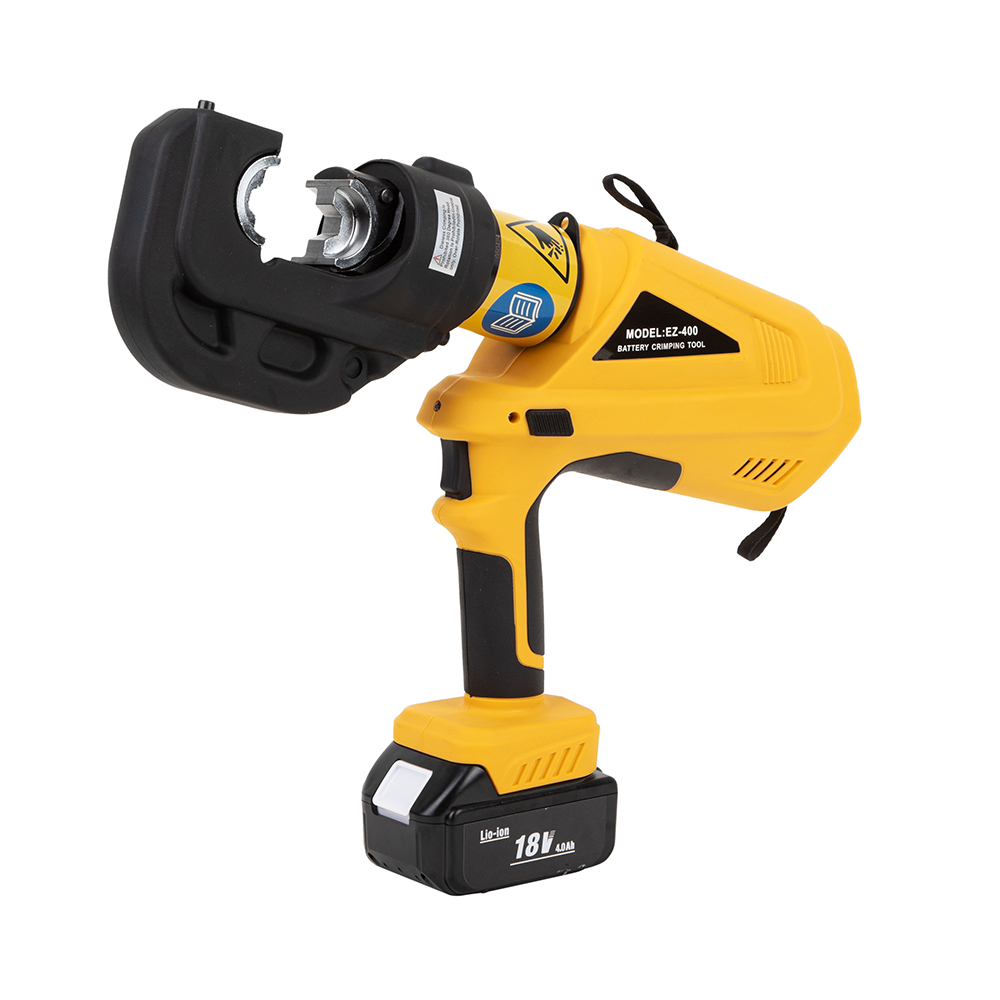

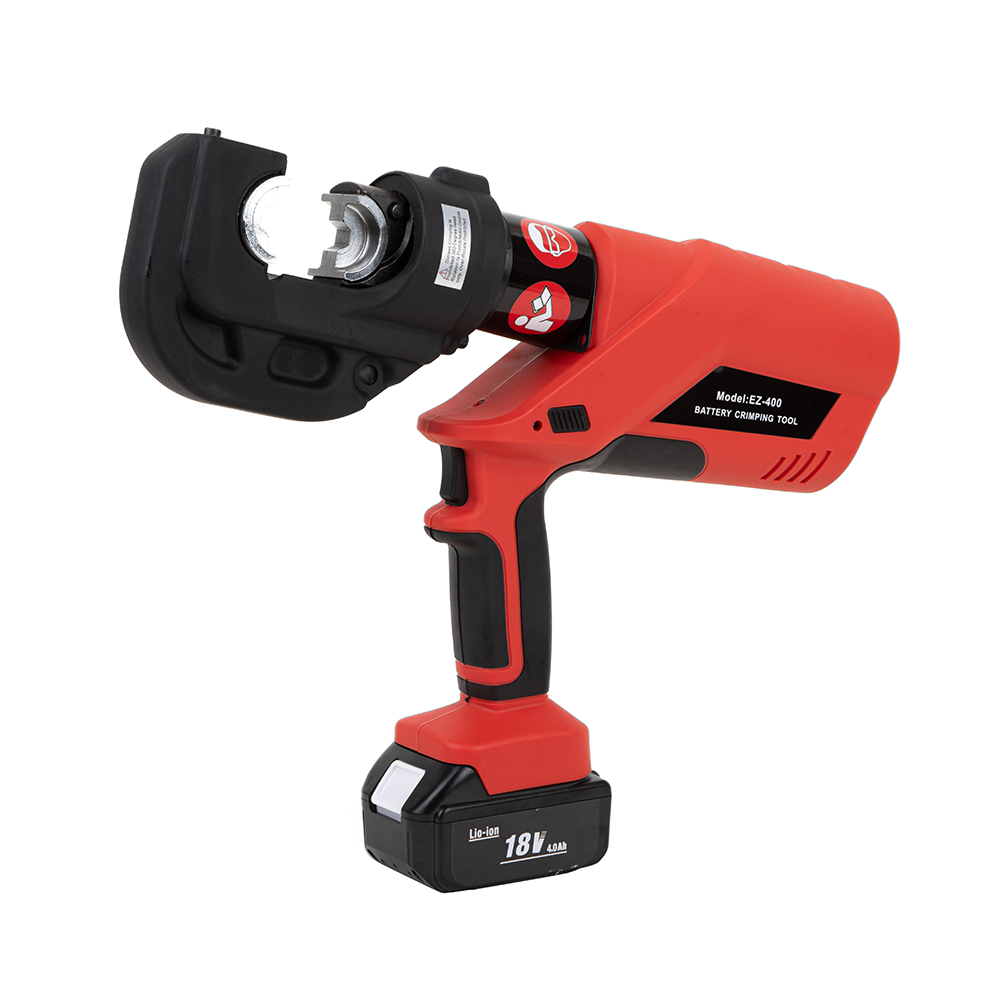

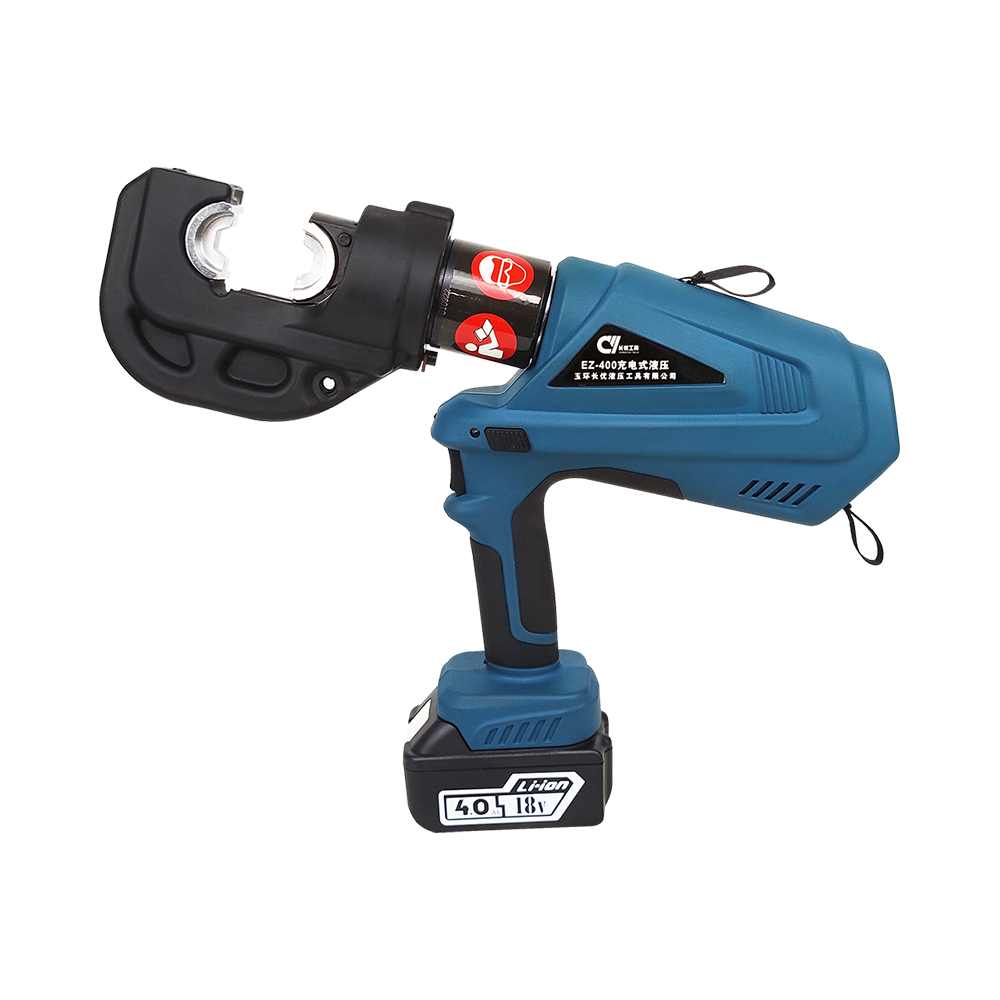

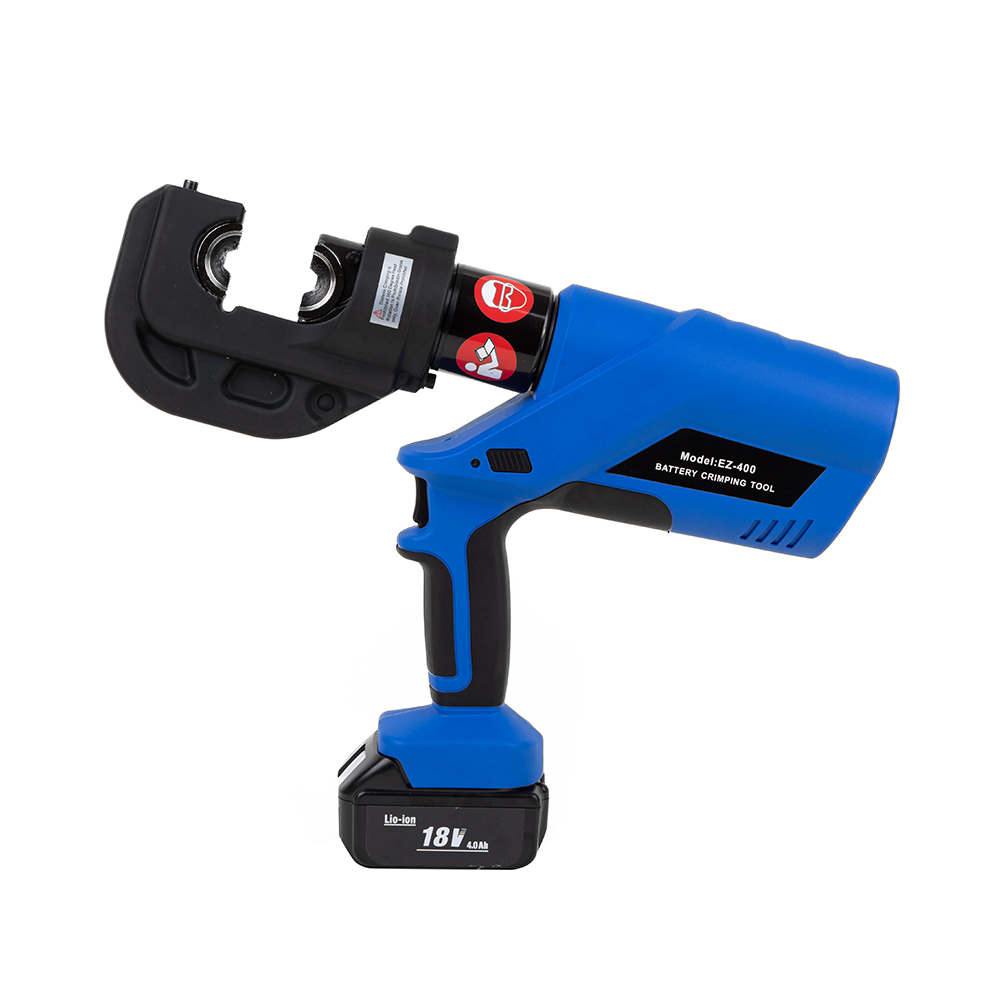

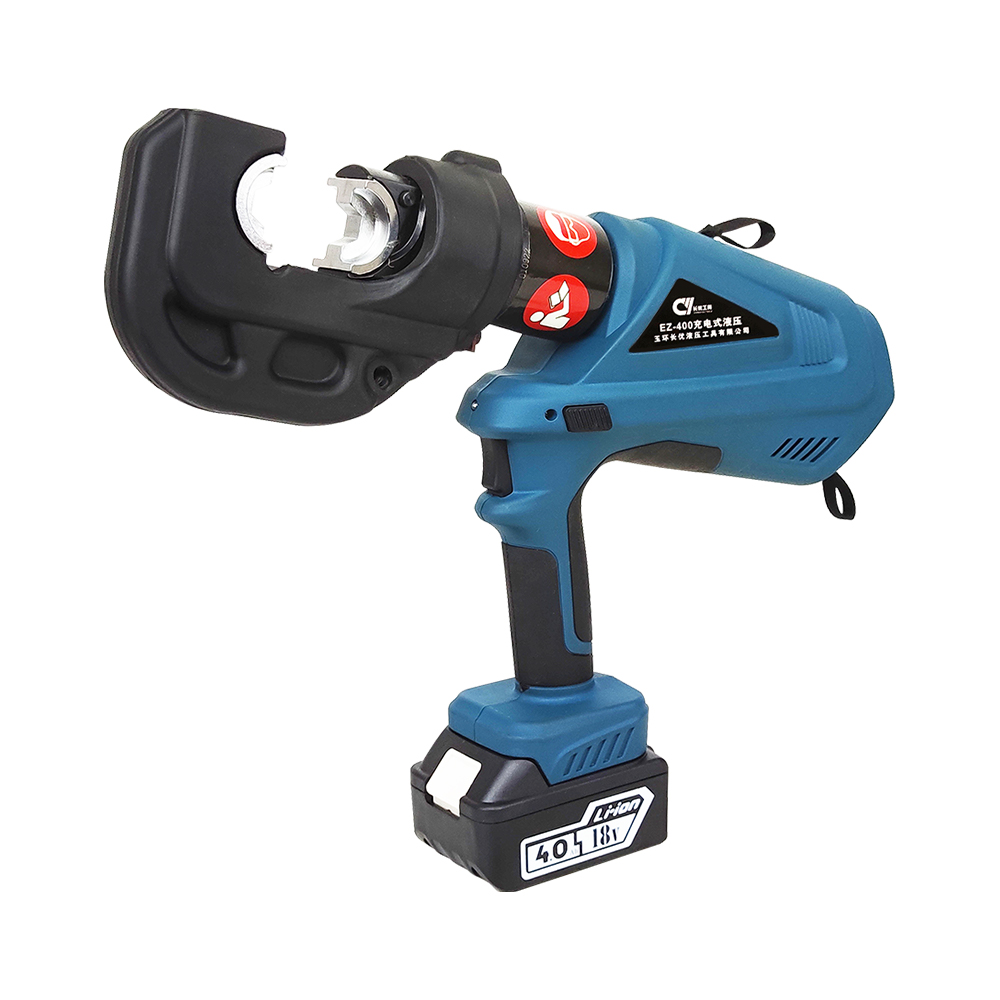

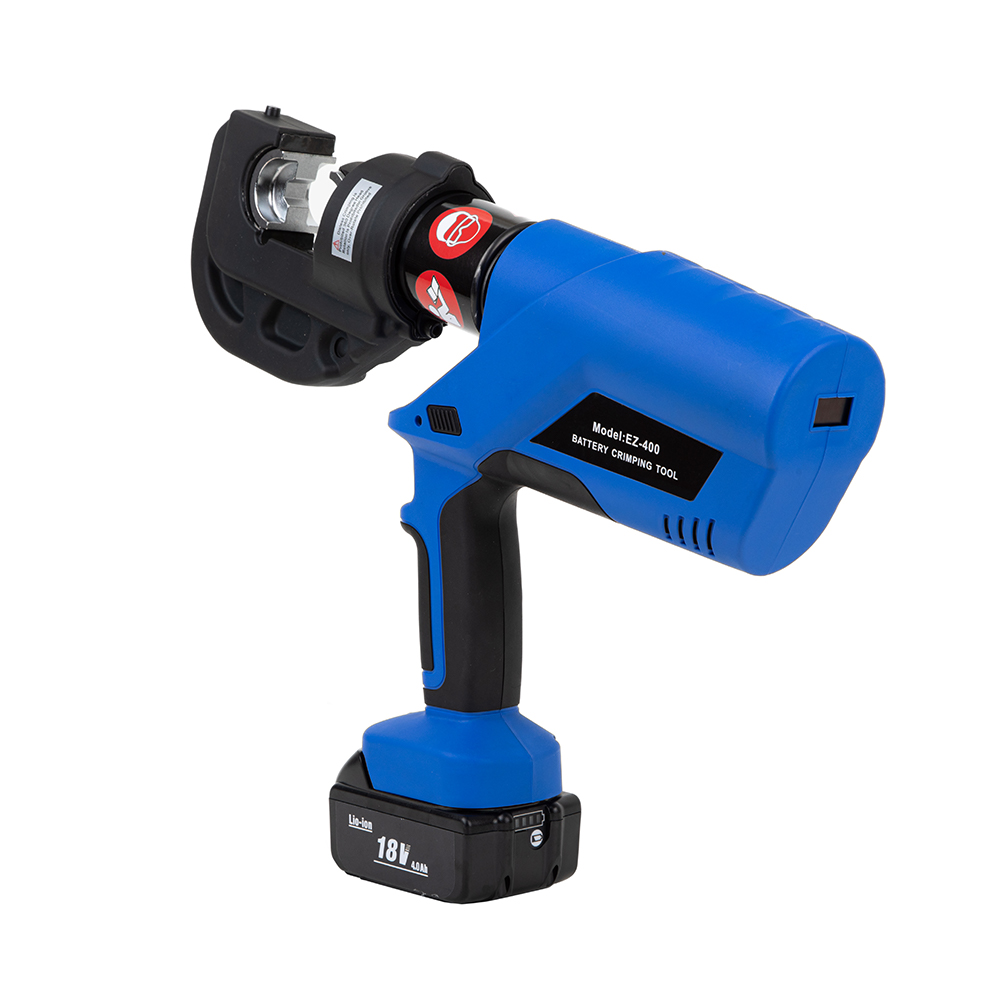

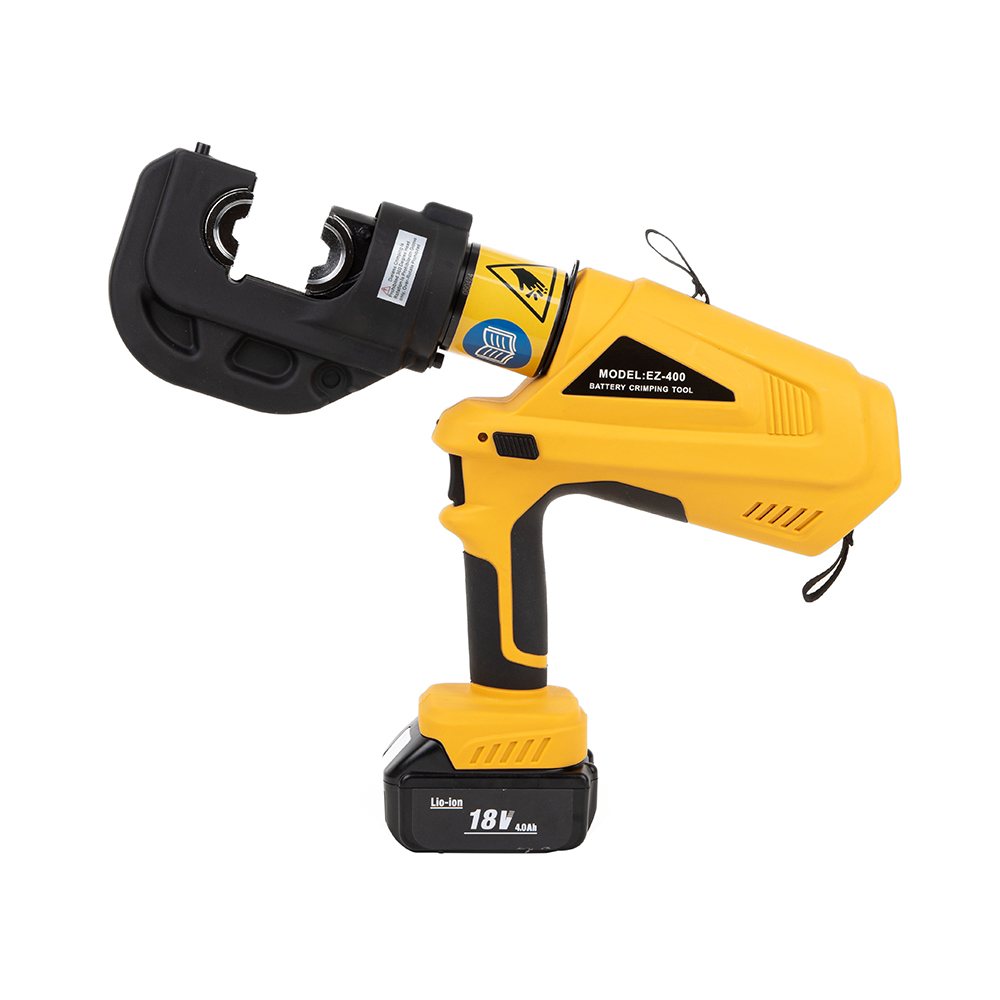

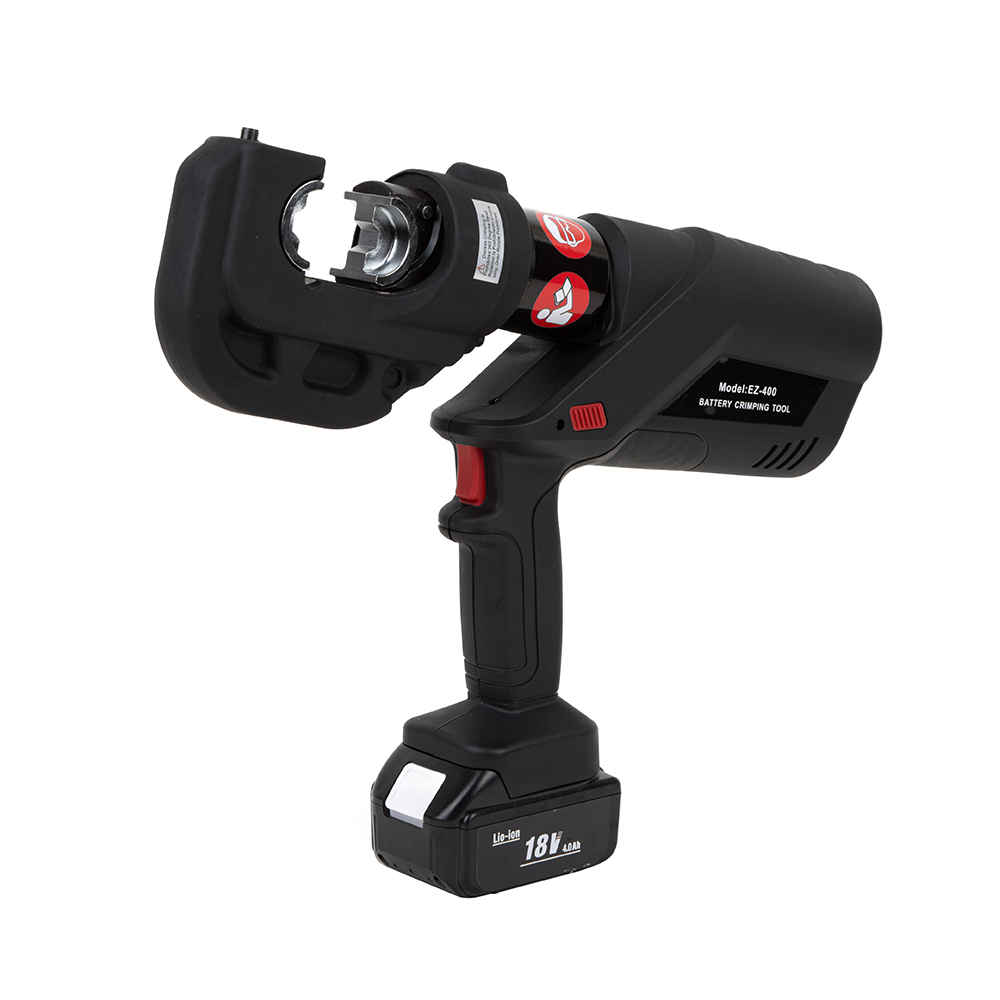

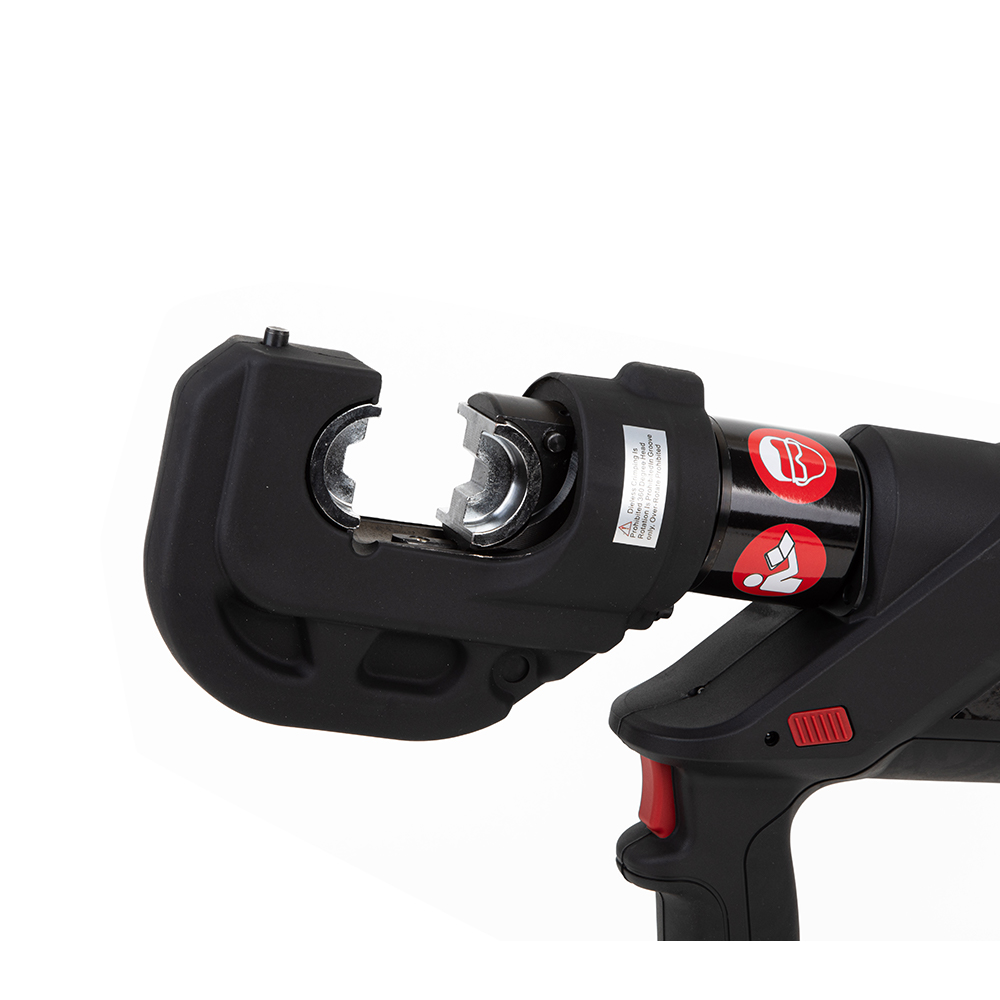

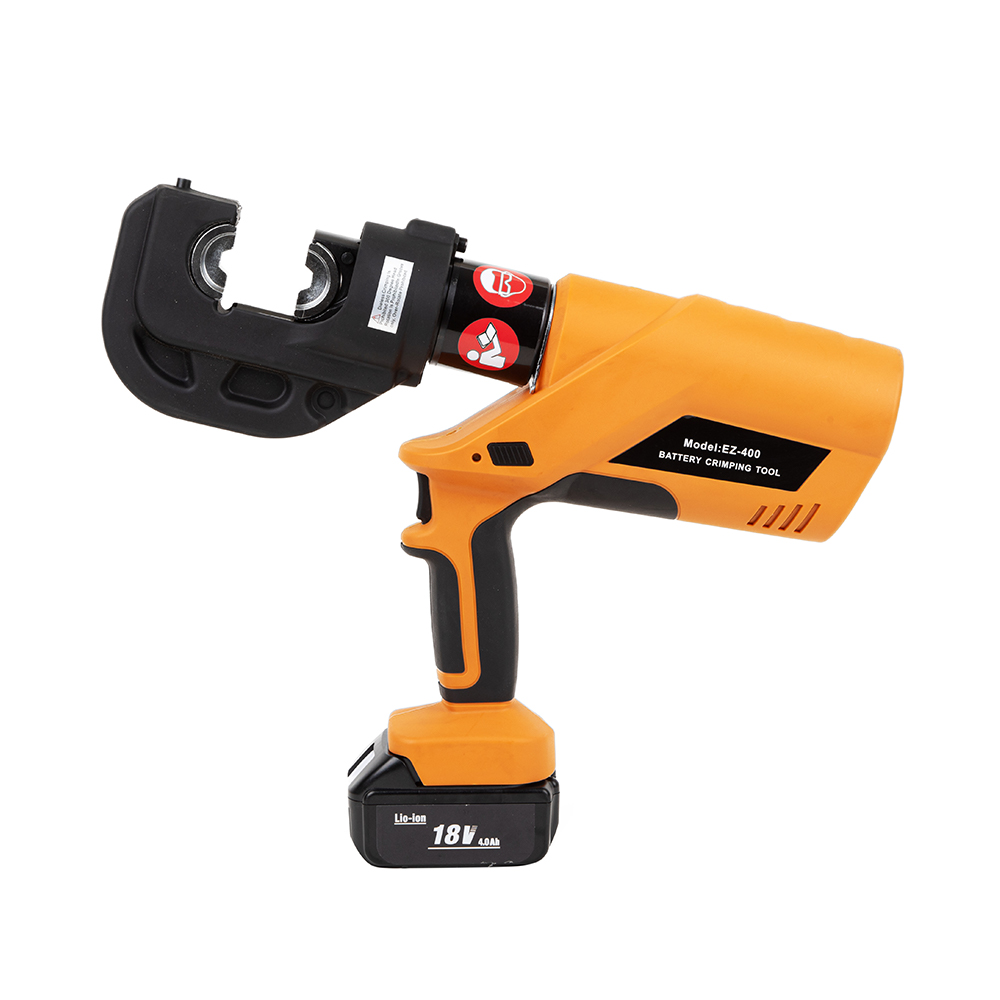

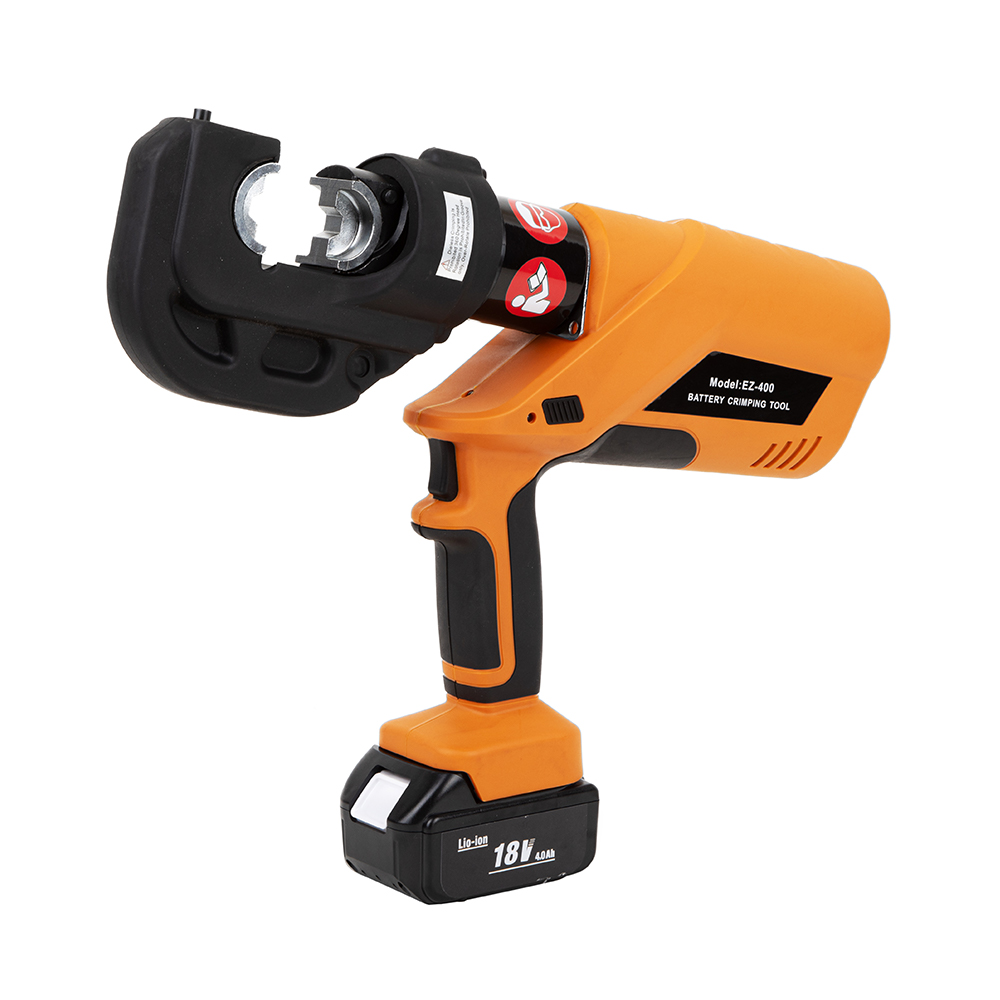

400 Series Battery Hydraulic Cable Crimping Tools, including EZ-400, ES-400, and EB-400, are high-performance cordless hydraulic crimpers designed for copper and aluminum cables ranging from 16mm² to 400mm². Equipped with high-capacity 18V lithium-ion batteries (4.0–5.0Ah depending on the model), these tools deliver powerful 120KN output force for heavy-duty crimping tasks while maintaining long-lasting performance.

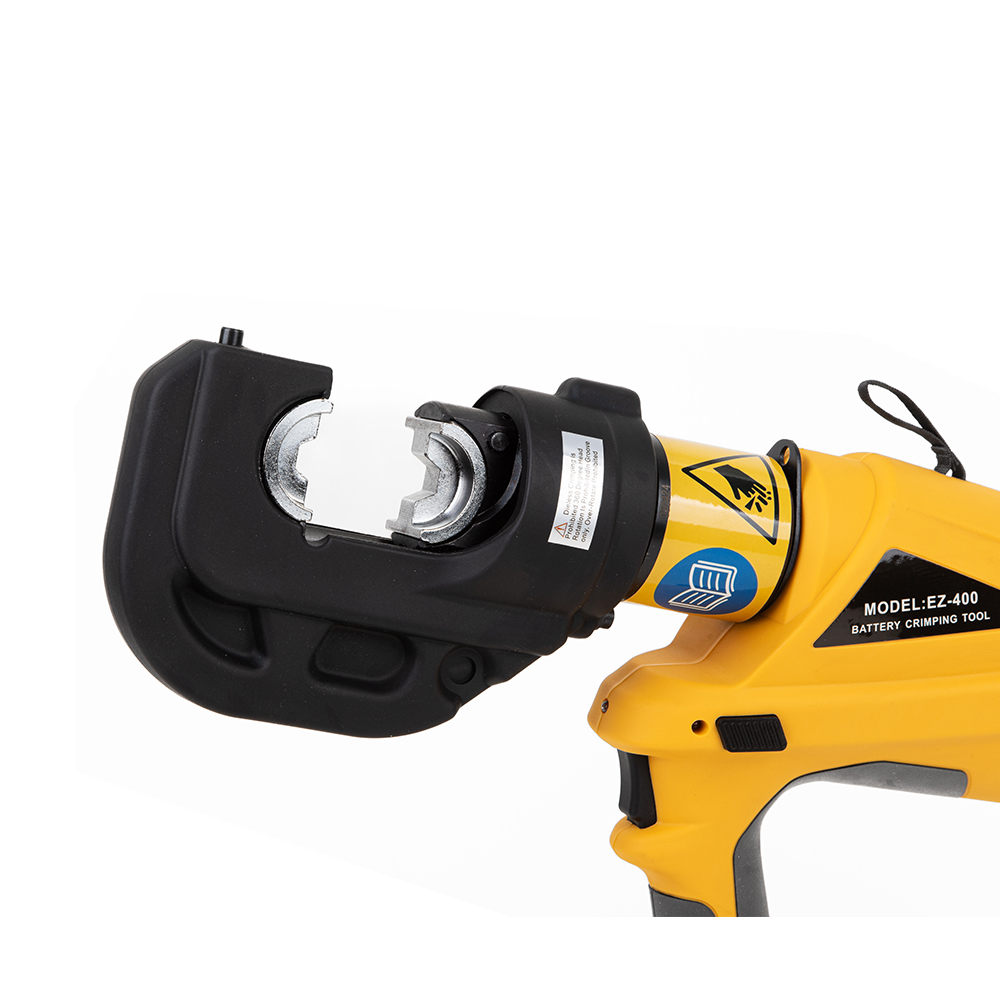

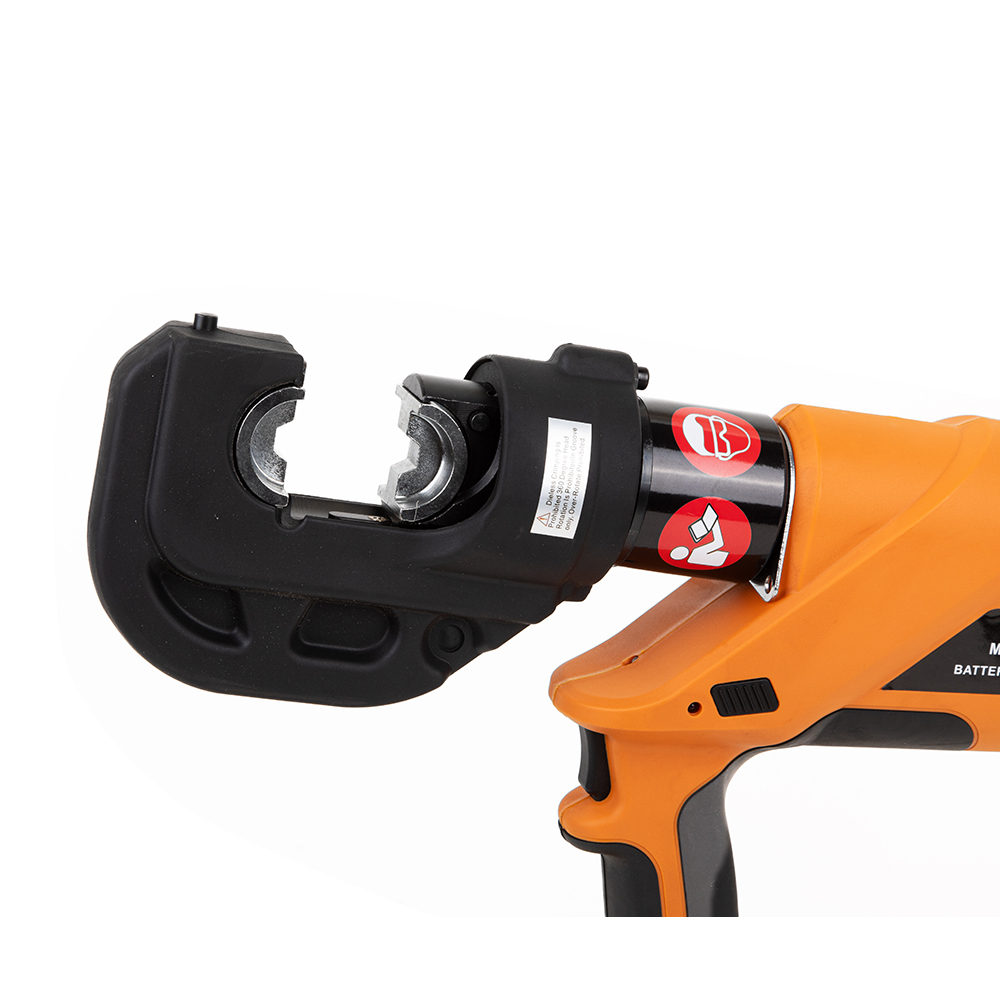

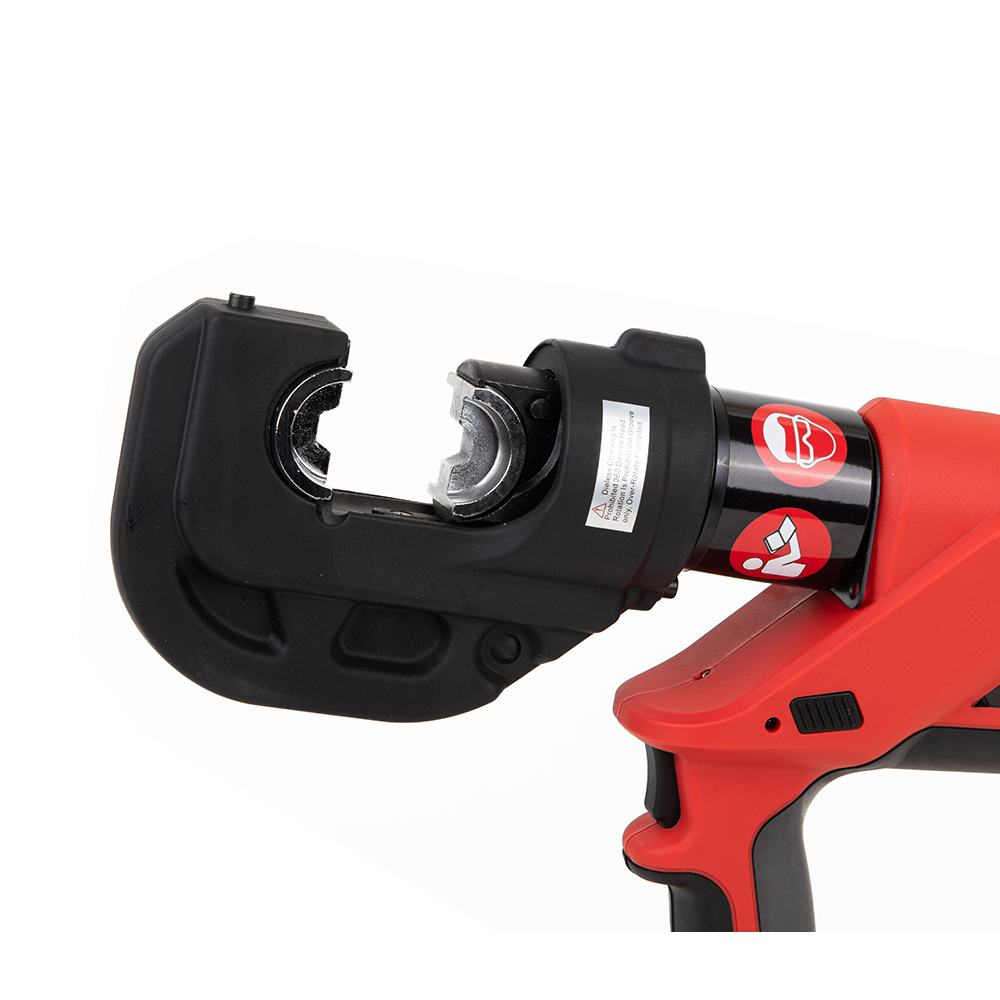

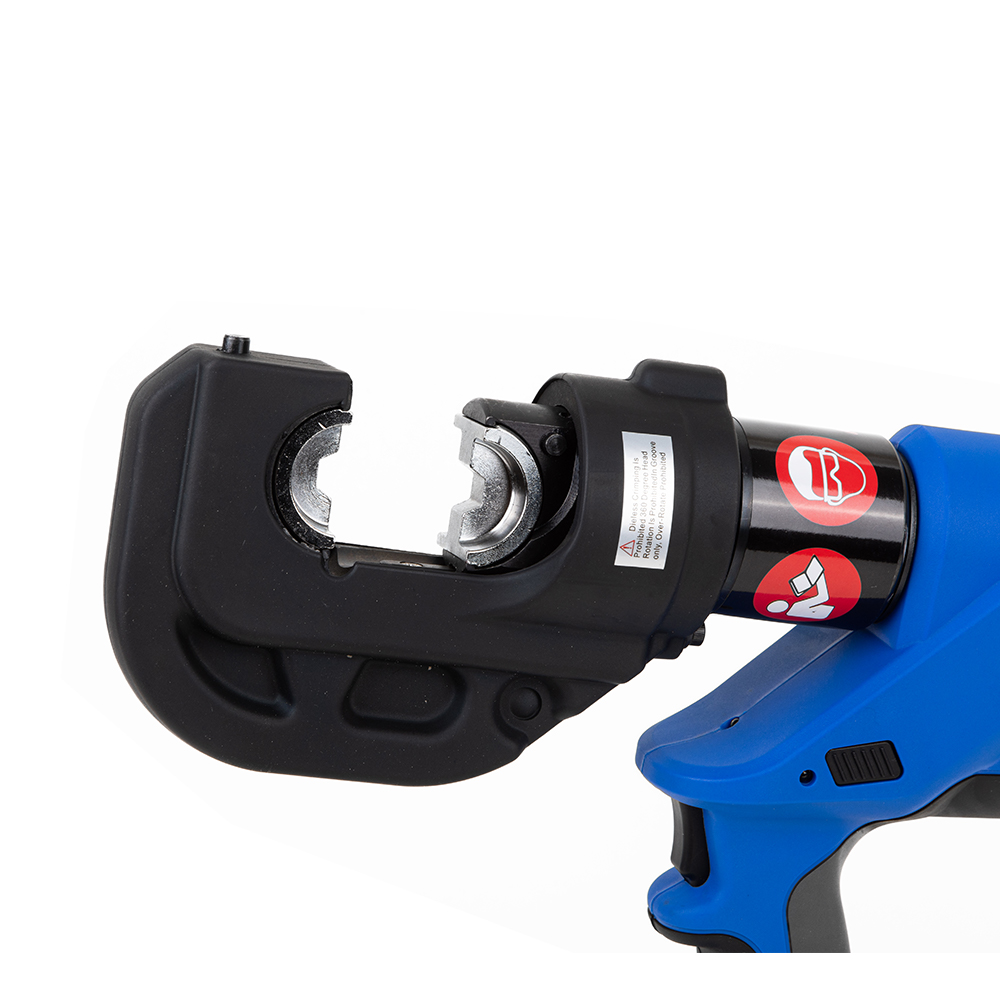

These crimpers feature replaceable dies, high-strength clamp heads, smooth surface treatment, and ergonomic handles for enhanced durability and user comfort. The 350° rotating clamp head allows flexible operation in confined spaces and complex angles, while one-key start and one-key reset buttons enable quick and safe operation. OLED or LED displays provide real-time information, including battery level, pressure, mechanical temperature, operation count, and fault codes, allowing operators to monitor the crimping process effectively. Safety valves prevent overpressure, and two batteries can work alternately for continuous operation.
With a crimping stroke of 42mm and compatibility with a wide range of dies, the 400 Series tools are ideal for professional electricians, contractors, and industrial users. They are widely used in power transmission and distribution, electrical installation projects, industrial maintenance, machinery manufacturing, steel plants, chemical plants, and other heavy-duty environments. Compact, portable, and reliable, the 400 Series provides efficient, high-quality hydraulic crimping in demanding industrial applications.
| Model | EZ-400 | Output | 120KN |
| Stroke | 42mm | Crimping range | 16-400mm² |
| Battery voltage | 18V | Battery capacity | 4.0Ah |
| Charging time | 2 hours | Weight | 8.0Kg |
| Crimping times | 320 times per saturation voltage (copper wire:150mm²) | ||
| Crimping time | 3-6 seconds (according to the diameter of the cable) | ||
| Model | ES-400 | Output | 60KN |
| Stroke | 17mm | Crimping range | 10-400mm² |
| Battery Voltage | 18V | Battery capacity | 5.0Ah |
| Charging time | Approx. 60 mins | Crimping time | 3S-6S |

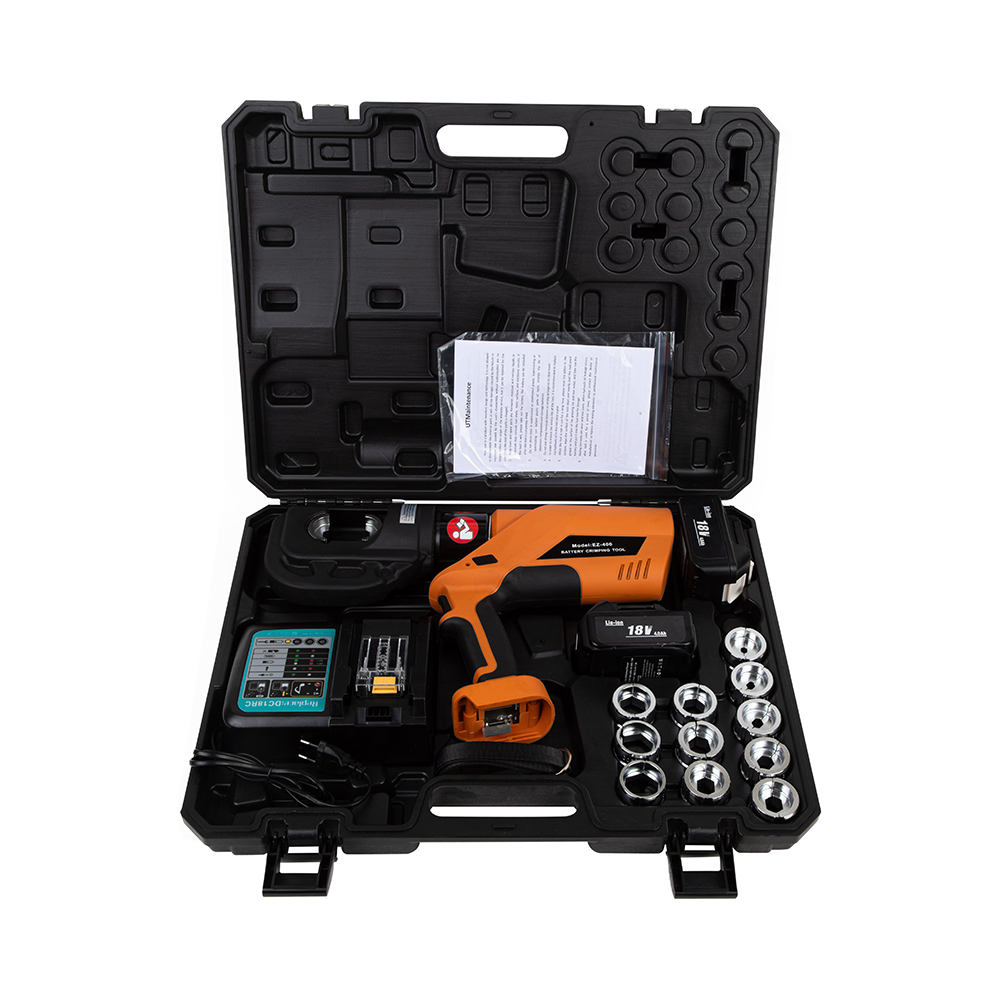

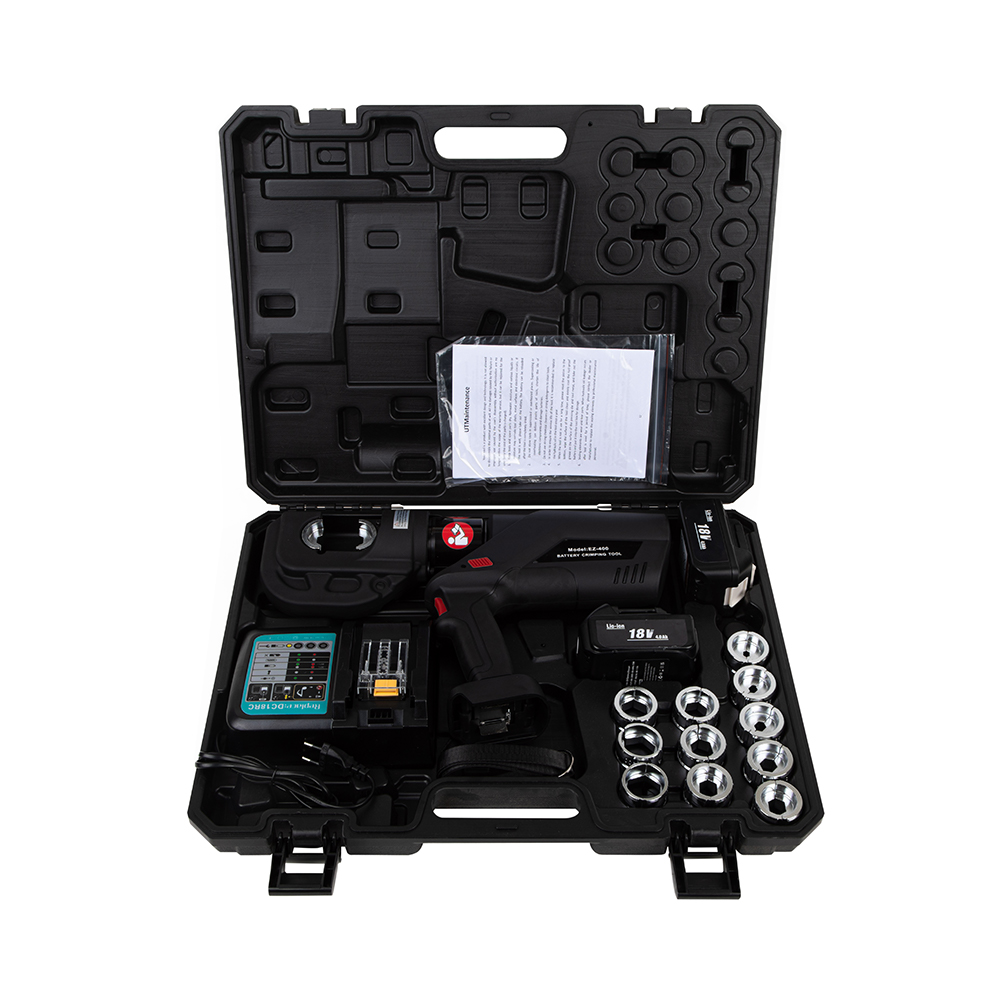

| weight | Approx. 5.85Kg | Package | plastic case |

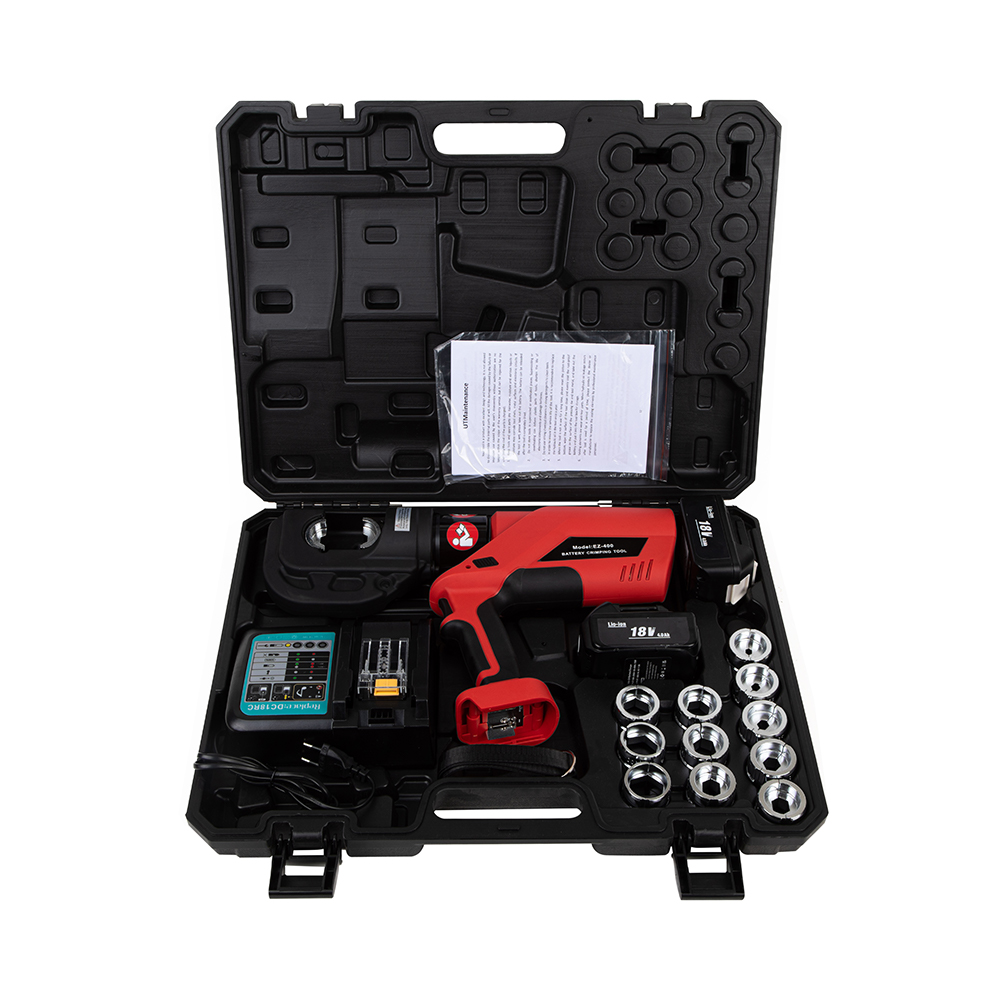

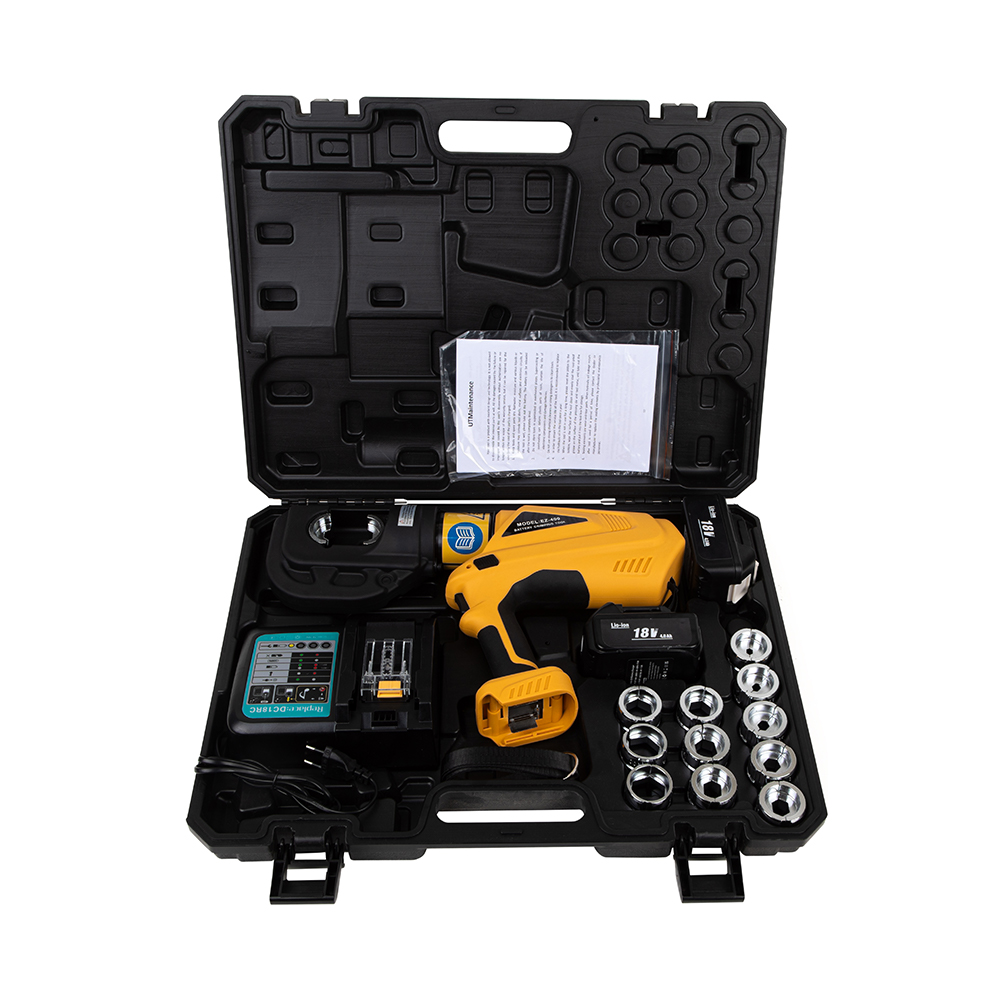

| Accessories | |
| Moulds | 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
| Battery | 2 PCS |
| Charger | 1 PC |
| Straps | 1 PC |
| Model | EB-400 | Output | 120KN |
| Stroke | 42mm | Crimping range | 16-400mm² |
| Battery voltage | 18V | Battery capacity | 5.0Ah |
| Charging time | 2 hours | Weight | 8.0Kg |
| Crimping times | 320 times per saturation voltage (copper wire:150mm²) | ||
| Crimping time | 3-6 seconds (according to the diameter of the cable) | ||
