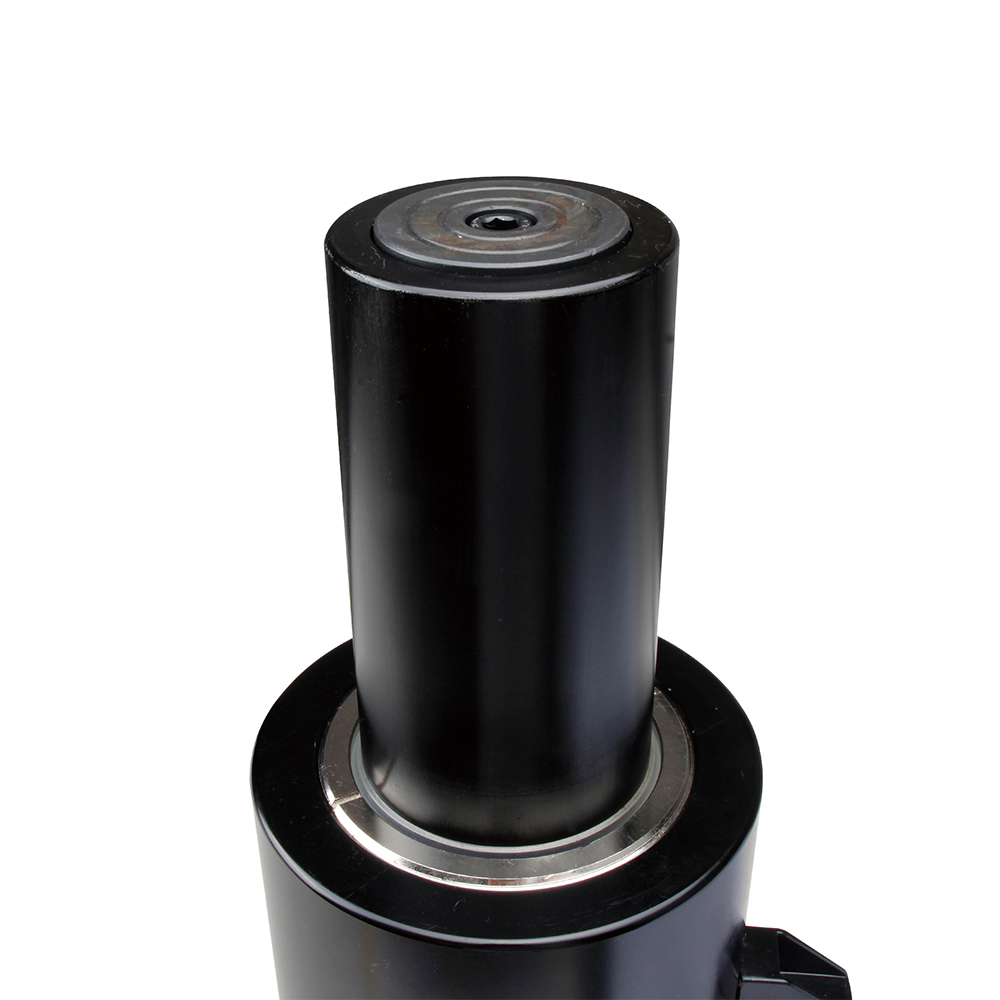

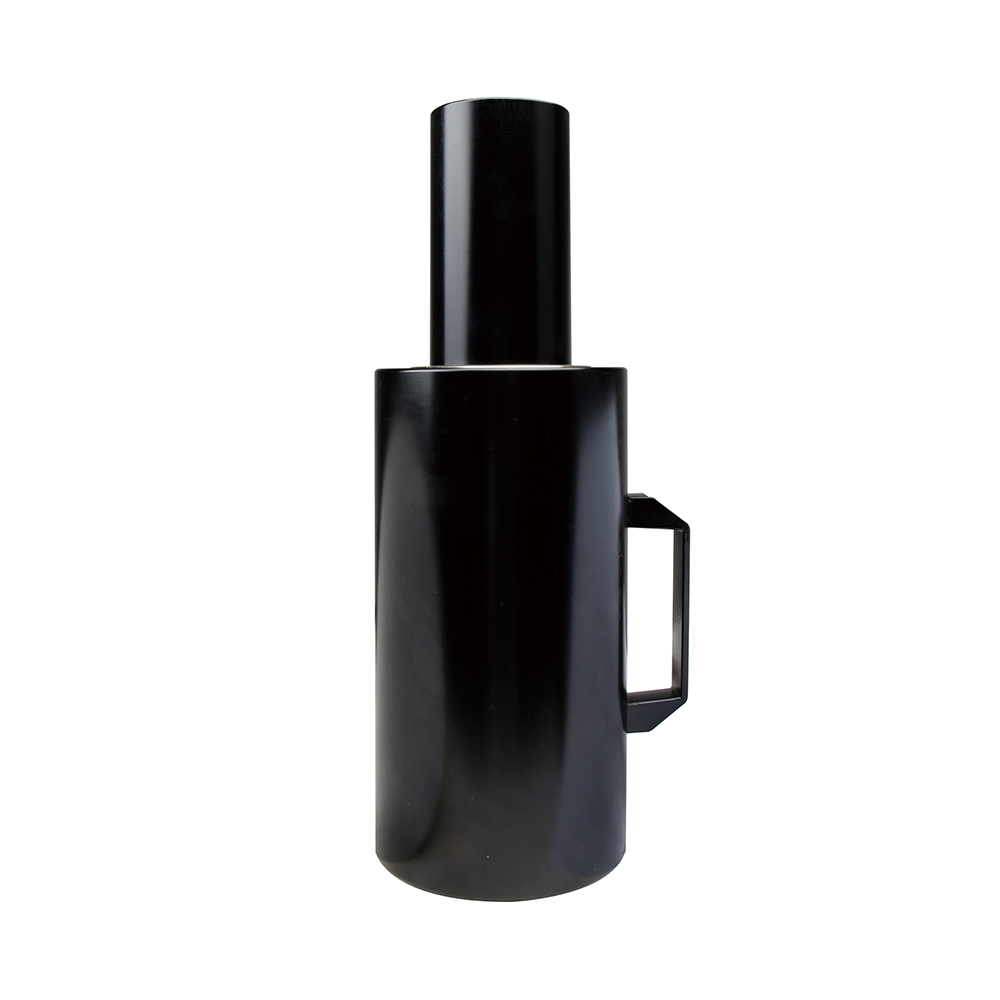

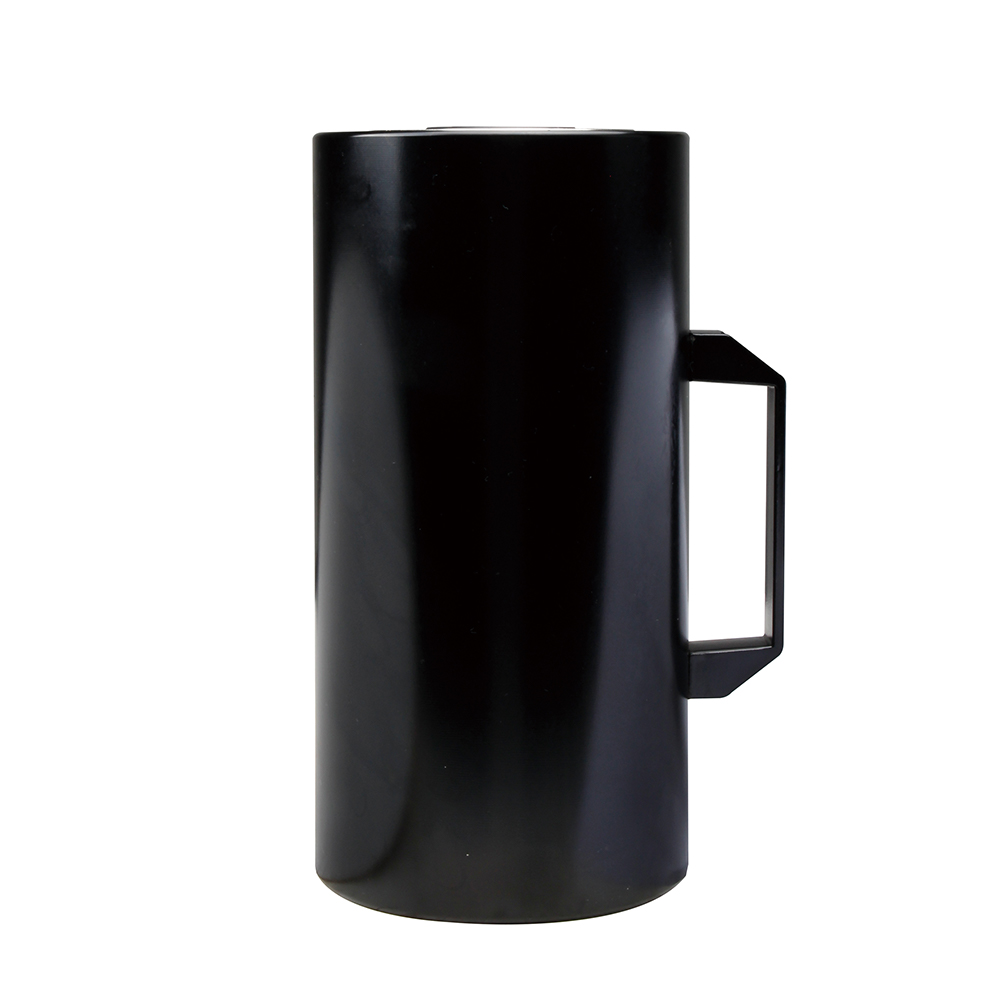

RAS Series 10-100 Ton Lightweight Aluminum Single-Acting Hydraulic Cylinder Jack

Key Features & Advantages
Ultra-Lightweight Aluminum Body — Aircraft-grade aluminum construction provides maximum portability for easy transport and positioning on job sites, reducing operator fatigue while maintaining structural integrity under full load.
Advanced Hard-Coat Protection — Specialized hard-coat finish on all surfaces resists damage, prevents corrosion, and significantly extends cylinder life even in harsh marine and outdoor environments.
Extended Stroke Options — Available in 100mm and 150mm stroke lengths to handle diverse lifting requirements without frequent repositioning, improving operational efficiency on complex projects.
Superior Side-Load Resistance — Composite support ring and floating center tube design improve seal life and provide exceptional side-load resistance up to 10%, preventing metal-to-metal contact and premature wear.
Safety-First Engineering — Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity, protecting both equipment and operators during critical lifting operations.
Rapid Retraction System — High-strength return spring ensures quick cylinder retraction, minimizing cycle time and maximizing productivity on demanding job schedules.

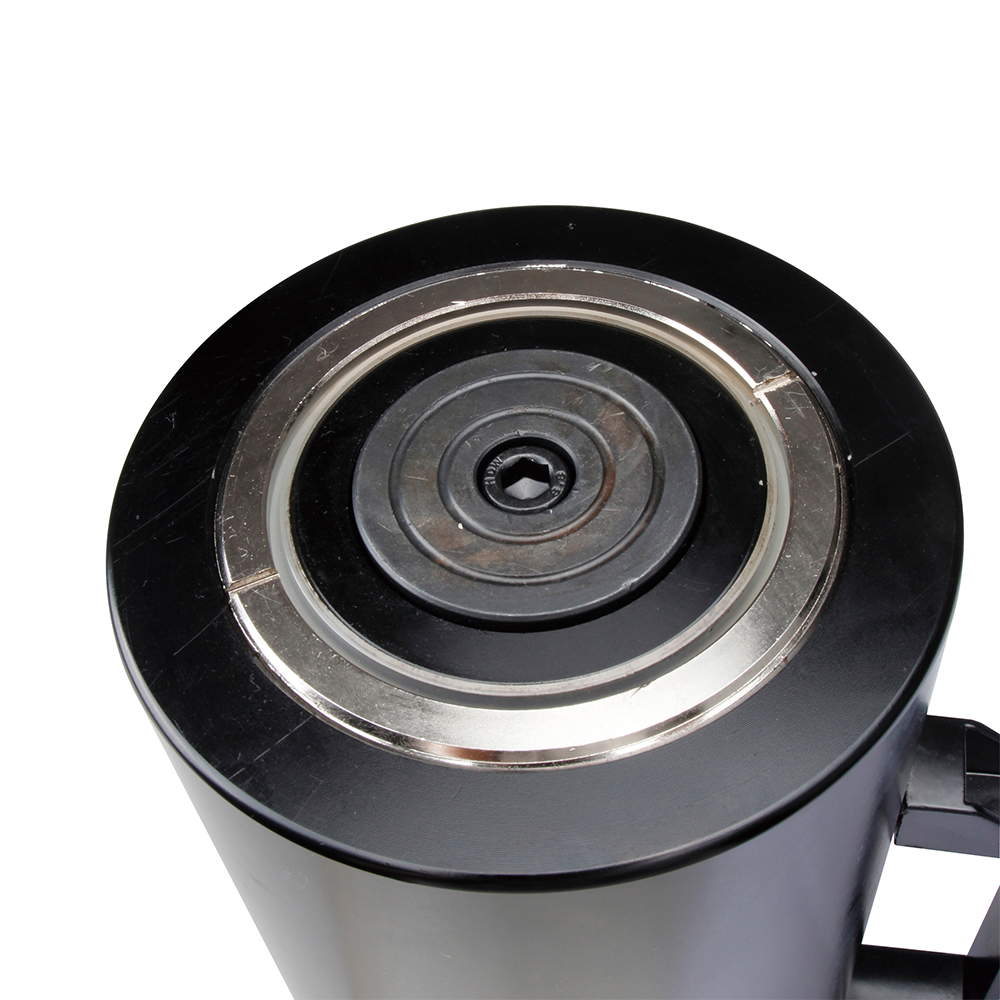

Heavy-Duty Base Protection — Steel base plate and saddle construction prevent load-induced damage, ensuring stable support and even weight distribution across all capacity ranges.
Quick-Connect Convenience — Standardized ZG 3/8 or NPT 3/8 male coupler with dust cap included on all models for fast, secure hydraulic connections and contamination prevention.

What Customers Care About Most
Maximum Portability — Aluminum construction delivers professional-grade lifting power at a fraction of the weight of steel cylinders, essential for mobile operations and confined workspaces.
Proven Durability — Hard-coat anodized surfaces and composite bearing technology ensure long service life with minimal maintenance, reducing the total cost of ownership.
Versatile Performance — Single-acting design compatible with manual pumps or electric pumps of various sizes, allowing flexible power source selection based on job requirements.
Reliable Safety — Built-in over-stroke protection and robust structural design provide peace of mind when lifting heavy loads in critical applications.
Consistent Quality — Precision manufacturing ensures smooth operation without jamming, maintaining professional standards across all capacity ranges from 10 to 100 tons.
Field-Ready Design — Dust ring protection and corrosion-resistant finish make these cylinders suitable for challenging environments, including shipyards, bridge sites, and chemical plants.

Product Range
RAS-10100 — 10 Ton capacity, 100mm stroke, 1.75kg net weight, collapsed height 192mm
RAS-30150 — 30 Ton capacity, 150mm stroke, 7.35kg net weight, collapsed height 272mm

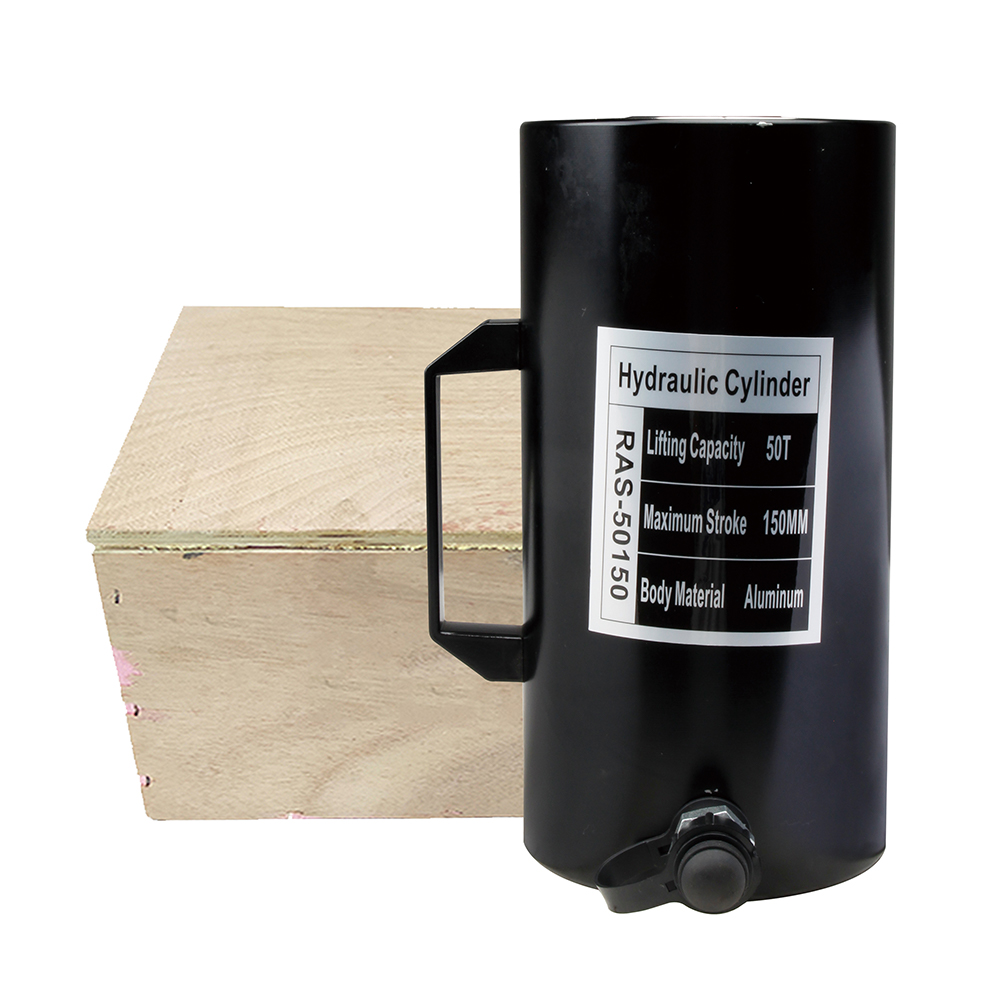

RAS-50150 — 50 Ton capacity, 150mm stroke, 12.65kg net weight, collapsed height 282mm
RAS-100100 — 100 Ton capacity, 100mm stroke, compact design for heavy-duty applications
All models feature 700bar maximum working pressure, effective area optimization, and standardized connection interfaces for seamless integration with existing hydraulic systems.

Applications
Shipbuilding and marine repair, construction and infrastructure projects, bridge engineering and maintenance, factory machinery installation, electric power and chemical industry operations, and any heavy lifting scenario where weight reduction and portability provide a competitive advantage.
