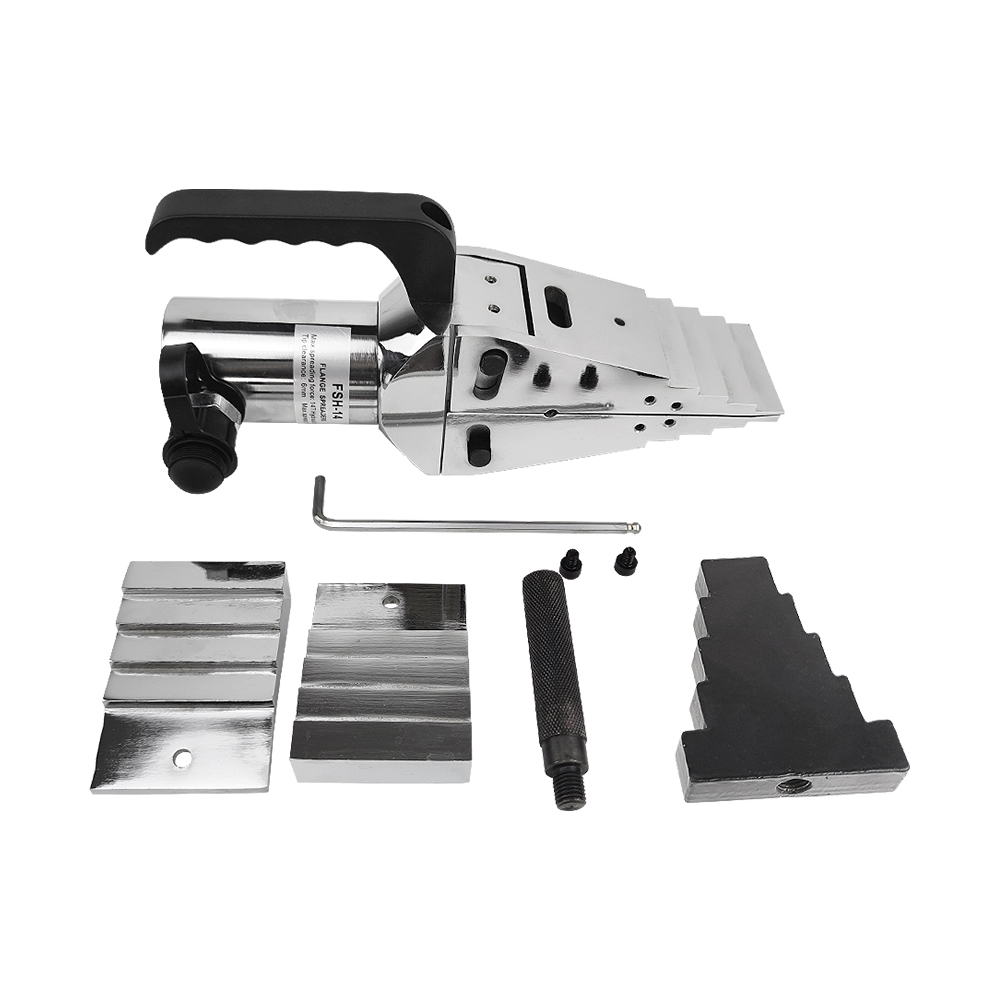

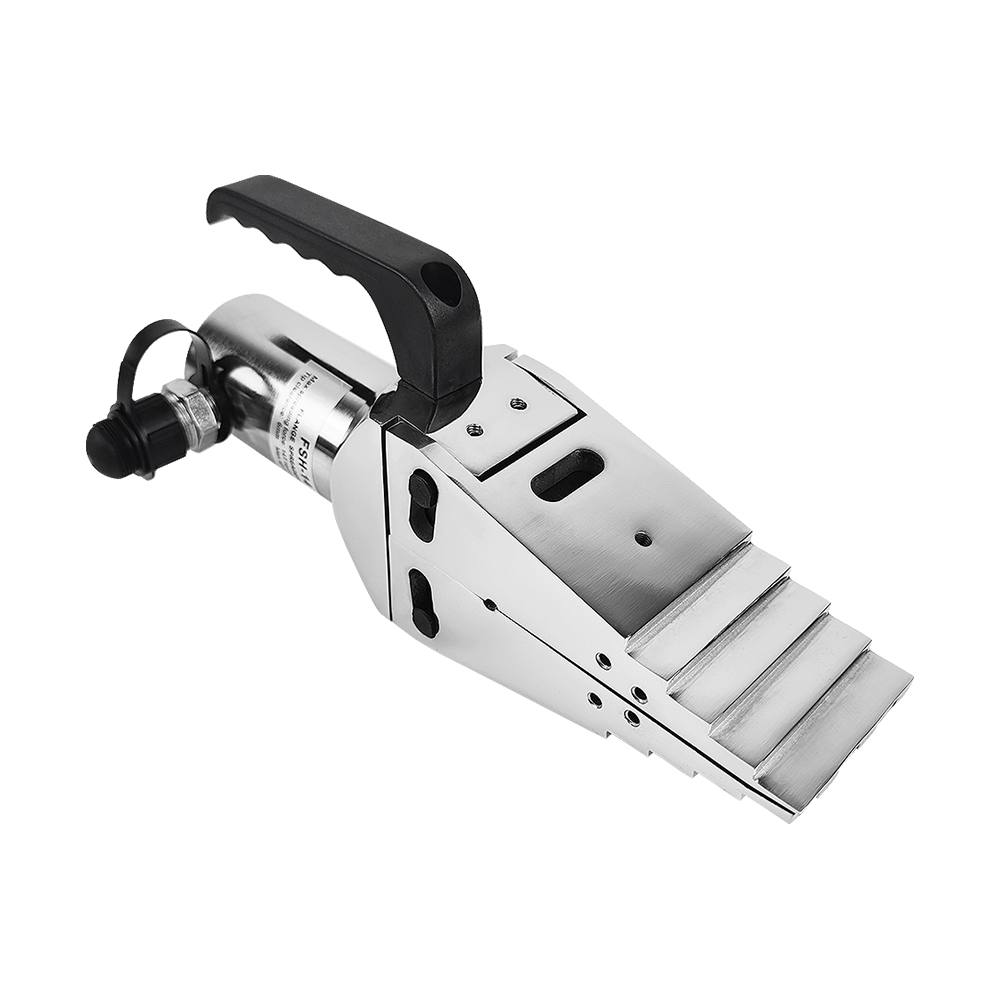

The FSH-14 Electric Hydraulic Flange Spreader delivers a massive 14 tons of spreading force through an ultra-slim 6mm wedge tip — engineered to slip into the tightest flange gaps where conventional tools simply can't reach. Spreading from 6mm up to 81mm, it handles everything from routine maintenance to heavily corroded, seized flanges on oil rigs, chemical plants, and heavy industrial pipelines.
Weighing just 6.74kg, the FSH-14 is light enough for one-person operation yet powerful enough to tackle the toughest jobs. The ergonomic handle reduces fatigue during extended use, and the dust-capped ZG3/8" quick connector keeps the hydraulic circuit clean and ready for instant hook-up to any pump rated up to 70 MPa.
Every unit ships in a shockproof molded plastic carry case — fully protected in transit, always ready on site.
| Model | FSH‑14 | Output | 14T |
| Top thickness | 6mm | Spread range | 81mm |
| NET weight | 6.74Kg | Gross Weight | 9.83Kg |

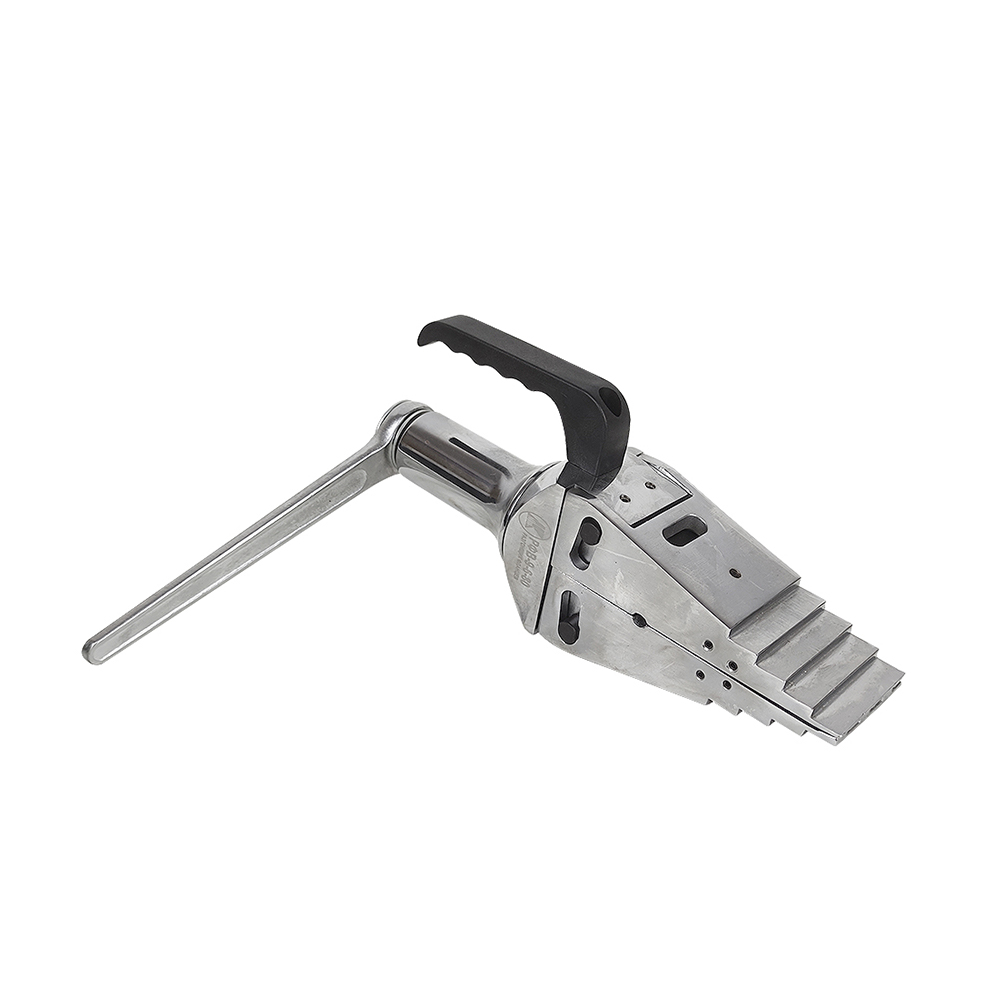

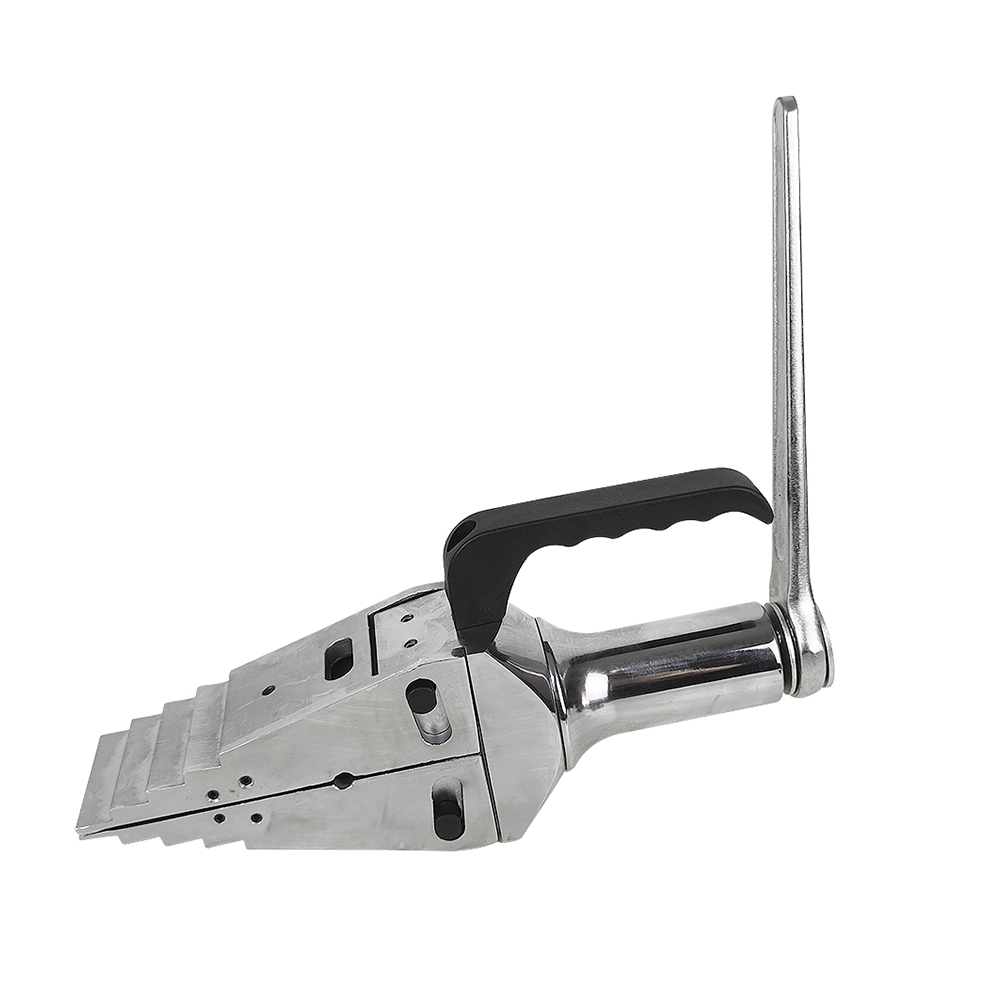

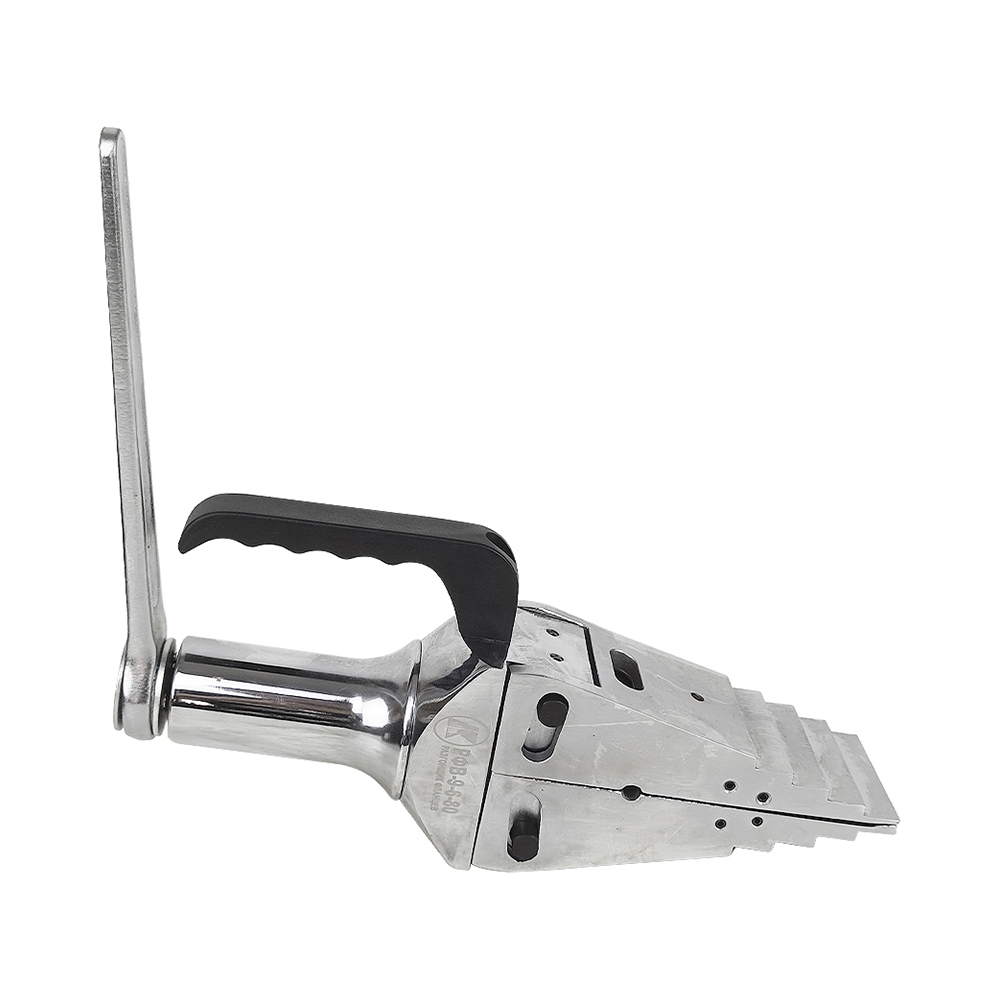

| Model | FSH‑14-1 | Output | 8T |
| Top thickness | 8mm | Spread range | 81mm |
| Length | 305mm | Gross Weight | 9Kg |
Bullet Points
14-ton output force — separates even the most stubborn corroded flanges
Ultra-slim 6mm wedge tip — fits gaps no other tool can enter
Spread range 6mm to 81mm — covers a wide variety of flange sizes
Lightweight at 6.74kg — easy single-operator use in confined spaces
Dust-capped ZG3/8" quick connector — clean, fast hydraulic hookup
Shockproof plastic carry case included — protected transport and storage
