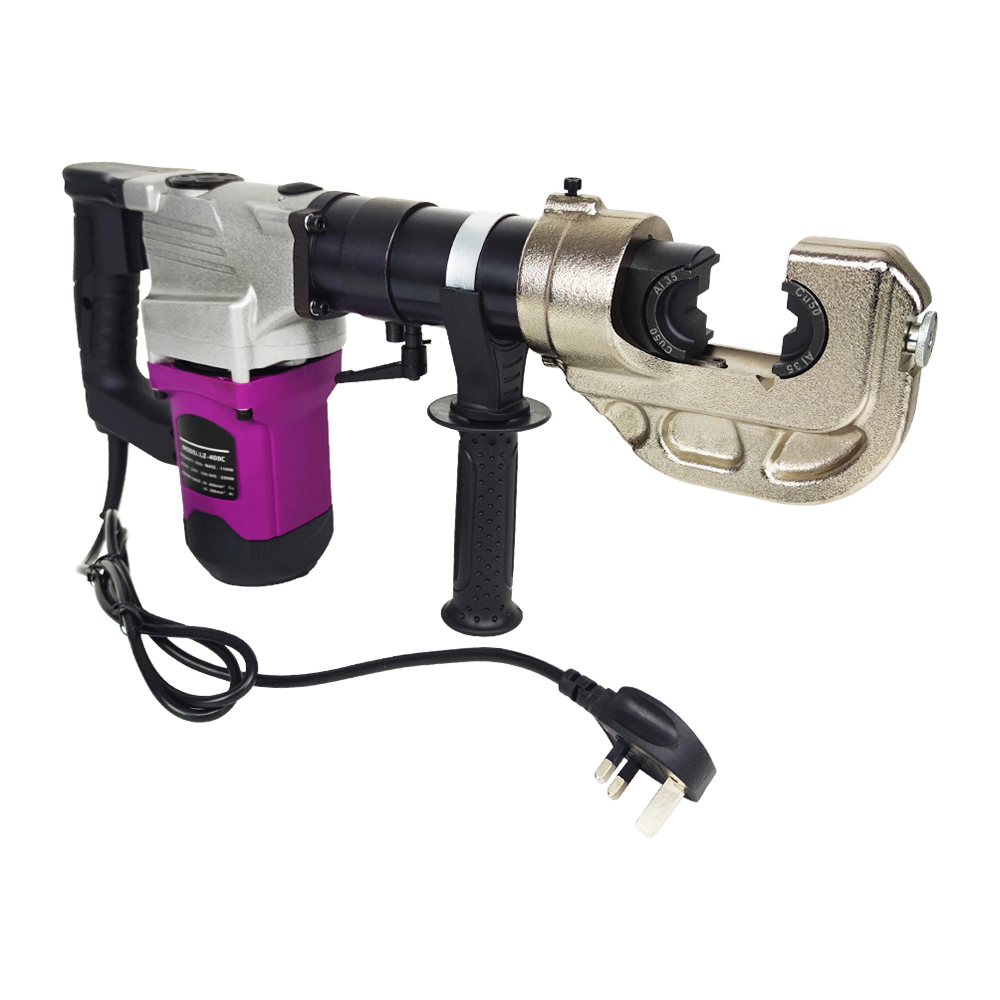

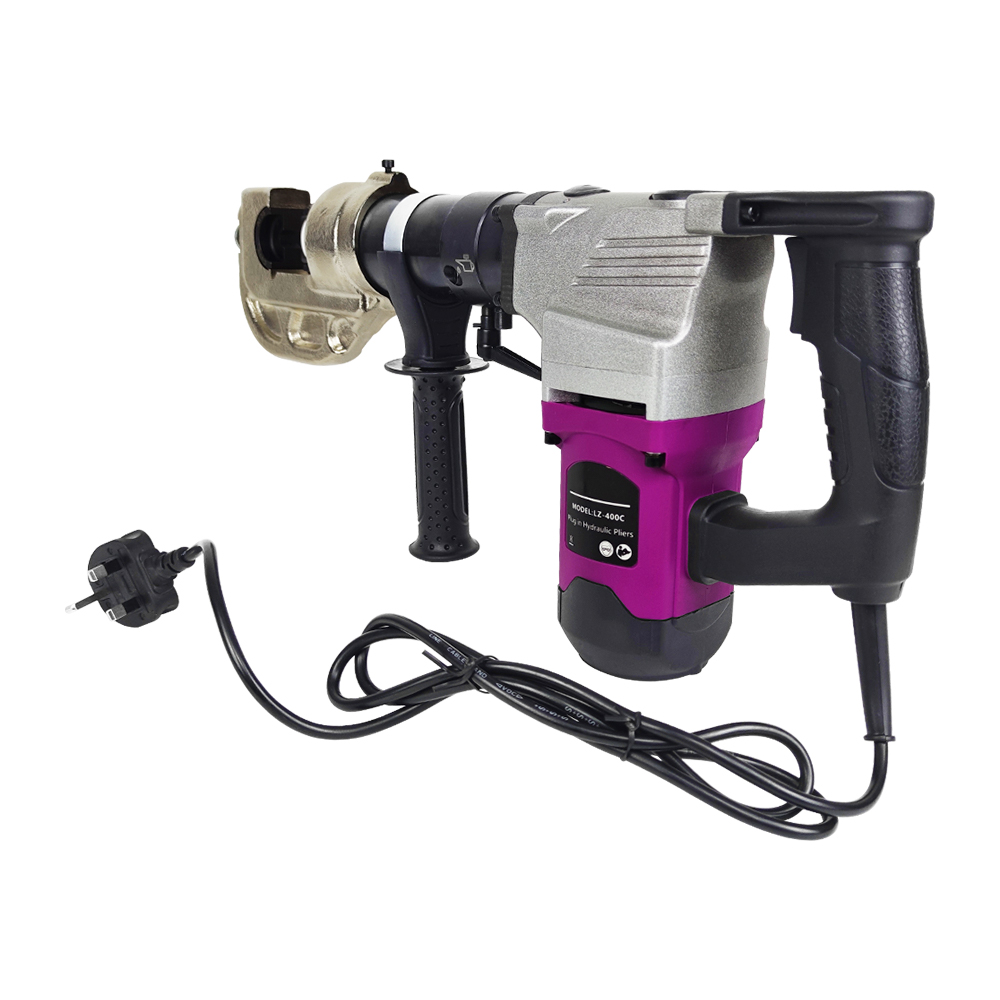

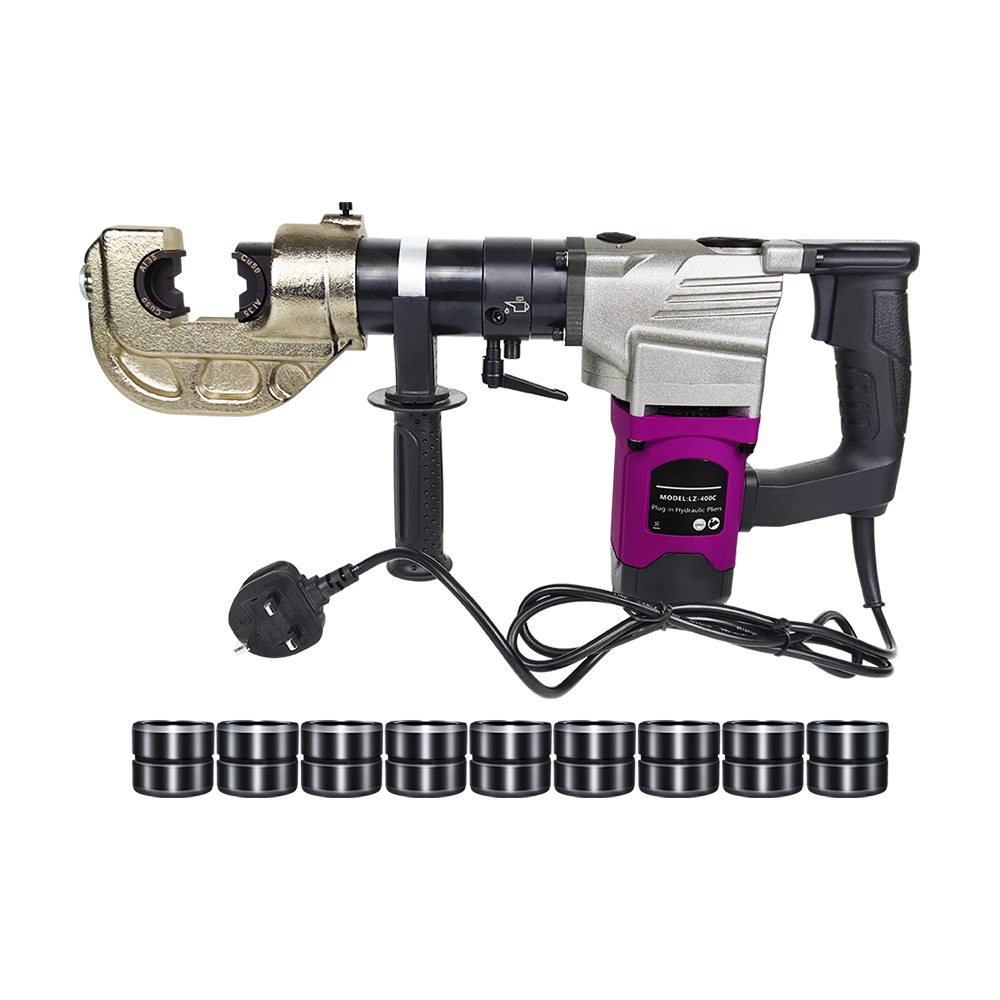

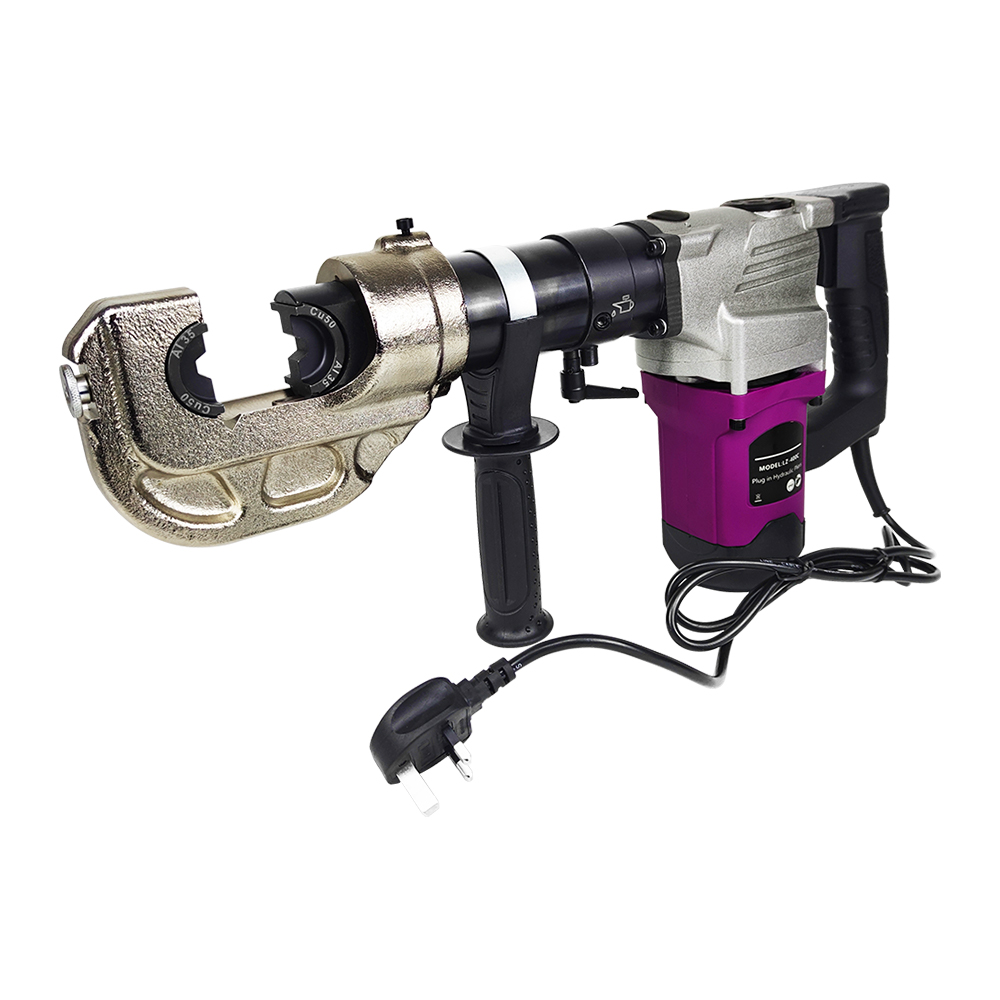

LZ-400C Hydraulic Electric Cable Lug Crimping Tool is a high-capacity electric crimper designed for cable lugs up to 400mm². Its reliable motor and hydraulic system provide stable output for heavy-duty cable termination in demanding industrial environments.
| Model | LZ-400C | Voltage | 220V |
| Output | 60KN | Rated power | 1100W |
| Load power | 2200W | Pressure range | Copper 400mm² |
| Net/gross weight | 9.65Kg/15Kg | Hydraulic oil | 15#-64# low set anti-wear hydraulic fluid |
| Standard mold | 50/70/95/120/150/185/240/300/400mm² | ||
Key Features
Crimping range: 400mm²
Auxiliary handle for improved control
Durable power switch and hydraulic oil port
Removable bolt design for quick die replacement
Oil return switch for easy pressure relief
Plastic box packaging for safe transport and storage
Technical Specifications
Model: LZ-400C
Crimping Range: 400mm²
Power Supply: 220V electric system
Die Replacement: Pull-out bolt system
Packaging: Plastic box
Applications
Suitable for industrial installations, power distribution, and construction projects, offering high-capacity, reliable, and portable electric crimping solutions.
