This series of pipe crimpers is suitable for PEX, PB, aluminum-plastic, stainless steel, and copper pipes. Designed for industrial, construction, chemical, power, and machinery applications, all models feature a 360° rotatable clamp head for easy operation in tight spaces and quick mold replacement for efficient work.
| Model | JT-1632 | Output | ≥40KN |
| Maximum Crimp | 32mm | Stroke | 16mm |
| Body length | 535-755mm | NET weight | 4.32Kg |
| Model | LD-1632D | Crimping range | Φ16-Φ32mm |
| Crimping dies | Φ16-Φ20,Φ25-Φ32mm | Stroke | 45mm |
| Expanding range | Φ16-Φ32mm | Gross weight | 8.5Kg |
| Expanding dies | Φ16*2.2、Φ20*2.8、Φ25*3.5、Φ32*4.4 | Package | plastic case |
| Model | LD-1632F | Crimping range | Φ16-Φ32mm |
| Crimping dies | Φ16-Φ20、Φ25-Φ32mm | Stroke | 45mm |
| Expanding range | Φ16-Φ32mm | Gross weight | 8.5Kg |
| Expanding dies | Φ16*2.2, Φ20*2.8, Φ25*3.5, Φ32*4.4 | Package | plastic case |
| Model | CW-1625 | Contribute | 3T |
| Journey | 45mm | Weight | 2.35kg |
| Dimension | long 530mm | Package | Carton/Plastic box (optional) |
| Mold configuration | φ16、φ20、φ25(26) | ||
| Peculiarity | It is suitable for connecting aluminium-plastic pipe, PEX pipe, PB pipe, etc., with copper pipe fittings and copper joints, clamping stainless steel sleeve, copper sleeve and aluminium sleeve. | ||
| Model | CW-1632 | Tonnage | 10T |
| Stroke | 45mm | Net weight | 3.15Kg |
| Mold configuration | Aluminum-plastic pipe A mold: Φ16/Φ20/Φ25(26)/Φ32 Aluminum-plastic pipe B mold: Φ16/Φ20/Φ25(26)/Φ32 Stainless steel mold: Φ15/Φ20/Φ25 |
||
| Product Features | It is suitable for connecting aluminum-plastic pipe, PEX pipe, PB pipe, etc. with copper pipe fittings and copper joints, pressing stainless steel sleeves (air leakage preventing), copper sleeves, and aluminum sleeves; The crimping head can be freely rotated 360° and can work in narrow places; The mold can be replaced, and the same tool can be used with different specifications of pipe fittings; |
||
| Model | CW-1930 | Stroke | 23mm |
| Output | 60KN | Net/gross weight | 3.15Kg/4.9Kg |
Common Features
Durable steel or aluminum alloy construction
Interchangeable dies for multiple pipe diameters
Thickened anti-slip handles for comfort and labor-saving
Suitable for pipe installation, maintenance, floor heating, and water pipe projects
Packaging: Sturdy plastic case or carton for transport and protection
Model Differences

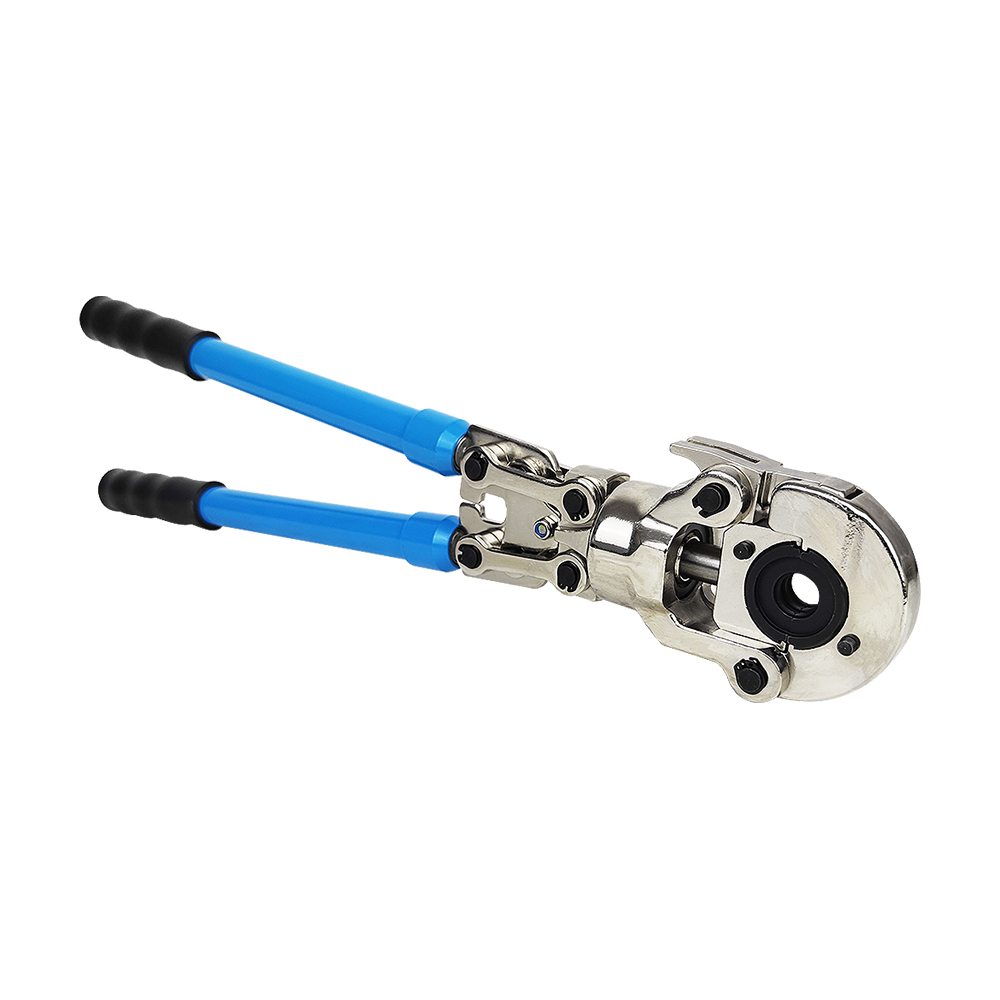

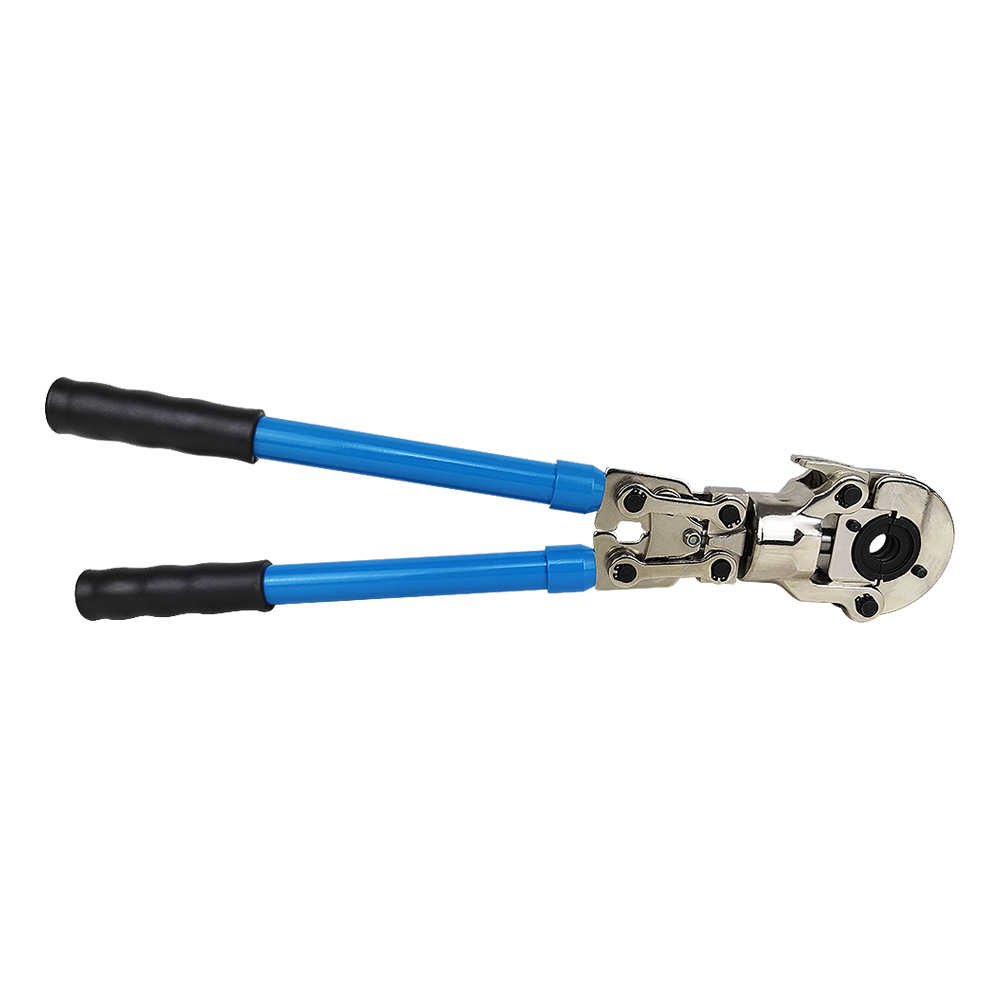

JT-1632
Type: Manual hydraulic pipe crimper
Pipe Range: Φ16–Φ32mm
Features: Integral hydraulic pipe wrench, rotatable head, extendable and thickened non-slip handle
LD-1632
Type: Hydraulic pipe expander & crimper
Pipe Range: Φ16–Φ32mm
Features: Axial press method, flame-free, high-strength molds, pressing fork, lockable or free-moving
CW-1625
Type: Manual pipe crimper
Pipe Range: Aluminum-plastic, PEX, PB, copper
Features: Interchangeable dies, adjustable mechanical arm, thickened anti-slip handle
CW-1632
Type: Hydraulic manual pipe crimper
Pipe Range: Aluminum-plastic, PEX, PB, stainless steel
Features: 360° rotatable clamp head, replaceable molds, pressure release valve
CW-1930
Type: Standard manual hydraulic pipe crimper
Pipe Range: PEX, aluminum-plastic, stainless steel, copper
Features: Mold replacement, 360° rotatable head, pressure release valve, non-slip ergonomic handle
Applications
Ideal for residential, industrial, and commercial piping, including crimping and expanding PEX, PB, aluminum-plastic, stainless steel, and copper pipes.
