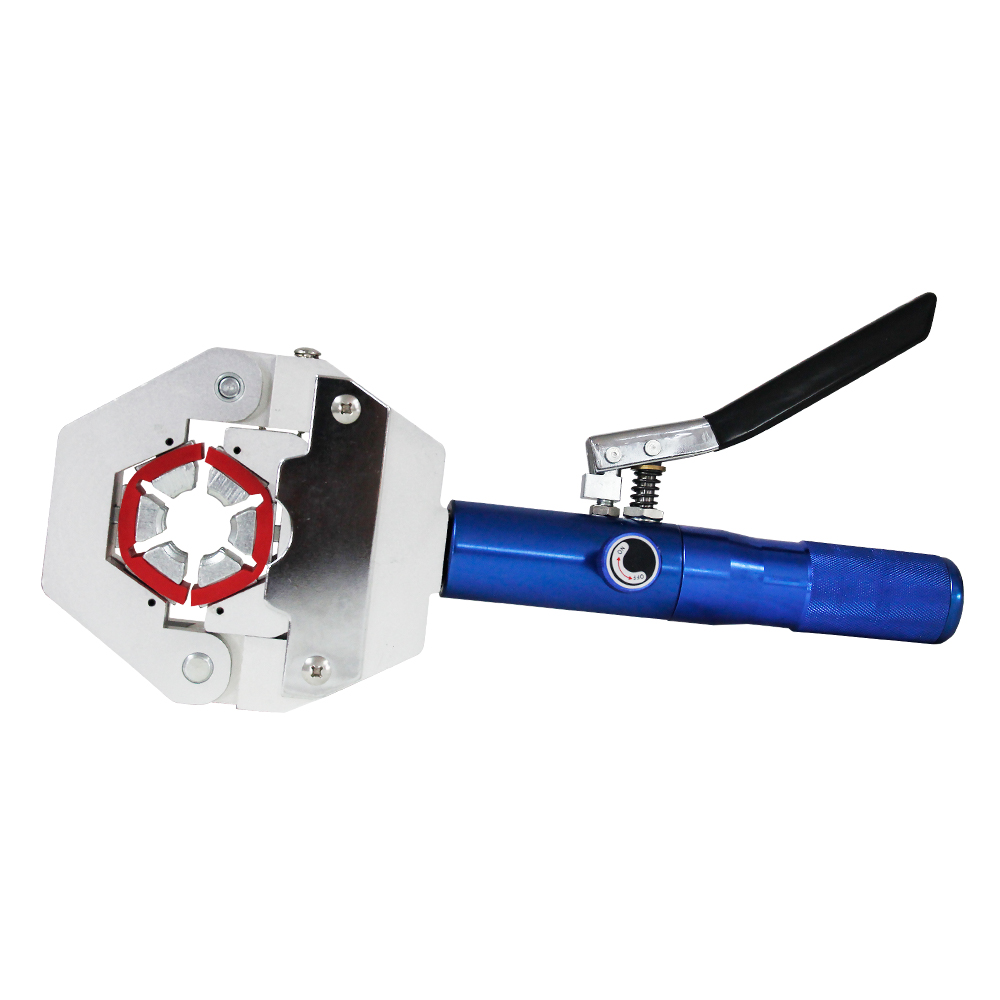

The FS-7842 series hydraulic A/C hose crimper is designed for quick, precise, and safe crimping of air conditioning and industrial hoses. With an 8T high-output hydraulic system and point-type hexagonal crimping, this tool ensures tight, secure, and reliable connections.
High-strength aluminum alloy construction with one-time molding and uniform heat treatment provides durability and prevents breakage. The latch uses thread locking technology to prevent accidental mold ejection, improving operational safety. The new oil leakage prevention technology with a double-layer piston seal ensures stable, tight crimps.

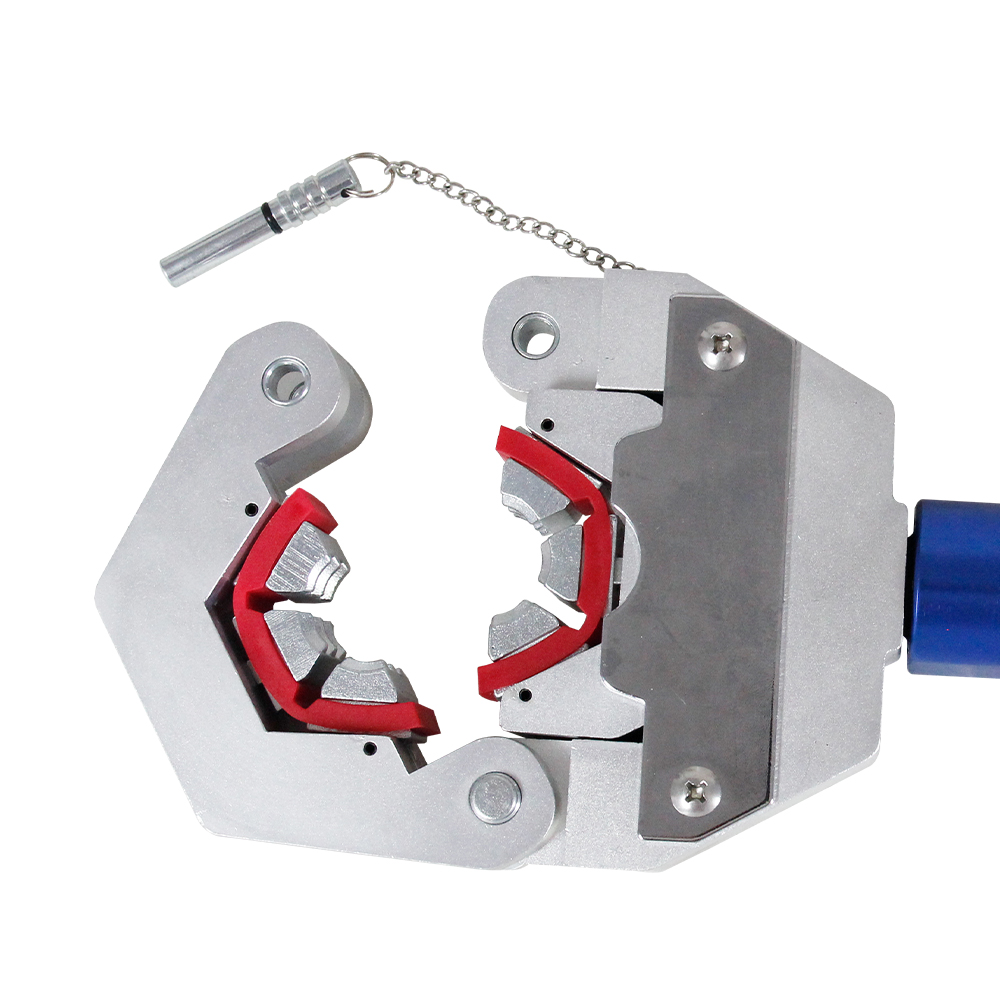

The FS-7842 features a straightforward, step-by-step installation and operation process: select the correct die, insert the pin, close the jaws, rotate the body, turn the valve to working position, and pump the handle until the crimping is complete. The clamp head can accommodate multiple dies (#6, #8, #10, #12, etc.) for versatile applications.

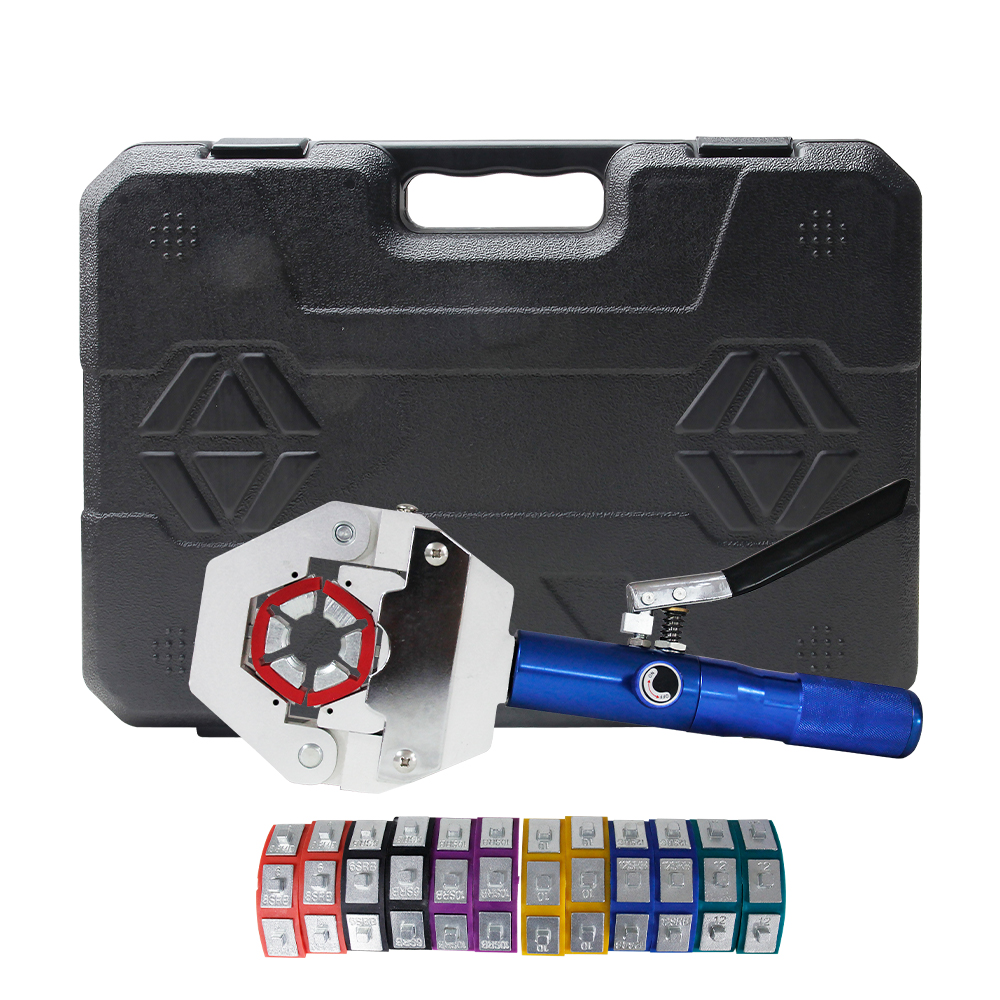

Packaged in a sturdy plastic box, the tool is easy to carry and store, making it ideal for on-site HVAC, automotive, industrial maintenance, and repair operations.
| Name | Integrated | Split type | Mechanical |
| Model | FS-7842 | FS-7842A | 71550 |
| Output | 8T | 8T | 8T |
| Stroke | 15mm | 15mm | 15mm |
| Crimping range | 3/8 - 7/8 | 3/8 - 7/8 | 3/8 - 7/8 |
| (3 to 7 points) | (3 to 7 points) | (3 to 7 points) | |
| Crimping form | Point-type hexagonal confining pressure | Point-type hexagonal confining pressure | Point-type hexagonal confining pressure |
| Hydraulic oil | 7-32# Hydraulic oil | 7-32# Hydraulic oil | 7-32# Hydraulic oil |
| Product Size | 38x14.5x6.2cm | 29x14.5x4.3cm | 22.5x14.5x7.5cm |
| Net/Gross | 2.6Kg/6.9Kg | 2.4Kg/6.7Kg | 2.6Kg/4.4Kg |
| Package | Plastic box | Plastic box | Plastic box |
| Package dimensions | 45x33x11.5cm | 45x33x11.5cm | 32x25.5x8.5cm |
| Mold configuration | 6SRB, 6-8SRB, 8, 10SRB, 10, 12SRB, 12 | 6-8SRB, 8, 10, 12 | |
Key Features
Hydraulic A/C hose crimper with 8T high output
Crimping range: 3/8"–7/8" (3–7 points)
Point-type hexagonal crimping for secure connections
High-strength aluminum alloy pliers, one-time molded, heat-treated
Thread locking latch for accessory and mold safety
Oil leakage prevention with a double-layer piston seal
Quick & easy die installation and operation
Sturdy plastic box packaging for protection and portability
Suitable for air conditioning, automotive, and industrial hose maintenance
Models: FS-7842, FS-7842A, 71550 with integrated or split dies
Applications
The FS-7842 series A/C hose crimper is widely used for air conditioning systems, automotive repair, industrial hose installation, maintenance, and assembly. Its high output, secure hexagonal crimps, and durable aluminum alloy construction make it suitable for technicians and contractors requiring reliable, fast, and safe hose crimping in demanding environments.
