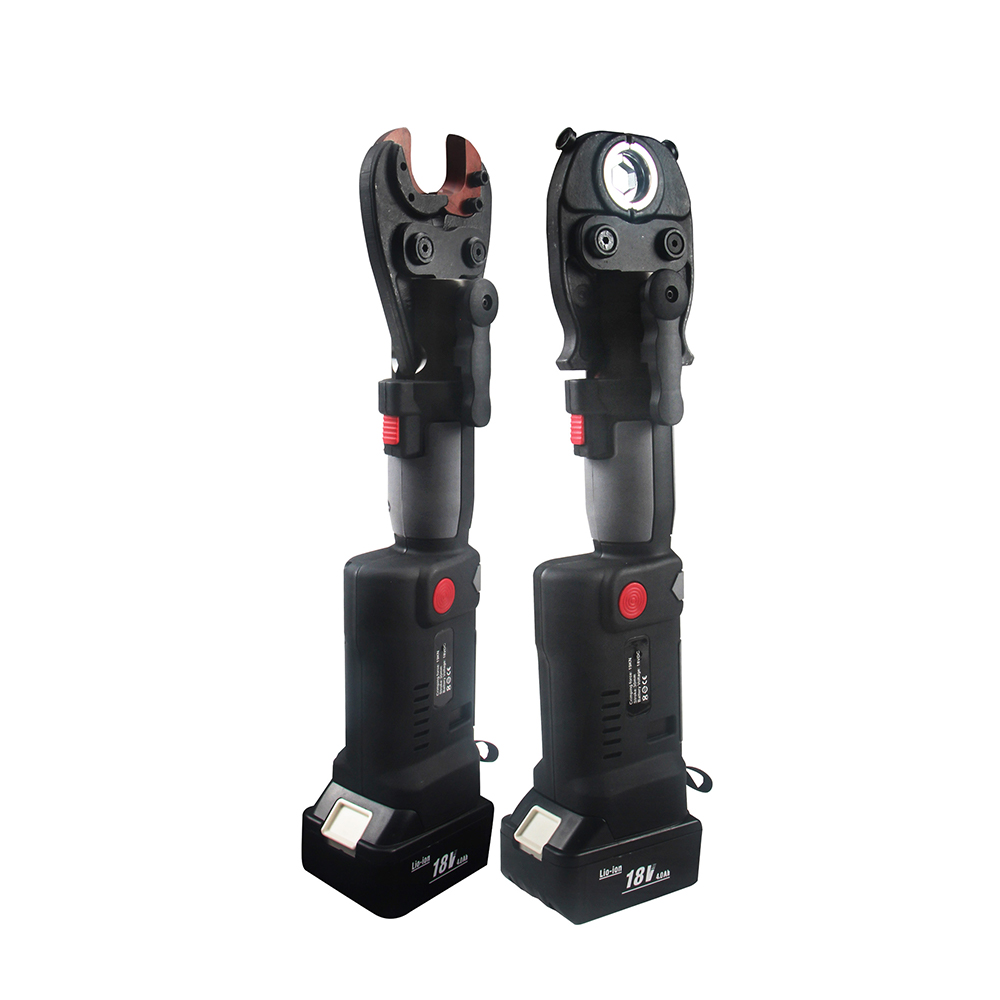

Professional Cable Cutting and Crimping in One Tool
The CHANGYOU MasterCut 300 Series combines high-strength cutting, precise crimping, and reliable hydraulic power in a single, compact battery-powered tool. Designed for copper, aluminum, armored cables, and ACSR, it is ideal for power, construction, machinery, and industrial applications.
| Model | LS-300/30C | Cutting force | 60KN |
| Stroke | 17mm | Crimping range | 10-300mm² |
| Voltage/capacity | 18V/4.0Ah | Net weight | 3.0kg |
| Cutting times | 130 times (per saturation voltage) | ||
| Cutting range | Φ30mm max (Armoured and Cu/Al cable) | ||
| Crimping dies | 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² | ||
| Battery | 2 pcs | Charger | 1 pc |
Key Features by Model
ES-300/32: Cuts copper and aluminum cables up to 30mm, crimps 16–300mm² terminals. Supports remote control operation within 20 meters.
LS-300/30C: Cuts up to 30mm armored and Cu/Al cables, crimp range 10–300mm², up to 130 cuts per charge. Quick die replacement and precise LED monitoring.
EZ-300/30C: Cuts up to 40mm ACSR/Cu/Al armored cables, crimp range 10–300mm², 120 cycles per charge, fast crimping 6–18 seconds depending on cable size.
Upgrade your cable cutting and crimping workflow with the all-in-one MasterCut 300—powerful, efficient, and ready for any job.
Why Choose MasterCut 300
Dual-Function 2-in-1 Tool: Cuts cables up to 30–40mm and crimps terminals from 10 to 300mm², reducing the need for multiple tools.

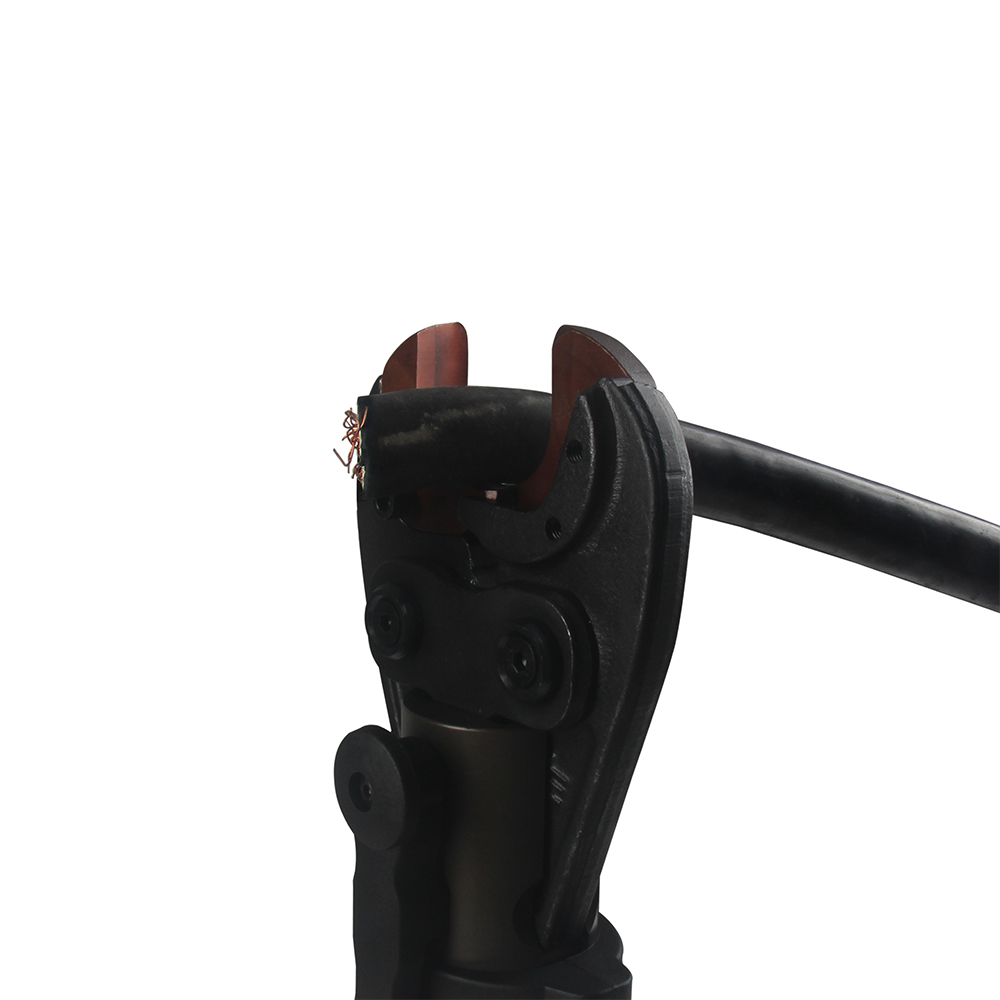

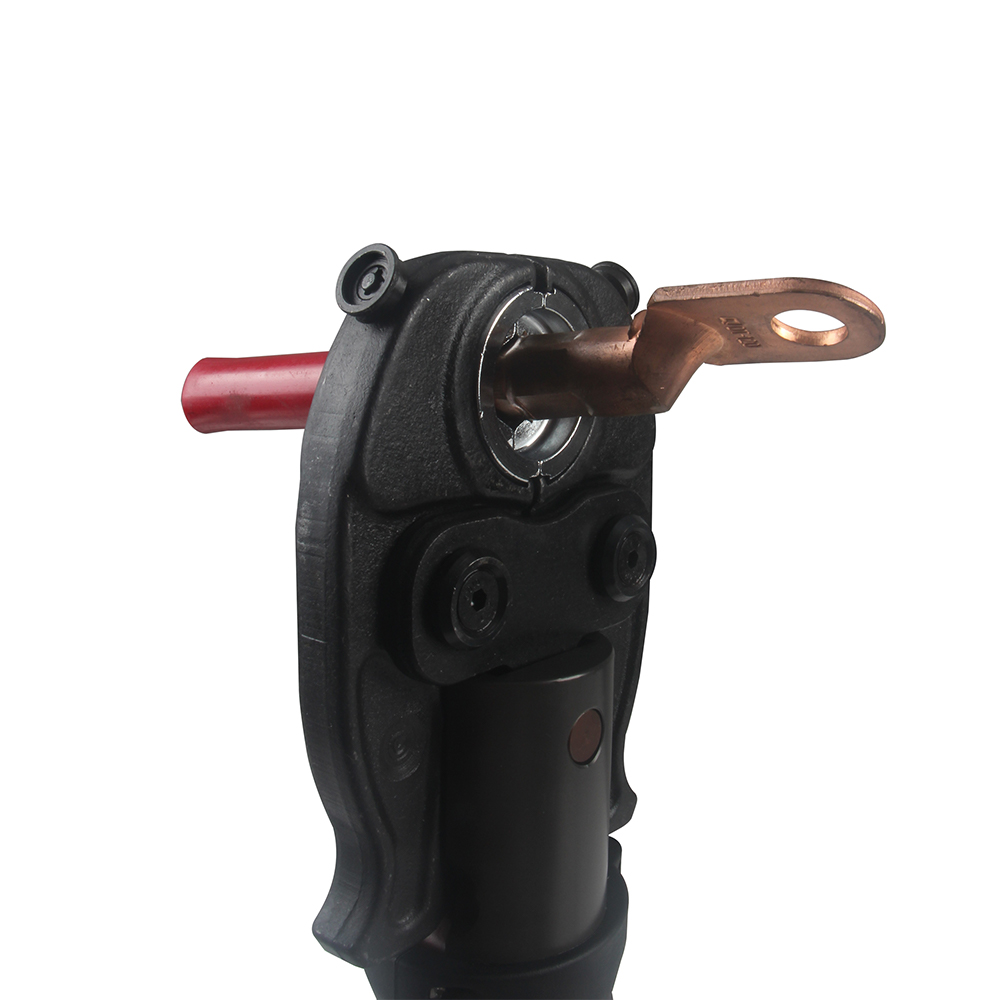

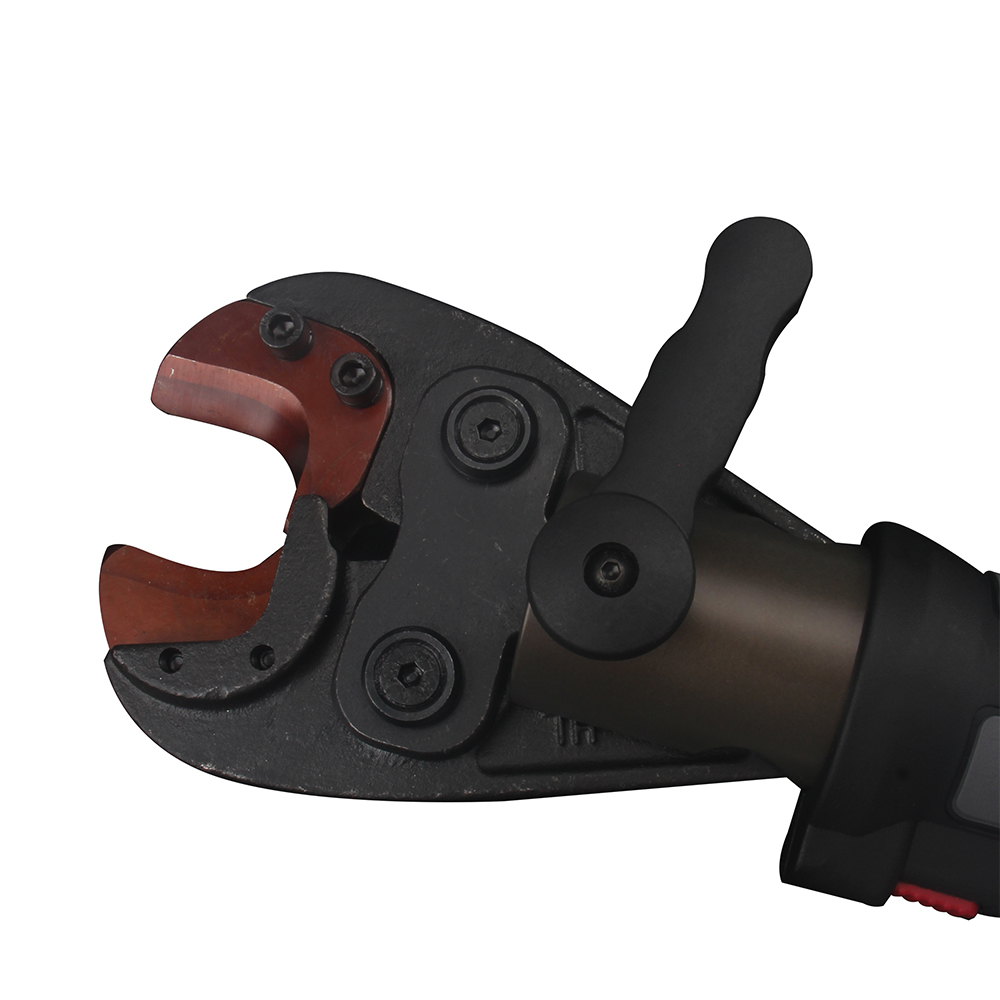

High-Strength Alloy Blade: Durable and sharp for smooth, precise cuts. Crimping dies are interchangeable for various terminal sizes.
Lightweight and Ergonomic: Weighs only 3.0–3.2kg, with optimized center of gravity for easy handling and long-duration operation.
Powerful Lithium Battery: 18V 4.0Ah battery delivers 120–130 cycles per full charge. Large capacity ensures uninterrupted work, and battery replacement is quick and simple.
Intelligent LED Display: Monitor battery level, number of operations, mechanical temperature, and error codes. One-button start and reset streamline operation.
Safe and Convenient: Manual pressure relief for operation errors, easy die change, and robust construction suitable for various work environments.

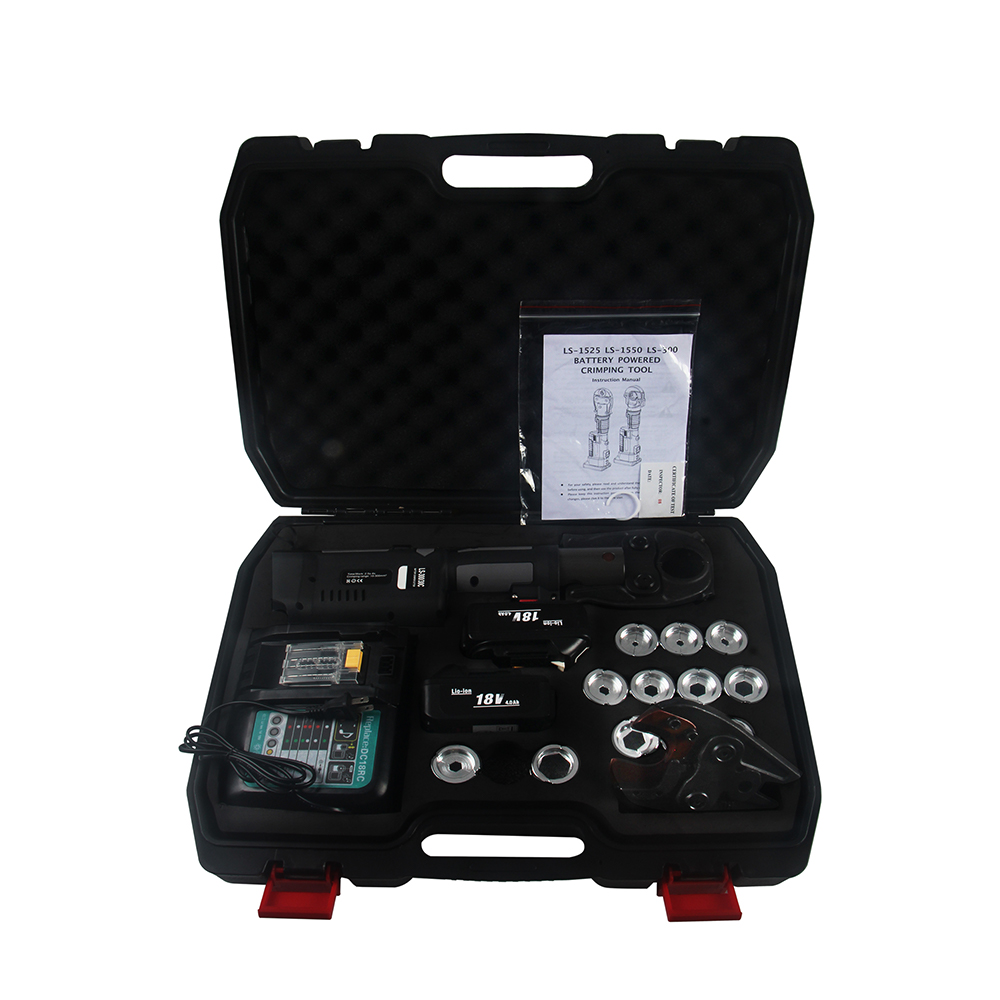

Portable and Complete: Includes full accessory set with batteries, charger, and carrying case.
