Product Description

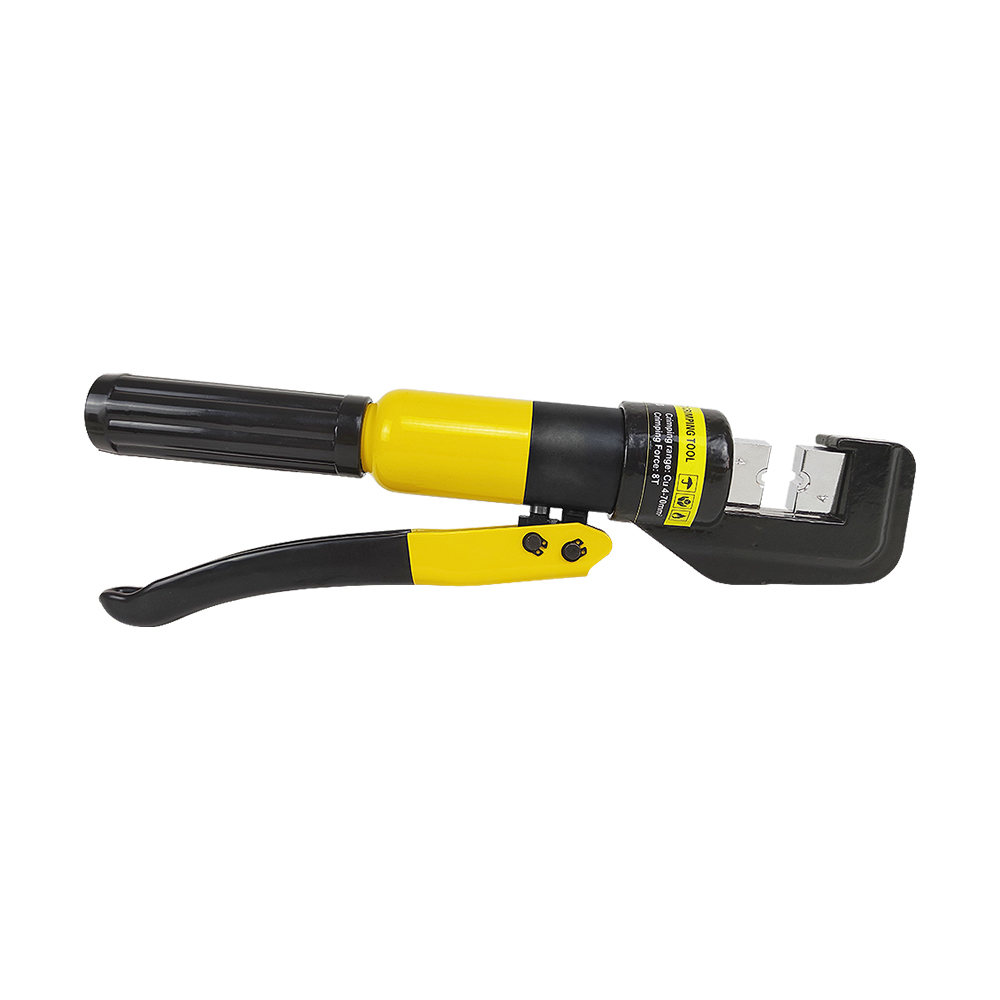

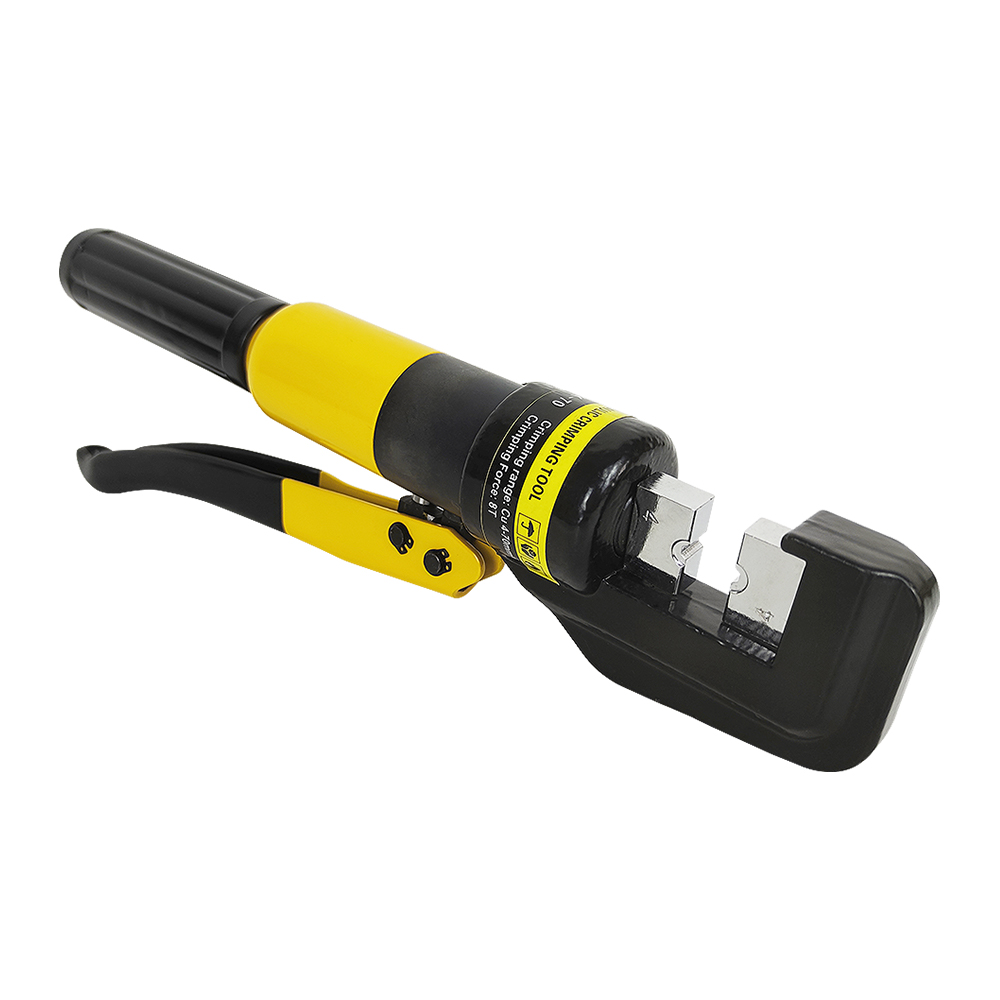

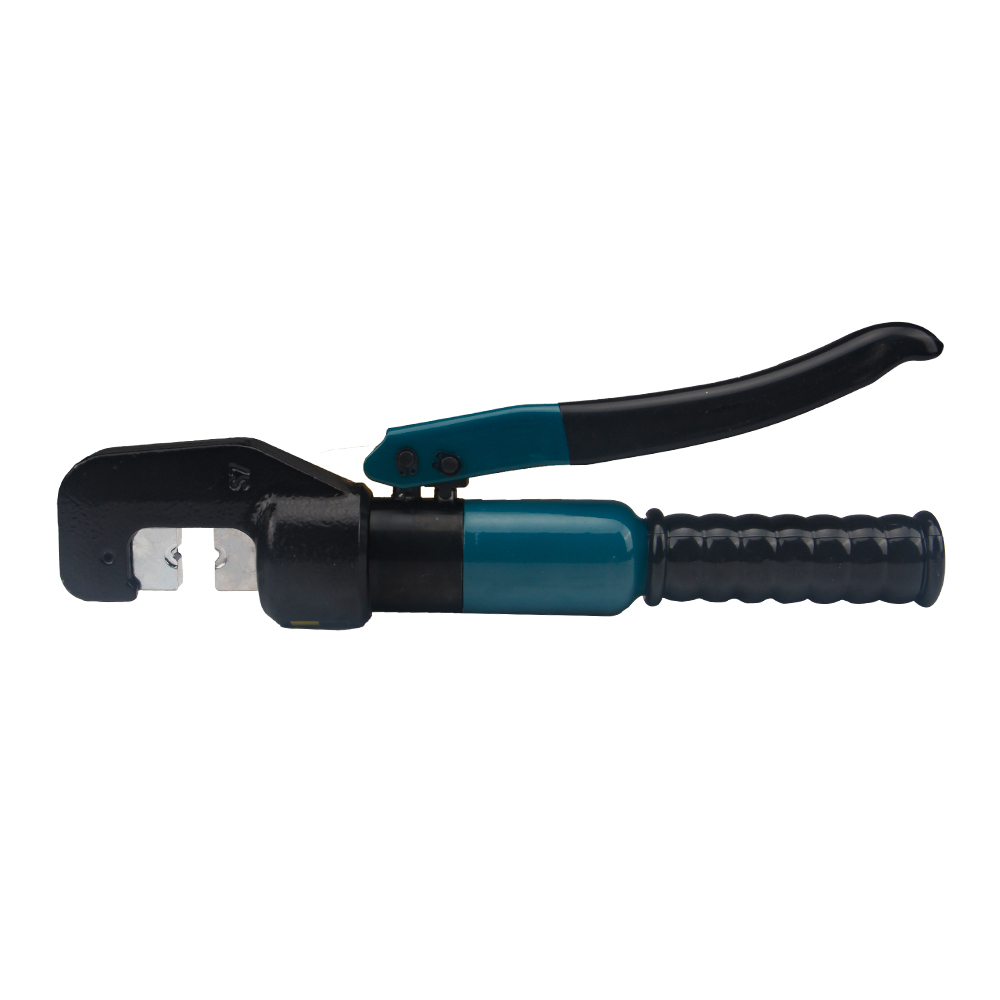

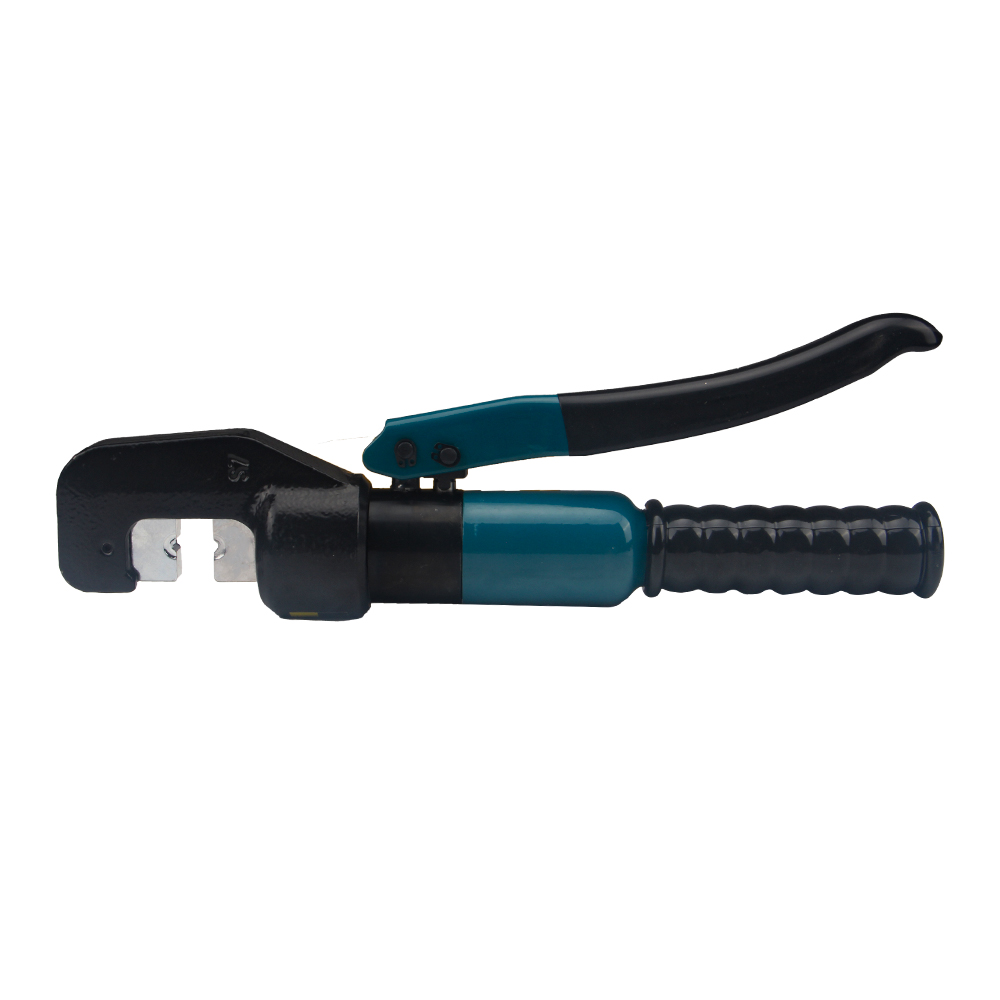

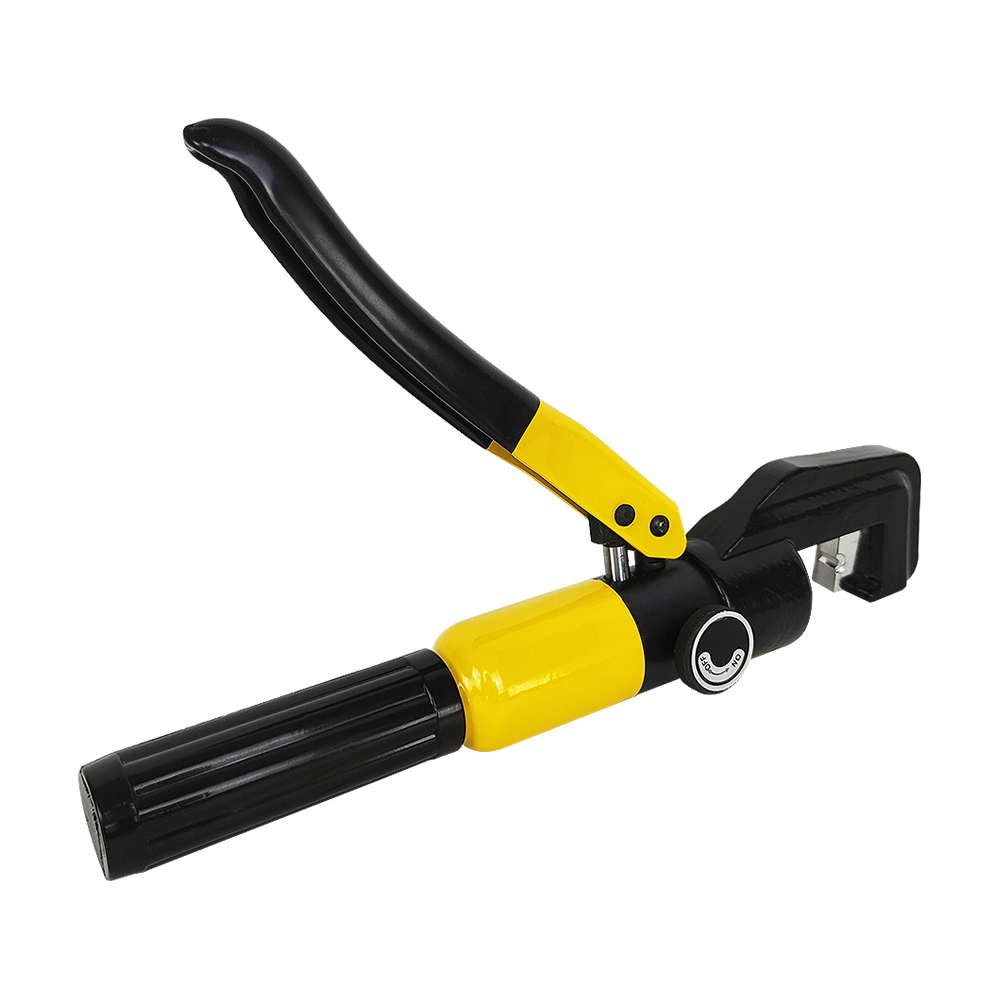

YQK-70 / YQK-120 / YQK-240 / YQK-300 / HT-51 / KYQ-400 Handheld Hydraulic Crimpers are professional manual hydraulic tools designed for reliable crimping of small to large copper and aluminum cable lugs. Suitable for industrial, construction, electrical, and communication applications, covering a wide range of terminal sizes.

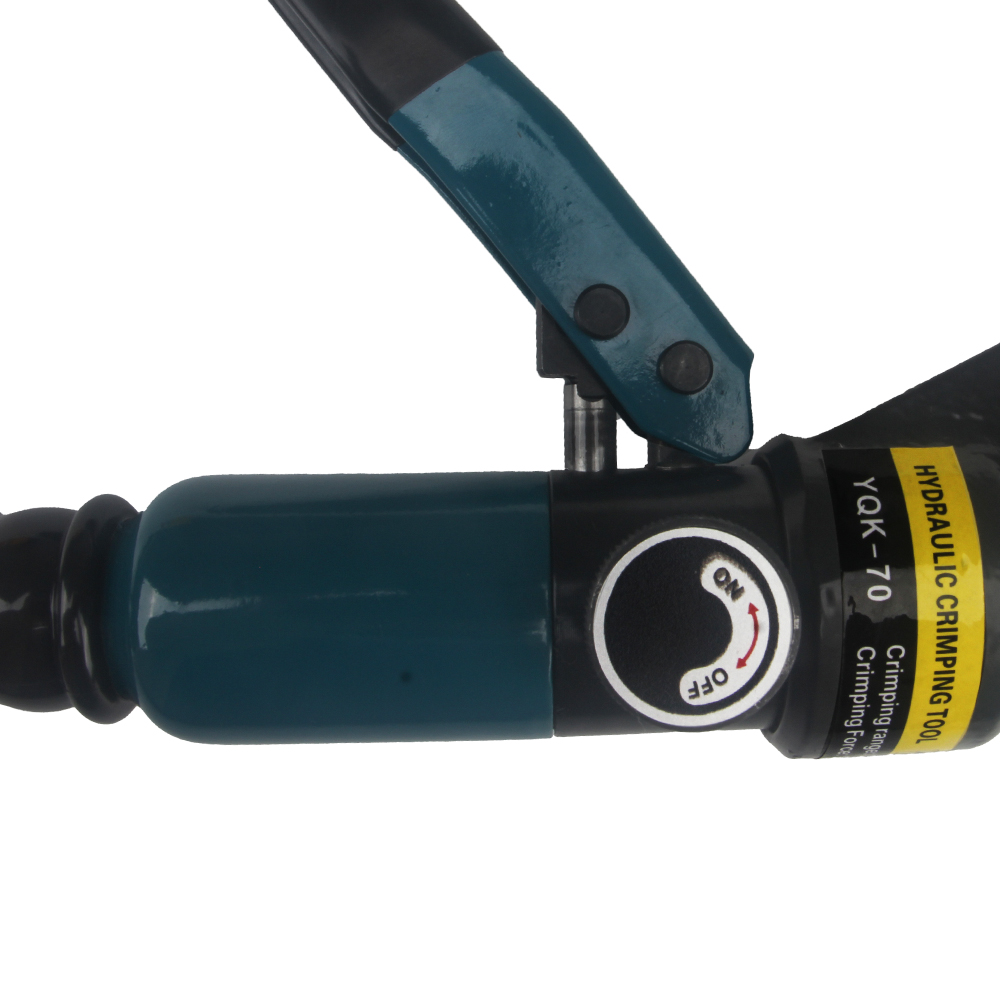

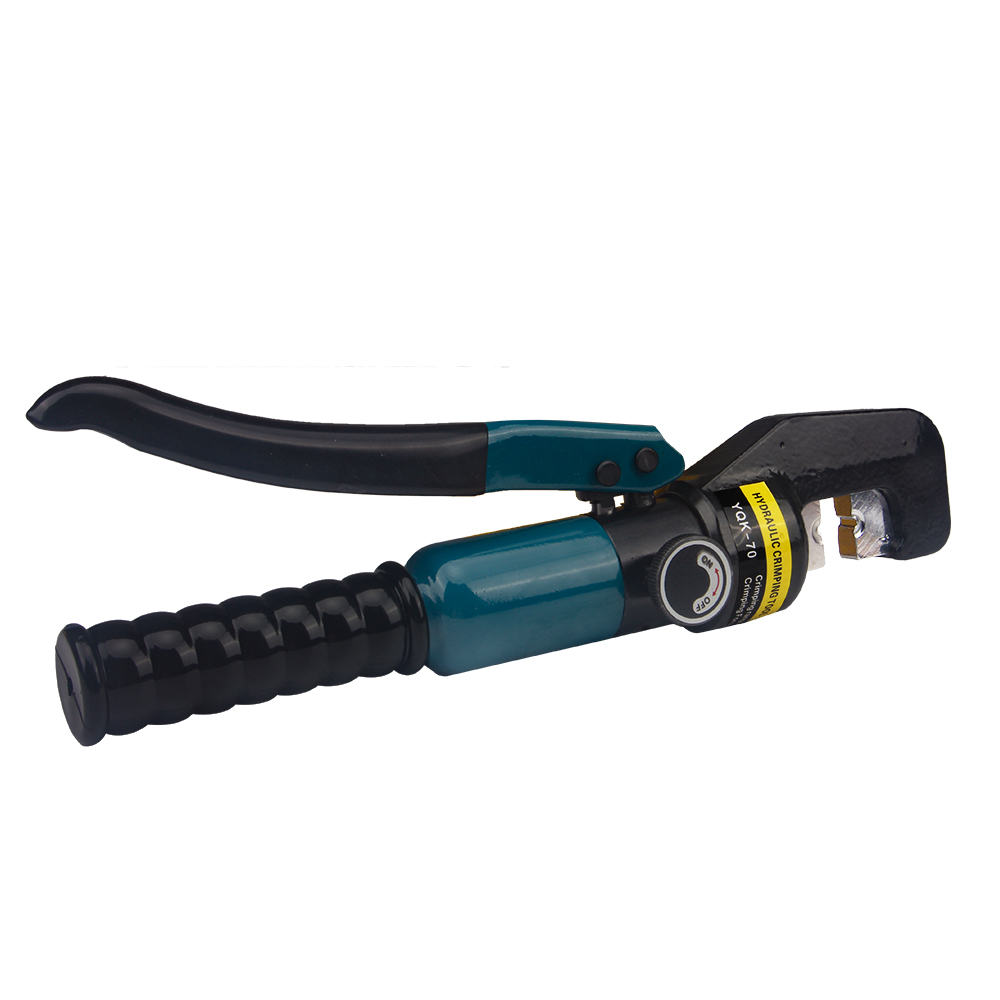

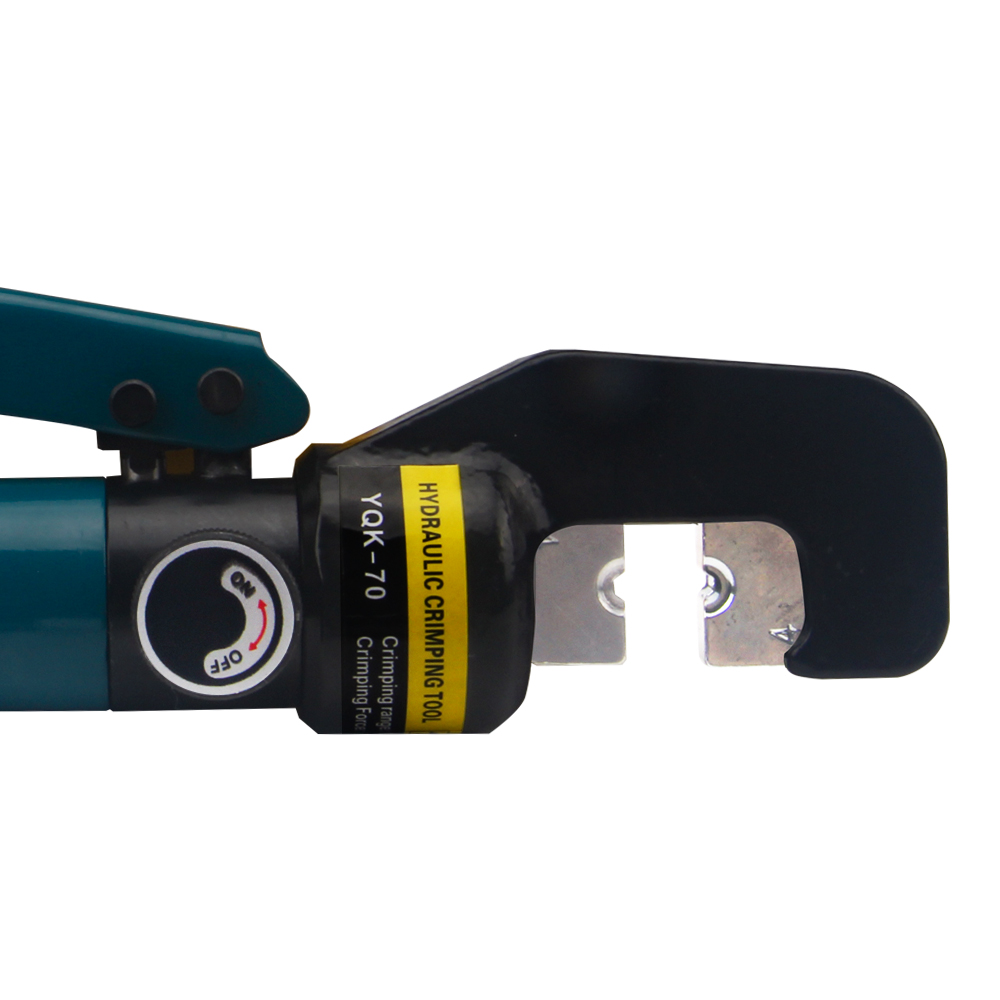

YQK-70: Crimp range 4–70mm², 8T max force, for small terminals
YQK-120: Crimp range 10–120mm², for medium terminals
YQK-240: Crimp range 12–240mm², for medium-to-large terminals
YQK-300: Crimp range 12–300mm², 12T max force, for large terminals
HT-51: Crimp range 50–400mm², built-in safety valve, semi-automatic pressure release
KYQ-400: Crimp range 50–400mm², suitable for heavy-duty and construction applications
Constructed with high-strength steel and heat treatment, ensuring durable crimping heads. Equipped with a multifunctional oil pump, quick reset, and pressure relief valve for safe, efficient operation. Interchangeable dies allow adaptation to different cable sizes. Insulated ergonomic handle reduces fatigue and improves comfort for prolonged work.
| Item No. | YQK-70 | Max Stroke | 14mm |
| Crimping Range | 4-70mm² | Crimping Type | Hexagon Type |
| Max Force | 8T | Weight | 2.8Kg |

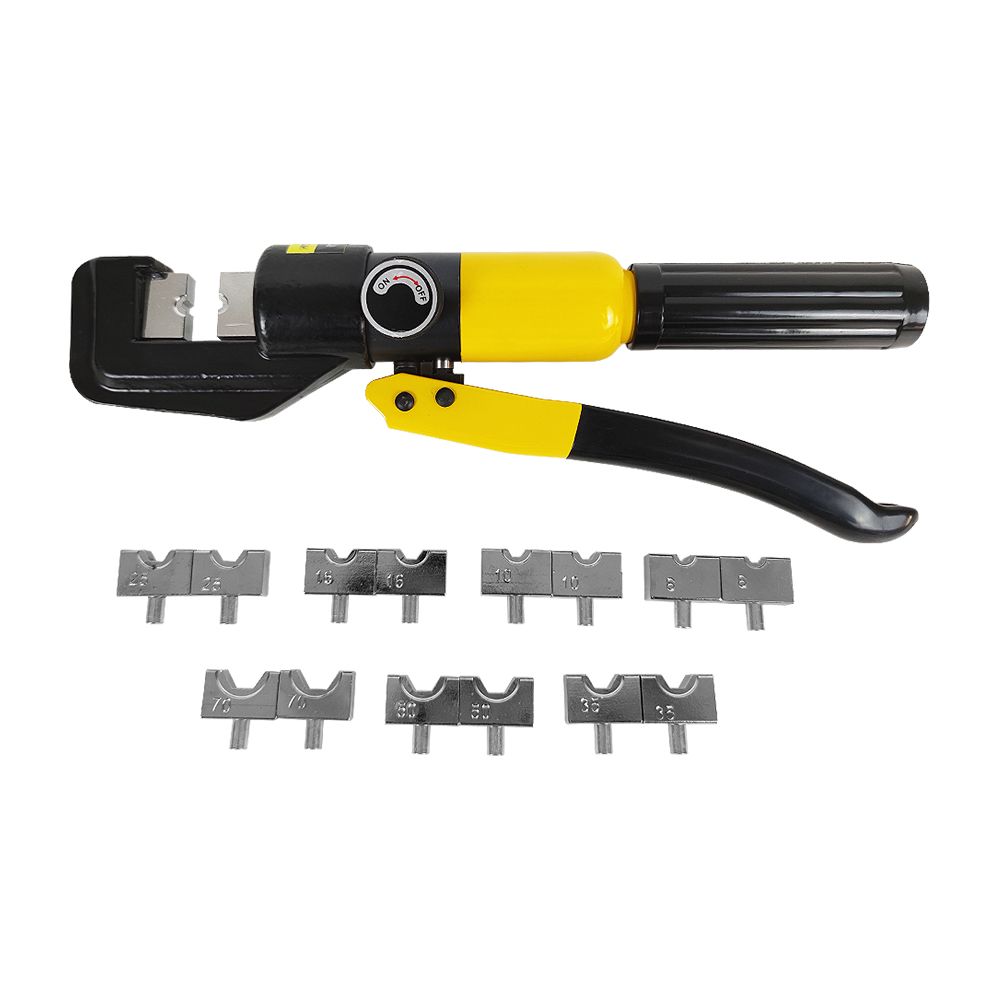

| Crimping Dies | 4/6/10/16/25/35/50/70mm² | ||
| Model | YQK-120 | Crimping Range | 10-120mm² |
| Output | 8T | Stroke | 14mm |
| Standard Die | 10/16/25/35/50/70/95/120mm² | ||
| Item No. | YQK-240 | Max Stroke | 20mm |
| Crimping Range | 16-240mm² | Crimping Type | Hexagon Type |
| Max Force | 12T | Weight | 6.2Kg |
| Crimping Dies | 16/25/35/50/70/95/120/150/185/240mm² | ||
| Item No. | HT-51 | Max Stroke | 15mm |
| Crimping Range | 10-240mm² | Crimping Type | Hexagon Type |
| Max Force | 60KN | Weight | 2.8Kg |
| Crimping Dies | 10、16、25、35、50、70、95、120、150、185、240mm² | ||
| Model | KYQ-400 | Crimping Range | 16-400mm² |
| Output | 20T | Stroke | 24mm |
| Standard Die | 16/25/35/50/70/95/120/150/185/240/300/400mm² | ||
Key Features
Models included: YQK-70 / YQK-120 / YQK-240 / YQK-300 / HT-51 / KYQ-400
Handheld hydraulic crimper, crimping range 4–400mm²
High-strength steel with heat-treated construction
Quick reset and pressure relief valves for safe operation
Interchangeable dies for different cable sizes
Insulated, ergonomic, anti-slip handle
Suitable for power, industrial, construction, and communication projects
Technical Specifications
Tool Type: Manual/Handheld Hydraulic Crimper
Crimping Range: 4–400mm² (depending on model)
Max Pressure: 8–12T
Dies Included: 9–12 (depending on model)
Material: High-strength steel + PPE handle
Handle Design: Ergonomic, insulated, anti-slip
Packaging: Paper box or tool case
Applications
Power distribution systems and electrical construction
Industrial machinery and equipment maintenance
Construction and communication wiring
On-site cable lug crimping and high-voltage terminals
