Product Description

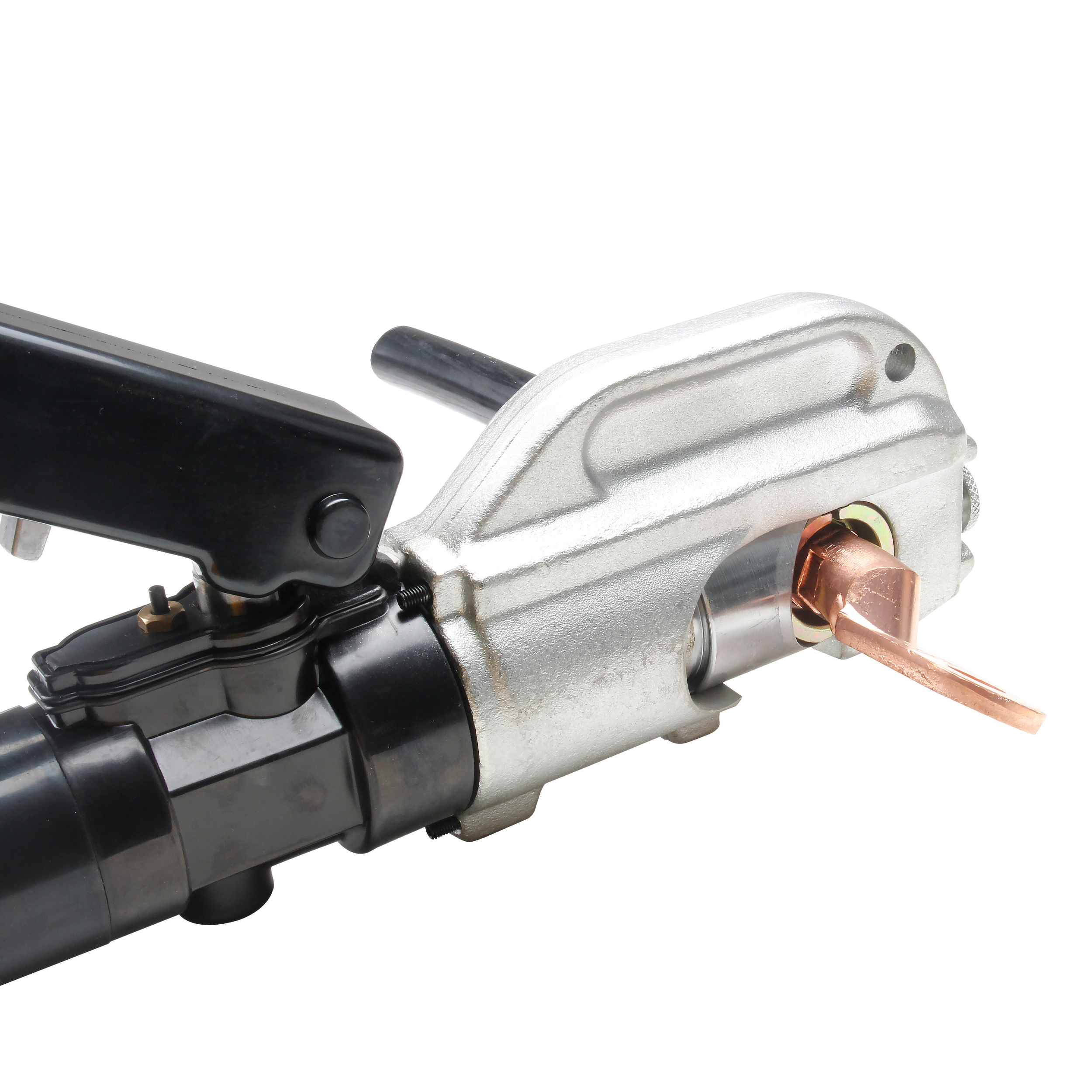

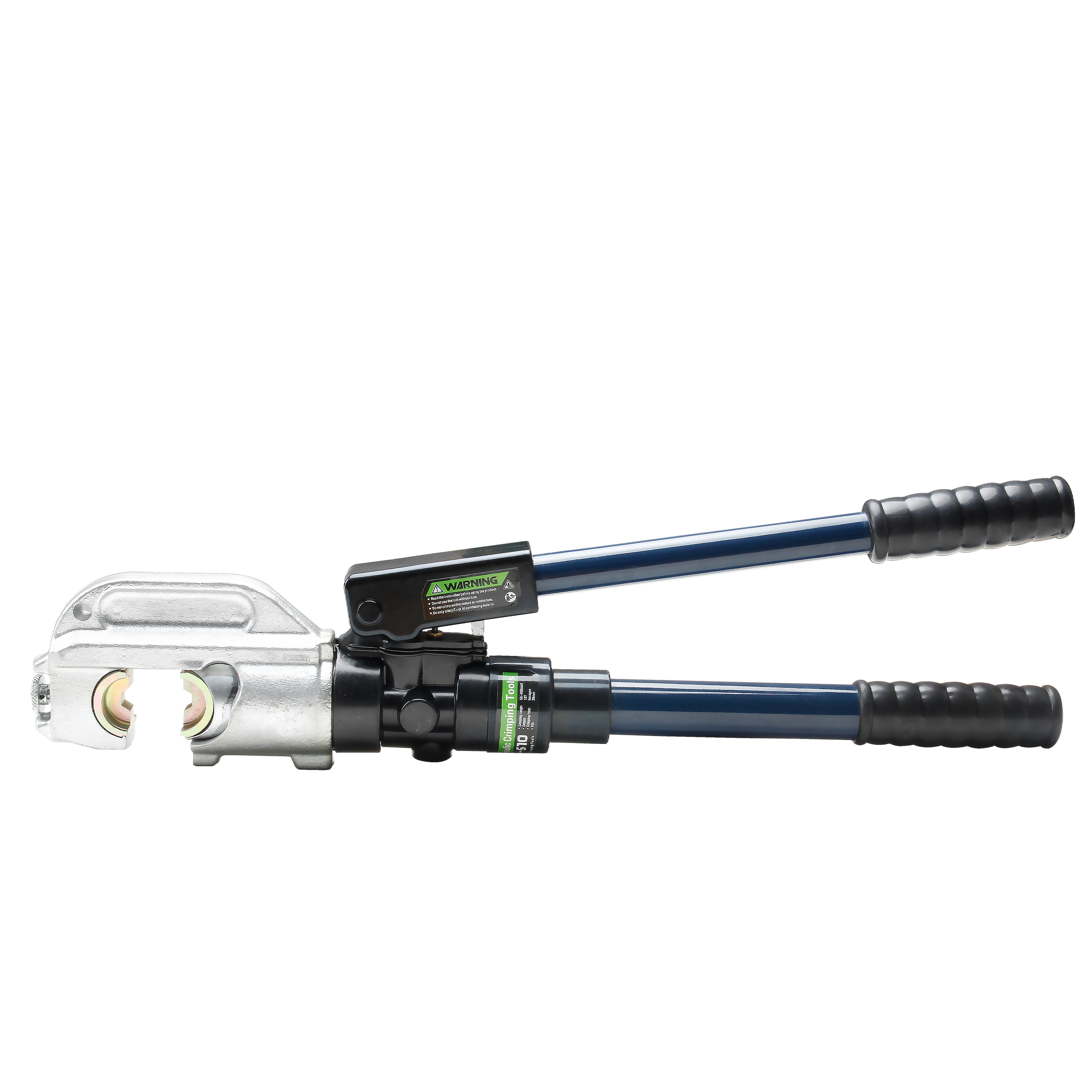

The EP-510 integrated hydraulic crimping tool is a semi-automatic solution designed for copper and aluminum terminals, with a crimping range of 50–400mm². Its C-shaped head and 180° rotatable clamp allow easy insertion and removal of terminals, providing flexible operation even in confined spaces.
Equipped with a built-in safety device and shockproof pressure gauge, the EP-510 ensures operational safety and reliable readings during vibration-prone work environments. The semi-automatic pressure relief and quick reset features make operation fast and simple, reducing operator fatigue and improving efficiency.

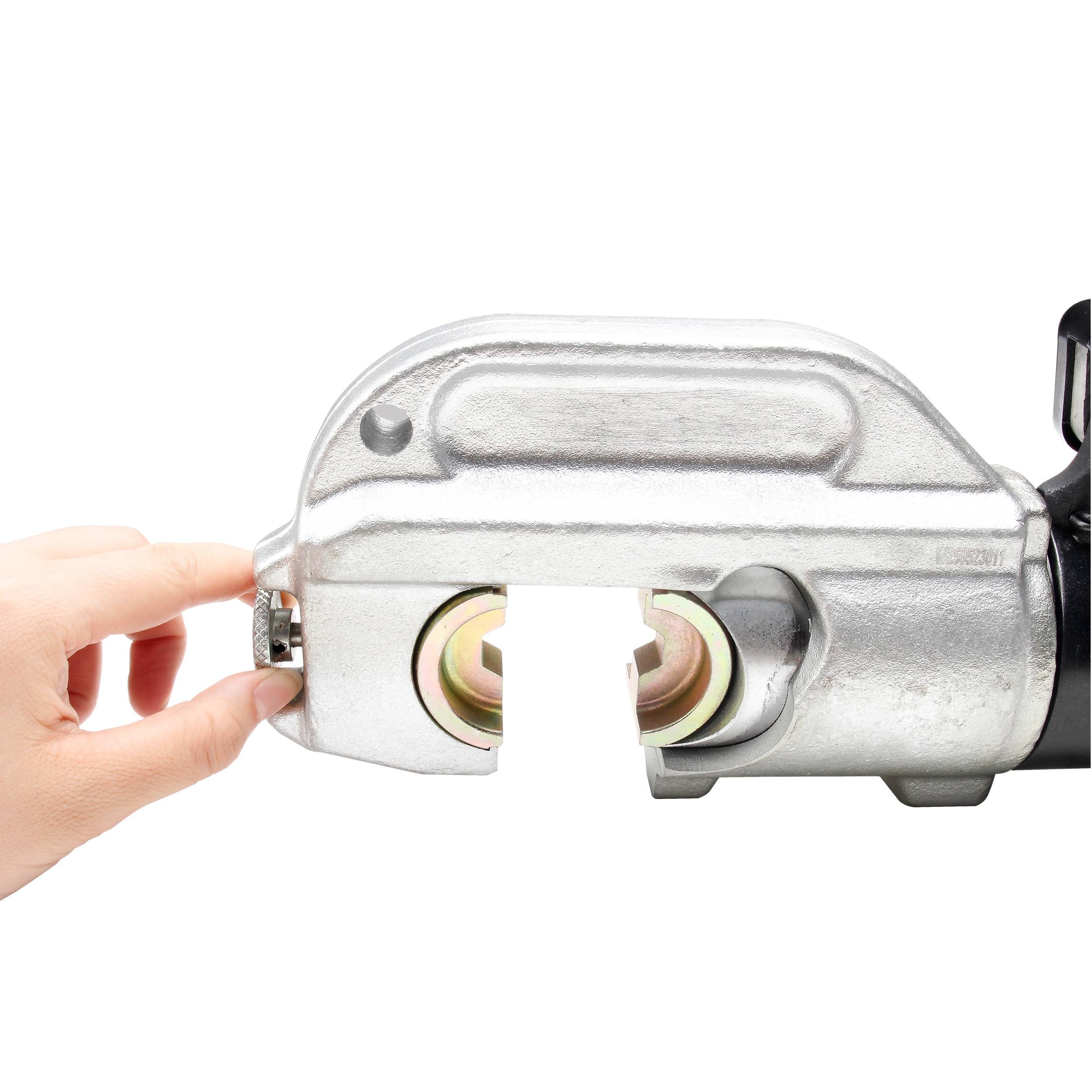

The high-quality steel construction of the C-shaped head and replaceable molds ensures firm and precise crimps. The insulated operating handle withstands up to 20kV for 5 minutes, making it suitable for high-voltage work. The upper mold can be replaced by pulling the latch, while the lower mold is easily replaced directly, providing versatility for different terminal sizes.
With a maximum pressure of 13T and standard crimp sizes from 50mm² to 400mm², the EP-510 is ideal for industrial, power, chemical, steel, and machinery applications, providing a reliable hydraulic crimping solution for electricians, technicians, and industrial operators.
| Model | EP-510 | Maximum pressure | 13T |
| Crimp range | 50-400mm² | Opening distance | 38mm |
| Crimping form | Hexagonal surround pressure | Net weight/ gross weight | 6.96kg/10.56kg |
| Standard mold | 50、70、95、120、150、185、240、300、400mm² | ||
Key Features
Semi-automatic hydraulic crimping tool for copper and aluminum terminals
Crimping range: 50–400mm²
C-shaped head with 180° rotation for flexible terminal placement
Built-in safety device and smart prompts for safe operation
Shockproof pressure gauge for stable readings in vibration-prone environments

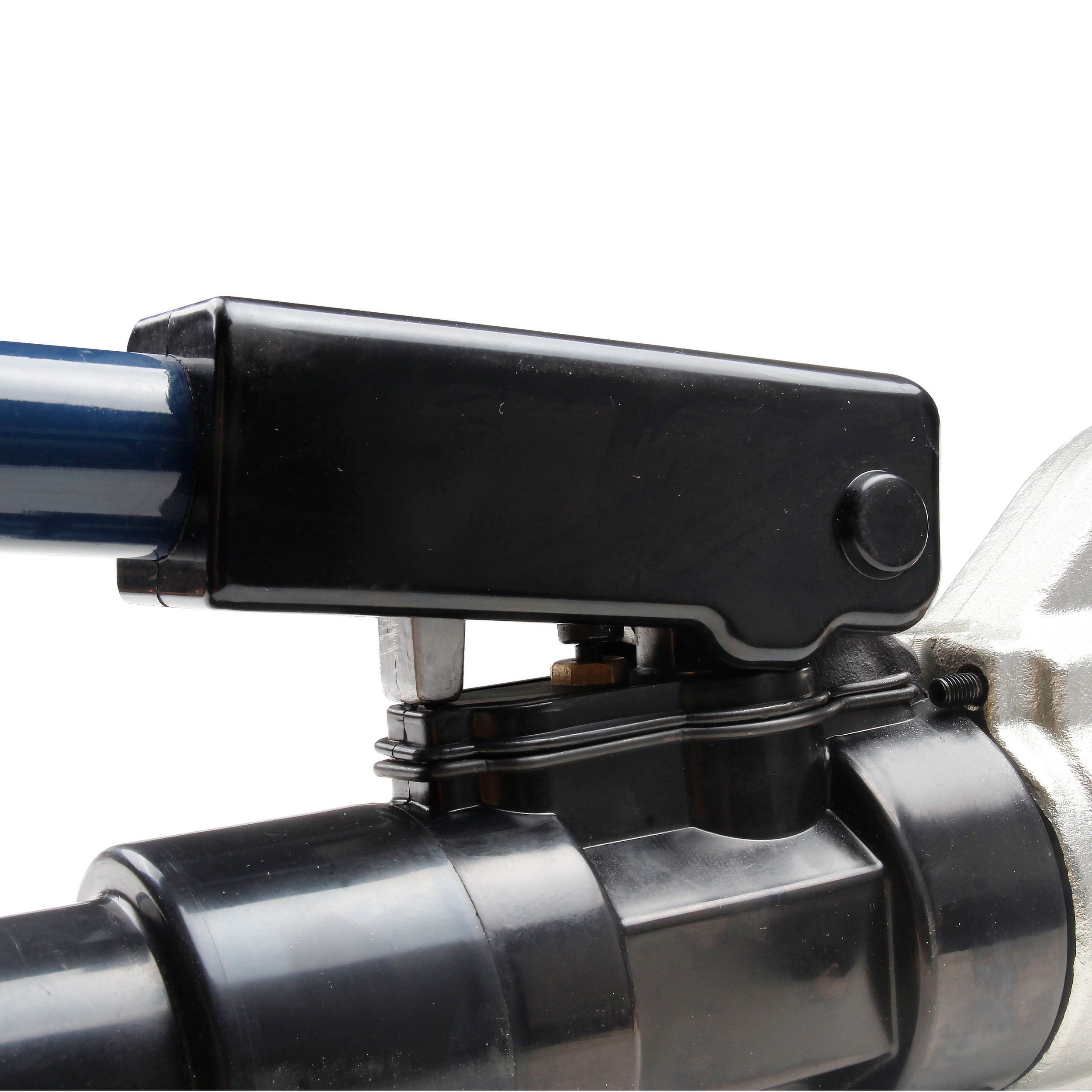

Quick semi-automatic pressure relief and reset
Replaceable upper and lower molds for versatile applications
High-quality steel construction for durable and precise crimps
Insulated handle withstands up to 20kV for 5 minutes
Maximum pressure: 13T
Standard crimp sizes: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²
Technical Specifications
Model: EP-510
Crimp Range: 50–400mm²
Crimping Form: Hexagonal
Maximum Pressure: 13T
Head Opening Distance: 38mm
Weight: Net 6.96kg / Gross 10.56kg
Standard Molds: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²
Handle: Insulated, semi-automatic operation

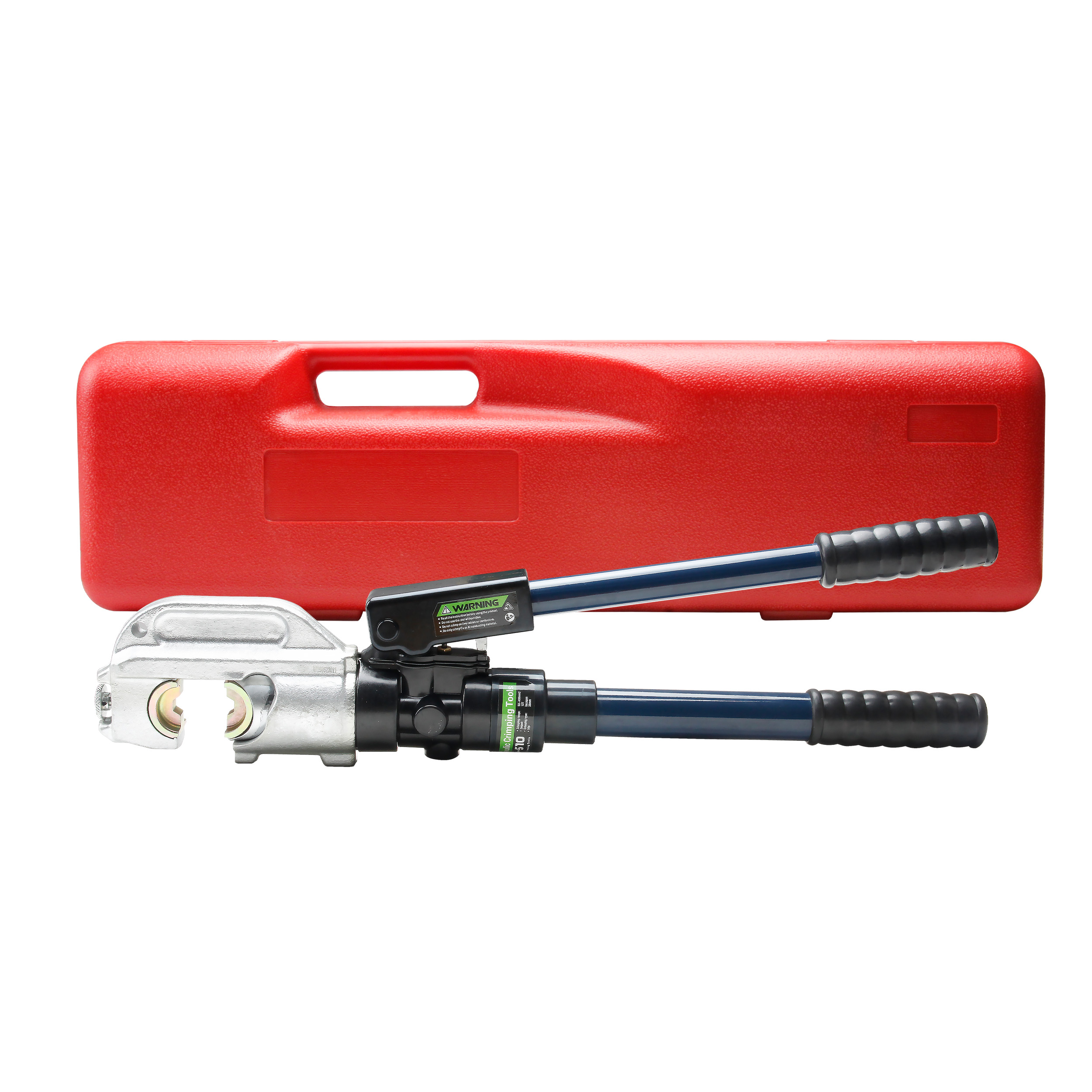

Packaging: Paper box
Applications
EP-510 hydraulic terminal crimper is suitable for a wide range of industries, including electric power, chemical, steel, machinery, and industrial projects. Ideal for electricians, technicians, and industrial operators requiring safe, semi-automatic hydraulic crimping of copper and aluminum terminals.
