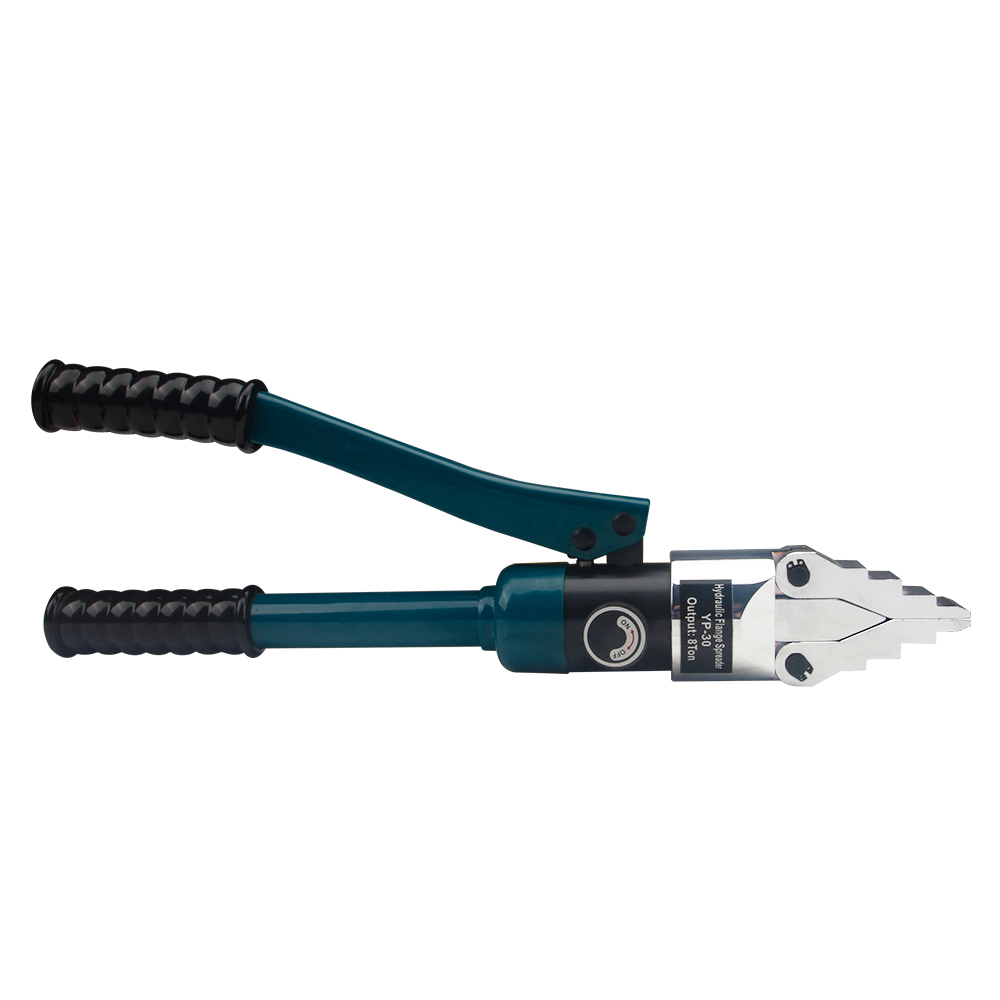

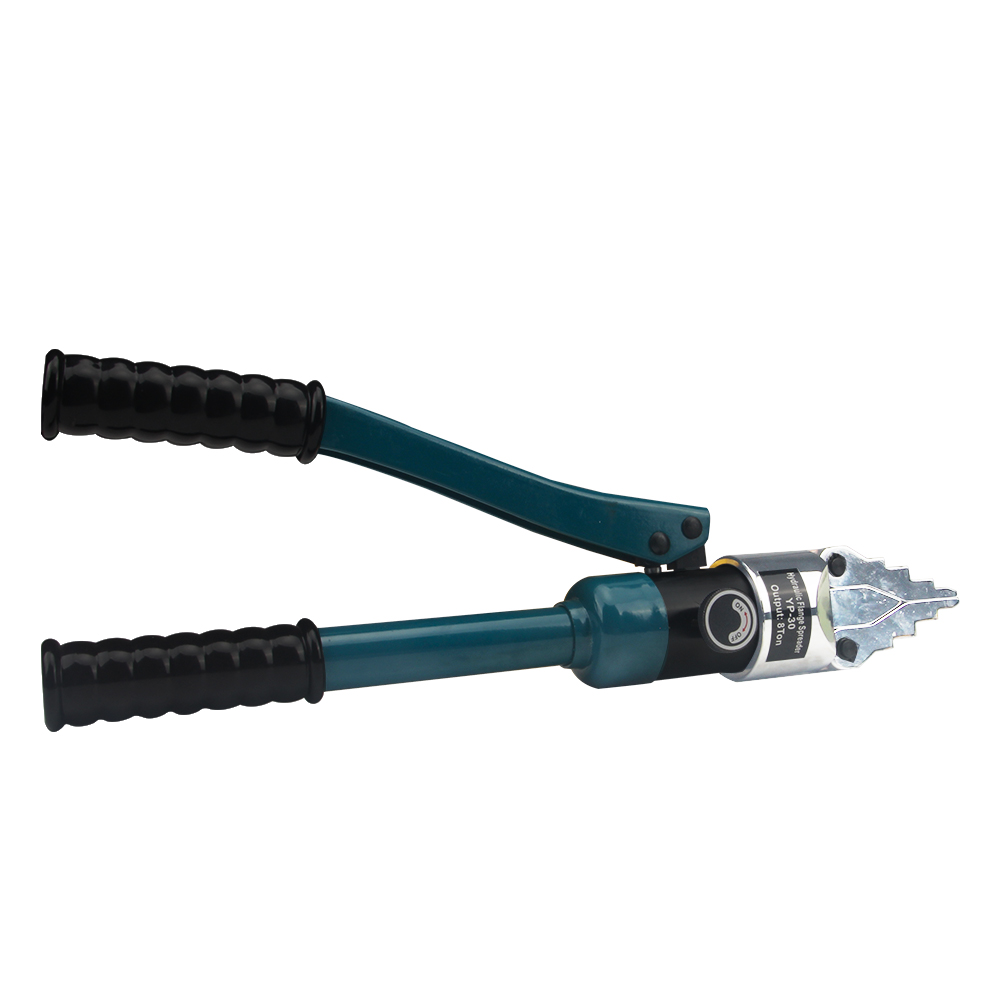

YP-30 8T Hydraulic Flange Spreader – Integral Manual Wedge Separator

Key Differentiators & Company Strengths Highlighted
Powerful 8-Ton Hydraulic Output – Generates strong, controlled force to separate stuck or corroded flanges quickly and safely, ideal for gasket replacement, pipe maintenance, or joint inspection without bolt damage.
Integral Manual Design – All-in-one portable unit with built-in pump and cylinder—no external hoses, tanks, or separate pumps needed—enables true one-person, on-site operation for maximum convenience and efficiency.

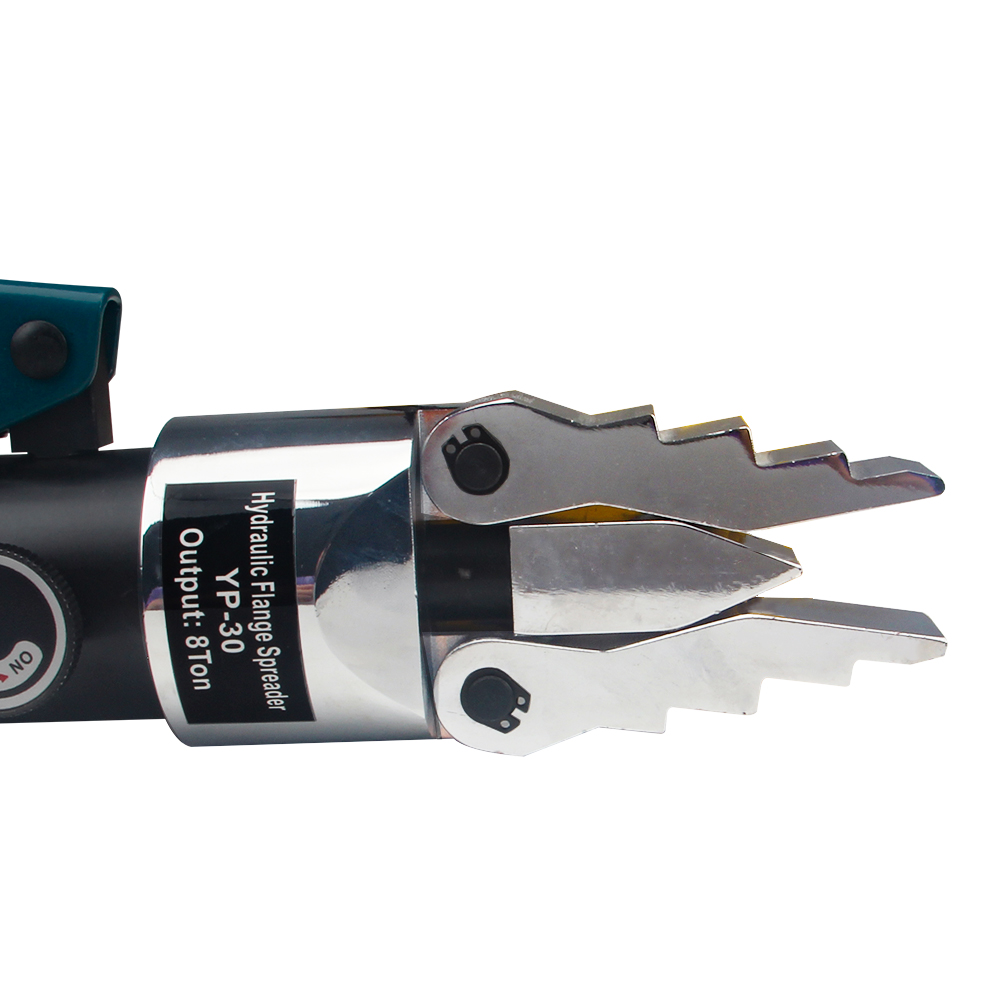

Minimal Insertion Gap & Wide Spread – Starts with just 11mm top gap (cusp/wedge tip thickness ~10-11mm), expands up to 50-60mm (tip spread ~30-36mm max in various specs), accommodating tight access points while providing ample separation for most standard flanges.
Premium Alloy Steel Construction – Heat-treated pliers/nippers and wedge heads deliver superior tension, wear resistance, and deformation resistance—ensuring long-term durability even under repeated high-pressure use.

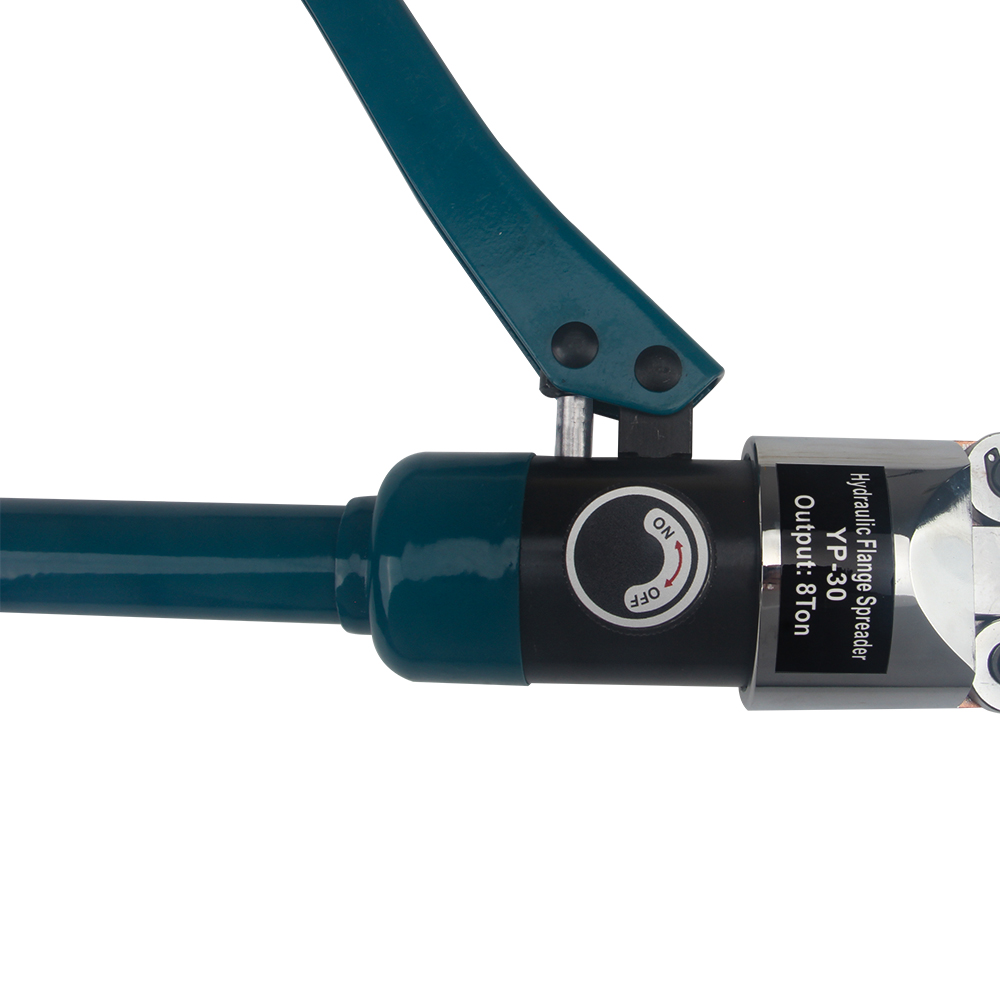

User-Friendly & Safe Features – Ergonomic fixed + free handles for comfortable, effortless grip during long sessions; quick pressure relief valve (clockwise tighten, counterclockwise release) with automatic return; stable integral hydraulic system prevents leaks and ensures smooth, controlled spreading.
Compact & Lightweight – Approx. 3kg weight, easy to carry and maneuver in confined industrial spaces—perfect for field work without fatigue.

Specifications (Optimized from Consistent Product Data)
Model: YP-30
Output Force: 8 Ton
Wedge Tip / Cusp Thickness: 10-11mm
Max Spread at Tip: 30-36mm (expansion distance)
Max Overall Opening Distance: 50-60mm
Operation: Manual integral hydraulic (hand pump)
Weight: Approx. 3kg
Material: High-strength alloy steel (heat-treated)

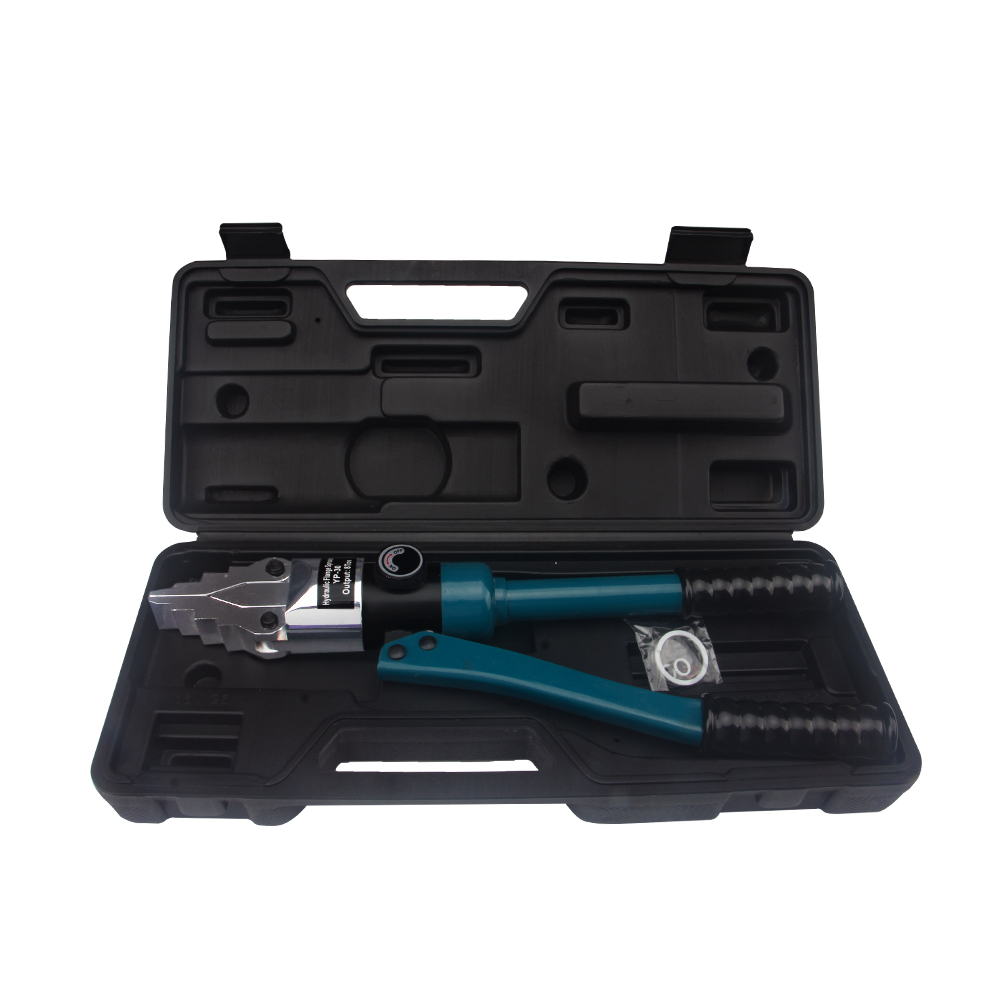

Includes: Tool, carrying case/box/bag for secure storage and transport

How to Use (Simple & Safe Steps)
Ensure the socket/flange gap >10-11mm for insertion.
Insert the wedge tip between the flanges.
Tighten clockwise on the pressure switch/handle to pump and expand.
Spread gradually to the desired gap (use safety blocks if needed for larger separations).
Release counterclockwise for quick relief and automatic return.
Remove the tool once separation is complete.

Applications (Proven Industrial Use)
Pipeline maintenance, gasket changes, and flange joint disassembly
Oil & gas, petrochemical, power plants, shipbuilding
Heavy machinery repair, valve/pump servicing
Any scenario requiring the safe separation of bolted flanges without hammers or risky prying

Rely on YP-30: Engineered for professionals who demand tools that combine power, portability, and precision—backed by our commitment to superior craftsmanship and customer satisfaction. Perfect for efficient, damage-free flange work every time!
